Linea DH-1100 Encapsulation System

A new addition to the ever-popular Linea range, the Linea DH- 1100 Encapsulation System enables you to laminate up to A0 in size. It also features a take-up mechanism for cold lamination and encapsulation.

SKU: DH-1100 Category: Tag:


A new addition to the ever-popular Linea range, the Linea DH- 1100 Encapsulation System enables you to laminate up to A0 in size. It also features a take-up mechanism for cold lamination and encapsulation.

Linea encapsulation systems save money and time by eliminating the need to outsource to print finishers, and keeping control of the job from print to finish.  Lamination and encapsulation protects and preserves all kinds of wide format prints from spills, grease, chemicals, rain, fingerprints, abrasions, creases, wrinkles and sunlight.  Lamination and encapsulation enhances almost any type of wide format print by deepening and brightening colours and improving contrast.

At Design Supply, an authorised Vivid Laminating Technologies reseller,  we work closely with manufacturer to provide the best solutions available to get the job done for your business and maximise your opportunities. With over 28 years of experience in the large format market, we offer expertise and knowledge in tailoring the exact solution for your specific application.


Linea Encapsulation Systems


Linea Encapsulation Systems are designed for busy office environments including schools, councils, copy shops or any general business.  Linea  Encapsulation Systems are designed to work the way you do – non-stop.  Designed to handle everything from small cards to long banners, posters, notices, maps, signage, photos and more, Linea  Encapsulation Systems are ideal for prolonged, continuous runs. Intelligently designed, Linea Encapsulation Systems are adaptable, compact, and include smart features with simple, easy-to-use controls.

Available in four sizes from A3 to A0, Linea Encapsulation Systems keep your finishing costs in-house, saving time and costly outsourcing. Solidly built from all-metal components with heavy duty motors and large diameter rollers to withstand the rigours of continuous operation and a tough working schedule, Linea Encapsulation Systems reliably deliver a superb finish quality, to enhance and protect.

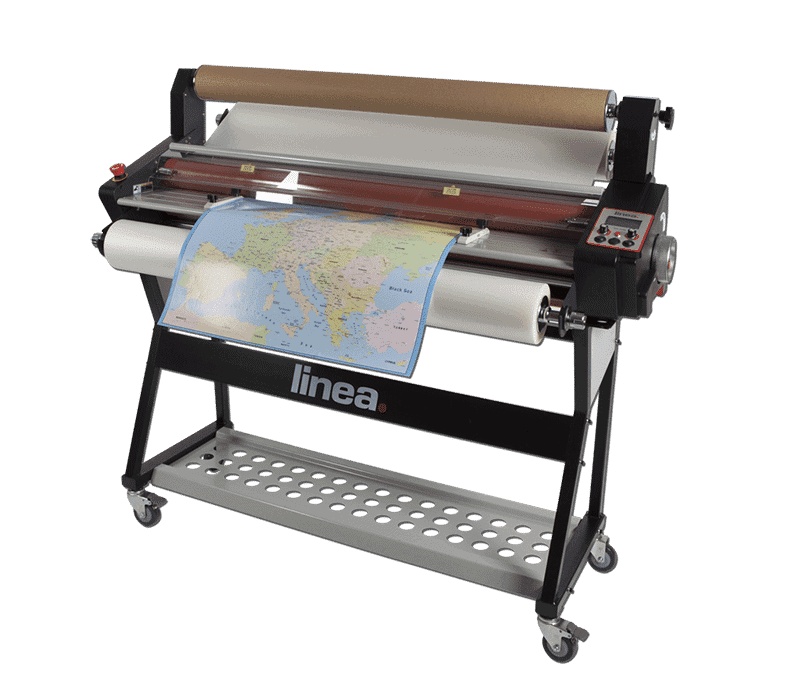

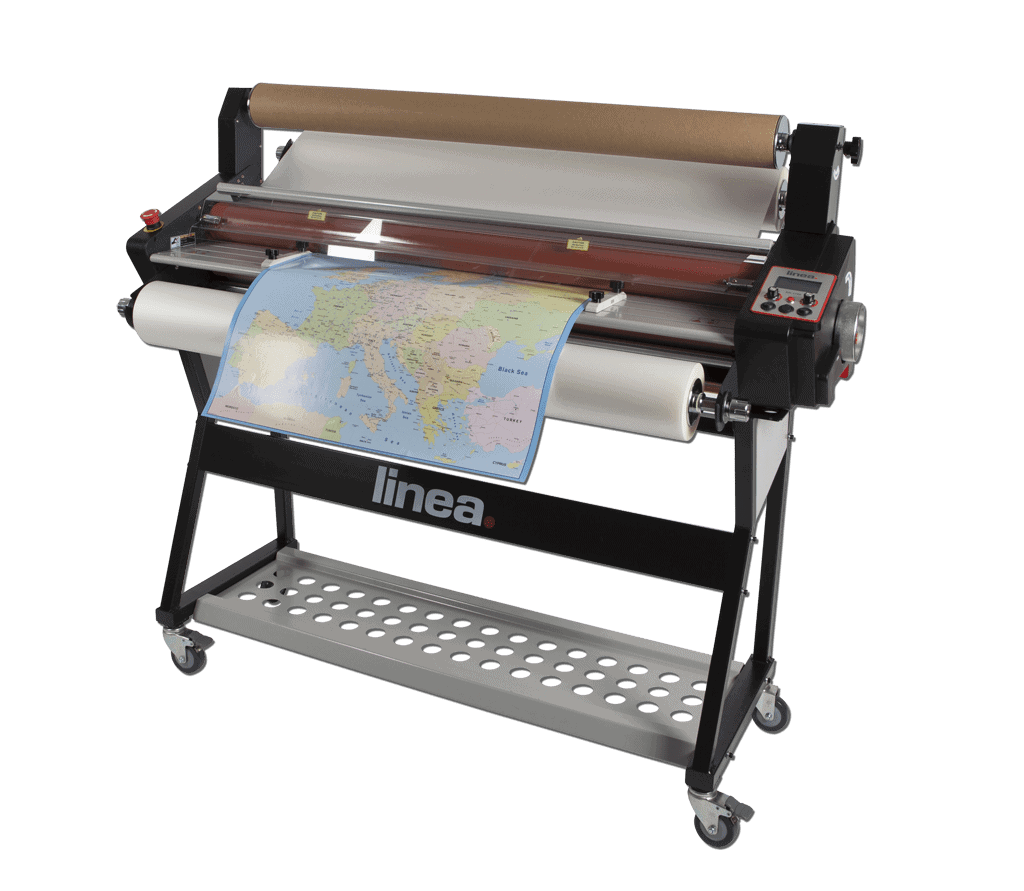

The Linea DH-1100 Encapsulation System is an A0, desktop and standalone version. The laminating film is supplied on a roll, allowing you to continuously feed through your documents at a much faster rate than with a traditional pouch machine.  Documents are fed continuously through the machine and are laminated on both sides. The results are impressive and take no time at all to achieve. Simply choose the encapsulating film (matte or gloss) to use, depending on the thickness required.  The rollers apply even pressure to your prints, producing perfect, permanent encapsulation every time. Simple and complete control takes virtually no training, yet offers complete control over every job. Safety is standard, including a safety guard and a separate hand safety hand trimmer to ensure a safe working environment.

A stand with wheels and a film holder tray is included for convenience.   Additional mandrels are available, so you can keep both gloss and matte finishes readily available, or different film thicknesses depending on requirements.


The Linea DH-1100 Encapsulation System encapsulates A0-sized documents at a maximum encapsulating speed of 1.6 meters per minute.  The Linea DH-1100 is a continuous roll fed system and accepts films from 35 to 250 microns thick, with a maximum encapsulation film width is 1080mm.  The   maximum mounting thickness is 5mm.  The Linea DH-1100 has a warm-up time of 10 minutes.  The control panel includes adjustable speed and temperature, with a maximum encapsulating speed of 1.6 meters per minute and a temperature range setting from 0 – 140°C.  The control panel also includes an anti jam mode, and an easy load override. The Linea DH-1100 is compatible with a film core size of 57mm/2″ and  75mm/3″.  For convenience, additional mandrels are also available.

The Linea DH-1100 Encapsulation System is compatible with encapsulation film from 35 to 250 microns thick, including Vivid Laminating Technologies own brand, BOSS premium encapsulating film, in gloss and matte, with 2″/57mm and 3″/77mm cores.   The Linea DH-1100 is also compatible with pressure sensitive film lamination and an optional Take-up unit for pressure sensitive unit is available.  Our media specialists at Design Supply have the expertise to help you determine the best solutions for your particular encapsulating needs.

Count on dependable support to create the best image possible from Vivid Laminating Technologies and Design Supply. For added peace of mind, Linea Encapsulation Systems features a 1 year warranty. Ask us at Design Supply, and we can tailor the best solution possible for your needs.

Linea DH-1100 Encapsulation System Specifications

Encapsulating Speed (mm/min / inches/min) 1600 / 63
Max. Width (mm / inches) 1070 / 42
Max. Encapsulating Width (mm / inches) 1070 / 42
Mounting Thickness (mm / inches) 5 / 0
Warm-up Time (mins) 15
Laminating Temperature Range (°C/°F) 0-140 / 32-284
Film Core (mm / inches) 57 & 77 / 2 & 3
Power Supply AC (v, 50Hz) 220/240
Power Supply AC (v, 60Hz) 240
Power Supply Required (Amps)
Power Consumption (W) 2700
Dimensions – Width (mm / inches) 1370 / 54
Dimensions – Depth x Height (mm / inches) 420×310 / 17×12
Gross Machine Weight (Kg / lbs) 200 / 441
Warranty 1 Year


Linea DH-1100 Encapsulation System

Stand on wheels with film holder tray

Hand Safety Trimmer

1 year warranty


Additional Mandrels

Take-up unit for Pressure Sensitive Film


Gloss encapsulating film: (57mm/2″ or 77mm/3″ cores), up to 1080mm wide, 35 to 250 microns

Matte encapsulating film:  (57mm/2″ or 77mm/3″ cores), up to 1080mm wide, 35 to 250 microns

Pressure sensitive lamination film: (57mm/2″ or 77mm/3″ cores), up to 1080mm wide, 35 to 250 microns


Linea Encapsulation Systems Brochure (DH-1100, DH-650, DH-460, DH-360


Vivid  Laminating Technologies Ltd, a UK based company,  are Europe’s leading designer and manufacturer of laminators. Committed to developing, improving and upgrading laminating products, Vivid Laminating products deliver the best quality, the highest levels of reliability, and the most efficient ways of laminating.

Vivid Laminating Technologies design and manufacture laminating, finishing and binding systems along with a full range of supplies including laminator film, laminating pouches and binding consumables.  The laminating systems products include Peak, Matrix Duo (single and double sided laminating and encapsulation systems), Linea (encapsulation systems), Easymount (wide format laminating and mounting systems), and Matrix ranges. Laminating supplies products are the Boss range.  The finishing systems products include Trimfast, Magnum, and Easycoat, Easyguide ranges. The binding systems products includes Magnum range and the binding supplies products are the Imagemaker range.

Vivid Laminating Technologies are ISO 14001 registered, committed to compliance with relevant environmental legalisation and to the adoption to practices and procedures that reduce the risk of environmental damage or harm.
