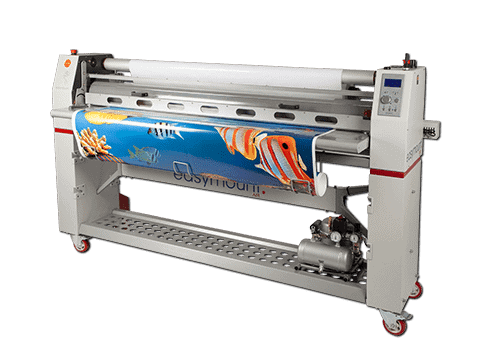

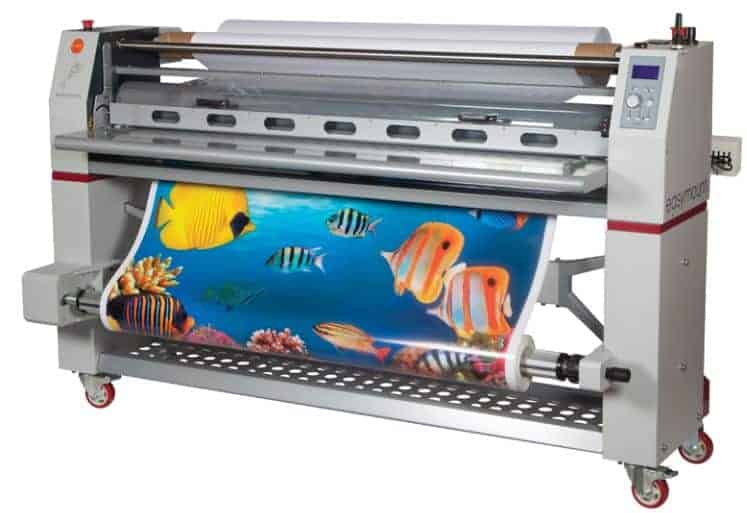

Easymount Air EM-A1600SH Wide Format Laminating & Mounting System


The award-winning Easymount Air EM-A1600SH is a revolutionary product in the wide format lamination and mounting market.   Ideal for Sign Makers and Print Finishers, the Easymount Air is multi-functional, ideal for mounting and laminating posters, graphics, signs, pop-up displays, and outdoor signage, mounting prints to board, and applying vinyls, tapes and adhesive films.  Now  you can mount and laminate with incredible accuracy and speed. The Easymount Air EM-A1600SH has a maximum film width of 1600mm/63 inches and a mounting thickness of 30mm/1 3⁄16 inch.

Easymount wide format laminating systems save money and time by eliminating the need to outsource to print finishers, and keeping control of the job from wide format print to wide format finish.  Lamination protects and preserves all kinds of wide format prints from spills, grease, chemicals, rain, fingerprints, abrasions, creases, wrinkles and sunlight.  Lamination enhances almost any type of wide format print by deepening and brightening colours and improving contrast.

The Easymount range of laminating systems include the following wide format sizes: 650mm, 880mm, 1200mm, 1400mm, 1600mm, 1650mm, and 2100mm (26, 34, 47, 55, 63, 65 and 83 inches). Easymount wide format laminating systems are available in cold (uses pressure to laminate, good for heat sensitive originals such as vinyls), single hot (uses heat to laminate, single-sided, good for wide format originals that can withstand heat) , and double hot (uses heat to laminate, double-sided good for wide format originals that can withstand heat and require lamination on both sides).

At Design Supply, an authorised Vivid Laminating Technologies reseller,  we work closely with manufacturer to provide the best solutions available to get the job done for your business and maximise your opportunities. With over 28 years of experience in the large format market, we offer expertise and knowledge in tailoring the exact solution for your specific application.


Wide Format Laminators

Wide Format Laminators Overview


Mount and laminate simultaneously with incredible accuracy and speed with the award-winning Easymount Air EM-A1600SH wide format laminating system.  Pneumatic air pressure controls the laminating rollers, allowing the roller to adjust to the exact thickness and pressure required, delivering faster production times, more accurate board feeding, protection for soft materials like Corex, Foamex or fluted boards and eliminating the need for mechanical wedges.

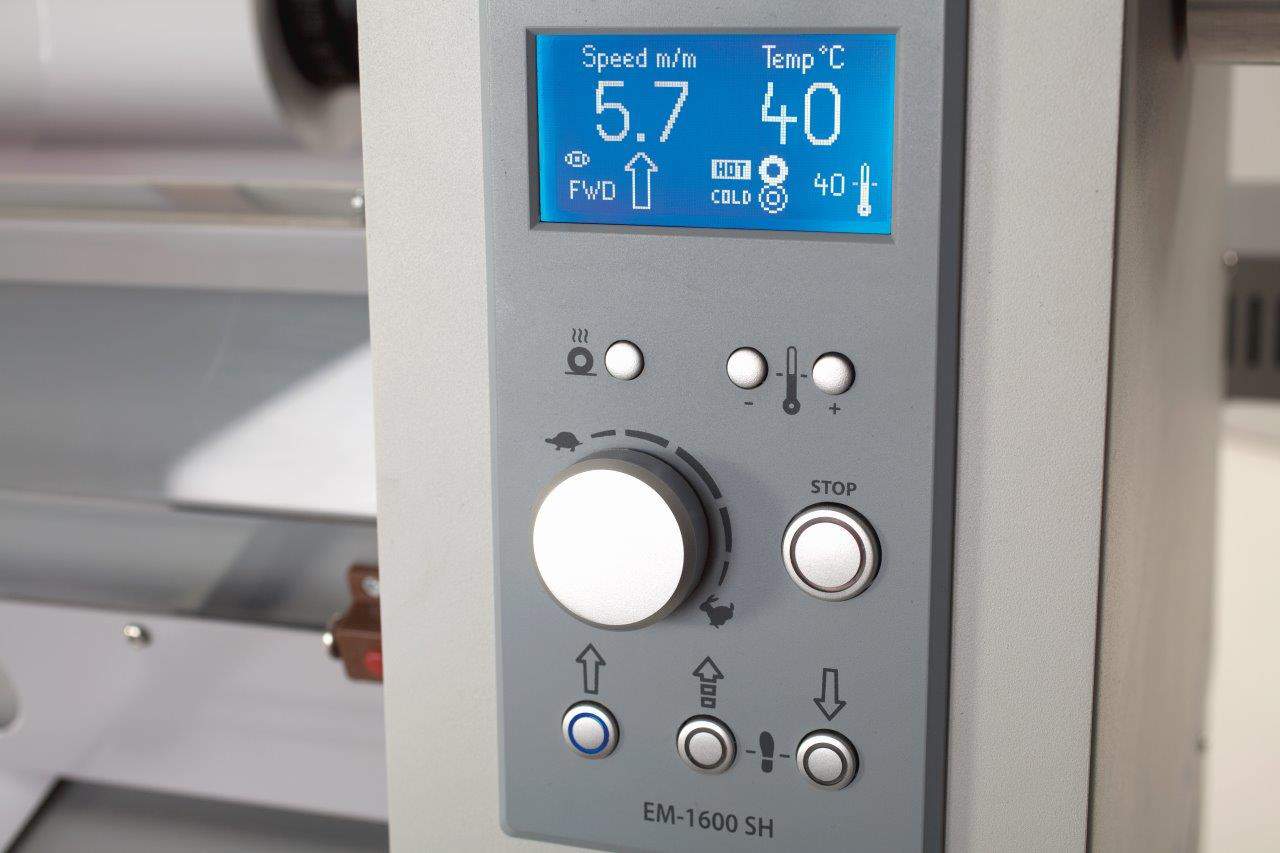

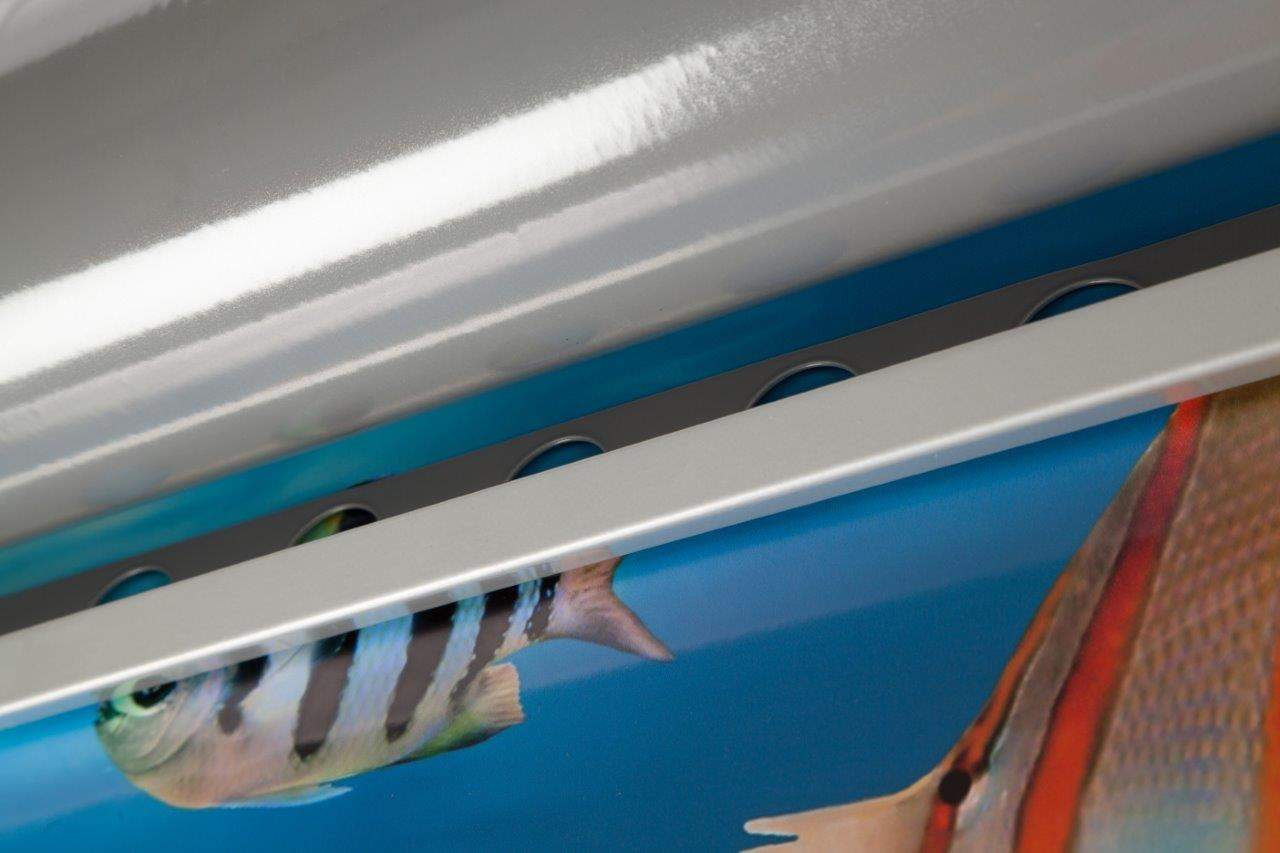

The Easymount Air EM-A1600SH wide format laminating system is easy to operate. New swing out arms make loading laminate and film easier. Whether loading the front mandrel with vinyl or the rear mandrel with laminate, both swing out, making it easier to load.   For controlled operation, a variable speed control and a foot pedal are included, as well as a handy reverse mode. An easy to use control panel includes multiple language support.

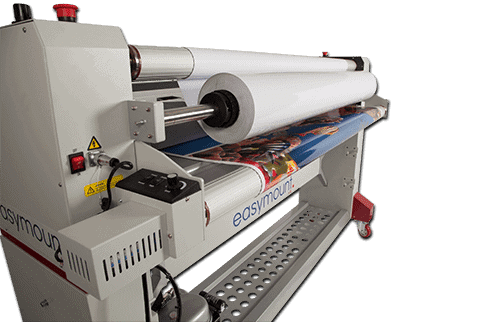

The Easymount Air EM-A1600SH is solidly built from heavy duty steel and is the ideal solution for sign makers, wide format printers and vehicle graphics companies.  With a maximum width of 63-inches and featuring a release liner take-up, the Easymount Air EM-1600SH can be outfitted with an  optional rear take-up unit and  an optional silent compressor.


 The Easymount Air EM-1600SH wide format laminating system has a laminating speed  of up to  10m/33ft per minute and able to mount to boards up to  1 3⁄16 inches in thickness.  The EM-A1600SH has a warm-up time of ten minutes, and has a laminating temperature range of 0-60ºC/32-140ºF. The roller diameter is 130mm/5 inches, and the pressure adjustment is pneumatic.   The film core is 77mm/3 inches. The Easymount Air EM-A1600SH wide format laminating system features a multilingual digital control panel, in English, Spanish, Italian, French, and German languages.

Easymount Air uses a patented pneumatic air technology that allows the rollers to float down, protecting soft materials such as Corex, Foamex and fluted boards from being inadvertently crushed. The large 130mm/5-inch adjustable cambered rollers evenly distribute pneumatic pressure across the full width of the system. When the rollers achieve the correct board thickness, the roller can be locked in place to keep the required gap, making board feeding more accurate and eliminating the need for mechanical wedges.

The Easymount Air  EM-A1600SH can also mount prints and vinyl to many different materials, including aluminum substrate, fluted boards such as Corex, foam boards and even glass. The system can also be used to apply tapes and adhesive film.

Optional accessories for the Easymount Air EM-A1600SH wide format laminating system include a rear take up unit, silent compressor, additional mandrels and a flow table.

The Easymount Air EM-A1600SH wide format laminating system handles a full range of cold pressure and thermal laminates including matte, gloss, soft touch,  sandtex and anti-graffiti.  The EM-A1600SH is compatible with Vivid Laminating Technologies own brand, BOSS range of cold and thermal laminating films suitable for aqueous and solvent-based inkjet print, as well as fast-curing types such as UV and HP Latex.  BOSS media includes mounting films, pressure sensitive laminating films (gloss, ‘crystal’ matte, satin matte, flat matte in 80 and/or 100 micron) 100 micron UV pressure sensitive over laminates (gloss and crystal matte), Sandtex pressure sensitive film and release paper (Sandtex 150 micron, Glitter finish 220 micron) and Anti-Graffiti laminating films (Dry Wipe (UV) and Anti-Graffiti (UV) Outdoor).  Our media specialists at Design Supply have the expertise to help you determine the best solutions for your particular laminating and mounting needs.

Count on dependable support to create the best image possible from Vivid Laminating Technologies and Design Supply. For added peace of mind, Easymount Air EM-A1600SH Wide  Format Laminating system features a 1 year warranty. Ask us at Design Supply, and we can tailor the best solution possible for your needs.


The Easymount Air 1600 Single Hot Wide Format Laminator received the Wide Format  & Signage  Top Products Award 2016 in the “Finishing: Laminating Equipment” category.  The 2015 British Sign Awards voted the Easymount Air 1600 Single Hot Wide Format Laminator “Highly Commended”.

Laminating Speed (m/min / feet/min) 10 / 32
Max. Width (mm / inches) 1600 / 63
Mounting Thickness (mm / inches) 30 / 1 ³⁄16
Roller Diameter (mm / inches) 130 / 5
Warm-up Time (mins) 10
Hot Roller Heater System Internal Infrared
Laminating Temperature Range (°C/°F) 0-60 / 32-140
Control Panel Digital
Pressure Adjustment Pneumatic
Film Core (mm / inches) 77 / 3
Power Supply AC (v, 50Hz) 220/240
Power Supply  Required (Amps) 13
Power Consumption (W) 1500
Dimensions – Width (mm / inches) 2190 / 86
Dimensions – Depth x Height (mm / inches) 650×1255 / 26×50
Gross Machine Weight (Kg / lbs) 245 / 540
Warranty 1 Year


Easymout Air EM-A1600SH Wide Format Laminating System

Dust Cover

1 year warranty


Silent Compressor

Additional Mandrels

Take-up Unit

Flow Table



Easymount Air EM-A1600SH Mounting and Laminating System Datasheet

Easymount Wide Format Laminating Systems Brochure


Vivid  Laminating Technologies Ltd, a UK based company,  are Europe’s leading designer and manufacturer of laminators. Committed to developing, improving and upgrading laminating products, Vivid Laminating Technologies products deliver the best quality, the highest levels of reliability, and the most efficient ways of laminating.

Vivid Laminating Technologies design and manufacture laminating, finishing and binding systems along with a full range of supplies including laminator film, laminating pouches and binding consumables.  The laminating systems products include Peak, Matrix Duo (single and double sided laminating and encapsulation systems), Linea (encapsulation systems), Easymount (wide format laminating and mounting systems), and Matrix ranges. Laminating supplies products are the Boss range.  The finishing systems products include Trimfast, Magnum, and Easycoat, Easyguide ranges. The binding systems products includes Magnum range and the binding supplies products are the Imagemaker range.

Vivid Laminating Technologies are ISO 14001 registered, committed to compliance with relevant environmental legalisation and to the adoption to practices and procedures that reduce the risk of environmental damage or harm.
