Raise3D E2 3D Printer

The Raise3D E2 3D printer is an intuitive, powerful desktop 3D printer that designed for maximum usability and high quality prints.   Precise, reliable, and affordable, the E2 3D printer is feature-rich and compatible with a variety of materials.



Category: Tag:

Description

The Raise3D E2 3D printer is an intuitive, powerful desktop 3D printer that designed for maximum usability and high quality prints.   Precise, reliable, and affordable, the E2 3D printer is feature-rich and compatible with a variety of materials.

Design Supply, an Accredited Raise3D Partner, works closely with Raise3D to provide the best solutions available to get the job done for your business and maximise your opportunities. With more than 30 years of experience in the large format printer market, Design Supply offers expertise and knowledge in tailoring the exact solution for your specific application.

VIDEOS

Design Supply 3D Printers

Raise3D E2 3D Printer

KEY FEATURES

The award-winning E2 3D printer from Raise3D is a multi-purpose tool for manufacturers, professionals and education. E stands for Easy-to-use, Engineering and Education, positioned for the professional or entry –level industrial market.   Designed to sit either on a desk or in the production area of a manufacturer, the E2 is simple and robust.

The Raise3D E2 3D printer is designed to be simple and robust.  The number of parts has been minimized to improve reliability and ease maintenance.  The E2 Printer is driven by powerful open-source RepRap firmware with Raise3D enhancements.  The electronics are based on Duet electronics with Raise3D optimisation.  Rich interface features developed for the firmware make it intuitive and easy to use.

The Raise3D E2 3D printer is compatible with a wide range of filaments, including flexible filaments ( TPU 60A), making it the top choice for any industry producing parts with such materials.  As an industrial-grade printer, easy to operate and work 24/7 with consistent quality and performance, the E2 is ideal for producing jigs and fixtures, spare parts, small batches and flexible parts.

SPECIFICATIONS

The Raise3D E2 3D printer has a maximum print volume of 330mm x 240mm x 240mm.  The E2 3D Printer includes Independent Dual Extruders (IDEX) enabling Mirror and Duplicate printing modes, delivering multiple prints simultaneously. Mirror Mode produces 3D models and their inverse simultaneously, increasing productivity and reducing print time.  The Duplication Mode uses both extruders in synchronised printing, doubling production capabilities. Improvements to the extruder with a reduced feeding path result in improved flexible printing, including over a 200% increase in printing speed with flexible material compared with standard printers. Extremely soft material like elastic TPU 60A is printable, because the feeding path guide goes directly up to the feeding gear contact point.

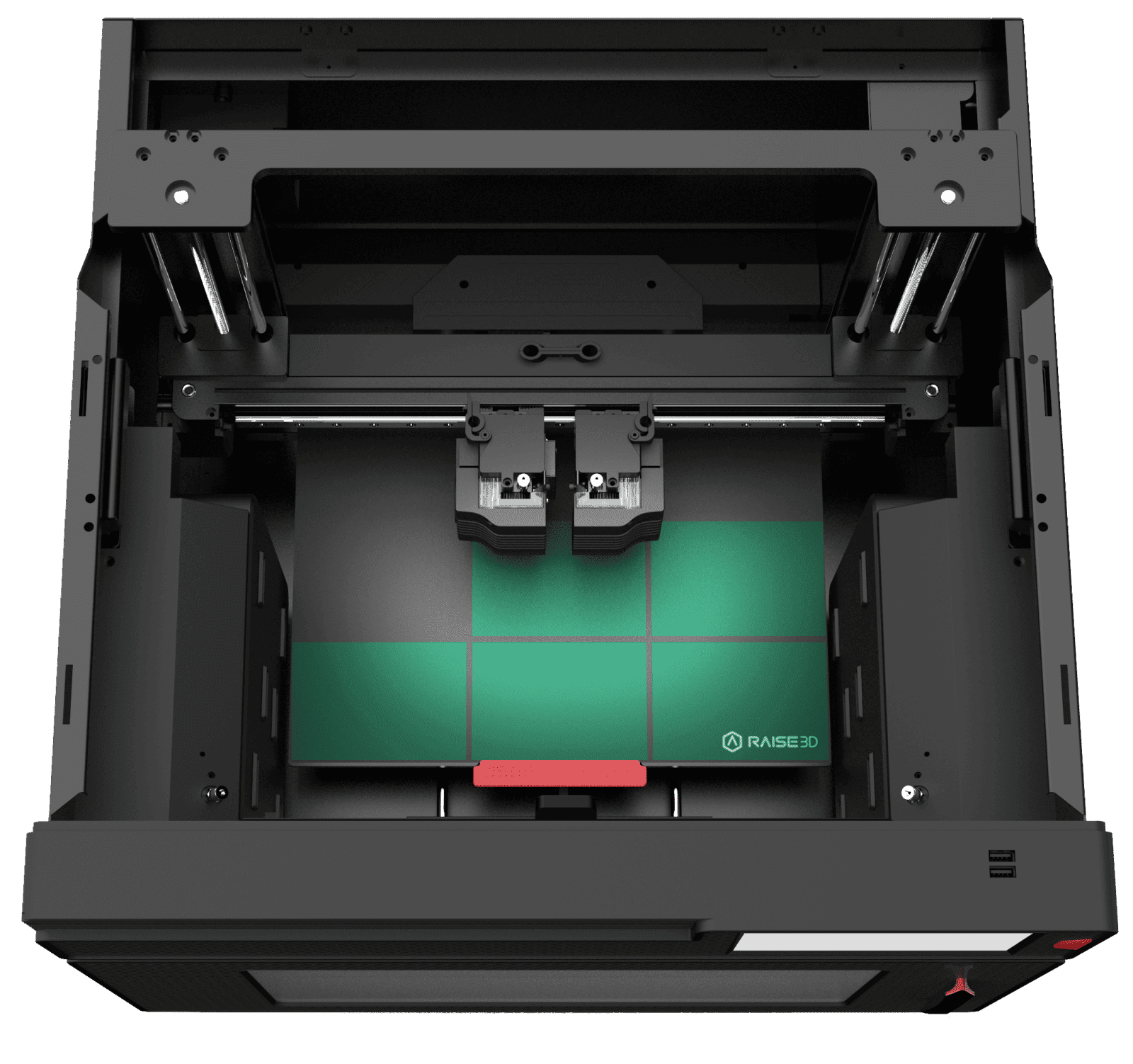

The E2 3D printer features Auto Bed Levelling , which automatically scans the print bed’s flatness and adjusts accordingly. Based on an electromagnetically driven probe with a high precision optical sensor, the ABL delivers high repeatability, with a repeat accuracy within ±0.006mm.  ABL confirms the printing platform is level whenever preparing to print and uses intelligent levelling, detecting only the printing area, which saves time and increases accuracy.  ABL maintains the distance between the print nozzles and bed, creating a uniform build area, eliminates temperature drifting, and improves bed adhesion and print quality by allowing the extruder to adjust to even minor surface contour changes.

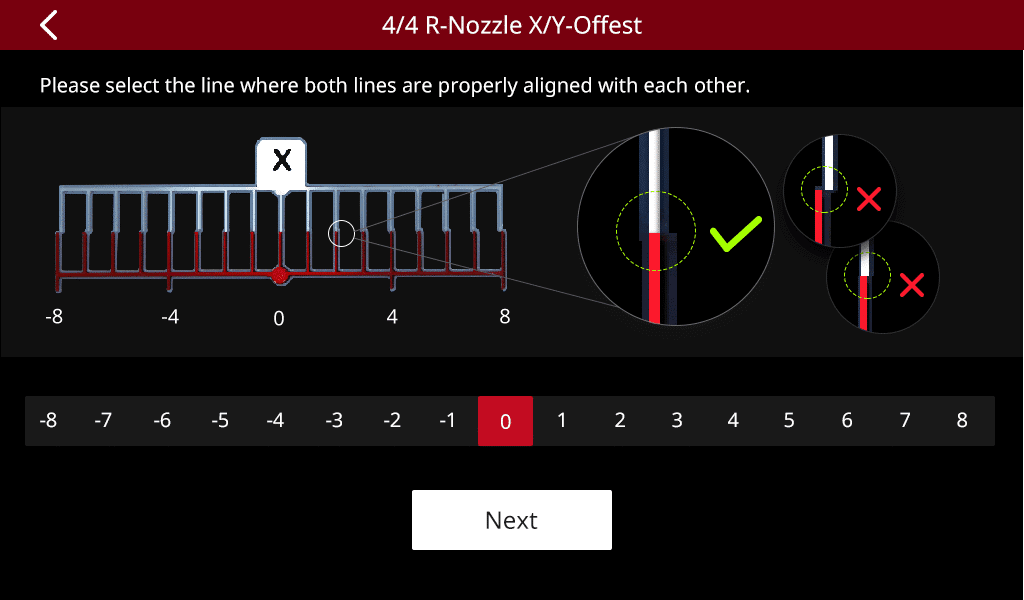

Spend less time calibrating and more time printing with the Raise3D E2 3D Printer, with the industry first Video-Assisted Offset Calibration Guide.  This built-in video and picture assisted wizard makes the whole calibration process easier, by observing the printed part and guiding the user to select the options and the printer automatically calculates the offset value.

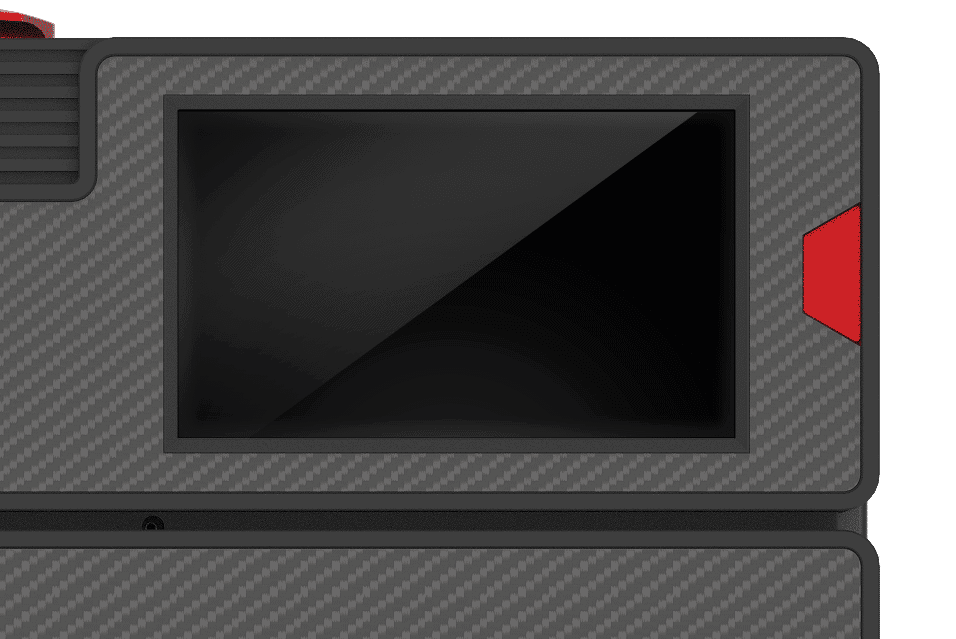

Safety feature include automatic detection of opening a door, immediately pausing the print and keeping users safe, ideal while printing in public places and in schools.   A Power Save Mode Button enables you to turn off the RaiseTouch and LED lights to save energy over both an idle and printing state, even when printing throughout the night.  Fans can also be turned off automatically after printing has finished.

The Flexible Build Plate makes it easy to remove prints while minimizing potential print damage.  The Flexible Build Plate with BuildTak attached reduces the risk of using scrapers and has a durability of 5,000 bends.  Quick print removal means you can quickly return to printing.

Other features included with the Raise3D E2 3D printer include Power Loss Recovery, Filament Run-out Sensor, Remote Video Monitoring, HEPA Air Filtration, Remote User Interface, 7-inch Touch Screen.

The E2 3D printer can be used with a variety of filaments, including PLA, ABS, PC, PETG, TPU, HIPS, TPE, NYLON, ASA, PP, PVA, Glass Fiber Infused, Carbon Fiber Infused, Metal Fill and Wood Fill.  These filaments are compatible with .4mm nozzles.

IdeaMaker is a powerful slicing software from Raise3D, designed to work with the E2 and Pro2 Series 3D Printers.  IdeaMaker is an easy to use software that allows you to create and manage profiles to easily switch between settings.  IdeaMaker includes auto-layout for multi-part printing, cross section viewing, and prints in only two clicks.   IdeaMaker allows you to do model repairing and includes advanced features such as adaptive layer height, modifiers, and sequential printing. IdeaMaker enables custom supports and automatically generated supports, as well as manual support and editing features.  remote management.  Advanced features include automated part separation for Mulit-Part prints, repair and optimise unprintable files, but models at any axis or angle. Input includes STL/OBJ/3MF, Outputs are GCODE.

IdeaMaker is Raise3D’s powerful slicing software that prepares files for printing.  IdeaMaker is easy to use and allows you to create and manage profiles to easily switch between settings.  IdeaMaker includes auto-layout for multi-part printing, cross section viewing, and prints in only two clicks.   IdeaMaker allows you to do model repairing and includes advanced features such as adaptive layer height, modifiers, and sequential printing. IdeaMaker enables custom supports and automatically generated supports, as well as manual support and editing features.  Automated part separation for multi-part prints, repair and optimise unprintable files, and put models at any axis or angle. Input includes STL/OBJ/3MF, Outputs are GCODE.

RaiseCloud is a professional-grade, fully integrated , cloud-based, 3D printer management software from Raise3D.  Manage a network of machines and coordinate a team of users with the ease and full control of a centralised platform.  RaiseCloud provides efficient printing for private and shared storage for team collaboration and automated work orders.  RaiseCloud lets you operate from anywhere, a complete command center all in one central hub, with total control at a click of the button.  RaiseCloud provides total management by allowing you to assign tasks and monitor progress with at-a-glance reports, camera monitoring and more.

When printing large objects with filament that tends to heavily warp (Nylon and PC), Raise3D recommend using a hard plate, an optional accessory for the E2 3D printer.

There is a complete range of Raise3D filaments compatible with the Raise3D E2 3D printers, available from Design Supply’s media specialists. Design Supply’s expertise can help you determine the best solutions for your particular printing needs and budget.

As you would expect from Raise3D, reliable performance is a given. For added peace of mind, Raise3D E2 printer features a 12-month warranty.  Raise3D support all products and software products with in-depth tutorials, advanced features, tips and techniques and more.  Raise Academy is a free online subscription service providing expert instruction, training and tips.

WHAT'S IN THE BOX



DATA SHEETS

MANUFACTURER INFORMATION

Raise3D is a leading manufacturer of industrial-grade 3D printers.  Raise3D 3D printers are designed to achieve print reliability, large build volumes, and leading flexible manufacturing solutions.   An innovator in the 3D printer market, Raise3D consistently deliver high-performance products, services and solutions for a range of small businesses, entrepreneurs, and many big brands in the world.  Headquartered in the USA, China and the Netherlands, Raise 3D printers are used by many of the world’s biggest companies. In addition to designing and manufacturing award-winning 3D printers, Raise3D design and supply software, including a  powerful slicing software, ideaMaker; and a professional-grade, fully integrated, cloud-based, 3D printer management software,  RaiseCloud.

Raise3D 3D printers include the E2, an intuitive, powerful desktop printer designed for maximum usability and high-quality prints.  The Pro2 and Pro2 Plus 3D printers provide high-performance 3D printing technology with a large build volume.

Raise3D Printers have an award winning legacy including “3D Printer of the Year” award from international tech authority Make magazine. All3DP, the largest global 3D printing evaluation organization awarded Raise3D “Best 3D Printer” and “Best Large Format 3D Printer”.
