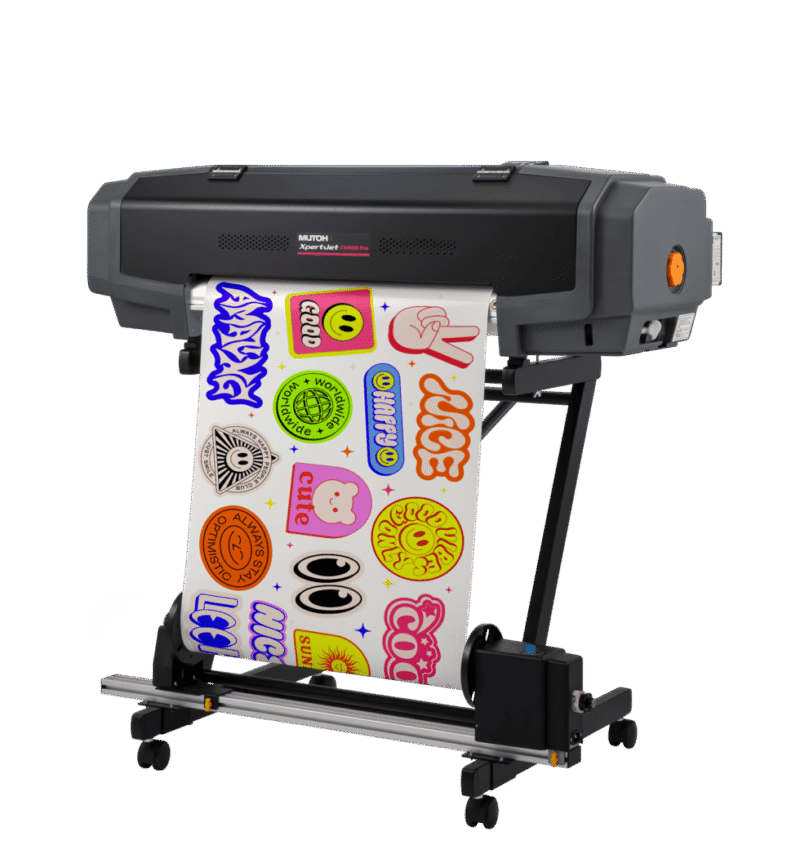

Mutoh XpertJet C641SR Pro Desktop A1 24 inch Printer and Cutter

Mutoh XpertJet C641SR Pro desktop A1 24 inch Printer and Cutter.

Description

Mutoh XpertJet C641SR Pro  desktop 24 inch A1 Printer and Cutter.

Combining advanced print technology with precision cutting in one device, this soloution is ideal for businesses starting out or bringing graphics and sticker production in house.

You can use the XpertJet C641SR Pro Printer and Cutter to print a wide variety of indoor and outdoor durable graphics.

You can also print:

  • Full colour stickers
  • Vehicle and window graphics
  • T-shirt transfers
  • Banners
  • Fine art prints
  • Indoor and outdoor signage and so much more!

Design Supply is a Mutoh Authorised Reseller providing the best solutions available to get the job done for your business and maximise your opportunities.





Videos

Mutoh XpertJet C641SR Pro Printer and Cutter

Key features

The Mutoh XPertJet C641SR Pro Printer & Cutter combines advanced printing technology with precision cutting, ideal for businesses starting out or bringing graphics and sticker production in-house.

  • With built-in contour cut and perforated through cut capability, the XpertJet C641SR Pro  integrates Mutoh’s proprietary printing, ink, and productivity features for a best-in-class printer/cutter solution
  • Equipped with the ultra-fast Mutoh AccuFine print head, this desktop printer/cutter delivers high quality prints  quickly for indoor and outdoor applications
  • The Mutoh XpertJet C461SR Pro Printer & Cutter features Mutoh Eco-Solvent MS31/MS51 inks, delivering impressive colour reproduction and long-term durability
  • Output printed with Mutoh Eco-Solvent inks are suitable for installation in any working environment and the output suitable for offices, classrooms, schools, and hospitals
  • Mutoh Eco-Solvent inks is ideally suited to deliver top quality images when printing directly onto a wide range of low-cost standard available uncoated PVC, banner and soft-sign materials as well as for coated substrates
  • With a GreenGuard Gold rating of wallpaper, XpertJet C641RS Pro output qualifies as unrestricted for usage
  • Bundled with Mutoh genuine RIP software, VerteLith, the XpertJet C641RS Pro Printer & Cutter is a complete solution

Specifications

The Mutoh XpertJet C641SR Pro Printer and Cutter is a complete desktop solution bundled with VerteLith RIP software.  Print and cut simultaneously with the Mutoh XpertJet C641SR Pro.  The versatile XpertJet C641SR Pro  features Print & Cut (contour cut/cut through), Print only, and Cut only (kiss-cut for lettering jobs).

Incorporating  leading edge Mutoh technologies including the AccuFine print head and i-screen intelligent interweave, the XpertJet C641SR Pro Printer & Cutter is ideal for on-demand printing and cutting production for a variety of indoor and outdoor applications: long-term outdoor posters, stickers and labels, signs and banners, apparel decoration,  t-shirt transfers, POS displays, vehicle and window graphics, photo prints, fine art reproduction.

The Mutoh AccuFine 1600 print head delivers outstanding speed and unrivaled quality even at lower resolutions.  The AccuFine 1600 print head features an extra wide print head, increased optical resolution, and improved nozzle stability and dot quality.  This 1600-nozzle print head is wider, with more nozzles and features faster firing of drops, better drop landing accuracy and dot quality, resulting in higher productivity and higher image quality.  AccuFine 1600 comprises four colour sections. Each colour section has 400 nozzles, or two 200 nozzle rows per colour, resulting in a nozzle density delivering 300 dpi per colour.  Drop size from 2.06 picoliters to 17.53 picoliters results in better accuracy and dot quality. Because all colour sections are in one head, there is no need for time-consuming head to head calibration routines. The AccuFine 1600 print head features a bi-directional,  drop-on-demand Micro Piezo Inkjet Technology and is at the heart of the XpertJet C461SR  Pro’s stunning performance.

The Mutoh XpertJet C641SR Pro Printer & Cutter has a number of fully automated calibration features which make it ideal for businesses with multiple operators, increasing efficiency, eliminating waste, and increasing productivity.  These fully automated calibration technologies  include Mutoh DropMaster 2, Mutoh FeedMaster and Mutoh Media Tracking.  Mutoh DropMaster 2 technology produces automated bi-directional printing with a built-in colour sensor. Mutoh FeedMaster technology features an automated paper feed adjustment made with a built-in colour sensor, two reposition-able pressure arms with rollers to accommodate different media widths, and  grit rollers to accurately transport and align different medias being printed or cut .   Mutoh Media Tracker enables the user to enter the media length upon loading a new media roll. By printing the bar code before removing the roll in use, the printer/cutter will  then, upon reloading the roll, read the bar code and detect how much media is left on the roll.

The XpertJet C641SR Pro Printer & Cutter offers you a wide range of:

Print Modes and Speeds:

  • Super Quality (900 x 1200 dpi, Uni, 16p): 2.48m²/h
  • High Quality (900 x 1200 dpi, Bi,16p)- 4.94m²/h
  • Production Quality (600 x 900 dpi,Bi, 12p)-6.5m²/h
  • High Speed (600 x 600 dpi, Bi, 8p) – 9.73m²/h

Cut Speeds : 150 mm/s

Total Print & Cut Times (A4 size x 2)

  • High Speed (600 x 600 dpi, Bi,8p)- 229 s
  • High Quality (900 x 1200 dpi, Bi,16p)- 302 s

The Mutoh XpertJet C641SR Pro Printer & Cutter features  Mutoh i-screen intelligent interweave technology, a forth generation weaving algorithm delivering multiple new print effects and delivering overall higher print quality and banding free output over a wider speed range.

The Mutoh XpertJet C641SR Pro Printer & Cutter has a number of autonomous features to suit every printing and cutting application. Media heating is built-in , with a temperature range of 30-45 ºC  and will pre-heat the media, fix the ink and dry the output.  Other features include a variable head height and an automated sheet-off system. Variable head height accommodates for contour cut, kiss cut and through cut with a low setting of 1.5mm and high setting of 2.8mm.

Mutoh Eco-Solvent MS31/MS51 Inks are state of the art and by far the most popular inks on the market for outdoor sign applications on a wide range of uncoated and coated substrates. Mutoh Eco-Solvent M31/M51 Inks deliver impressive colour reproduction and a wide colour gamut, ideal for vibrant, high density prints and delivering excellent dot gain. Available in easy-to-use 200 ml cassettes and  1 litre bags, Eco-Solvent MS31/MS51 inks are Mutoh’s third generation of eco inks featuring improved ink fixation, better drying, higher print speeds and improved scratch resistance. The MS31/MS51 Inks have a 24 month shelf life and an average ink consumption of 8ml/m²@720dpi with 67% coverage.  The MS51 1000ml bags require the Ink Adapter Set.  Prints made with Eco-Solvent MS31/MS51  inks are weather, abrasion and chemical resistant and offer an outdoor UV-resistance for up to 3 years outdoor without lamination.

The inks are based on non-aggressive eco-solvents and do not spread any harmful VOCs in the working environment.  Mutoh Eco-Solvent MS31/51 Ink generated prints are GreenGuard Gold certified, with a rating of wallpaper, with the lowest emissions rating.  With the GreenGuard Gold certification, Mutoh  XpertJet C641SR Pro output qualifies as unrestricted to decorate a complete room, including an office (33.4m²), classroom (94.6m²) , hospital or school application.

The Mutoh XpertJet C641SR Pro Printer & Cutter comes as a desktop unit with integrated roll holders for media up to 8kg/19.8 lbs.  The XpertJet C641SR Pro  handles both 2″ and 3″ core rolls.

The Mutoh XpertJet C641SR Pro is bundled with  Mutoh VerteLith RIP with FlexiDESIGNER software which makes it easy to prepare jobs and create saleable prints faster.  VerteLith is a RIP software which provides seamless setup of print & cut environments, with a continuous cut feature for true one-step job submission.  Easily design cut lines using FlexiDESIGNER and send jobs directly to VerteLith. Additionally, soft proof the printed image colours on screen before submitting to print.

The user-friendly XpertJet C641SR Pro is ready to tackle all your contour cutting applications such as stickers, short-run decals, window signs and more. The integrated contour cutting, features contour cut, kiss cut and through cut. Output can be Print & Cut- separated, Print & Cut- continuously, print only or cut only.

Optional items for the Mutoh XpertJet C641SR Pro include a Stand, Cutters and Take-Up System.  The stand is on castor wheels, making it convenient for moving if required.  The Take-Up System is ideal for high productivity environments. Please note, the Take-Up System is compatible with printing only, and not cutting.



Specifications
XpertJet 628C641SR Pro Printer/Cutter
Key Specifications
Print /Cut Technology Drop-on-demand Micro Piezo Inkjet Technology/Drag knife
Print Head/Resolution AccuFine 1600/max. 1200 x 1200 dpi
Nozzle Configuration 200 nozzles x 8 lines
Drop Mass Range (pl) 2.06 to 17.53
Head Heights Low: 1.5mm
High: 2.8mm
Media Specifications
Media Width

Roll diameter

Weight

max: 630mm (24.8″)

max: 150m

8 kg

Max Print Width 600mm (23.62″)
Max Media Thickness (dependent on head height) o.22mm (film)

low: 0.4mm (liner)

high: 0.8mm

Media Measurements Ø150mm/2″ & 3″/9kg
Media Drying System 3 heater zones: pre-heater, platen heater and after-heater
Single control: off, 30-45°C
Sheet Off Function Auto sheet off system integrated
Take-Up Unit Motorised Torque 10kg  (VJ06-TUP10)
Print/Cut Performance
Super Quality 2.48 m²/h
High Quality 4.94 m²/h
Production Quality 6.5 m²/h
High Speed 9.73 m²/h
Cutting Speed 10-150 mm/s
Cutting Force 30-300 gf
Ink Specifications
Eco Solvent ink – CMYK.
220ml and 1000ml bag (requires adapter)

Ink Product Code Description
VJ-MS31-BK220E Black Ink – 220ml
VJ-MS31-CY220E Cyan Ink – 220ml
VJ- MS31-MA220E Magenta Ink – 220ml
VJ-MS31-YE220 Yellow Eco Ultra Ink – 220ml



Ink Product Code Description
VJ-MS51-MA1000 Magenta Ink Bag – 1000ml
VJ-MS51-BK1000 Black Ink Bag – 1000ml
VJ-MS51-CY1000 Cyan Ink Bag – 1000ml
VJ-MS51-YE1000 Yellow Ink Bag – 1000ml



Ink Consumption 8ml/m² @720dpi with 67% coverage
UV Durability 3 years outdoor without lamination
Power Consumption
During Printing 830W
Power Supply AC 100-120V 10%,or  200-240V

frequency: 50/60 Hz

Printable  Environment
Temperature 68-89.6 °F,  recommended environment: 71.6-86°F
Humidity 40% to 60% (non condensing)
Dimensions/Weight
Width x Depth x Height 1190 x 438 x 366 mm

printer including stand: 46.8″ x 17.2″ x 14.4″ (cover closed)

Weight body: 75 lbs stand: 19 lbs



What's in the box

In the box

  • Mutoh XpertJet C461SR Pro Desktop Printer & Cutter
  • Scroller
  • Request for Registration & Download
  • Startup Guide
  • Cleaning Stick (10)
  • Cable
  • Cord Clamp
  • Media Guide (2)
  • Paper Towel (5)
  • Blade holder for contour cutter
  • Cutter blade for contour cutter
  • Power cord
  • Cleaning cartridge (4)
  • VerteLith: Mutoh genuine RIP software
  • MS-31 220 ml inks: C, M, Y, K

With your order

  • Manufacturer warranty (options to extend available)
  • Delivery, installation and training: ask our team

Options and consumables

Item Part code
MS-31 220 ml cassette ink: Cyan, Magenta, Yellow, and Black VJ-MS31-XX220E
MS-31 1000 ml pack ink: Cyan, Magenta, Yellow, and Black (requires ink adapter set) VJ-MS51-XX1000
Cleaning Liquid 300 ml MS41-CL300E
Maintenance Cleaner 500 ml VJ-ULVA1-ML500
Stand with crossbar for XpertJet C641SR Pro IJ-STDX-01
Motorized Take Up System (for printing only)for XpertJet C641SR Pro Ask us
Cuting Blade Holder IJ-CHD-01
Cutting Blade 55 degree angle IJ-CBL-01
Ink Adapter set (contains 4 adapters for MS-31 1000 ml ink packs) VJ-HCIPADPT

Data sheets

Mutoh XpertJet C641SR Pro Data Sheet



Manufacturer information

The Mutoh XpertJet C641SR Pro is part of Mutoh’s range of large format printers.

Design Supply can supply, install and support it, and extend the warranty if you need longer cover.
