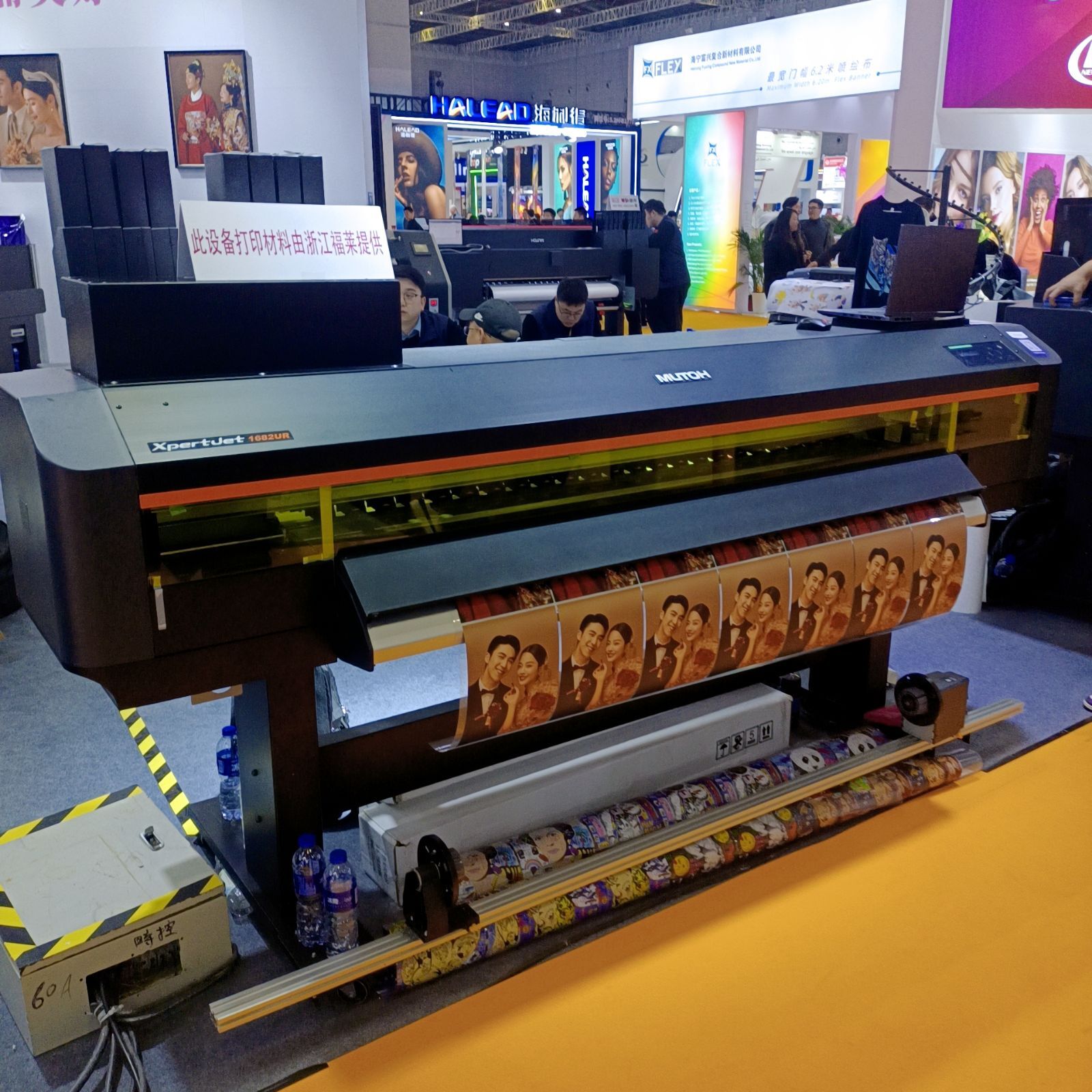

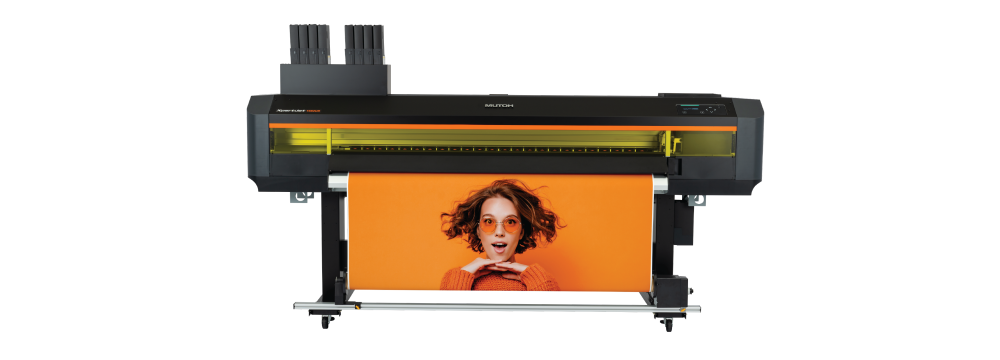

Mutoh XpertJet 1682UR 64″ UV LED Roll-to-Roll Printer

The Mutoh XpertJet 1682UR is a 64″ (1625mm) high-performance UV LED roll-to-roll printer using Mutoh’s environmentally responsible US81 CMYK, White and Varnish inks. Speeds up to 27.3 m2/h and resolution up to 1440 x 1440 dpi, with unique single-pass 5-layer printing for front-to-back graphics.

Description

The Mutoh XpertJet 1682UR is a 64″ (162cm) high-performance UV LED printer using Mutoh’s environmentally responsible and safe US81 CMYK, White and Varnish inks. It offers high productivity of up to 27.3 m2/h with outstanding image quality up to 1440 x 1440 dpi, making it ideal for demanding sign and display production.

The XpertJet 1682UR’s unique single-pass 5-layer printing enables graphics that change from front to back without any media pull-back, along with 4-layer backlit and frontlit combination graphics. It prints confidently on transparent and non-white materials and produces striking spot varnish effects, all controlled through Mutoh’s genuine VerteLith RIP with automated calibrations for a high level of user comfort.

Twin staggered print heads with 180 nozzles x 8 lines per head and two 4″ UV LED lamps deliver a drop mass range of 3.8 to 28 picolitres. The US81 series flexible UV LED inks are GREENGUARD Gold certified and supplied in 800ml packs, giving reliable, low-odour production for busy print shops.

Design Supply, a Mutoh Authorised Reseller, works closely with Mutoh to provide the best solutions available to get the job done for your business and maximise your opportunities. With more than 35 years of experience in the large format printer market, Design Supply offers expertise and knowledge in tailoring the exact solution for your specific application.

KEY FEATURES

C, M, Y, K, White and Varnish UV LED printer

Two 1440-nozzle staggered print heads and two 4″ UV LED lamps

Speeds up to 27.3 m²/h

Single-pass 5 layer printing without media pull-back

Backlit/frontlit combination and gloss embellishment graphics

Prints on transparent and non-white materials with spot varnish effects

Multiple automated calibrations for a high level of user comfort

GREENGUARD Gold certified US81 series inks

Standard 3 year warranty

SPECIFICATIONS

Print technology: drop-on-demand micro piezo inkjet, two staggered heads

Nozzle configuration: 180 nozzles x 8 lines per head

Print resolution: up to 1440 x 1440 dpi

Drop mass range: 3.8 to 28 picolitres

Head heights: low 1.5mm / middle 2.0mm / high 2.5mm

Maximum media width: 1625mm (64″)

Maximum print width: 1615mm (63.58″)

Maximum media thickness: 0.3mm / 0.8mm / 1.3mm

Ink type: US81 series flexible UV LED inks, CMYK + White + Varnish, 800ml packs

Roll handling: standard non-motorised roll system (Ø200mm, 2″ and 3″ cores, 30kg); optional 30kg or 40kg motorised take-up

RIP / software: Mutoh VerteLith RIP

Warranty: 3 year on-site warranty (Design Supply standard UK cover on Mutoh printers)

Full dimensions, weight and power consumption figures are available on Mutoh’s official datasheet – please confirm these against the latest PDF before publishing.

MANUFACTURER INFORMATION

Mutoh has been at the forefront of the wide format industry for more than 20 years. As an innovative developer and manufacturer of wide-format printers and cutters, Mutoh incorporates pioneering technology to bring you the best equipment for your application. Manufactured in Japan, Mutoh printers feature best-in-class inkjet head technology, latest generation electronics and high quality inks.

Mutoh’s award-winning Intelligent Interweaving print technology drastically reduces or totally eliminates the typical difficulties inherent to conventional digital UV inkjet printing, ensuring predictable and repeatable output quality and bringing an unprecedented level of user comfort to the printer operator.
