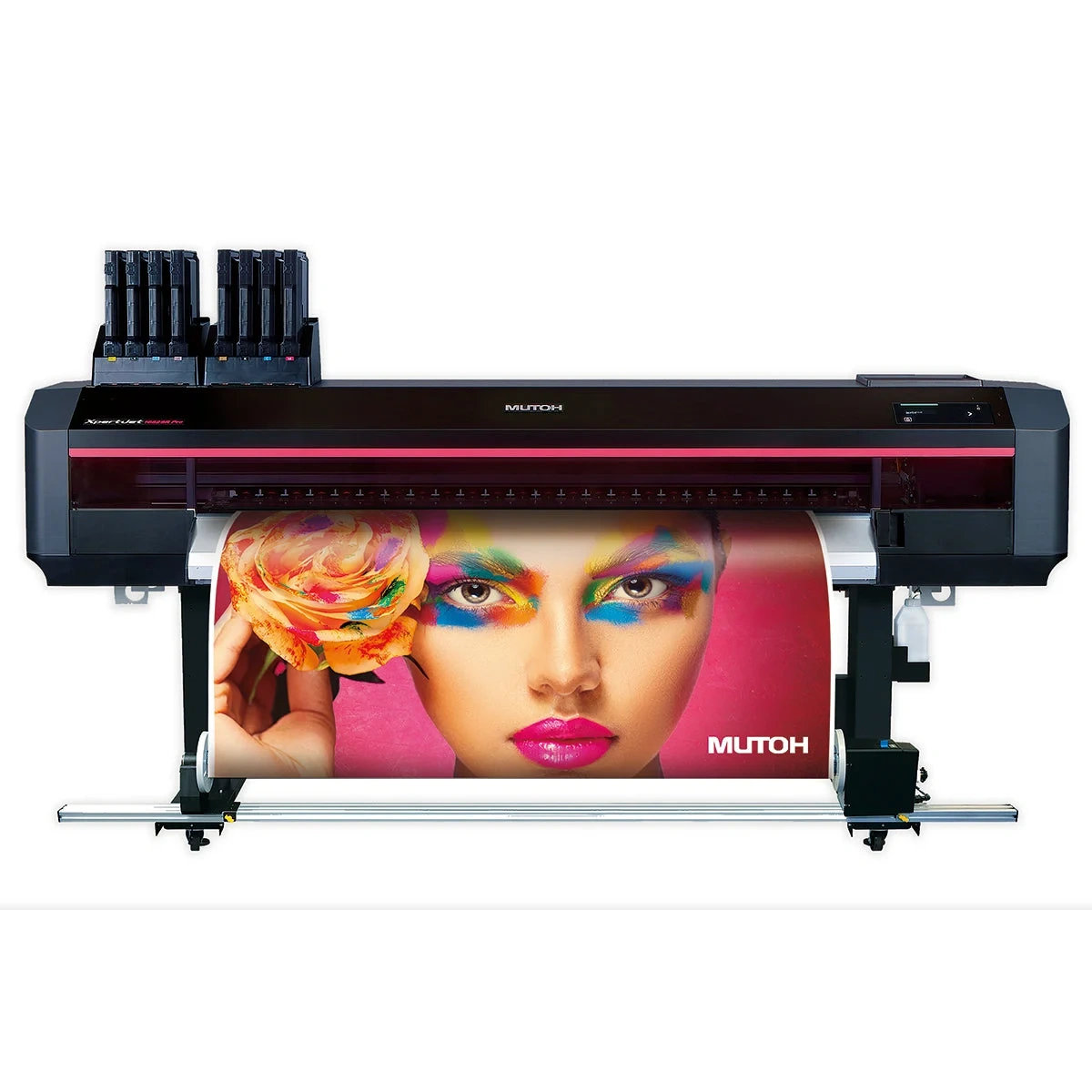

Mutoh XpertJet 1641SR Pro II 64″ Eco Solvent Printer

The Mutoh XpertJet 1641SR Pro II is a 64″ (1625mm) eco-solvent printer pairing Mutoh’s latest AccuFine HD Pro print head with the new i-Screen EX print control system and MS51 inks, for smoother gradations and improved colour uniformity at speeds up to 17.63 m2/h.

Description

The Mutoh XpertJet 1641SR Pro II is a 64″ (1625mm) eco-solvent printer that pairs Mutoh’s latest AccuFine HD Pro print head with the new i-Screen EX print control system and MS51 inks. The AccuFine HD Pro print head features eight nozzle rows with nozzle row pairing to improve ink landing accuracy for each colour. Combined with Mutoh’s new i-Screen EX print control system, which applies advanced control effects across print passes, this supports smoother gradations, improved colour uniformity and finer detail reproduction, while maintaining stable output across a wide range of print speeds.

Mutoh’s Wide Colour Choice input profile expands the achievable colour gamut, particularly in dark areas, offering deeper blacks and more vivid reds, perfect for high-impact graphics, car wraps and retail signage. The MS51 Eco-Solvent ink is UL GREENGUARD Gold certified, GBL-free, and carries no hazard pictograms, delivering vibrant colour output, fast drying, excellent weather resistance and durable scratch performance, supporting comfortable production environments where low emissions are a priority.

Equipped with Mutoh’s DropMaster 2 and FeedMaster technology, the XpertJet 1641SR Pro II automatically adjusts bi-directional alignment and media feed accuracy, reducing setup time, and reaches productivity of up to 17.63 m2/h in Standard Mode. Choose from a standard 30kg torque winder, a 40kg torque winder, or a 100kg heavy-duty feed and take-up system to suit your production volume.

Design Supply, a Mutoh Authorised Reseller, works closely with Mutoh to provide the best solutions available to get the job done for your business and maximise your opportunities. With more than 35 years of experience in the large format printer market, Design Supply offers expertise and knowledge in tailoring the exact solution for your specific application.

KEY FEATURES

64″ (1625mm) wide sign and display printer

New AccuFine HD Pro print head – 60% faster

New dryer – 20% improved

New i-Screen EX system – next-generation print control for superior uniformity

Productivity up to 17.63 m²/h in Standard Mode

MS51 Eco-Solvent inks – GREENGUARD Gold, GBL-free, no hazard pictograms

Mutoh Wide Colour Choice profile – deeper blacks, more vivid reds

Automated user assistance: DropMaster 2, FeedMaster, Media Tracker, Nozzle Area Select

4-level head height adjustment: 1.5 / 2.0 / 2.5 / 4.0mm

Choice of 30kg, 40kg or 100kg winder/take-up system

Standard 3 year warranty

SPECIFICATIONS

Print width: 64″ (1625mm)

Print head: Mutoh AccuFine HD Pro, eight nozzle rows

Head height adjustment: 1.5 / 2.0 / 2.5 / 4.0mm

Ink type: MS51 Eco-Solvent

Productivity: up to 17.63 m²/h in Standard Mode

Print control: i-Screen EX system, Wide Colour Choice input profile

Automation: DropMaster 2, FeedMaster, Media Tracker, Nozzle Area Select

Winder options: 30kg torque, 40kg torque, or 100kg heavy-duty feed and take-up

RIP / software: Mutoh VerteLith RIP

Warranty: 3 year on-site warranty (Design Supply standard UK cover on Mutoh printers)

Full resolution, media thickness, dimensions, weight and power consumption figures are available on Mutoh’s official datasheet – please confirm these against the latest PDF before publishing.

MANUFACTURER INFORMATION

Mutoh has been at the forefront of the wide format industry for more than 20 years. As an innovative developer and manufacturer of wide-format printers and cutters, Mutoh incorporates pioneering technology to bring you the best equipment for your application. Manufactured in Japan, Mutoh printers feature best-in-class inkjet head technology, latest generation electronics and high quality inks.

Mutoh’s award-winning Intelligent Interweaving print technology drastically reduces or totally eliminates the typical difficulties inherent to conventional digital printing, ensuring predictable and repeatable output quality and bringing an unprecedented level of user comfort to the printer operator.
