Mutoh XpertJet 1641SR (64 inch) Sign & Display Large Format Printer

The Mutoh XpertJet 1641SR 64″ 1625mm is a  4 colour, single head, high-end high-speed rollfed production printer designed for Sign Makers, Print Service Providers and Commercial Printers looking for an unparalleled level of print quality and automation in the Outdoor and Indoor Sign and Display applications.

Mutoh XpertJet Sign & Display printers are specifically designed for high quality volume production of sign and display graphics for long-term outdoor applications as well as durable prints for indoor use.  Create durable prints on coated and uncoated substrates, and produce posters, billboards, backlit signage, wall coverings, point-of-sale displays, vehicle graphics, fine art reproduction, stickers and more,  with the Mutoh  XpertJet 1641SR. The Mutoh  XpertJet 1641SR delivers best-in-class speed, superior print quality, and automation and is the successor to the award-winning ValueJet VJ-1638X. The XpertJet 1641SR features an entirely new printer platform with multiple product enhancements, four slots for  4  colours, MS41 Eco Solvent Inks with GREENGUARD Gold certification for indoor applications, and proprietary DropMaster2 technology.

Design Supply, a Mutoh Authorised Reseller, works closely with Mutoh to provide the best solutions available to get the job done for your business and maximise your opportunities. With more than 28 years of experience in the large format printer market, Design Supply offers expertise and knowledge in tailoring the exact solution for your specific application.

Description

The Mutoh XpertJet 1641SR 64″ 1625mm is a 4-colour, dual head, high-end high-speed rollfed production printer designed for Sign Makers, Print Service Providers and Commercial Printers looking for an unparalleled level of print quality and automation in the Outdoor and Indoor Sign and Display applications.

Mutoh XpertJet Sign & Display printers are specifically designed for high quality volume production of sign and display graphics for long-term outdoor applications as well as durable prints for indoor use.  Create durable prints on coated and uncoated substrates, and produce posters, billboards, backlit signage, wall coverings, point-of-sale displays, vehicle graphics, fine art reproduction, stickers and more,  with the Mutoh  XpertJet 1641SR. The Mutoh  XpertJet 1641SR delivers best-in-class speed, superior print quality, and automation and is the successor to the award-winning ValueJet VJ-1638X. The XpertJet 1641SR features an entirely new printer platform with multiple product enhancements, four slots for  4  colours, MS41 Eco Solvent Inks with GREENGUARD Gold certification for indoor applications, and proprietary DropMaster2 technology.

Design Supply, a Mutoh Authorised Reseller, works closely with Mutoh to provide the best solutions available to get the job done for your business and maximise your opportunities. With more than 28 years of experience in the large format printer market, Design Supply offers expertise and knowledge in tailoring the exact solution for your specific application.



VIDEOS

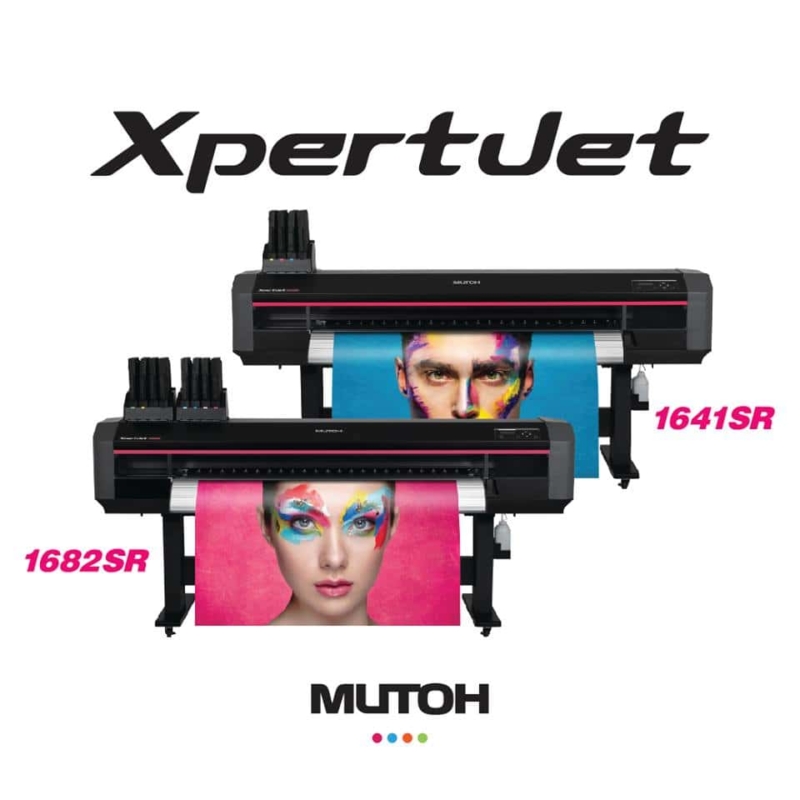

Mutoh XpertJet 1641SR & 1682SR Sign and Display Wide Format Printers

KEY FEATURES

The Mutoh XpertJet 1641SR features an entirely new printer platform with multiple product enhancements, proprietary DropMaster2 technology, four slots for 4 colours,  and MS41 Eco Solvent Inks with GREENGUARD Gold certification for indoor applications, and  to deliver unrivalled print-quality for businesses focusing on both top quality print work and high speed production.

With sellable production speeds of up to 53.4m² /h, the Mutoh XpertJet 1641SR is ideal for established sign makers who need extra versatility and for larger operations that want to extend their capacity and flexibility. The 1641SR delivers best-in-class speed and the highest levels of quality with Mutoh’s award-winning Intelligent Interweaving & DropMaster2 print technology, which offers predictable and repeatable output quality fit for purpose every time in the shortest possible time, drastically reducing or eliminating horizontal banding, step mismatch banding and the visible effects of missing or misfiring nozzles. Dedicated weave algorithms for the XpertJets will effortlessly deliver spot on print quality.  Mutoh’s proprietary DropMaster2 technology means constant and uncompromised print quality on any thickness/weight of media used with the XpertJet 1641SR. Whether printing on thin blue back paper to thick pvc banner, DropMaster2 technology, specifically developed for Mutoh’s dual head printers, eliminates the need for cumbersome and time consuming media dependent head adjustments. The Mutoh XpertJet 1641SR has a built-in colour sensor for automatic bidrectional alignment, saving precious time and increasing efficiency.

The Mutoh XpertJet 1641SR is suited for the production of a wide variety of outdoor and indoor prints and offers a wide range of easily selectable pre-defined print modes and speeds.

Mutoh XpertJet 1682SR

7 colour

 1682SR

4 colour x 2

1641SR

4 colour

Colour Setup C, M, Y, K, Lk, Lc, Lm C, M, Y, K, C, M, Y, K C,M,Y,K
Fast Production 10.9 – 18 m²/hr 21 – 36 m²/hr 14 – 20.5 m²/hr
Fast Quality Production 5 – 10 m²/hr 10 – 15 m²/hr 5 – 10 m²/hr
Maximum Speed 48.1 m²/hr 87 m²/hr 53.4 m²/hr

The Mutoh XpertJet 1641SR is packed with multiple product enhancements to provide ease of use and reliability for many years to come. For worry-free feeding and optimum transport of the widest range of media, including thin, delicate or slippery substate, the XpertJet integrates a new designed Multi-level Pinch Roller system, enabling adaptable pressure on each individual pinch roller.   The new Enhanced Roll Off System with New Media Feed Flanges facilitates easy and convenient single operator  media loading.  Newly designed Coreless Media Feed Flanges speed up  media loading and exchanging of multiple rolls.   A new OLED Touch Display  delivers intuitive printer operation, including a colour bar for displaying the printer’s key status.   An Illuminated Print Platform provides LED lights for easy inspection and follow up of print jobs in progress.  XpertJets are equipped with motorised torque winder.  Choose between a 30 kg winder for motorised roll up of media up to 150mm, or a 40 kg winder, suited for media rolls up to 250mm.

Suitable for both indoor and outdoor graphics using Mutoh MS41 Eco Solvent Inks, XpertJet 1641SR prints are UV and water resistant for up to three years outdoors. Mutoh MS41 Eco Solvent Inks are the latest fourth generation of eco inks avialable in 1 liter packs and in four colours, including Cyan, Magenta, Yellow, and Black.  MS41 will deliver vibrant high density prints with excellent dot gain suited for long term outdoor and interior deco prints.  The ink packs in foil go into re-usable pack cases, reducing waste.  LED light indicate ink level status.





SPECIFICATIONS

Intelligent design features make the Mutoh XpertJet 1641SR easy to set up and operate. Ultimate flexibility is achieved with Mutoh’s VSM app for remote printer monitoring through a smart phone.

The Mutoh XpertJet 1641SR is compatible with a new generation of cost-effective and low maintenance MS41 Eco Solvent inks, enabling printing on the widest range of uncoated and coated substrates.   There are four ink slots available on the 1641SR, which can be set up either C,M,Y,K.   Output created using MS41 Eco Solvent inks are water resistant and offer a UV outdoor resistance of up to three years. For heavy-duty applications where mechanical stress in involved (floor and vehicle graphics), lamination is required. Stabilisation is required prior to lamination.

Mutoh’s MS41 Eco Solvent inks are fourth generation, environmentally friendly, mild solvent inks specifically developed for volume-oriented users. Available in  1 litre packs in foil, for use in re-usable ink cases included with the XpertJet 1641SR, Mutoh MS41 Eco Solvent Inks have Greenguard  Gold Certification.  As such, the inks meet some of the world’s most stringent and comprehensive standards for low emissions of volatile organic compounds (VOCs) into indoor air.  Prints made with MS41 inks are perfectly suited for indoor applications including offices, classrooms and healthcare environments.

The Mutoh XpertJet 1641SR includes a Motorised Torque Controlled Take-Up System (choose either the 30kg upt to 150mm or the 40kg up to 250mm),  and RIP software (choose either the Onyx 12 RIPCenter ValuePlus Mutoh Edition RIP or the SAi FlexiPRINT SE12 Mutoh Edition RIP). For intensive graphics applications, dedicated RIP software is recommended. SAi FlexiPRINT SE12 Mutoh Edition RIP software for single workstation environments and Onyx 12 RIPCenter ValuePlus Mutoh Edition RIP solutions make it easy to prepare jobs and create sellable prints faster. Both RIP solutions include a fully integrated print and cut workflow.

Optional items for the Mutoh XpertJet 1641SR include the Mutoh multi-purpose ValueCut cutter, which can be run in tandem with the Mutoh XpertJet 1641SR, allowing for simultaneous printing and cutting. The Mutoh ValueCut cutting plotter is able to tackle all contour cutting applications such as stickers, short-run decals, window designs and much more.

Built to last, Mutoh XpertJets and ValueJets are renowned for precision engineering and meticulous production practices for years of profitable use. As you would expect from Mutoh, reliable performance is a given. For added peace of mind, Mutoh XpertJet printers feature a 12-month on-site warranty.

There is a complete range of Mutoh and third party media, compatible with the Mutoh XpertJet 1641SR available from Design Supply’s media specialists whose expertise can help you determine the best solutions for your particular printing needs.



XpertJet 1641SR – Technical Key Specifications
Print Technology Drop-on-demand Micro Piezo Inkjet Technology
Print Head 1 piezo
Nozzle Configuration 180 nozzles x 8 lines / head
Drop Mass Range (pl) 3.5 to 35
Head Heights Low: 1.5 mm / Middle: 2.5 mm / High: 4.0 mm
XPertJet 1641SR – Media Specifications
Max. Media Width up to 1625 mm (63.97”)
Max. Print Width 1615 mm (63.58”)
Max. Media Thickness 0.3 / 1.3 / 2.8 mm (specified per head height)
Media Measurements * Ø 150 mm / 2” & 3” / 30 kg
* : Standard non-motorised roll-off system
XpertJet 1641SR – Performance
Fast Production, 4 colour 14 – 20.5 m²/h
Quality Production, 4 colour 5 – 10 m²/h
Maximum Speed, 4 colour 53.4 m²/h
XpertJet 1641SR – Ink Specifications
Ink Type MS41 Eco Solvent Inks
Ink Volume 1 litre packs in foil, for use in re-usable ink cases
Ink Colours CMYK
Low Chemical Emissions Certification GREENGUARD Gold, Wallpaper category
UV durability—without lamination 3 years outdoor *
* : For heavy duty applications where mechanical stress is involved, lamination is required. Stabilisation is required prior to lamination.
XpertJet 1641SR  – Power Consumption
During Printing < ??? W
In Stand-by ?? W
Warming Up ≤???? W (main) & ≤ ???? W (heat)
Power Supply AC 100-120 V / AC 200-240 – 60/50 Hz
XpertJet 1641SR – Recommended Working Environment
Temperature ?°C – ? °C with Δt: max. 2 °C/h
Humidity ?% – ? % (no condensation) with ΔRH: max. 5% RH/h
XpertJet 1641SR – Machine Measurements
Width x Depth x Height 2698 x 885 x 1261 mm ?
Weight 221 kg ?

WHAT'S IN THE BOX

Mutoh XpertJet 1641SR printer with stand and integrated roll holders

Take-up System (30 kg or 40 kg motorised torque winder)

RIP Software (Onyx RIPCenter Mutoh Edition or SAI FlexiPrint SE Mutoh Edition)

Machine starter kit (cleaning liquid, pack of swabs, box of pipettes, cleaning handbook)

Accessory bag (10 cleaning sticks, forceps, 5 flushing box sponge, 5 paper towels, waste fluid tank, tray, operation manual cd, installation manual, introduction of Windows Printer Driver)

UK power cable

12 months on-site warranty

Options:

Mutoh ValueCut cutting plotters 600(24″), 1300(52″) and 1800(72″)

3 Year Extended Warranty

Consumables:

MS41 Eco Solvent Inks 1 litre ink packs:XJ- MS41 (BK , CY , MA , YE ) Black, Cyan, Magenta, Yellow





DATA SHEETS

Mutoh XpertJet 1641SR & 1682SR Brochure

Mutoh MS41 Eco Solvent Inks Data Sheet

Mutoh Edition SAi FlexiPrint SE12 RIP Software Data Sheet

Mutoh Edition Onyx12 RIP Center ValuePlus RIP Software Data Sheet

Mutoh ValueCut Series Cutting Plotters: (600, 1300, 1800) Data Sheet

Mutoh ValueCut 600, 1300 and 1800 Specifications

Mutoh ColorVerify Data Sheet

MANUFACTURER INFORMATION

Mutoh has been at the forefront of the wide format industry for more than 20 years. As an innovative developer and manufacturer of wide-format printers and cutters, Mutoh incorporates pioneering technology to bring you the best equipment for your application. Manufactured in Japan, Mutoh XpertJet printers feature best-in-class inkjet head technology, latest generation electronics and high quality inks. Mutoh also has a complete range of ValueJet printers.

Mutoh’s new wide piezo print head, new staggered dual head setup, and new generation electronics offers a unique blend of high speed and high quality. The wide piezo print head features 8-channel drop-on-demand inkjet technology. Each 1440 nozzle head includes four colour sections (C, M, Y, K) each divided in two nozzle rows with 360 nozzles per colour. All four colour sections are in one head, eliminating the need for head to head calibration. The integrated print heads are capable of producing ink drops ranging from 3.5 picoliters to 35 picoliters, resulting in incredible accuracy, sharpness, and speed. Increased accuracy and consistency of dot size and dot release during printing improves the image, in addition to increased dot gain control, allowing for more latitude in profile settings. New generation electronics include higher carriage speeds and ink firing frequencies and adapted weaving algorithms give an impressive increase in productions speed as well as optimised ink spread and improved drying. High-end piezo print heads have been specially tuned for Mutoh’s genuine sign and display inks.  The XpertJet 1641SR has a single head setup, and the XpertJet 1682SR has a dual head on board.

Mutoh’s award-winning Intelligent Interweaving print technology drastically reduces or totally eliminates the typical difficulties inherent to conventional digital inkjet printing, including defects such as horizontal banding, ink mottle, bleed and the visible effects of missing or misfiring nozzles. Ink is laid down in waves, as opposed to straight lines used on most wide format printers. The biggest benefit of this proprietary Mutoh print technology is that it offers predictable and repeatable output quality, bringing an unprecedented level of user comfort to the printer operator. Dedicated weave algorithms for XpertJets effortlessly deliver spot on print quality.

DropMaster technology is a Mutoh proprietary feature which eliminates the need for media dependent head adjustments.  DropMaster is a revolutionary print automation technique specifically designed for Mutoh’s dual head ValueJet models.  DropMaster automatically calculates and adjusts the uni/bi-directional fire timings by analysing the media thickness and drop-throw distance between print head and media surface.  With XpertJet, Dropmaster has been taken to the next level: DropMaster2.  DropMaster2 works with the built-in XpertJet colour sensor for automatic bidirectional alignment, saving time and increasing efficiency.

Mutoh MS41 Eco Solvent Inks are Mutoh’s 4th generation of eco inks.  The MS41 Eco Solvent inks have been specifically developed for the piezo drop-on-demand head technology integrated in Mutoh’s XpertJet Sign & Display printers.  MS41 Eco Solvent Inks consist of highly durable colour pigments ground to nano-size level, a new blend of milder and non-aggressive solvents and a new mix of resins. The resin mix enables optimum adhesion of the pigments to the substrate and creates a uniform and smooth ink layer. Each individual colour pigment is coated by the resin mix to address the typical requirements of outdoor sign and display prints (gloss preservation, scuff, abrasion and chemical resistance) and to safeguard long-term outdoor durability of the colour pigments. Mutoh MS41 Eco Solvent Inks have an excellent weather, abrasion and chemical resistance. UV durability without lamination is rated up to 3 years outdoor.

Mutoh’s MS41 Eco Solvent Inks have obtained GREENGUARD Gold Certification in the wallpaper category, which means MS41 Inks meet some of the world’s most stringent and comprehensive standards for low emissions of volatile organic compounds (VOCs) into indoor air.  Prints made with MS41 Eco Solvent Inks are perfectly suited for indoor applications including offices, classrooms, and healthcare environments.
