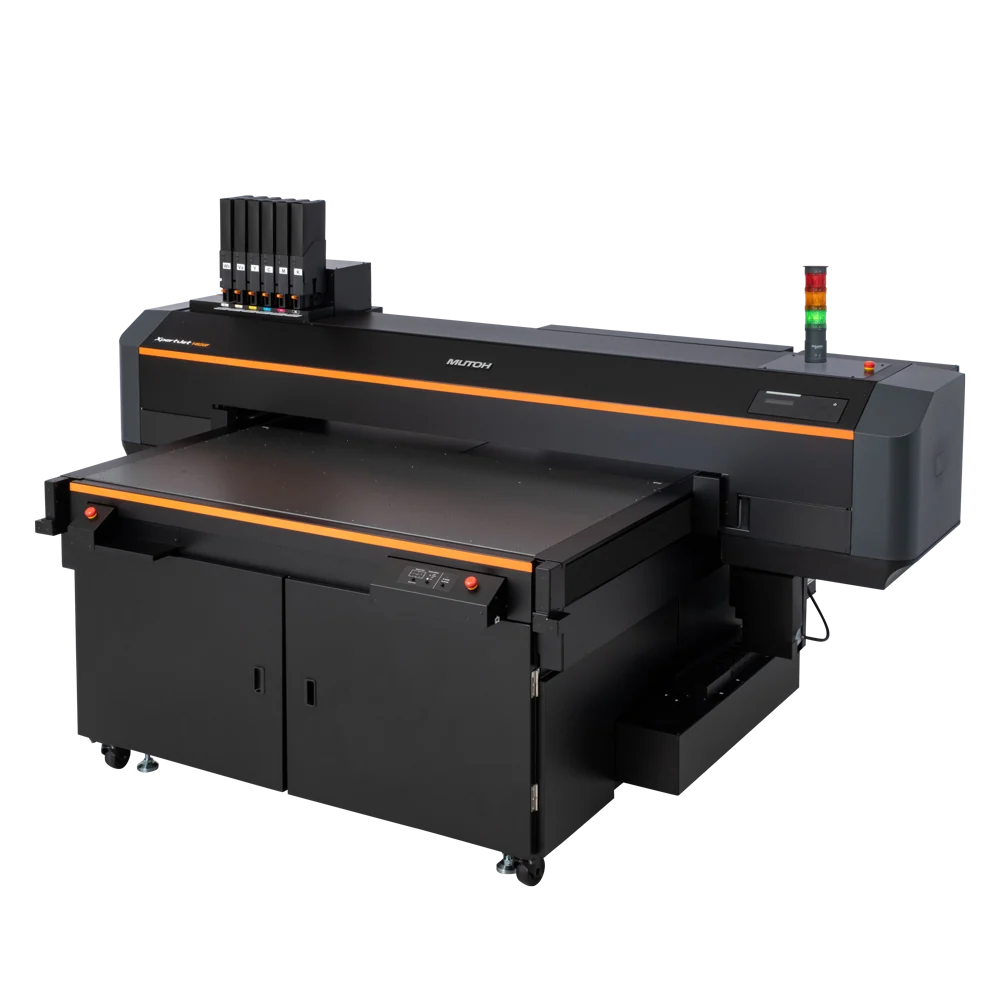

Mutoh XpertJet 1462UF UV LED Flatbed Direct-to-Object Printer

The Mutoh XpertJet 1462UF is a 6-colour UV LED flatbed direct-to-object printer with a 1420mm x 700mm table, printing on objects and rigid media up to 150mm thick. Twin staggered print heads and dual UV LED lamps give independent CMYK and White/Varnish printing for high-volume personalised and industrial production.

Description

The Mutoh XpertJet 1462UF is a 6-colour UV LED flatbed direct-to-object printer built to give your business a serious productivity boost. It features a generous 1420mm x 700mm table and prints directly onto rigid media and 3D objects up to 150mm thick, opening up unlimited possibilities for personalisation, industrial decoration and small-to-medium batch production.

Two staggered piezo drop-on-demand print heads allow CMYK and White/Varnish to be printed independently, while two 4″ multi-segment UV LED curing lamps cure output instantly, ready for handling or finishing straight off the printer. The four-zone magnetic vacuum bed holds media and objects securely (up to 50kg/m2) and supports automated media height detection and obstacle avoidance, so multiple substrate sizes and thicknesses can be printed simultaneously without manual setup.

The XpertJet 1462UF is supplied with Mutoh’s genuine VerteLith RIP software, giving you variable data PDF printing, jig creation tools, emboss presets and access to 100 texture patterns for eye-catching 2.5D printing effects. Mutoh’s next-generation UV LED inks are SVHC and CMR free.

Design Supply, a Mutoh Authorised Reseller, works closely with Mutoh to provide the best solutions available to get the job done for your business and maximise your opportunities. With more than 35 years of experience in the large format printer market, Design Supply offers expertise and knowledge in tailoring the exact solution for your specific application.

KEY FEATURES

6 colours: CMYK, White and Varnish

1420mm (55.9″) x 700mm (27.5″) print table

Four-zone magnetic vacuum bed, holds up to 50kg/m²

Prints on objects and rigid media up to 150mm (5.91″) thick

Automated media height detection and obstacle avoidance

Two staggered piezo drop-on-demand print heads for independent CMYK and White/Varnish printing

Two 4″ multi-segment UV LED curing lamps

Automated nozzle check unit

Bundled Mutoh VerteLith RIP – variable data PDF, jig creation, emboss presets and 100 texture patterns for 2.5D effects

Next-generation UV LED ink, SVHC and CMR free

Standard 3 year warranty

SPECIFICATIONS

Print area: 1420mm x 700mm (55.9″ x 27.5″)

Maximum media/object thickness: up to 150mm

Vacuum bed: four-zone magnetic vacuum bed, up to 50kg/m²

Print technology: two staggered piezo drop-on-demand inkjet heads

UV curing: two 4″ multi-segment UV LED lamps

Ink configuration: CMYK, White and Varnish (6 colours)

RIP / software: Mutoh VerteLith RIP

Origin: Made in Japan

Warranty: 3 year on-site warranty (Design Supply standard UK cover on Mutoh printers)

Full dimensions, weight and power consumption figures are available on Mutoh’s official datasheet – please confirm these against the latest PDF before publishing.

MANUFACTURER INFORMATION

Mutoh has been at the forefront of the wide format industry for more than 20 years. As an innovative developer and manufacturer of wide-format printers and cutters, Mutoh incorporates pioneering technology to bring you the best equipment for your application. Manufactured in Japan, Mutoh printers feature best-in-class inkjet head technology, latest generation electronics and high quality inks.

Mutoh’s award-winning Intelligent Interweaving print technology drastically reduces or totally eliminates the typical difficulties inherent to conventional digital UV inkjet printing, ensuring predictable and repeatable output quality and bringing an unprecedented level of user comfort to the printer operator.
