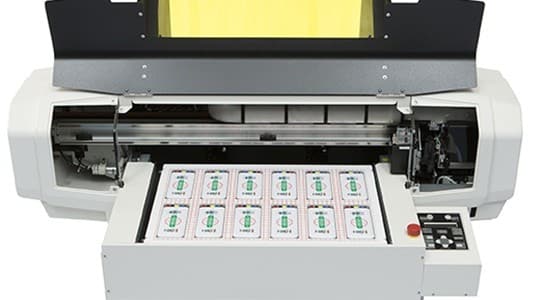

Mutoh ValueJet VJ-426UF Desktop A3+ Flatbed LED UV Printer

Description

The award-winning Mutoh ValueJet VJ-426UF is a new generation desktop A3+ flatbed LED UV printer that directly prints on a wide variety of solid materials and 3D objects up to a thickness of 70mm. The Mutoh ValueJet VJ-426UF has unlimited possibilities for new ideas and increased productivity, ideal for short run items, one-off designs of products and prototypes, personalisation of gifts, packaging prototypes, awards, specialty industrial items, souvenirs, as well as labels, decals, signs and more. Featuring Mutoh’s newly developed LED UV VOC-free inks, the VJ-426UF prints on large flatbed media or directly onto 3D objects and offers a maximum media size of 483 mm x 329 mm.

The Mutoh ValueJet VJ-426UF LED UV Printer prints on a wide variety of solid materials and 3D objects including ABS, Alu-board, PC, PE, PET, PMMA (acrylic), PP, PS, PVC, glass, and Tyvek. The Mutoh VJ-426UF multi-purpose LED UV Printer produces ultra-sharp, high quality output and includes optional white and varnish for a luxurious or specialty finish.

Design Supply, a Mutoh Authorised Reseller, works closely with Mutoh to provide the best solutions available to get the job done for your business and maximise your opportunities. With more than 28 years of experience in the large format printer market, Design Supply offers expertise and knowledge in tailoring the exact solution for your specific application.

VIDEOS


Mutoh VJ-426UF LED UV smart printing

Mutoh VJ-426UF Daily maintenance
Mutoh VJ-426UF Magentic Tray

Mutoh VJ-426UF How to make a jig

See how Mutoh printers are manufactured

KEY FEATURES

The Mutoh ValueJet VJ-426UF LED UV Printer combines the latest generation variable drop piezo print head technology, high precision mechanical design, new electronics, LED UV curing lamps and ease of use to deliver unrivalled print quality. Compared to “classic” UV printing, Mutoh LED UV technology provides state-of-the-art health and safety and environmental benefits: ozone generation free, mercury free, lead free, VOC free, and does not contain any hazardous air pollutants (non-HAP), eliminating the need for outgassing of prints and air purification requirements.

The Mutoh VJ-426UF LED UV Printer delivers best-in-class speed and the highest levels of quality with Mutoh’s award-winning Intelligent Interweaving with dedicated UV-weaving print technology, which enables a drastic reduction or total elimination of the typical difficulties inherent to conventional digital UV inkjet printing. Dedicated Intelligent Interweaving print effect for the Mutoh LED UV inks have been engineered, ensuring a drastic reduction of the curing structure in the ink layer and gloss banding suppression.

The biggest benefits of this Mutoh proprietary print technology is that it offers predictable and repeatable output quality fit for purpose every time in the shortest possible time, drastically reducing or eliminating horizontal banding, step mismatch banding and the visible effects of missing or misfiring nozzles. Output is immediately dry and ready for use or second state treatment. The Mutoh VJ-426UF LED UV Printer features low energy consumption with low heat generation, ideal for heat sensitive materials.

SPECIFICATIONS

The Mutoh ValueJet VJ-426UF LED UV Printer offers a wide range of easily selectable pre-defined print modes and speeds.  The print speeds do not include the loading and unloading time and one table corresponds to 0.15 m². In 2 x CMYK the maximum production speed (without loading and unloading) amounts to 28 tables per hour with a resolution of 720 x 1080 dpi.



Speed (tables/hour) 4 colour 6 Colour 6 Colour 6 Colour
Print Mode CMYK CMYK Only White Only 2-Layer Print (CMYK+white+varnish)
1440 x 1440, Uni 6 2 6 1
720 x 1440, Uni 13 6 13 3
720 x 1080, Bi 28 14 28 7

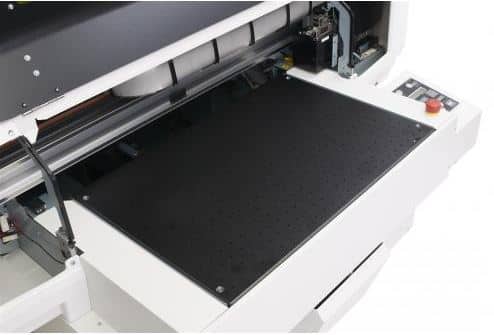

Intelligent design features make the Mutoh ValueJet VJ-426UF LED UV Printer easy to set up and operate. The VJ-426UF comes with a standard integrated vacuum system with electronically adjustable hold-down strength.   The vacuum bed ensures that even lightweight objects remain correctly positioned on the table and enables use of a magnetic board which can be placed on the table.  The print table is positioned in an enclosed housing, which reduces the attraction of dust during printing and provides sufficient protection from the UV light source. The VJ-626UF features an automatic table lift system with an obstacle detection laser and media thickness measurement. The LED pointer easily identifies where to place the media and locate the origin point.  Printing progress can be viewed through the transparent yellow hood.  The ready-to-print VJ426UF comes with an easy to navigate display panel, Windows Driver & Mutoh’s Layer Editor Tool to control white and varnish ink layers.  The VJ-426UF can also be controlled with a RIP.



The Mutoh ValueJet VJ-426UF LED UV Printer is compatible with ABS, Aluminium board, PC, PE, PET, PES, PMMA (acrylic), PP, PS, PVC, glass, and Tyvek. The maximum media thickness 70 mm (2.75 inches) and weight is 4 kg.  The VJ-426UF print table size is 483 x329 mm (19 x 12.95 inches) and the maximum print area is 473 x 319 mm (18.62 x 12.55 inches).



Mutoh LED UV inks enable printing on transparent and colour media with four colours and white and varnish.  Available in 220 ml cartridges, Mutoh LED UV inks allow specialty finishes and the single print head setup for the VJ-426UF LED UV Printer is optimised to work with Mutoh LED UV inks.  LED UV Mutoh LED UV inks are zero VOC liquids which do not contain hazardous air pollutants (non-HAP).  The average ink consumption is 1.6ml/table (0.15 m²) at 720 dpi with 67% coverage.  Two ink configurations are possible, 2 x CMYK (producing higher print speeds) or CMYK, 2xVarnish, 2 x White. The white ink circulation system prevents pigment sedimentation and ensures constant high printing quality.  Soft, flexible type LED UV inks are also available, suitable for flexible and stretchable media.



The Mutoh ValueJet VJ-626UF LED UV Printer includes the Mutoh printer driver, which makes operation easy via a PC.  Print directly without RIP software through the on-screen display using Adobe Illustrator, Windows Office, or CAD software.  The Mutoh driver loads the image data and the Mutoh ValueJet Layer Editor Software enabes the printing of up to three layers with various combinations at one time.   Innovative layer printing function is exclusive to Mutoh and enables the changing of colours on the surface, to enrich the texture and enhance overall look of the print.  Mutoh LED UV inks allow specialty finishes, by printing one layer for CMYK inks, white (only) or varnish (only).  Printing three layers with colour, then white, then colour again can also be done, all at the same time.  The use of layers creates an enriched layer appearance with incredible print quality and stability at a high speed on a variety of materials with a wide range of applications.  Both flex and rigid inks are available.  The hard UV ink bonds with many different materials, and in some cases, may require pre-coating.  Printing on fairly flexible synthetic materials is not a problem because the layer thickness of the standard CMYK print is fairly thin due to the curing method and the relatively small droplet size.  If varnish and white are added the layer thickness becomes more perceptible but remains limited, end enhances scratch resistance.



ValueJet Status Monitor (VSM), is also included with the Mutoh ValueJet VJ-626UF LED UV printer.  Exclusive to Mutoh, this software receives printer status data via email, and allows remote access from a smartphone.  Monitor the printer status from anywhere, including the amount of printing data, ink and media cost, printing history, cartridge information, and so on.



The Mutoh ValueJet VJ-426UF LED UV Printer includes an energy efficient long life LED UV curing lamp, ensuring output immediately dry and ready for use or second state treatment.   The powerful long-life (14,250 hours) LED UV lamp is mercury and lead free, and ensures ozone free, safe and ultra-sharp prints, which are ready to be used or laminated after printing.  The UV lamp is on the side of the printhead and travels quickly across the printing surface.  The LED UV lamp does not create heat toward the media, making the technology extremely well suited for handling heat sensitive media as opposed to classic UV or water-based resin ink technologies generating huge amounts of heat or relying on high temperature to dry the ink. The UV light is only lit during actual printing.  The distance between the UV light source is considerable, and lighting can be dosed, which means that the dose for the return run can be adjusted differently during be-directional printing, which prevents the so-called lawnmower effect.  The large distance between the lamp and the print head allows for printing on mirrored surfaces without the UV light reaching the print head.  Air cooling for the LEDs are located at the rear of the printer.



Ultimate flexibility is achieved with Mutoh’s ValueJet Status Monitor (VSM) app, for remote printer monitoring through a PC or a smart phone.  VSM, exclusive to Mutoh, maximises the performance of the printer for remote printing, by receiving printer status data  and allowing the remote monitoring of the printer status from anywhere, including the amount of printing data, ink and media cost, printing history, cartridge information, and so on.



The Mutoh ValueJet VJ-426UF received “Best New Product 2015” at the ISA International Sign Expo 2015 and won the EDP Award 2014/2015 “Best Multipurpose Object Printer”.   ISA is the International Sign Association and EDP is the European Digital Press Association.



Built to last, Mutoh ValueJets are renowned for precision engineering and meticulous production practices for years of profitable use.  As you would expect from Mutoh, reliable performance is a given.  For added peace of mind, Mutoh ValueJet printers feature a 12-month on-site warranty.



There is a complete range of Mutoh and third party materials, compatible with the ValueJet VJ-426UF LED UV Printer available from Design Supply’s media specialists whose expertise can help you determine the best solutions for your particular printing needs.



WHAT'S IN THE BOX

Mutoh ValueJet VJ-426UF LED UV Printer with integrated vacuum table

Installation instruction: Startup Guide

Accessory box (media height guide, 10 cleaning sticks, 100 rubber gloves, 100 plastic gloves, 1 goggles, 5 paper towels (lint-free cloth))

Printer installer and driver software CD

Instruction sheet for dedicated ink

Notification sheet

UK power cable

12 months on-site warranty

Consumables:

LED UV inks 220 ml cassettes: VJ-LUH1-__200E (BK, CY, MA, YE, WH, VA)

Cleaning LED UV ink 220 ml cassette: VJ-LUH1-CL200E

LED UV inks 800 ml bags: VJ-LUH1__800E (BK, CY, MA, YE, WH, VA)

Ink Adapter Set (6 adapters): VJ-HCIPADAPT-UV6

Flex LED UV inks 220 ml: US11-__220E (BK, CY, MA, YE, WH, VA)

Options:

3 Year Extended Warranty

DATA SHEETS

Mutoh ValueJet VJ-426UF Desktop A3+ Flatbed LED UV Printer

Mutoh Print Inspiration Brochure

Mutoh ValueJet VJ-426UF wins ISA Best New Product

Mutoh ValueJet VJ-426UF EDP award certificate



MANUFACTURER INFORMATION

Mutoh has been at the forefront of the wide format industry for more than 20 years. As an innovative developer and manufacturer of wide-format printers and cutters, Mutoh incorporates pioneering technology to bring you the best equipment for your application. Manufactured in Japan, Mutoh ValueJet printers feature best-in-class inkjet head technology, latest generation electronics and high quality inks.

Mutoh’s new wide piezo print head and new generation electronics offers a unique blend of high speed and high quality. The drop-on-demand Micro Piezo Inkjet Technology features a single print head with 1440 nozzles divided into four colour sections. Each colour section has 360 nozzles, or two 180 nozzle rows per colour. Because all colour sections are united in one head, there is no need for time-consuming head-to-head calibration routines. The integrated print head is capable of producing ink drops ranging from 3.8 picoliters to 28 picoliters, resulting in incredible accuracy, sharpness, and speed. Increased accuracy and consistency of dot size and dot release during printing improves the image, in addition to increased dot gain control, allowing for more latitude in profile settings. New generation electronics include higher carriage speeds and ink firing frequencies and adapted weaving algorithms give an impressive increase in productions speed as well as optimised ink spread and improved drying.

Mutoh’s award-winning Intelligent Interweaving print technology drastically reduces or totally eliminates the typical difficulties inherent to conventional digital UV inkjet printing. Dedicated Intelligent Interweaving print effects for the Mutoh LED UV inks have been engineered, ensuring a drastic reduction of the curing structure in the ink layer and gloss banding suppression. The biggest benefit of this proprietary Mutoh print technology is that it offers predictable and repeatable output quality, bringing an unprecedented level of user comfort to the printer operator.

DropMaster technology is a revolutionary print automation technique which eliminates the need for media dependent head adjustments. Specifically designed for Mutoh’s dual head ValueJet models, DropMaster automatically calculates and adjusts the uni/bi-directional fire timings by analysing the media thickness and drop-throw distance between print head and media surface.
