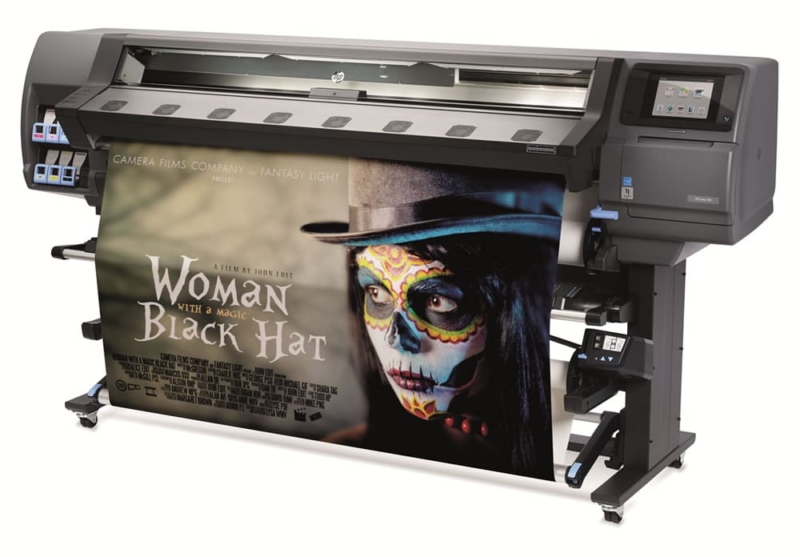

HP Latex 360 Large Format Printer, 64 inch

The HP Latex 360 Printer produces up to 64-inch/1.63m addressable width prints with unrivalled versatility and healthier printing with water based HP Latex Inks. Ideal for highly demanding turnarounds for indoor and outdoor prints, the HP Latex 360 is for medium to large Print Service Providers, Sign Shops, and Copy Shops. The HP Latex 360 features automatic, fast, reliable low-maintenance printing on a wide range of media from vinyl, textiles, paper, film, wall paper to low-cost uncoated options.

With 100’s of media available, expand your services to the growing temporary textiles, vehicle graphics, and wall covering markets and produce great results whether printing point of purchase posters, outdoor and event banners, vehicle wraps and graphics, backlit applications, wall coverings and canvas. Print on a wide variety of textiles, including porous textiles with the ink collector.

At Design Supply, an HP Gold Partner and Designjet Specialist, we work closely with HP to provide the best solutions available to get the job done for your business and maximize your opportunities. With over 25 years of experience in the large format printer market, we offer expertise and knowledge in tailoring the exact solution for your specific application.

SKU: B4H70A Category: Tag:
HP

Description

Market and Applications and who uses this type of large format printer

The HP Latex 360 Printer produces up to 64-inch/1.63m addressable width prints with unrivalled versatility and healthier printing with water based HP Latex Inks. Ideal for highly demanding turnarounds for indoor and outdoor prints, the HP Latex 360 is for medium to large Print Service Providers, Sign Shops, and Copy Shops. The HP Latex 360 features automatic, fast, reliable low-maintenance printing on a wide range of media from vinyl, textiles, paper, film, wall paper to low-cost uncoated options.

With 100’s of media available, expand your services to the growing temporary textiles, vehicle graphics, and wall covering markets and produce great results whether printing point of purchase posters, outdoor and event banners, vehicle wraps and graphics, backlit applications, wall coverings and canvas. Print on a wide variety of textiles, including porous textiles with the ink collector.

At Design Supply, an HP Gold Partner and Designjet Specialist, we work closely with HP to provide the best solutions available to get the job done for your business and maximize your opportunities. With over 25 years of experience in the large format printer market, we offer expertise and knowledge in tailoring the exact solution for your specific application.

HP Latex 360 Printer produces up to 1200 x 1200 dpi resolution with HP double swath technology and has a maximum print speed of 50m2/hr. The suggested average monthly print volume for the HP Latex 360 is up to 800m2/month (8611 ft2/month). High speed printing with less energy and at lower temperatures achieves high-efficiency curing. The following are print speeds based on user-selected print modes and either four or 6 colours.

Print Mode (bidirectional)(4 or 6 colour) Viewing distance m2/hr ft2/hr
Maximum Speed, (1-pass) 91 980
Outdoor High Speed (4-pass, 4c) >5m 31 334
Outdoor Plus (6-pass, 6c) >3m 23 248
Indoor Quality (8-pass, 6c) 1-3m 17 183
Indoor High Quality (10-pass, 6c) <1m 14 151
Backlits, Textiles, Canvases (16-pass 6c) <1m 6 65
High Saturation Textiles (20-pass, 6c) <1m 5 54

The HP Latex 360 Printer includes the HP Latex Optimizer, which interacts with HP Latex Inks to rapidly immobilize pigments on the surface of the print and achieves high image quality at high productivity. HP Latex 360 Printer features the embedded i1 spectrophotometer for colour management, enabling automatic calibration for paper-based media (but not for textiles and banners). HP Quick Substrate Profiling includes a full set of onboard generic and specific HP substrate profiles and access to an online substrate profile library of over 250 custom profiles and the ability to fine tune, edit, clone and remove profiles. HP 831 Latex Ink cartridges are available in 775 ml and HP Latex printheads feature 1200 nozzles per inch, and are user-replaceable, maintaining image quality over the life of the printer.

HP Latex Usability

The HP 64-inch Take Up Reel is included with the HP Latex 360 Printer, a productivity booster for unattended printing. Optional accessories include 64-inch 2-inch and 3-inch spindles handle up to 42 kg (92.6 lb.) and multiple spindles are available for quick ready to load multiple media versatility and convenience.

HP Wall Art is free, cloud-based software designed to use with HP Latex Printers. Voted in 2013, the “Best Special Application Solution” by the European Digital Press Awards. HP Wall Art features design, 3D visualization, job sharing, automatic PDF printing files, creation of customised installation instructions and developers kit to allow integration into websites.

There are 100’s of different media for the HP Latex 300 Series printers, including a broad choice among coated or uncoated, vinyl, paper, PVC-free wallpaper, banner (light display, heavy); fabrics (cotton, eco-cotton, polyester, heat-sensitive polyesters, synthetic leather, silk) canvas, porous textiles and many more. Choose from a wide range of compatible substrates from industry-leading media providers including specialty substrates, deep embossed, textured or metallic coated media. Our media specialists at Design Supply have the expertise to help you determine the best solutions for your particular printing needs. HP Latex prints feature a flexible ink layer, ideal for conforming to complex surfaces, including vehicle wraps and canvas (everyday satin, premium satin, gesso coated, inkjet coated, gallery wrap). For more information, including the 3M MCS Warranty, ask your Design Supply account manager.

HP Latex and Canvas applications

Count on dependable support to create the best image possible from HP and Design Supply. For added peace of mind, HP Latex 300 Series printers feature a 12-month limited hardware warranty. HP Services offer a broad portfolio of proven support programs to help keep your business running productively including HP Care Pack Services, an extensive portfolio of installation and post warranty on-site support services and preventative maintenance kits and HP Ecosolutions Training for printing companies to help enhance printing and imaging environments and protect your investment and grow your business. Ask us at Design Supply, and we can tailor the best solution possible for your needs.

Downloadable HP Latex 360 Printer T-Series Brochures

KEY FEATURES

Key features of the HP Latex 360 Printer

Expand your applications and beat client expectations with the HP Latex 360 Printer. Print traditional signs and more and reach new indoor spaces that solvents can’t, including healthcare, hotels, restaurants and schools with the HP Latex 360 odourless prints. Satisfy a broader range of customer needs with 64-inch addressable width printing on a wide range of media and improve outdoor durability with the Latex 360 prints, better than eco-solvent inks, and offer vehicle graphics with the 3M MCS Warranty.

Win new clients on eco standards and create a healthier printing environment. HP Latex meets high environmental standards with EL ECOLOGO and GREENGUARD GOLD Certifications, and AgBB criteria and A+ rating according to Emissions dans l’air interieur. HP Latex will help leverage health and environmental advantage of water-based HP Latex inks. Build business and attract new customers demanding more sustainable solutions from a responsible company. Using HP Latex Printing Technologies, featuring water-based Latex Inks can help simplify regulatory compliance: no special ventilation required: HP Latex Inks are non-flammable, non-combustible and nickel-free. There are no hazard warning labels or HAPs (hazardous air pollutants) with HP Latex printing.

Improve productivity and move quickly and confidently with the HP Latex 360 Printer, which prints high quality, durable images in record time, with fast warm-up and high-efficiency curing. The HP Optical Media Advance Sensor (OMAS) uses precise and accurate motion control of the media advance between print swaths, which controls registration automatically, and supports double-sided printing with minimal operator intervention. Save time, as no need to rewind the roll between sides. HP Latex prints are completely cured and dry inside printer, ready for immediate finishing and same-day delivery. The HP 64-inch Take Up Reel assists for unattended printing. Deliver outdoor prints which last up to five years laminated and three years unlaminated with improved scratch resistance compared to hard solvent inks. Print on a wide variety of textiles, including porous textiles with the ink collector and expand into textile signage with no need to trim off margins. Deliver fleet colour consistency between multiple HP Latex 360 printers.

Keep your running costs low with easy operation. The HP Latex 360 features a front media loading table, and enabling single operator loading. The HP Latex 360 has an accessible print zone with large windows and lights and an automated servicing with a single waste ink supply resulting in reliable, low-maintenance printing. Increase uptime by easily controlling the printer settings and tasks via the intuitive 8-inch touchscreen, including easy access to how-to videos and QR codes for help, or convenient remote management with HP Latex Mobile, an app that keeps tabs on print jobs, updates the status of the printer while away and send alerts when attention is needed.


HP Latex Technology




HP Latex Mobile

MORE INFORMATION

More information on HP Designjet proprietary technologies

HP Latex proprietary technology provides innovation in versatility, flexibility and durability, driving the transformation of the industry and expanding applications to the interior decoration market. Introduced in 2009 as a result of over ten years of research, development, and investment, thousands of HP Latex Ink systems are now employed worldwide and have printed more than 35 million square meters. HP Latex offers the versatility to cover applications including retail and outdoor advertising, event and exhibition graphics, vehicle graphics and interior decoration. The water-based formulation of HP Latex Inks meets high environmental standards that improve the work environment and meet customers’ environmental objectives for indoor displays and wall coverings.

HP Latex proprietary technology makes it possible to obtain high quality at production speeds at no extra cost compared to solvent printing technology. Versatility of media, including coated and uncoated substrates deliver odourless prints and do not require ventilation, moving the industry to healthier printing. The smooth, flexible ink layer is ideal for stretching and framing canvases. User replaceable printheads maintain image quality over the life of the printer. Scalable printhead technology enables a range of products with speeds ideal for low to medium volume printing. Delivery times are shortened; prints come out completely dry, and can be laminated immediately. Maintenance is reduced with HP water-based Latex Inks, which do not require daily manual cleaning and printers can be turned off overnight, on weekends, or longer. The HP Latex 300 Series printers are third generation technology.

HP Latex Ink Cartridges feature built-in electronic intelligence that communicates ink colour, remaining ink quantity and other information for the printer. HP Latex Inks are water-based inks that combine the best characteristics of solvent inks and water-based inks. Water give HP Latex inks the high surface tension, low viscosity and energetic vapour bubble that are ideal for use in thermal HP inkjet printheads. Composed of more than 60% water, HP Latex Inks offer important benefits to commercial and industrial production environments – water produces no VOCs (volatile organic compounds), requires no special handling, and is non-toxic, non-flammable and non-combustible. Humectants, wetting agents and additives are used to obtain required performance characteristics for an ink.

The HP Latex 300 Series printer features a print zone, located on the printer platen under the scanning carriage. Here heaters evaporate some of the water, allowing the concentrated humectants and wetting agents to soften the surface of uncoated vinyl for better adhesion of the colourant layer. Remaining liquids in the ink film are evaporated by curing zone dryers to produce a completely dry and odourless print that can be immediately handled, stored, shipped or displayed indoors. The HP Optimizer interacts with HP Latex Inks to rapidly immobilize pigments on the surface of the print and achieve high image quality at high productivity.


HP Optimizer


HP Curing





The ColorPRO Technology trademark represents a quality standard for colour excellence in digital printing. All materials that carry the ColorPRO Technology logo are designed together with HP Latex Inks and HP Latex printers and demonstrate visibly enhanced print quality, delivering professional quality and striking results. The HP Media Certification Programme for HP Latex Inks opens up new application options and profit potential, while saving ramp up time associated with testing media.

Environmental Certifications and Eco Labels Overview:

Since 1992, HP focuses on specific environment impacts through its Design for Environment (DfE) program. DfE is an engineering perspective where the environmentally related characteristics of a product, process, or facility are optimized. Together, HP’s environmental stewards and product designers consider impact on the design of every product and solution, from the smallest ink cartridges to entire data centres. HP Latex Printing Technologies provide many opportunities to reduce and recycle. Below are the certifications for the HP Latex 300 Series Printers, HP 831 Latex Ink Cartridges, and selected HP Media.

EL ECOLOGO Certification to UL 2801 demonstrates that HP Latex Inks meet a range of stringent criteria related to human health and environmental conditions. UL GREENGUARD GOLD Certification to UL 2818 means HP Latex products are certified to GREENGUARD standards for low chemical emissions into indoor air during product usage. HP Wall Art printed on HP PVC-free wall paper and other prints on HP PVC-free wall paper printed with HP Latex Inks meet AgBB criteria for health-related evaluation of VOC (volatile organic compounds) emissions of indoor building product. Rated A+ per Emissions dans l’air interieur refers to the level of emission of volatile substances in indoor air posing health risks if inhaled. Eco Mark Certification Number 14142007 is for the HP 831 Latex Ink Cartridges, certified by the Eco mark Office of Japan Environment Association. Energy Star qualified means the HP Latex 300 Series meet strict energy efficiency guidelines without sacrificing performance and are EPEAT registered. Additionally, other certifications for some medias/textiles include EN22 standards for wash ability and colourfastness and Euro Class Standard Class B4 for flame retardant and CE Mark Type II (ASTMF793) compliant for durability characteristics.

HP printing materials are designed together with HP Latex Inks and HP Latex printers provide optimal image quality, consistency, and reliability. These include HP PVC-free Wall Paper (FSC and UL GREENGUARD GOLD Certified), HP Everyday Matte Polypropylene, 3-in core, HP Backlit Polyester Film, and HP Premium Satin Canvas.

Downloadable HP Latex 360 Large Format Printer

WHAT'S INSIDE?

Contents:

  • HP latex 360 64-in printer: B4H70A
  • One set of HP831 latex printheads (6): CZ677A, CZ678A, CZ679A, CZ680A
  • HP 831 latex maintenance cartridge: CZ681A
  • Ink collector
  • Output platen protector
  • Printer stand
  • 3-in spindle
  • HP Latex 64-in take-up reel
  • HP latex media loading accessory
  • HP Latex 360 ink collector
  • User maintenance kit: F0M59A
  • Edge holders: F0M64A
  • Quick reference guide
  • Setup poster
  • Documentation software
  • Industrial 16A power cords (2)
  • One year limited hardware warranty

Options:

  • HP Latex 64-in Printer 2-in Spindle: F0M56A
  • HP Latex 64-in Printer 3-in Spindle: F0M58A
  • HP Latex 3×0 User Maintenance Kit: F0M59A
  • HP Latex 3×0 Edge Holders: FOM64A
  • HP Latex Media Loading Accessory: F0M63A
  • HP Latex 360 Ink Collector: D8J124A

Consumables:

  • HP 831 Cyan/Black Latex Printhead: CZ677A
  • HP 831 Yellow/Magenta Latex Printhead: CZ678A
  • HP 831 Light Magenta/Light Cyan Latex Printhead: CZ679A
  • HP 831 Latex Optimizer Printhead: CZ680A
  • HP 831 775ml Black Latex Ink Cartridge: CZ694A
  • HP 831 775ml Cyan Latex Ink Cartridge: CZ695A
  • HP 831 775ml Magenta Latex Ink Cartridge: CZ696A
  • HP 831 775ml Yellow Latex Ink Cartridge: CZ697A
  • HP 831 775ml Light Cyan Latex Ink Cartridge: CZ698A
  • HP 831 775ml Light Magenta Latex Ink Cartridge: CZ699A
  • HP 831 775ml Latex Optimizer Ink Cartridge: CZ706A
  • HP 831 Latex Maintenance Cartridge: CZ681A

Media:

  • HP PVC-free Wall Paper (FSC and UL GREENGUARD GOLD Certified)
  • HP Everyday Matte Polypropylene, 3-in Core
  • HP Backlit Polyester Film
  • HP Premium Satin Canvas
  • For a complete list, please speak to your Design Supply account manager
  • For more information on the 3M MCS Warranty for Certified Graphics Manufacturers, please speak to your Design Supply account manager

Service and support:

  • HP 3 Year Next Business Day Defective Media Retention: U1ZP7E
  • HP 2 Year Next Business Day Defective Media Retention: U1ZP6E
  • HP 2 Year Post warranty Next Business Day Defective Media Retention: U1ZP9PE
  • HP 1 Year Post Warranty Next Business Day Defective Media Retention: U1ZP8PE
