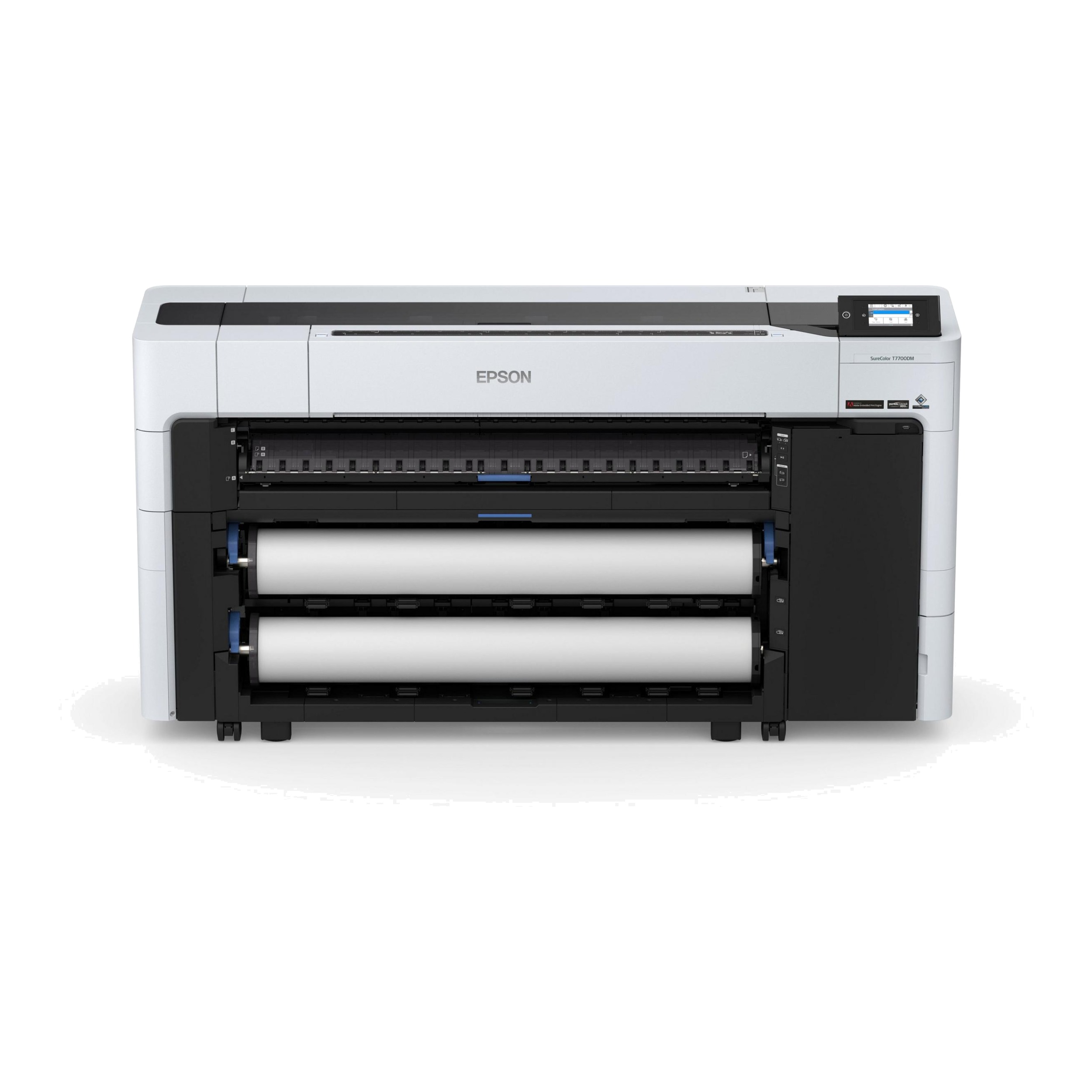

Epson SureColor SC-T7700DM MFP (44in/1118mm) Large Format Scan, Print and Copy
The Epson SureColor SC-T7700DM is a 6-colour, 44-inch/1118mm multifunction printer that prints, scans and copies, with dual roll, Adobe PostScript 3, a 960GB encrypted SSD and an integrated 36-inch dual-light CIS scanner.
3 Years Lease
5 Years Lease
Description
The Epson SureColor SC-T7700DM is a compact 44-inch/1118mm multifunction printer that prints, scans and copies in one all-in-one office solution. With a flat top and back and a shallow depth, it brings together dual roll printing, automatic media loading, Adobe PostScript 3 as standard, a 960GB encrypted SSD and an integrated 36-inch dual-light CIS scanner with a simplified scan workflow. It is ideal for architecture, construction, engineering, CAD/GIS, copy shop and education environments. Other sizes are available, including the 36-inch SC-T5700DM.
At Design Supply, an Epson ProGraphics Gold Partner, we work closely with Epson to provide the best solutions to get the job done for your business. Now in our 36th year and with over 7,000 printers sold, we offer the expertise and knowledge to tailor the exact solution for your specific application.
KEY FEATURES
- Print, scan and copy in one compact 44-inch/1118mm unit with a flat top, flat back and shallow depth.
- Integrated 36-inch dual-light CIS scanner with a simplified scan workflow. Scan up to 10 inches/sec (mono, 200 dpi).
- Encrypted scanning and storage on a 960GB self-encrypting SSD, protecting confidential documents.
- Adobe PostScript 3 included as standard.
- Dual roll with automatic media loading and an auto take-up reel.
- 6-colour UltraChrome XD3 ink (Photo Black, Matte Black, Cyan, Yellow, Magenta, Red) in 350ml or 700ml cartridges.
- Print from PC, mobile, USB and SSD. Software includes Document Capture Pro, Epson Scan 2 and Epson Smart Panel.
- Colour touchscreen, driver and scan preview, and nozzle verification technology.
- 24-month on-site service warranty, with CoverPlus extensions available.
SPECIFICATIONS
Print
Printing method: PrecisionCore Micro TFP printhead
Ink: UltraChrome XD3, 6 colours (Photo Black, Matte Black, Cyan, Yellow, Magenta, Red)
Ink cartridges: 350ml or 700ml
Max resolution: 2,400 x 1,200 dpi
Minimum line width: 0.02 mm
Print from: PC, Mac, network, mobile, USB, cloud, direct from device
Media handling
Roll widths: 17in, 24in, 36in, 44in
Sheet sizes: A0 to A4
Rolls: 2 (170mm diameter, up to 12.5kg per roll)
Auto take-up reel: Yes
Scan and copy
Scanner: Contact image sensor (CIS), dual LED (RGB)
Scan width: 153mm to 914.4mm (36in)
Scan speed: 10 in/sec mono, 4.5 in/sec colour (200 dpi)
Scan destinations: SSD, email, USB, network folder
Output formats: JPEG, TIFF, multi-TIFF, PDF, PDF/A, secured PDF
Copy: 25% to 755%, up to 99 copies
Connectivity and languages
Hi-Speed USB 2.0, Gigabit Ethernet, Wi-Fi (802.11a/b/g/n/ac), Bluetooth
Emulations: ESC/P-R, PostScript 3, PDF 1.7, HP-GL/2, RTL
Security
SNMP v3, IPSec, AES-256, data encryption, WPA3, TPM, SSL/TLS, LDAP, user authorisation, PIN release, image overwrite, NFC card authentication (optional)
General
Dimensions (W x D x H): 1,848 x 499 x 975 mm
Weight: 166 kg
Power: 90W printing, 44W economy, 2W standby
Warranty: 24 months on-site service
WHAT'S IN THE BOX
Epson SureColor SC-T7700DM MFP: C11CH84301A1
SureColor T-Series printer/scanner
Adobe PostScript 3
Ink set
44in roll feed spindle
Maintenance boxes
AC adapter
Setup guide
Installation/safety manual
Warranty documents
24-month on-site service
Options:
44in Roll Feed Spindle
NFC card readers (server and serverless)
CoverPlus extended warranties
