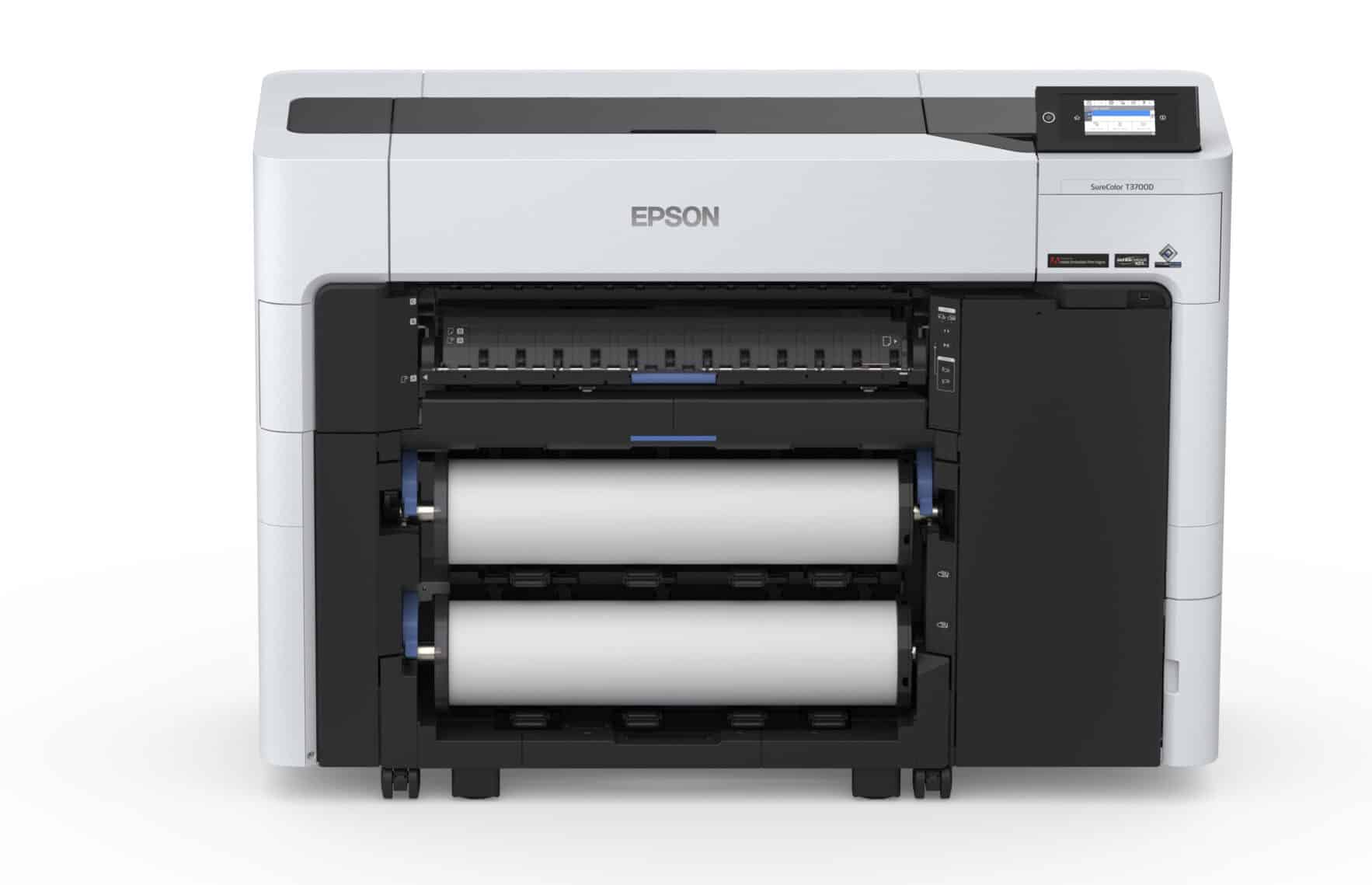

Epson SureColor SC-T3700DE A1 Large Format Printer

The Epson SureColor SC-T3700 Series are fully integrated,technical printing solutions offering high-productivity, smart features, document security and easy operation. The Epson SureColor SC-T3700 Series feature single roll, dual roll, and PostScript compatibility  ideal for the architecture, building, engineering, design, commercial print, copy shop,  retail and education environments. The 6-colour, 24-inch/610mm SC-T3700 Series is  available in three configurations: the standard dual roll  SC-T3700DE, the dual roll and  PostScript enabled  SC-T3700D, the single roll  SC-T3700E

Description

The Epson SureColor SC-T3700 Series are fully integrated,technical printing solutions offering high-productivity, smart features, document security and easy operation. The Epson SureColor SC-T3700 Series feature single roll, dual roll, and PostScript compatibility  ideal for the architecture, building, engineering, design, commercial print, copy shop,  retail and education environments. The 6-colour, 24-inch/610mm SC-T3700 Series is  available in three configurations: the standard dual roll  SC-T3700DE, the dual roll and  PostScript enabled  SC-T3700D, the single roll  SC-T3700E.

At Design Supply, an Epson ProGraphics Gold Partner, we work closely with Epson to provide the best solutions available to get the job done for your business and maximise your opportunities. With over 32 years of experience in the large format printer market, we offer expertise and knowledge in tailoring the exact solution for your specific application.

KEY FEATURES

The Epson SureColor SC-T3700 Series are technical printers designed for various applications, including  precise line definition, colour accuracy and security for the  AEC/CAD/GIS plans and drawings; bright colour and high speed production for POS posters in retail; and precison, colour replication, and security for public sector printing.

The SC-T3700DE is a complete document solution with enhanced IT and security features. Designers, architects and construction companies can print detailed plans and drawings while protecting confidential document. Improved collaboration and workload management deliver more efficiency with Epson’s central management tracking applications: Epson Cloud Solutions PORT and Epson Device Admin for IT managers.

The SC-T3700DE design is both contemporary and compact.  The Epson SureColor SC-T3700DE printer is ideal for office and workgroup environments with its sleek styling, compact footprint, low noise levels and front operation. Space saving and practical, the SC-T3700DE fits into most working environments, including against a wall, back-to-back with another printer, and even in a corner.

The Epson SureColor SC-T3700 Series is compatible with a variety of media including: matte paper (archival, doubleweight, enhanced, heavy weight, enhanced posterboard, singleweight, presentation), bond paper (bright, satin, white), coated paper,  synthetic paper (enhanced adhesive, enhanced), matte backlit film, photo paper (gloss, premium glossy, premium luster, premium semigloss, premium semimatte, production glossy,), and  ink jet paper (photo quality), canvas matte (premium satin , production , waterresistant) presentation paper high res, and rigid poster board up to 1.5mm for presentation or architectural models. Our media specialists at Design Supply have the expertise to help you determine the best solutions for your particular printing needs.

Count on dependable support to create the best image possible from Epson and Design Supply. For added peace of mind, Epson SureColor printers feature a 12-month on site service warranty. Epson CoverPlus are post warranty extended 3, 4 and 5-year support services available to help you enhance your printing and imaging environment, protect your IT investment and grow your business. Ask us at Design Supply, and we can tailor the best solution possible for your needs.

SPECIFICATIONS

The Epson SureColor SC-T3700DE printer is the ideal production solution. Maximise productivity and flexibility  with versatile dual rolls enabling longer print runs without user interface, using two of the same size or different sized rolls.  The autoswitch feature reduces frequent roll changes during busy times without user interaction.  Automatic roll feeding saves time loading new media or switching between different size rolls.  Automatic roll feeding aligns and adjusts paper for optimal tension during loading, and paper switching. The Take-up reel enables roll to roll printing, for easy storage and transportation, and ideal if using offline cutting. The SC-T3700DE accepts rolls of media from 17- 24 inches and accepts cut sheet media via the sheet friction feed.

The SC-T3700DE includes enhanced security and IT tools to ensure peace of mind when working with confidential documents.  With over 28 IT security features to assist with data protection and communication security, the SC-T3700DE can be configured with an optional encrypted SSD, NFC Card support and support for Epson Print Admin. Improved collaboration and workload management deliver more efficiency with Epson’s central management tracking applications: Epson Cloud Solutions PORT and Epson Device Admin for IT managers. Epson Cloud Support PORT platform enables remote monitoring of equipment across sites, or multiple printers at one site, anytime and anywhere.  The Production Monitor is one of the apps on the Epson Cloud Support PORT and provides clear, easy-to-understand graphics to see at a glance how each printer in your fleet are performing.  Detailed data can be used to easily analyse productivity and receive daily operation updates form anywhere.  Maintenance tracking and remote troubleshooting services improve productivity and efficiency. The Epson SureColor SC-T3700DE printer is powerful and secure, featuring SNMP, IPSec, AES-128, AES-256, Data storage Encryption, Data Encryption, WPA3, NFC – Card Authentication Reader, TMP (Trusted Platform Module), PIN code Release, Image Overwrite, User Authorisation, LDAP, IEEE802, and  SSL/TLS which keeps data confidential by preventing unauthorised access.  Features include Secure Print release via NFC/Pin/Password as well as supporting a wide range of security features.

The SC-T3700DE achieves high productive output speeds with the Epson PrecisionCore Micro TIP printhead, Variable Sized Droplet Technology and Nozzle Verification Technology. The Epson SureColor SC-T3700DE printer features the new PrecisionCore Micro TFP printhead, state of the art technology resulting in fast, highly productive and reliable results. Complex jobs are printed with ease with unparalleled precision. The PrecisionCore Micro TFP printhead is 2.64 inches (compared to the previous 1-inch version)and 1600 nozzles per colour resulting in increased productivity and high speed continuous printing.  The permanent PrecisionCore printhead provides long-life performance and combined with 700 ml  ink cartridges maximize productivity. The Epson SureColour SC-T3700DE printer produces up to 2400 x 1200 dpi resolution and has a maximum print speed of up to  130m²/hour or 3 A1 landscape sheets per minute using standard matte media.  CAD A1 size can be print in as little as 16 seconds, and a Poster (BO size) can be printed in as little as 46 seconds.  Variable Sized Droplet Technology ensures superb image quality with a minimum droplet size of 3.5 picolitres coupled with Nozzle Verification Technology, an auto nozzle check system can be performed before every job or can be set to run automatically between jobs during unattended printing.

The Epson SureColor SC-T3700 Series has a versatile design which makes this printer an ideal fit for most offices.  Compact, its ideal for small spaces, and its flat top surface is ideal for editing and as a proofing bench.  Front operation means the printer can be placed up against a wall, maximising floor space. Front access to the  roll holders, ink cartridges, maintenance box and integrated print catch basket aid in operation and make it easy to use in a variety of environments. The Integrated Print Catch Basket is simple and effective, and folds away completely saving space when not in use. The Epson SureColor SC-T3700DE features a durable built-in rotary paper cutter which cuts prints quickly and cleanly. The SC-T3700DE features a tilting 4.3 inch/11 cm touch screen user interface .

The award-winning Epson UltraChrome XD3 ink set delivers superior image quality.  UltraChrome XD3 is a 6-colour ink system (photo black, matte black, cyan, yellow, magenta and red) which produces durable prints with crisp lines and vibrant colours thanks to a new red ink.   UltraChrome XD3 durable inks are water, smudge and fade-resistant. Photo and Matte blacks deliver deep blacks and crisp, dense lines, ideal for technical graphics, and the vibrant colours necessary for high quality prints and posters, on coated and non-coated media including board up to 1.5mm thick. Available in both 700 and 350 ml size cartridges, UltraChrome XD3 inks are easily replaceable accessed at the front of the SC-T3700DE.

Optional accessories for the SC-T3700DE include a 1 TB SDD, additional 24-inch roll feed spindles, and a 24-inch production stacker.  Reduce print times in a busy workgroup environment with powerful processing using the optional 1 TB SSD, offering a large amount of storage space and faster data processing for job caching and recall.  The industry leading encrypted  high capacity 960GB SSD saves jobs directly to the printer.  Workflow is quicker, releasing the PC faster and reprinting from the SSD, and the encrypted SSD enables secure, fast data processing and storage.  Passwords can be applied to each folder.  Additional roll feed spindles allow you to easily use, store, and manage multiple types of printing media. The production stacker is ideal for high volume unattended printing.



WHAT'S IN THE BOX

Epson SureColor SC-T3700DE 24 inch/610 cm A1 Printer: C11CH80302A1

Spindle Unit(s)

Wi-Fi network setup guide

Driver

Initial Ink 110ml

Setup guide

Maintenance box

User manual (CD)

Warranty Documents

Installation/safety manual

12-month On-site service

Optional Software and Solutions:

Epson Print Automate, Dinax Mirage, Epson Cloud Solution PORT, Epson Print Layout, Epson LFP Accounting Tool, Epson Device Admin, Epson Edge Dashboard, Epson Print Admin serverless, Epson Edge

Independent Software Vendor (ISV):

DINAX, EFI, Caldera, ColorGate, ONYX and more

Security:

SNMP, IPSec,  AES-256,  Data Encryption, WPA3, NFC – Card Authentication Reader, TMP (Trusted Platform Module), PIN code Release, Image Overwrite, User Authorisation, LDAP, IEEE802, SSL/TLS, Panel Admin Mode

Options:

Epson 1 TB SSD: C12C936671

24-inch Spindle: C12C937711

NFC card readers and cards: available from 3rd party vendors

Production Stacker (24 inch): C12C937731

Extended Warranties:

3 years CoverPlus Onsite service including Print Heads for SureColor SC-T3700: CP03OSSEH803

4 years CoverPlus Onsite service including Print Heads for SureColor SC-T3700: CP04OSSEH803

5 years CoverPlus Onsite service including Print Heads for SureColor SC-T3700: CP05OSSEH803

Consumables:

UltraChrome XD3 Matte Black  T5OM8(700 ml): C13T50M800

UltraChrome XD3 Matte Black T5OU8(350 ml): C13T693500

UltraChrome XD3 Photo Black T5OM1(700 ml): C13T5OM100

UltraChrome XD3 Photo Black T5OU1(350 ml): C13T5OU100

UltraChrome XD3 Cyan T5OM2(700 ml): C13T5OM20o

UltraChrome XD3 Cyan T5OU2(350 ml): C13T5OU200

UltaChrome XD3 Magenta T5OM3(700 ml): C13T5OM300

UltaChrome XD3 Magenta T5OU3(350 ml): C13T5OU300

UltaChrome XD3 Yellow T5OM4(700 ml): C13T5OM400

UltaChrome XD3 Yellow T5OU4(350 ml): C13T5OU400

UltaChrome XD3 Red T5OMF(700 ml): C13T5OMF00

UltaChrome XD3 REd T5OUF(350 ml): C13T5OUF00

Auto Cutter Blade: C13S210117

Maintenance Box (Tx700/Px500) : C13S210115

Borderless Maintenance Box (Tx700/Px500) : C13S210116

Cleaning Sticks S090012 (50 pcs): C13S090013

Media:

Archival Matte Paper, DIN A3+, 189g/m², 50 Sheets: C13S041340

Archival Matte Paper, DIN A3, 189g/m², 50 Sheets: C13S041344

Archival Matte Paper – A4 – 50 Sheets: C13S041342

Bond Paper Bright 90, 594mm x 50m: C13S045277

Bond Paper Bright 90, 610mm x 50m: C13S045278
Bond Paper Satin 90, 610mm x 50m: C13S045282
Bond Paper White 80, 594mm x 50m: C13S045272
Bond Paper White 80, 610mm x 50m: C13S045273
Coated Paper 95, 610mm x 45m: C13S045284
Doubleweight Matte Paper Roll, 24″ x 25 m, 180g/m²: C13S04138
Enhanced Adhesive Synthetic Paper Roll, 24″ x 30,5 m, 135g/m²: C13S041617
Enhanced Matte Paper Roll, 17″ x 30,5 m, 189g/m²: C13S041725
Enhanced Matte Paper, 24″ x 30,5 m, 189g/m²: C13S041595
Enhanced Matte Paper, DIN A2, 192g/m², 50 Sheets: C13S042095
Enhanced Matte Paper, DIN A3+, 192g/m², 100 Sheets: C13S041719
Enhanced Matte Paper, DIN A4, 192g/m², 250 Sheets: C13S041718
Enhanced Matte Posterboard, 24″ x 30″, 1130g/m²: C13S041598
Enhanced Matte Posterboard, DIN A2, 800g/m², 20 Sheets: C13S042111
Enhanced Matte Posterboard, DIN A3+, 800g/m², 20 Sheets: C13S042110
Enhanced Synthetic Paper Roll, 24″ x 40 m, 84g/m²: C13S041614

Matte Backlit Film, 24″ x 30,5 m, 280g/m²: C13S045083

Matte Paper Heavy Weight, DIN A3+, 167g/m², 50 Sheets: C13S041264
Matte Paper Heavy Weight, DIN A3, 167g/m², 50 Sheets: C13S041261
Matte Paper Heavy Weight, DIN A4, 167g/m², 50 Sheets: C13S041256
Photo Paper Gloss, 17″ x 30,5 m, 250g/m²: C13S041892
Photo Paper Gloss, 24″ x 30,5 m, 250g/m²: C13S041893
Photo Quality Ink Jet Paper, DIN A2, 102g/m², 30 Sheets: C13S041079
Photo Quality Ink Jet Paper, DIN A3+, 102g/m², 100 Sheets: C13S041069
Photo Quality Ink Jet Paper, DIN A3, 102g/m², 100 Sheets: C13S041068
Photo Quality Inkjet Paper – A4 – 100 Sheets: C13S041061

Premium Canvas Satin, 13″ x 6,1 m, 350g/m²: C13S041845

Premium Canvas Satin, 24″ x 12,2 m, 350g/m: C13S041847

Premium Canvas Satin, 24″ x 12,2 m, 350g/m²: C13S04184

Premium Glossy Photo Paper Roll, 16″ x 30,5 m, 170g/m² : C13S042076

Premium Glossy Photo Paper Roll, 16″ x 30,5 m, 260g/m² : C13S041742

Premium Glossy Photo Paper Roll, 24″ x 30,5 m, 170g/m²: C13S041390
Premium Glossy Photo Paper Roll, 24″ x 30,5 m, 260g/m².: C13S041638

Premium Glossy Photo Paper Roll, 329 mm x 10 m, 255g/m²: C13S041379

Premium Glossy Photo Paper, DIN A2, 255g/m², 25 Sheets: C13S042091
Premium Glossy Photo Paper, DIN A3+, 255g/m², 20 Sheets: C13S041316
Premium Luster Photo Paper, 16″ x 30,5 m, 260g/m²: C13S042079
Premium Luster Photo Paper, 20″ x 30,5 m, 260g/m²: C13S042080
Premium Luster Photo Paper, 24″ x 30,5 m, 260g/m²: C13S042081
Premium Luster Photo Paper, 30 cm x 30,5 m, 260g/m²: C13S042078
Premium Luster Photo Paper, DIN A2, 250g/m², 25 Sheets: C13S042123
Premium Luster Photo Paper, DIN A3+, 250g/m², 100 Sheets: C13S041785
Premium Luster Photo Paper, DIN A4, 250g/m², 250 Sheets: C13S04178

Premium Semigloss Photo Paper Roll, 16″ x 30,5 m, 250g/m².: C13S041743
Premium Semigloss Photo Paper Roll, 24″ x 30,5 m, 170g/m²: C13S041393
Premium Semigloss Photo Paper Roll, 24″ x 30,5 m, 250g/m²: C13S041641
Premium Semigloss Photo Paper, 16,5″ x 30,5 m, 170g/m²: C13S042075
Premium Semigloss Photo Paper, DIN A2, 250g/m², 25 Sheets:C13S042093
Premium Semigloss Photo Paper, DIN A3+, 250g/m², 20 Sheets:C13S041328
Premium Semigloss Photo Paper, DIN A3, 250g/m², 20 Sheets: C13S041334
Premium Semimatte Photo Paper Roll, 16″ x 30,5 m, 260g/m²: C13S042149
Premium Semimatte Photo Paper Roll, 24″ x 30,5 m, 260g/m²: C13S042150
Presentation Matte Paper Roll, 24″ x 25 m, 172g/m²: C13S041295
Presentation Paper HiRes 120, 610mm x 30m: C13S045287
Presentation Paper HiRes 180, 610mm x 30m: C13S045291
Production Canvas Matte, 610mm x 12,2m: C13S045295
Production Photo Paper Glossy 200 24″ x 30m: C13S450371
Singleweight Matte Paper Roll, 17″ x 40 m, 120g/m²: C13S041746
Singleweight Matte Paper Roll, 24″ x 40 m, 120g/m²: C13S041853
WaterResistant Matte Canvas Roll, 17″ x 12,2 m, 375g/m²: C13S042013
WaterResistant Matte Canvas Roll, 24″ x 12,2 m, 375g/m²: C13S042014



DATA SHEETS

Epson SureColor SC-T3700DE Datasheet

DSL SureColor TX700 Series Brochure

Epson SureColor SC-T3700D Datasheet

Epson SureColor SC-T3700E Datasheet





MANUFACTURER INFORMATION

In 1993, Epson entered the inkjet printing market with the innovative Epson Stylus 800, and introduced its market changing printhead with Epson Micro Piezo technology, making a permanent technological advancement which remains at the forefront today. In 1994, Epson introduced the Stylus Pro, the world’s first 720 dpi colour inkjet printer. In 1998, the Epson Stylus Pro 800 was selected by NASA for the STS-95 mission and Epson introduced the first colour inkjet printer with built-in USB connectivity. Epson continues to develop breakthroughs in technology and applications as print, projection and display needs evolve, building on more than 60 years of innovation of Seiko Epson, which began as a watchmaker.

Epson SureColor SC-T printers incorporate a number of Epson proprietary technologies including Micro Piezo, PrecisionCore, Variable Sized Droplet Technology (VSDT), Exotic Thin Film Piezo (TFP), Low Vibration Meniscus Control and UltraChrome Inks. Epson SureColor T Series (technical) printers are the latest generation of printers from Epson, building on the success of the Stylus Pro Series.

Epson introduced the award-winning proprietary piezo-electric technology, called Micro Piezo in 1993, and Micro Piezo has made Epson inkjet printers renowned for their high quality output, reliability, and low running costs. Today, Epson is the only company that uses the piezo-electric printhead throughout its inkjet printing device range, from the smallest personal photo printer to the largest industrial system. Epson Micro Piezo technology fires ink droplets onto a surface by applying an electric charge to piezo-electric elements, which bend when an electrical charge is passed through them. Using piezo-electric technology, the amount of ink pulled into and expelled out of the nozzles can be very accurately controlled by varying the electrical charge given to the piezo-electric elements. This enables the printhead to eject ink droplets in a range of precisely controlled sizes. Ink droplets are propelled instead of heating the ink, which results in a wider range of printing applications and media compatibility, including paper, and industrial applications, fabric printing, indoor filter fabrication and applying patterns to electronic circuit boards. Epson Micro Piezo technology minimises impact on the environment because it uses ink very efficiently and places ink droplets accurately, to prevent wasted paper. The printheads last the lifetime of the printer.

Epson PrecisionCore printhead technology delivers Epson’s renowned industry-leading output quality at high speed. Inch for inch, the high-resolution Epson print chips are one of the fastest inkjet printing technologies in the world. PrecisionCore piezo elements each fire nearly 50,000 times per second. PrecisionCore has up to triple the nozzle density of conventional Epson piezo printheads. The nozzles are roughly 20 microns in diameter and deliver small, round, repeatable dots about 40 microns across. This dot precision creates sharp text and fine lines. PrecisionCore uses the power of the piezo crystal to increase reliability. The piezo element generates a voltage that can detect in milliseconds, whether its firing normally and self diagnose its health. The automatic nozzle check system uses advanced ink droplet detection to eliminate misprinting caused by nozzle clogging. Ink drops with an electrical charge are read by a sensor which takes less than 15 seconds, requires no media and consumes only a miniscule amount of ink. PrecisionCore’s micro-mechanical firing elements avoid material limitations faced by heat-based systems. More colourful and durable ink formulations with higher concentrations of colorants and binders can be used compared to heat-based systems, allowing for printing on a much wider range of substrates. PrecisionCore Scalable Technology is designed for products ranging from industrial systems such as large-scale label presses to desktop printers. Its modularity allows PrecisionCore print chips to be arrayed in both moving serial and fixed line printhead configurations.

Epson Variable Sized Droplet Technology (VSDT) refers to the capability of Epson’s Micro Piezo printhead technology to eject ink droplets of different sizes by varying the electrical charge give to the piezo-electric elements. Epson’s SureColor printers can achieve variable sized ink droplets as small as 3.5 picoliters. Such superior precision results in sharp, rich, and virtually grain-free text and images, key qualities strongly associated through the years with Epson’s renowned photo-quality prints. Epson Micro Piezo printheads run much cooler than thermal inkjet ones and can provide reliable operation for the life span of the printer. Epson ink cartridges do not require a printhead attached, making the ink cartridges more affordable, and environmentally friendly. Epson Micro Piezo printheads use less power than thermal inkjet printheads because the piezo-electric method of ink ejection is far more efficient.

The Epson SureColor SC-T7700 Series features the new Epson Micro Piezo TFP printhead, which includes Epson variable size ink drop technology, delivering superb quality prints with smooth gradations and grain reduction at high speed with a print resolution of up to 2400 dpi. The advanced Micro Piezo TFP printhead features higher performance and greater durability with 1600 nozzles for each colour (cyan, magenta, and yellow) and 1600 nozzles for black.

The award-winning Epson UltraChrome XD3 Ink developed for the latest generation of inkjet professional printers is a significant advancement in print technology. Epson has developed several variations of UltraChrome Ink, for different needs and applications. Epson UltraChrome inks are available in XD3, XD, High Dynamic Range (HDR), Hi-Gloss, Hi-Gloss 2, K3, K3 with Vivid Magenta, and GS. Epson UltraChrome XD3 Inks include a new Red ink and have superb short term stability and can be used on a wide variety of media. Epson UltraChrome XD3 features two-level black ink technology. The two tones of black, photo or matte are automatically selected depending on the media to optimise density of ink on different medias, resulting in the highest quality in both black-and-white and colour.  Epson UltraChrome XD3 aqueous pigment ink colours include cyan, yellow, magenta and red. UltraChrome XD3 uses specially formulated resin-encapsulated pigments which stabilise quickly and are extremely water resistant.
