Epson SureColor SC-T3400N (24in/610mm)A1 Large Format Printer

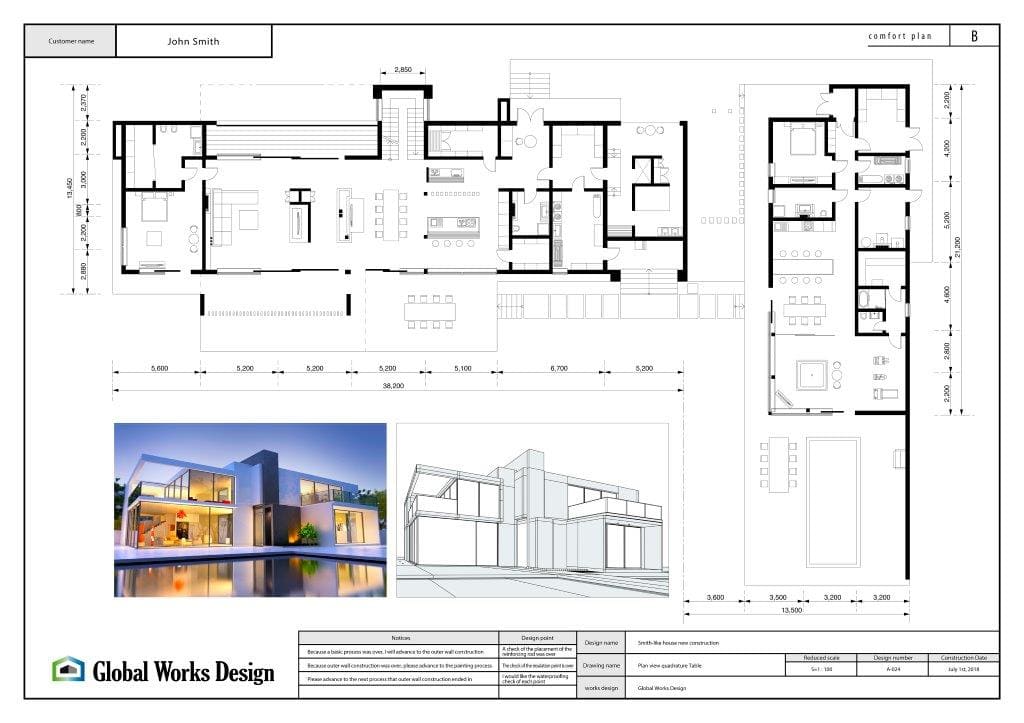

The Epson SureColor SC-T3400 Series Large Format Printers are high speed, four-colour, 24-inch/610mm A1, single-roll printers for the professional, entry-level technical market. Print CAD, architectural and engineering technical drawings and GIS quickly, accurately and reliably. Available in two configurations, the Epson SureColor SC-T3400 Series deliver unparalleled precision, speed and versatility.  The Epson SureColor SC-T3400 is all about flexibility, reliability, detail and throughput speed at an affordable price.  The SC-T3400 Series include the standard SC-T3400 and  SC-T3400N without stand, for desktop convenience.

SKU: C11CF85302A1 Categories: , Tag:


The Epson SureColor SC-T3400 Series Large Format Printers are high speed, four-colour, 24-inch/610mm A1, single-roll printers for the professional, entry-level technical market. Print CAD, architectural and engineering technical drawings and GIS quickly, accurately and reliably. Available in two configurations, the Epson SureColor SC-T3400 Series deliver unparalleled precision, speed and versatility.  The Epson SureColor SC-T3400 is all about flexibility, reliability, detail and throughput speed at an affordable price.  The SC-T3400 Series include the standard SC-T3400 and  SC-T3400N without stand, for desktop convenience.

At Design Supply, an Epson ProGraphics Gold Partner, we work closely with Epson to provide the best solutions available to get the job done for your business and maximise your opportunities. With over 28 years of experience in the large format printer market, we offer expertise and knowledge in tailoring the exact solution for your specific application.



Epson SC-T3400, SC-T3400N and SC-T5400 Large Format Printers

Epson SC-Tx100 (3100, 3100N, 5100, 5100N) and SC-Tx400 (3400, 3400N, 5400)Large Format Printers

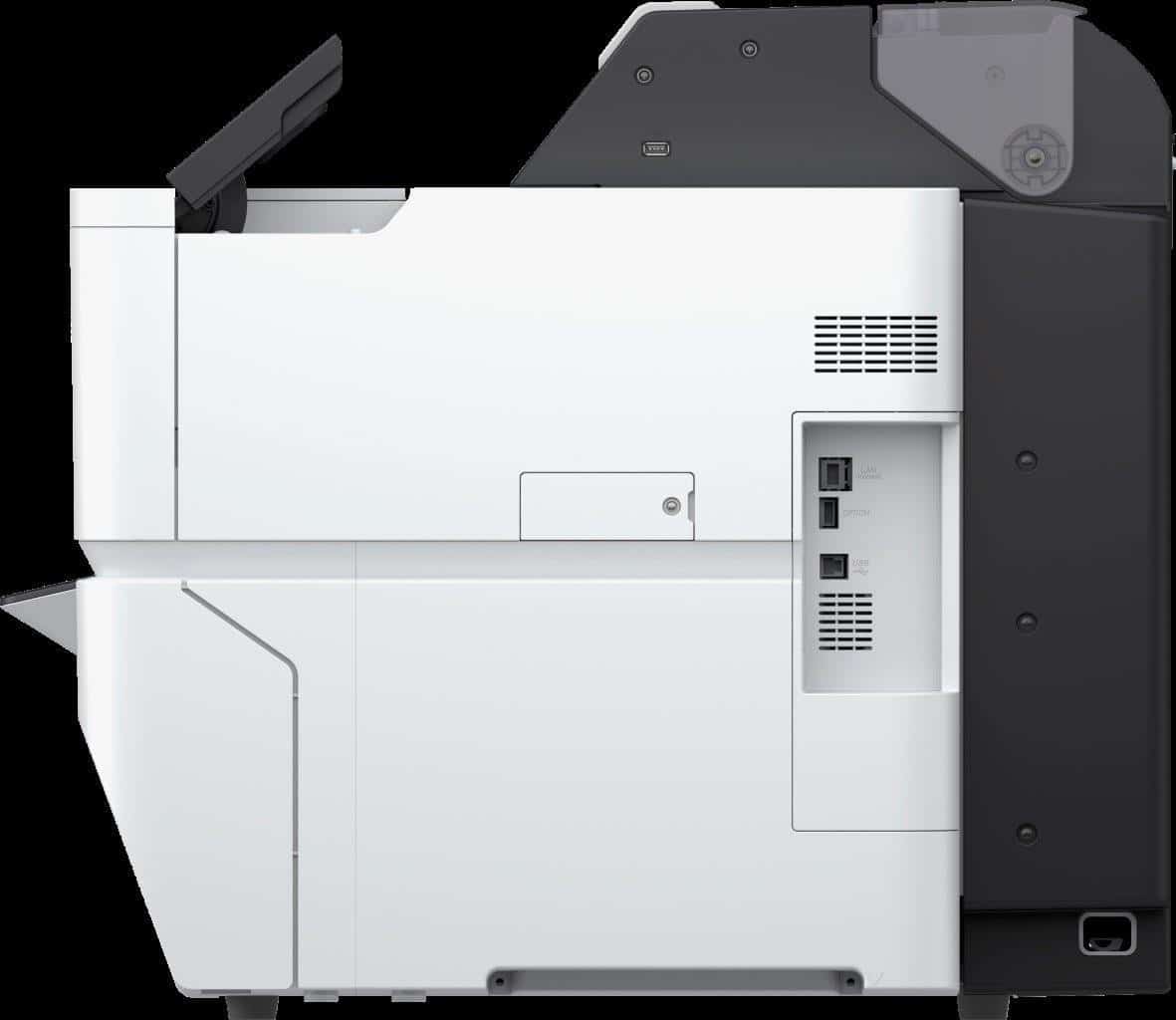

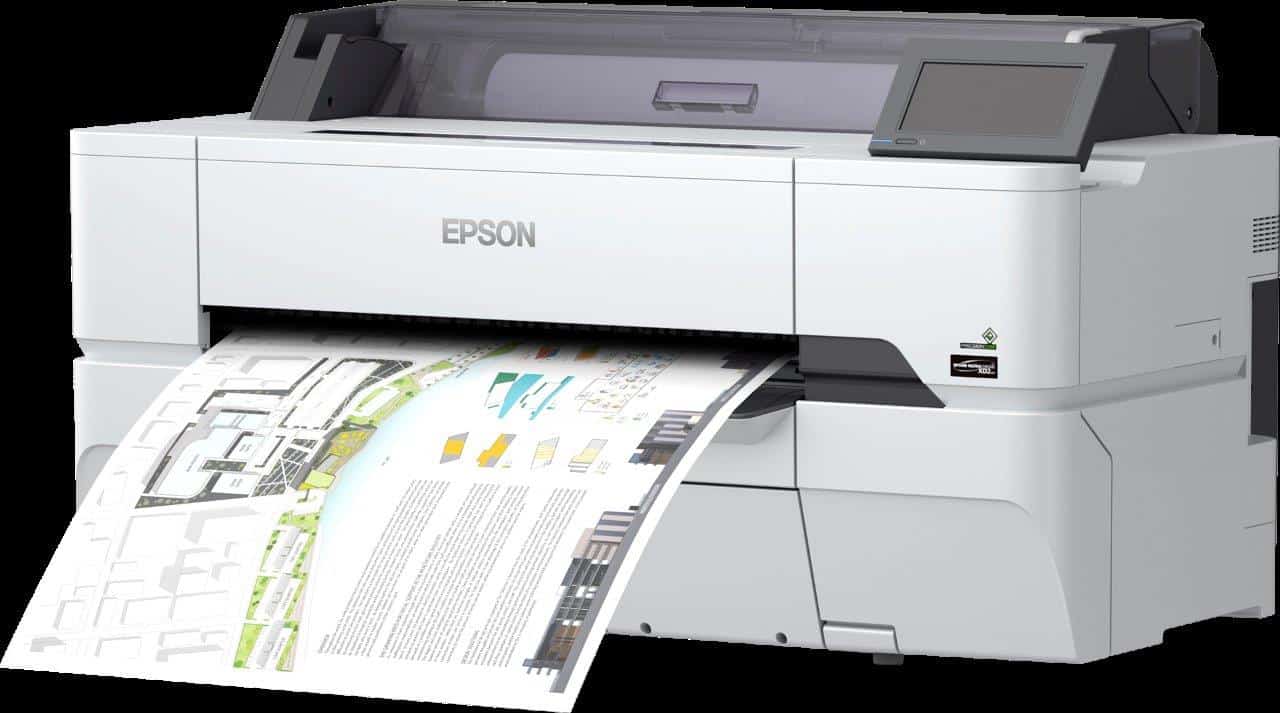

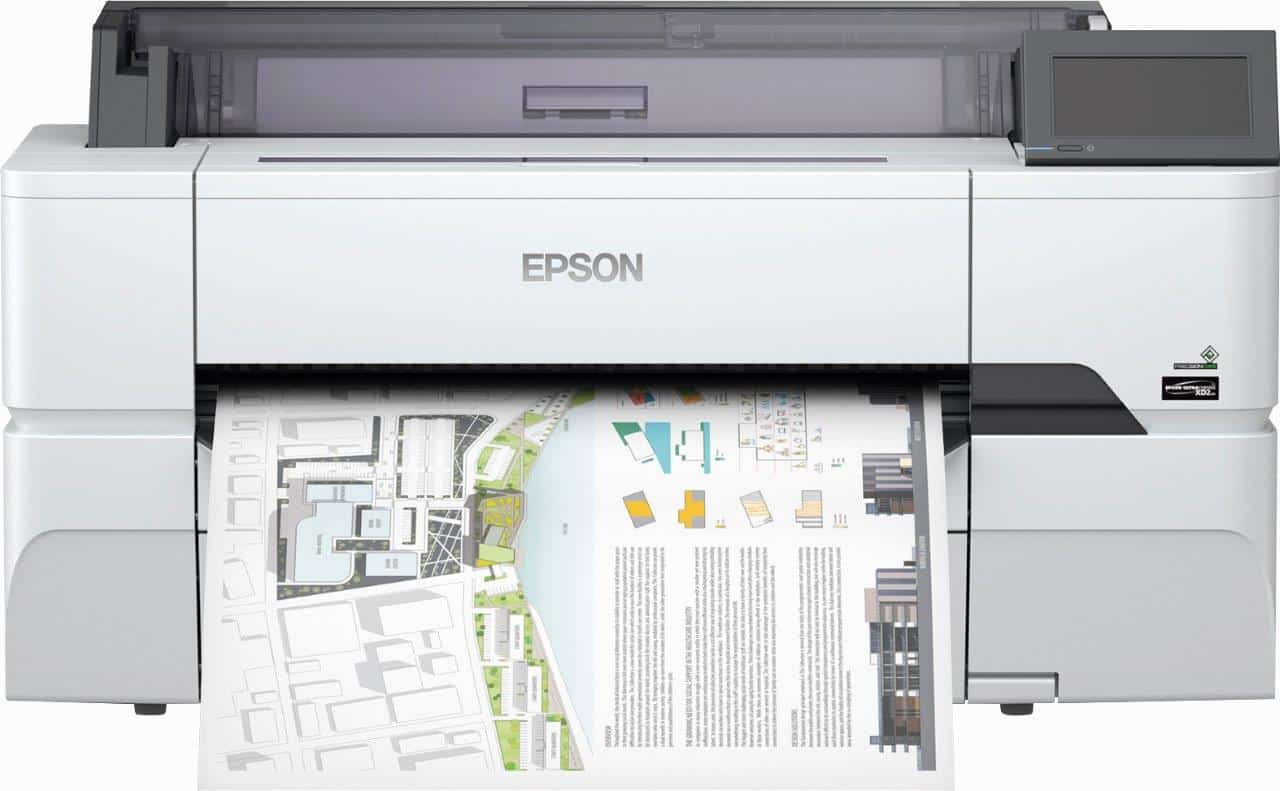

The Epson SureColor SC-T3400N Large Format Printer features an impressive price and performance with low running costs with a clean, compact design, available as a desktop printer thoughtfully designed to fit seamlessly into most environments.  The cover and overall design provides protection from dust and enhances reliability.

The Epson SureColor SC-T3400N Large Format Printer supports wireless printing, enabling users to print directly from smartphones or tablet devices.  Mobile and cloud printing services supported include Apple AirPrint and WiFi Direct.  The Epson SC-T3400N has an easy to use large touchscreen and  support direct USB printing, for convenience.

The Epson SureColor SC-T3400N Large Format Printer features UltraChrome XD2 pigment inks, which delivers water resistant  and smudge-free prints, in addition to deep blacks and crisp dense lines, ideal for technical graphics.   The Epson SC-T3400N Large Format Printer and UltraChrome XD2 inks print with accuracy and precision, technical, architectural and engineering drawings in great detail, with ease. The Epson SC-T3400 supports borderless printing.

The Epson SureColor SC-T3400N features seamless paper changes, between  a high capacity large format roll feed and sheetfeed, and supports up to A1 cutsheets as well as rolls.



The Epson SureColor SC-T3400N Large Format Printer includes the Epson PrecisionCore Micro Piezo TFP printhead, state-of-the-art technology resulting in fast, highly productive and reliable results. Complex jobs are printed with ease with unparalleled precision. The Epson SureColour SC-T3400N Large Format Printer produces 2400 x 1200 dpi, and has a maximum CAD print speed of 22 sec/A1 on plain paper in draft mode and first page out print speeds of 25 seconds for both monochrome and colour prints.  The Epson SC-T3400N includes 1 GB memory.

The permanent Epson PrecisionCore printhead provides long-life performance and precisely controls droplet shape and volume at a rate up to 50,000 droplets per second, delivering incredible detail and professional output quality at high speeds.  The Epson printhead nozzle configuration includes 800 nozzles for black, and 800 nozzles per colour and produces a minimum 4 picoliter droplet size, with Variable-Sized droplet technology.  Epson’s Unique Nozzle Verification Technology, (NVT) helps prevent misprints.  NVT is  an auto nozzle check system can be performed before every job or can be set to run automatically between jobs during unattended printing.

The award-winning Epson UltraChrome XD2 ink set is smudge-proof and water- and UV-resistant, and delivers deep blacks and crisp, dense lines, ideal for technical graphics, and the vibrant colours necessary for high quality prints and posters, on coated and non-coated media from 0.05mm to 0.3mm thick. Weather resistant technology found in the UltraChrome XD2 ink means fieldwork drawings and GIS materials  are suitable for short-term outdoor use.  The high capacity 4 colour (CMYK) UltraChrome XD2 pigment ink set is  available in both 110 and 35o ml sizes.

The Epson SureColor SC-T3400N printer is cost effective and innovative. Cost reduction options include  a preview screen  that reduces print mistakes, an option to print only when size matches paper size and images are rotated if necessary.  The Epson SureColor SC-T3400N Large Format Printer features front operation means the printer can be placed up against a wall, maximising floor space. Front access to the spindle-less roll holder, ink cartridges and maintenance box make it easy to use.

The Epson SureColor SC-T 3400N  is flexible and easy to use, featuring a spindle-less paper holder, auto nozzle check and a 10.9 cm/4.3  inch colour LCD touchscreen. No more struggling with a long spindle to insert a media roll. Two separate flanges at each end makes replacing media rolls easy. Media can be fed via the sheet friction feed or roll feed and accepts cut sheets from A4 – 24 inches and paper rolls from 10 – 24 inches. An optional automatic paper adapter, easily switchable to support both 2-inch and 3-inch core paper rolls and is available and suitable for most media types. The Epson SureColor SC-T3400N features a durable built-in rotary paper cutter which cuts prints quickly and cleanly.

The Epson SureColor SC-T3400N  is compatible with  Mac OS 10.6.8 or later and Microsoft Windows Vista, 7, 8,10, XP.  The Epson SC-T3400N also supports  enhanced HP-GL/2 , HP-RTL , and ESC/P-R.  The Epson SC-T3400N interface support includes USB 3.0,gigabit ethernet interface, Wireless LAN IEEE 802. 11b/g/n (WiFI 4), and Wi-Fi Direct.

The Epson SureColor SC-T3400N is compatible with a variety of media including: bond paper (bright, satin, white), coated paper, matte paper (archival, doubleweight, singleweight) enhanced adhesive synthetic paper, matte backlit film, premium photo paper (glossy, luster, semigloss), presentation paper (hiRES 120, 180)  photo quality ink jet paper, and more. Our media specialists at Design Supply have the expertise to help you determine the best solutions for your particular printing needs.

Count on dependable support to create the best image possible from Epson and Design Supply. For added peace of mind,  the Epson SureColor SC-T3400N Large Format Printer  features a 24-month on site service warranty. Epson CoverPlus is a post warranty extended 3-year support service available to help you enhance your printing and imaging environment, protect your IT investment and grow your business. Ask us at Design Supply, and we can tailor the best solution possible for your needs.


Epson SureColor SC-T3400N: C11CF85302A1

Setup guide

User manual (CD)

24 month on site warranty documents

Power cable

Individual ink cartridges (110 ml starter cartridges)

Software included:

Driver and utilities CD (LFP Remote Panel 2, EpsonNet Config, LFP Print Plug-In for Office, Remote Manager)

LFP Accounting Tool, HDD Utility Software (free download from Epson website)


Roll Feed Spindle (24 inch):C12C933281

Stand with paper bin:


UltraChrome XD2 Black 350 ml: C13T41F540

UltraChrome XD2 Black 110 ml: C13T41R540

UltraChrome XD2 Cyan 350 ml: C13T41F240

UltraChrome XD2 Cyan 110 ml: C13T41R240

UltaChrome XD2 Magenta 350 ml: C13T41F340

UltaChrome XD2 Magenta 110 ml: C13T41R340

UltaChrome XD2 Yellow 350 ml: C13T41F440

UltaChrome XD2 Yellow 110 ml: C13T41R440

Borderless Replacement Pad Kit Tx400: C13S400064 (includes 12 x borderless replacement pads, 12 x cleaning sticks, tweezers x 1, gloves x 1 pair, manual)

Auto Cutter Spare Blade: C13S902007

Maintenance Box : T699700

Extended Warranties:

3 Years CoverPlus Onsite service including Print Heads for SureColor SC-T3400: CP03OSSECF85

4 Years CoverPlus Onsite service including Print Heads for SureColor SC-T3400: CP04OSSECF85

5 Years CoverPlus Onsite service including Print Heads for SureColor SC-T3400: CP05OSSECF85


Epson Archival Matte Paper

Epson Bond Paper Bright

Epson Bond Paper Satin

Epson Bond Paper White

Epson Coated Paper

Epson Doubleweight Matt Paper Roll

Epson Enhanced Adhesive Synthetic Paper Roll

Epson Matte Paper

Epson Matte Backlit Film

Epson Photo Quality Ink Jet Paper

Epson Premium Glossy Photo Paper Roll

Epson Premium Glossy Photo Paper

Epson Premium Luster Photo Paper

Epson Premium Semigloss Photo Paper Roll

Epson Premium Semigloss Photo Paper

Epson Presentation Paper HiRES 120

Epson Presentation Paper HiRES 180

Epson Singleweight Matte Paper Roll


Epson SureColor SC-T3400 Data Sheet

Epson SureColor SC-T3400 T3400N, T5400 Quick Guide

Epson Surecolor SC-T3400, T3400N and T5400 Overview

Epson SureColour SC-T Series range brochure

Epson 3 minute SureColor SC- T Series (3100, 3400, 5100, 5400)Brochure

Epson SureColor SC-T Series (3100(N), 5100(N), 3400(N), 5400, 3200, 5200 (D), 7200(D) Quick Overview

Epson SureColor SC-T3400, T-3400N, T-5400 Overview

Epson SureColor SC-T series and HP T Series Comparison

Epson SureColor SC-T Series  and Canon TX Comparison

 Epson SureColor SC-T Series  and Canon imagePROGRAF IPF Comparision

Epson SureColor SC- T5400 Data Sheet


Epson SureColor SC-T3200, T5200, T7200 Series Overview

Epson SureColor SC-T3100, T5100 Quick Guide

Epson SureColor SC-T3100, T5100 Overview


In 1993, Epson entered the inkjet printing market with the innovative Epson Stylus 800, and introduced its market changing printhead with Epson Micro Piezo technology, making a permanent technological advancement which remains at the forefront today. In 1994, Epson introduced the Stylus Pro, the world’s first 720 dpi colour inkjet printer. In 1998, the Epson Stylus Pro 800 was selected by NASA for the STS-95 mission and Epson introduced the first colour inkjet printer with built-in USB connectivity. Epson continues to develop breakthroughs in technology and applications as print, projection and display needs evolve, building on more than 60 years of innovation of Seiko Epson, which began as a watchmaker.

Epson SureColor SC-T printers incorporate a number of Epson proprietary technologies including Micro Piezo, PrecisionCore, Variable Sized Droplet Technology (VSDT), Exotic Thin Film Piezo (TFP), Low Vibration Meniscus Control and UltraChrome Inks. Epson SureColor T Series (technical) printers are the latest generation of printers from Epson, building on the success of the Stylus Pro Series.

Epson introduced the award-winning proprietary piezo-electric technology, called Micro Piezo in 1993, and Micro Piezo has made Epson inkjet printers renowned for their high quality output, reliability, and low running costs. Today, Epson is the only company that uses the piezo-electric printhead throughout its inkjet printing device range, from the smallest personal photo printer to the largest industrial system. Epson Micro Piezo technology fires ink droplets onto a surface by applying an electric charge to piezo-electric elements, which bend when an electrical charge is passed through them. Using piezo-electric technology, the amount of ink pulled into and expelled out of the nozzles can be very accurately controlled by varying the electrical charge given to the piezo-electric elements. This enables the printhead to eject ink droplets in a range of precisely controlled sizes. Ink droplets are propelled instead of heating the ink, which results in a wider range of printing applications and media compatibility, including paper, and industrial applications, fabric printing, indoor filter fabrication and applying patterns to electronic circuit boards. Epson Micro Piezo technology minimises impact on the environment because it uses ink very efficiently and places ink droplets accurately, to prevent wasted paper. The printheads last the lifetime of the printer.

Epson PrecisionCore printhead technology delivers Epson’s renowned industry-leading output quality at high speed. Inch for inch, the high-resolution Epson print chips are one of the fastest inkjet printing technologies in the world. PrecisionCore piezo elements each fire nearly 50,000 times per second. PrecisionCore has up to triple the nozzle density of conventional Epson piezo printheads. The nozzles are roughly 20 microns in diameter and deliver small, round, repeatable dots about 40 microns across. This dot precision creates sharp text and fine lines. PrecisionCore uses the power of the piezo crystal to increase reliability. The piezo element generates a voltage that can detect in milliseconds, whether its firing normally and self diagnose its health. The automatic nozzle check system uses advanced ink droplet detection to eliminate misprinting caused by nozzle clogging. Ink drops with an electrical charge are read by a sensor which takes less than 15 seconds, requires no media and consumes only a miniscule amount of ink. PrecisionCore’s micro-mechanical firing elements avoid material limitations faced by heat-based systems. More colourful and durable ink formulations with higher concentrations of colorants and binders can be used compared to heat-based systems, allowing for printing on a much wider range of substrates. PrecisionCore Scalable Technology is designed for products ranging from industrial systems such as large-scale label presses to desktop printers. Its modularity allows PrecisionCore print chips to be arrayed in both moving serial and fixed line printhead configurations.

Epson Variable Sized Droplet Technology (VSDT) refers to the capability of Epson’s Micro Piezo printhead technology to eject ink droplets of different sizes by varying the electrical charge give to the piezo-electric elements. Epson’s SureColor printers can achieve variable sized ink droplets as small as 4 picoliters. Such superior precision results in sharp, rich, and virtually grain-free text and images, key qualities strongly associated through the years with Epson’s renowned photo-quality prints. Epson Micro Piezo printheads run much cooler than thermal inkjet ones and can provide reliable operation for the life span of the printer. Epson ink cartridges do not require a printhead attached, making the ink cartridges more affordable, and environmentally friendly. Epson Micro Piezo printheads use less power than thermal inkjet printheads because the piezo-electric method of ink ejection is far more efficient.

The Epson SureColor SC-T3400N features the new Epson Micro Piezo TFP printhead, which includes Epson variable size ink drop technology, delivering superb quality prints with smooth gradations and grain reduction at high speed with a print resolution of up to 2400 dpi. The advanced Micro Piezo TFP printhead features higher performance and greater durability with 800 nozzles for each colour (cyan, magenta, and yellow) and 800 nozzles for black.

The Epson Exotic Thin Film Piezo (TFP) printhead and Low Vibration Meniscus Control technologies are the latest advancements in the SureColor T Series printers and deliver a superior level of ink placement accuracy and extraordinary image quality. The Epson TFP is the highest resolution 1-inch wide high performance inkjet printhead with 800 nozzles per colour. It is capable of using separate ink channels simultaneously. Epson Low Vibration Meniscus Control technology delivers highly accurate dot shape and high precision impact point control for extreme dot placement accuracy by precisely controlling the curvature of every ink droplet within each nozzle before releasing it onto the media. There is an ink repelling coating which dramatically reduces nozzle clogging. Variable size droplets, as small as 4 picoliters, decreases the print times and optimises the image quality.

The award-winning Epson UltraChrome Ink developed for the latest generation of inkjet professional printers is a significant advancement in print technology. Epson has developed several variations of UltraChrome Ink, for different needs and applications. Epson UltraChrome inks are available in High Dynamic Range (HDR), Hi-Gloss, Hi-Gloss 2, K3, K3 with Vivid Magenta, GS, XD, and XD2.  Epson UltraChrome XD2 aqueous pigment ink colours include cyan, yellow, and magenta, and black. UltraChrome XD2 uses specially formulated resin-encapsulated pigments which stabilise quickly and are extremely water resistant.
