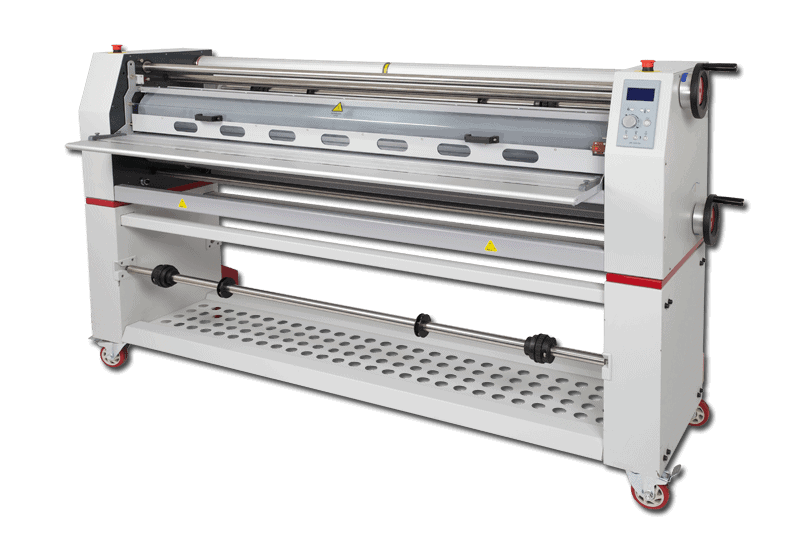

Easymount Double Hot EM-1650DH Wide Format Laminator

Price:

The Easymount Double Hot EM-1650DH is a 1650mm/65″ heat-assisted wide format laminating and mounting system, which contains rollers that heat up when used.   The Easymount range of Double Hot wide format laminating systems are professional  solutions for sign makers and print finishers for extra capacity,  cost effective finishing. Laminate or mount double-sided wide format originals that can withstand heat, including signs, banners, windows graphics, reel to reel laminates, and  mount .  The Easymount range of double hot laminators also includes the EM-1200DH, a 12000mm/47″.

Description

The Easymount Double Hot EM-1650DH is a 1650mm/65″ heat-assisted wide format laminating and mounting system, which contains rollers that heat up when used.   The Easymount range of Double Hot wide format laminating systems are professional  solutions for sign makers and print finishers for extra capacity,  cost effective finishing. Laminate or mount double-sided wide format originals that can withstand heat, including signs, banners, windows graphics, reel to reel laminates, and  mount .  The Easymount range of double hot laminators also includes the EM-1200DH, a 12000mm/47″.

Easymount wide format laminating systems save money and time by eliminating the need to outsource to print finishers, and keeping control of the job from wide format print to wide format finish.  Lamination protects and preserves all kinds of wide format prints from spills, grease, chemicals, rain, fingerprints, abrasions, creases, wrinkles and sunlight.  Lamination enhances almost any type of wide format print by deepening and brightening colours and improving contrast.

The Easymount range of laminating systems include the following wide format sizes: 650mm, 880mm, 1200mm, 1400mm, 1600mm, 1650mm, and 2100mm (26, 34, 47, 55, 63, 65 and 83 inches). Easymount wide format laminating systems are available in cold (uses pressure to laminate, good for heat sensitive originals such as vinyls), single hot (uses heat to laminate, single-sided, good for wide format originals that can withstand heat) , and double hot (uses heat to laminate, double-sided good for wide format originals that can withstand heat and require lamination on both sides).

At Design Supply, an authorised Vivid Laminating Technologies reseller,  we work closely with manufacturer to provide the best solutions available to get the job done for your business and maximise your opportunities. With over 28 years of experience in the large format market, we offer expertise and knowledge in tailoring the exact solution for your specific application.

VIDEOS

Wide Format Laminators

Wide Format Laminators Overview

Easymount Double Hot Overview

KEY FEATURES

Save money by laminating  and mounting all your wide format prints in-house, and eliminate outsourcing to print finishers. The Easymount EM-1650DH  is a highly efficient, high capacity  laminating and mounting system at a cost effective price.

Save time by keeping control of the job, from wide format print to wide format finish.  The Easymount EM-1650DH is versatile and easy-to-use.  With an impressive laminating speed of 3.9 m/13 ft a minute, the EM-1650DH accepts up to 25mm/1″ mounting thickness.  The EM-1650DH features a lift up  feed table for easy access to load rolls of material.  The large, cambered rollers  deliver even and precise pressure,  and the dual emergency stops prevents the rollers from moving when interrupted.  A foot pedal is included as standard, and a handy reverse mechanism make it easier to control your jobs and prevent jams.  For convenience, the EM-1650DH has a swing out safety guard , additional mandrel holders and spare film storage.

Apply more than just laminates with the Easymount EM-1650DH wide format laminating system. The EM-1650DH enables application tapes and vinyls to be laid down, removing the need for squeegeeing by hand.

Designed to perform and built to last, with its solid heavy duty construction, the Easymount EM-1650DH has an optional media take-up unit, enabling single banners and reel-to-reel laminating of up to 50m or 196 feet, ideal for longer runs.

SPECIFICATIONS

The Easymount EM-1650DH wide format laminating system has a laminating speed of up to 3.9 m/13 ft per minute and is able to mount to boards up to 25mm/1″ thick. The EM-1650DH has a warm-up time of fifteen minutes, and has a laminating temperature range of 0-130ºC/32-266ºF.  The EM-1650DH has a patented manual pressure gauge handle located at the side of the laminating system, that ensures you choose the correct setting every time, quickly and easily. The roller diameter is 130mm/5 inches, adjustable up to 20mm/0.8″, and the film core is 77mm/3 inches.

The Easymount EM-1650DH wide format laminating system handles a full range of cold pressure and thermal laminates including matte, gloss, soft touch,  sandtex and anti-graffiti.  The EM-1650DH is compatible with Vivid Laminating Technologies own brand, BOSS range of cold and thermal laminating films suitable for aqueous and solvent-based inkjet print, as well as fast-curing types such as UV and HP Latex.  BOSS media includes mounting films, pressure sensitive laminating films (gloss, ‘crystal’ matte, satin matte, flat matte in 80 and/or 100 micron) 100 micron UV pressure sensitive over laminates (gloss and crystal matte), Sandtex pressure sensitive film and release paper (Sandtex 150 micron, Glitter finish 220 micron) and Anti-Graffiti laminating films (Dry Wipe (UV) and Anti-Graffiti (UV) Outdoor).  Our media specialists at Design Supply have the expertise to help you determine the best solutions for your particular laminating and mounting needs.

Excess backing liner is kept tidy for disposal with the  optional release liner take-up for the Easymount EM-1650DH.  Additional mandrels are also available, to store additional films.

Count on dependable support to create the best image possible from Vivid Laminating Technologies and Design Supply. For added peace of mind, Easymount EM-1650DH Wide  Format Laminating system features a 1 year warranty. Ask us at Design Supply, and we can tailor the best solution possible for your needs.

Specifications

Laminating Speed (m/min / feet/min) 3.9 / 13
Max. Width (mm / inches) 1650 / 65
Mounting Thickness (mm / inches) 25 / 1
Roller Diameter (mm / inches) 130 / 5
Warm-up Time (mins) 15
Hot Roller Heater System infrared
Laminating Temperature Range (°C/°F) 0-130 / 32-266
Control Panel Digital
Pressure Adjustment Manual/Gauge
Film Core (mm / inches) 77 / 3
Power Supply AC (v, 50Hz) 220/240
Power Supply AC (v, 60Hz) 110
Power Supply Required (Amps) 32
Power Consumption (W) 5150
Dimensions – Width (mm / inches) 2170/85
Dimensions – Depth x Height (mm / inches) 785 x 1255 / 31×49
Gross Machine Weight (Kg / lbs) 365/ 805
Warranty 1 Year

WHAT'S IN THE BOX

Easymount EM-1650DH Laminating System

Manual

Video

Mandrel allen key 5mm

Maintenance allen keys

Safety cutter

Dust cover

Foot pedal

Spirit level

Mandrel adaptors

Spare fuses

Media support brackets (3)

1 year warranty

Accessories:

Additional Mandrels

Take up unit

DATA SHEETS

Easymount Wide Format Laminating Systems Brochure

MANUFACTURER INFORMATION

Vivid  Laminating Technologies Ltd, a UK based company,  are Europe’s leading designer and manufacturer of laminators. Committed to developing, improving and upgrading laminating products, Vivid Laminating Technologies products deliver the best quality, the highest levels of reliability, and the most efficient ways of laminating.

Vivid Laminating Technologies design and manufacture laminating, finishing and binding systems along with a full range of supplies including laminator film, laminating pouches and binding consumables.  The laminating systems products include Peak, Matrix Duo (single and double sided laminating and encapsulation systems), Linea (encapsulation systems), Easymount (wide format laminating and mounting systems), and Matrix ranges. Laminating supplies products are the Boss range.  The finishing systems products include Trimfast, Magnum, and Easycoat, Easyguide ranges. The binding systems products includes Magnum range and the binding supplies products are the Imagemaker range.

Vivid Laminating Technologies are ISO 14001 registered, committed to compliance with relevant environmental legalisation and to the adoption to practices and procedures that reduce the risk of environmental damage or harm.
