Contex SD One Series Large Format Scanners

The new Contex SD One large format scanner is a desktop scanning solution for the AEC, CAD, and GIS markets. Available in 36-inch/A0 and 24-inch/A1, the Contex SD One scanner is a must-have for any office that wants to save time and space scanning oversized engineering and construction drawings in-house.


The new Contex SD One large format scanner is a desktop scanning solution for the AEC, CAD, and GIS markets. Available in 36-inch/A0 and 24-inch/A1, the Contex SD One scanner is a must-have for any office that wants to save time and space scanning oversized engineering and construction drawings in-house.

With built-in Cloud connectivity, the Contex SD One scans all wide format documents and save them to Google Drive, Dropbox, or Microsoft OneDrive. The convenient SD One eliminates the need to outsource scanning. Instead, capture changes to drawings and other documents as they occur, with date and time stamping.

Design Supply, a Contex Accredited Partner, works closely with Contex to provide the best solutions available to get the job done for your business and maximise your opportunities. With more than 28 years of experience in the large format market, Design Supply offers expertise and knowledge in tailoring the exact solution for your specific application.


Contex Scanning Solutions

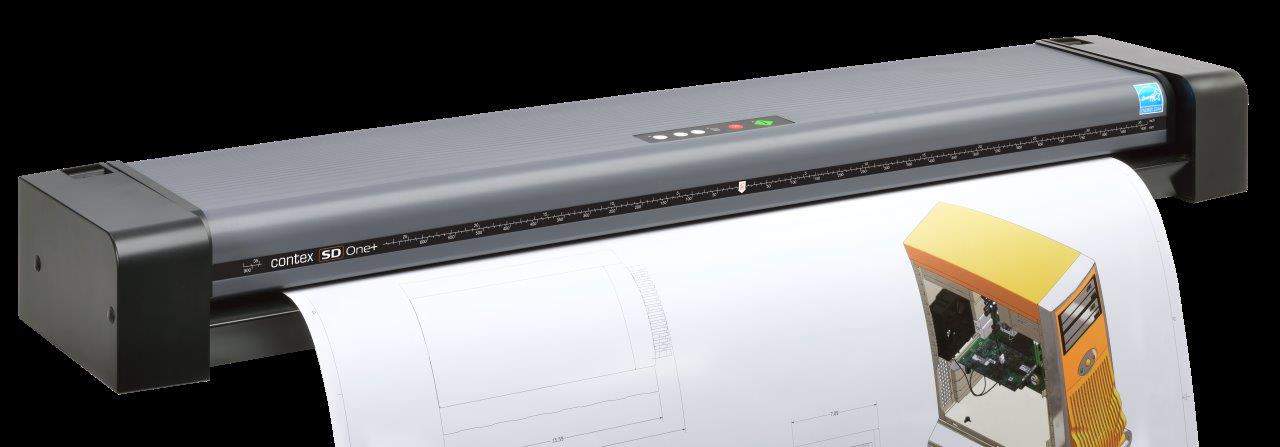

The Contex SD One+ large format scanner is designed to be used at your desktop, so as-builds and other design changes can be scanned right when you need them. Using a standard USB connection, the Contex SD One+ connects to any PC or laptop. Simply install Nextimage 5, the scanning application included with the SD One+, and scanning is ready to commence. Nextimage can be installed on as many PC’s as you like, and is designed for Windows 10, 8, 7, and Vista.

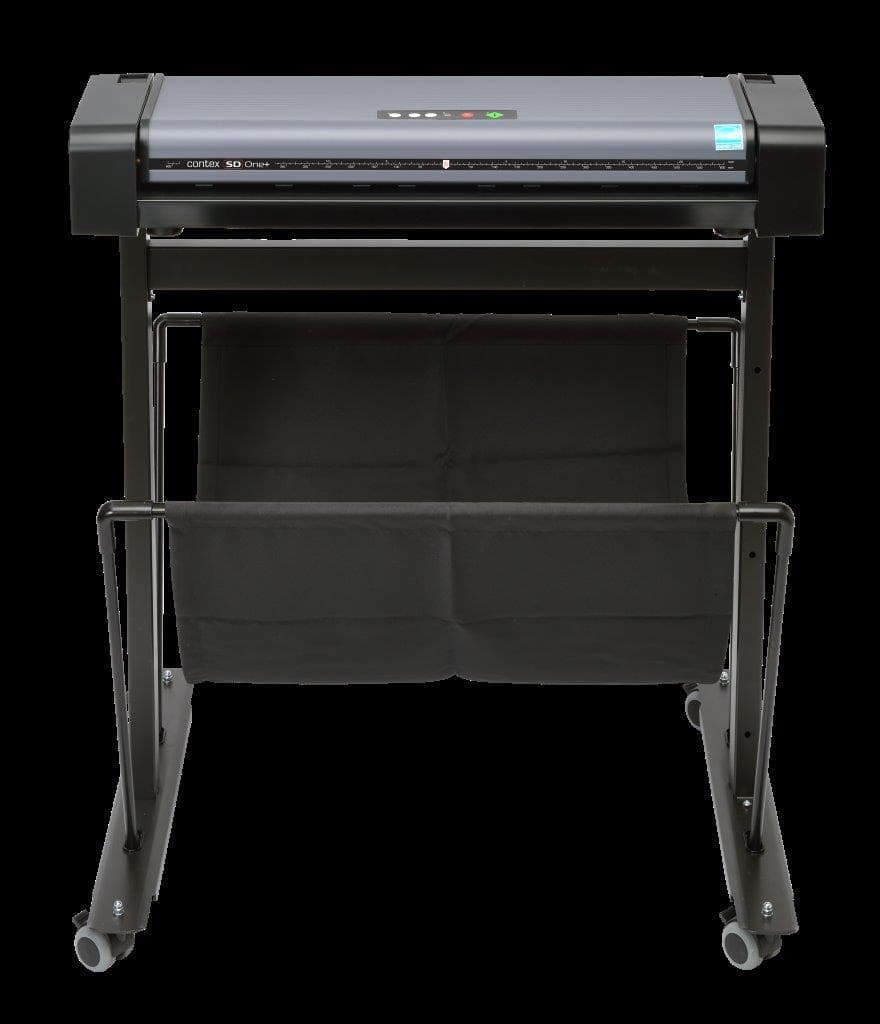

The lightweight and compact design of the Contex SD One+ makes it ideal for multiple users, and is easy to move it or store it as required. Simply bring the scanner to where you need to scan rather than bringing all the documents to the scanner.  The Contex SD One+ 36 weighs 24.9 lbs/11.3 kg, the Contex SD One+ 24 weights 18.7 lbs/8.5 kg,  and an optional stand with a paper catcher is available, convenient for easy movement and storage.

The Cloud-enabled Contex SD One+ scanner can send documents directly to your preferred destinations. The only choice to make is where you need the documents- SD One+ handles the rest. The SD One+ can deliver images by e-mail or directly into Cloud sharing and storing applications. There is a long list of supported Cloud destinations including DropBox,, Google Drive and many more.

Most wide format documents contain colour information that makes changes and other important information easy to understand. The Contex SD One+ supports full colour scanning and can colour JPG, TIF or PDF files. For smaller files the SD One+ also support scanning in black and white or grayscale.


The Contex SD One+ features an optical resolution of 600 dpi and a maximum resolution of 9600 dpi and have a total of 15552 pixels. The Contex SD One+ features a scan speed up to 3.8 inches/second at 150 dpi, 1.8 inches/sec at 300 dpi and 1 inch/sec at 600 dpi. The Contex SD One+ 36 scans up to 36 inches/914 mm and can take a maximum media width up to 38 inches/965 mm.  The Contex SD One+ 24 scans up to 24 inches/610 mm and can take a maximum media width up to 26 inches/914 mm.  The maximum media thickness supported by the Contex SD One+ is 0.03 inch/0.75 mm. Contex applications create industry standard raster file formats that can be used with any CAD or GIS application.

Nextimage software is basic scanning software included with the SD One+ and features easy creation of TIF, JPG, PDF and PDF/A files and integration with Cloud destinations including Google Drive,, Dropbox and more. Nextimage features Automatic Image Quality for instant clean-up and alignment and comes with an integrated image viewer and enable automatic file naming. The software is available in multiple languages, including English, Chinese, Dutch, French, German, Italian, Japanese, Korean, Spanish, Russian and Polish. Nextimage Twain is also included, which is a 64-bit TWAIN application driver for use with EDM and other imaging software. Widesystem software is included, along with a 30-day trial of Nextimage REPRO is included.

Scan and document all your document types easily with the Contex SD One+. Engineering or construction plans can be scanned in standard file formats directly into project folders. The Contex SD One+ supports standard document formats including PDF and PDF/A. These are formats that can be opened and printed in scale using Adobe Reader. PDF/A is designed for long term storage, and is a file format protected from changes and is recommended for storing as-builds and documentation. For sharing and collaboration, use the standard PDF as this enables highlighting and annotations.

Optional items for the Contex SD One+ include: a stand, for easy moving and storing; Nextimage Scan+Archive software and Nextimage REPRO software. Nextimage Scan+Archive software is a full featured scanning software including multipage (PDF, PDF/A and TIF), full image quality controls, and accounting tools. Nextimage REPRO if a full featured scanning/copying software including built-in printer drivers and full colour controls.

As you would expect from Contex, reliable performance is a given. For added peace of mind, Contex SD One+ large format scanners feature a 2-year return to factory warranty including a first year on-site swap-out extended warranty. Count on dependable support to create the best image possible from Contex and Design Supply. Ask us at Design Supply, and we can tailor the best solution possible for your needs.





Contex SD One+ Scanner – 36-inch or 24 inch

2 m USB cable

External power supply

Installation Software and User Guide (in PDF included on USB flash drive)

Installation Guide

Calibration poster

Calibration sheet

Cleaning cloth

2 year return to factory warranty

First year on-site swap-out extended warranty

Software included:

Nextimage free scanning software

Nextimage 64-bit TWAIN

Widesystem software

Nextimage REPRO – 30-day trial


Ergonomic SD One+ 36 Low Stand with paper catcher(side by side operation for scanning only)

SD One+36 High Stand

Nextimage Scan+Archive software (scan-to-file)

Nextimage REPRO software (scan-to-file & copy)

Large Format Printer

Warranty upgrade options (annual price for Year 2 onwards)

Diamond – on-site first 2 years PLUS installation and training

Platinum – on-site first 2 years OR additional years annual cost

Patinum – on-site first 3 years

Gold- swap-out first 2 years OR additional years annual cost

Gold – swap-out first 3 years

Annual on-site supplement for Ireland (£150 + transport from airport)

Scanner installation and training (1 day)


Contex SD One+ Datasheet (24, 36)

Nextimage 5 Software Data Sheet

Nextimage 5 Printer Compatiblity list



Contex is one of Denmark’s fastest growing IT companies and the world’s largest developer and producer of large format scanning and large format imaging solutions. Originally founded in 1923, the company designed and manufactured inventive, time-saving business machines, including printing machines, mechanical and electronic calculators, and electrostatic copiers, which were distributed and sold worldwide under the Rex-Rotary and Gestetner brand names. By the early 1980s, the foundation for Contex Scanning Technology began and Contex evolved into the leader of the global imaging industry in large format scanning, copying and image enhancement. The development of modular scanning technology began in 1986 and in 1988, Contex introduced its first monochrome large format scanner. Contex released a complete line of monochrome scanners in 1990 and launched its first large format colour scanners in 1996. Today, Contex offers 18”, 25”, 36”, 42”, 44”, 54”, 60 and all –in-one, colour and monochrome scanners with CIS (colour image sensors) and CCD (charged-couple device) imaging technology. Over the years, Contex scanners have received numerous awards from leading trade publications and analyst firms including Cadalyst, Wide-Format Imaging, and BERTL (Business Equipment Research and Test Laboratories). Contex provides scanning solutions in over 90 countries and is recognised by a wide range of industries for reliability, value, high-performance and superb image quality.

The Contex HD range of CCD large format scanners (HD Ultra X, HD Ultra, HD 5450, and HD iFLEX) is recommended for high productivity and top quality. The Contex HD Ultra X range of large format scanners feature advanced Charge Couple Device technology with true 48-bit colour and 16-bit grayscale workflow, 7 x 4, 5 x 4, 4 x 4, or 1 x 4 linear colour CCD’s (Red, Green, Blue and Gray), premium custom lenses from Fujifilm, and an advanced image processing algorithm, achieving superior image quality and an optical resolution of 600 to 1200 dpi and a maximum resolution of 9600 dpi. The Contex HD range of large format scanners have the ability to process the entire range of 48-bit colour data ensuring the most accurate images with Accuracy Lens Enhancement (ALE) ensures precision of 0.1% accuracy. Contex Perfect Light is the latest in LED technology to ensure the highest possible image quality. Contex CCD Scanners (except the iFLEX flatbed) feature Optomised Thickness Adjustment Control (OTAC) and All Wheel Drive (AWD) technologies. OTAC is for scanning thick originals and monitoring pressure on the surface of the document. AWD is a precision paper feed tracking system which ensures a perfectly straight scanning path and distortion-free scans. Gigabit Ethernet, xDTR2 and xDTR improves overall productivity by increasing the data transfer speed, so more image data can be sent to the PC faster.

Contex CIS range of large format scanners (SD ONE+, SD 3600, IQ Quattro 2490, 3600, and 4400) feature a number of advanced Contex proprietary technologies to achieve superb image quality and reliability. The Contex Colour Imaging Sensor technology feature fourth generation CleanScan CIS technology combined with CFR, SIGMA and xDTR to ensure the highest quality CIS scanners in the market. Contex CleanScan CIS technology is based on custom CIS modules with dual-sided LED light and Dual Diffusion, which suppress shadows and unwanted backgrounds. The patented Contex Colour Fringe Removal (CFR) technology is an advanced filtering technology, producing superior image quality with excellent lines. Signal Intensity Matching (SIGMA) is a Contex patented technology that minimises sensor differences live during a scan, to adjust for differences in sensor heating. xDTR improves overall productivity by increasing the data transfer speed of the USB interface, so more image data can be sent to the PC faster. This means a larger document (and more documents) can be scanned at higher resolutions without waiting for data transfer to complete.
