Canon TX-4300 44 Inch Large Format Printer

Canon TX-4300 44-inch printer for high-productivity CAD, construction and manufacturing environments.

Description

Canon TX-4300 44-inch printer – built for high-volume CAD, construction and manufacturing.

5-colours LUCIA TD pigment ink, with newly formulated matte black ink

2GB physical / 128GB virtual memory, 256GB encrypted hard drive

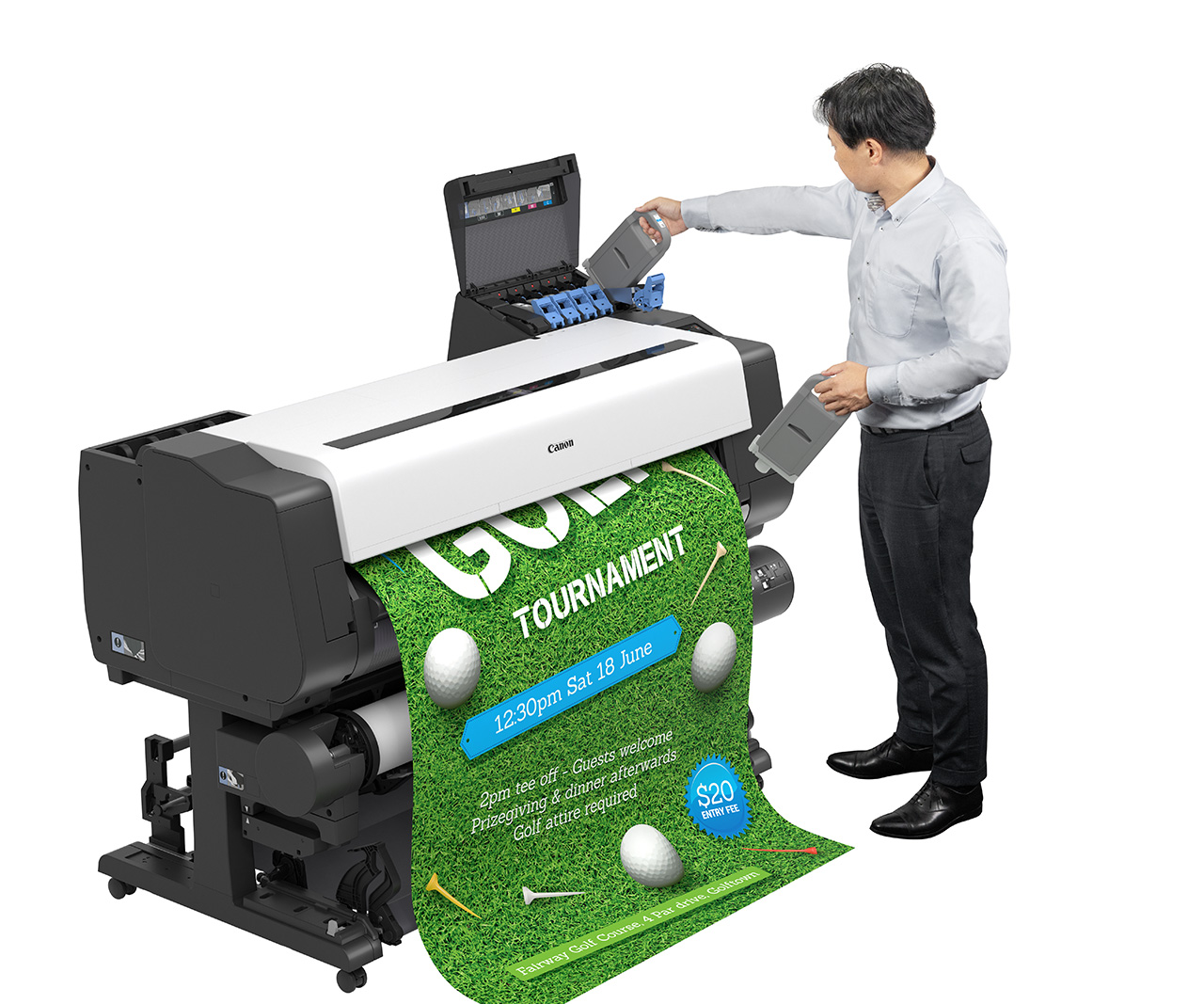

Hot-swappable ink tanks – change ink mid-job without stopping

Borderless printing via Micro Margin Technology

Targeted at larger AEC (architecture, engineering, construction) and manufacturing organisations, corporate and government departments and print service providers.

Design Supply is an Accredited Canon Gold Partner with more than 35 years of experience in the large format printer market.

Design Supply offers expertise and knowledge in tailoring the exact solution for your specific application.

Videos

Canon TX Large Format Printers



Key features

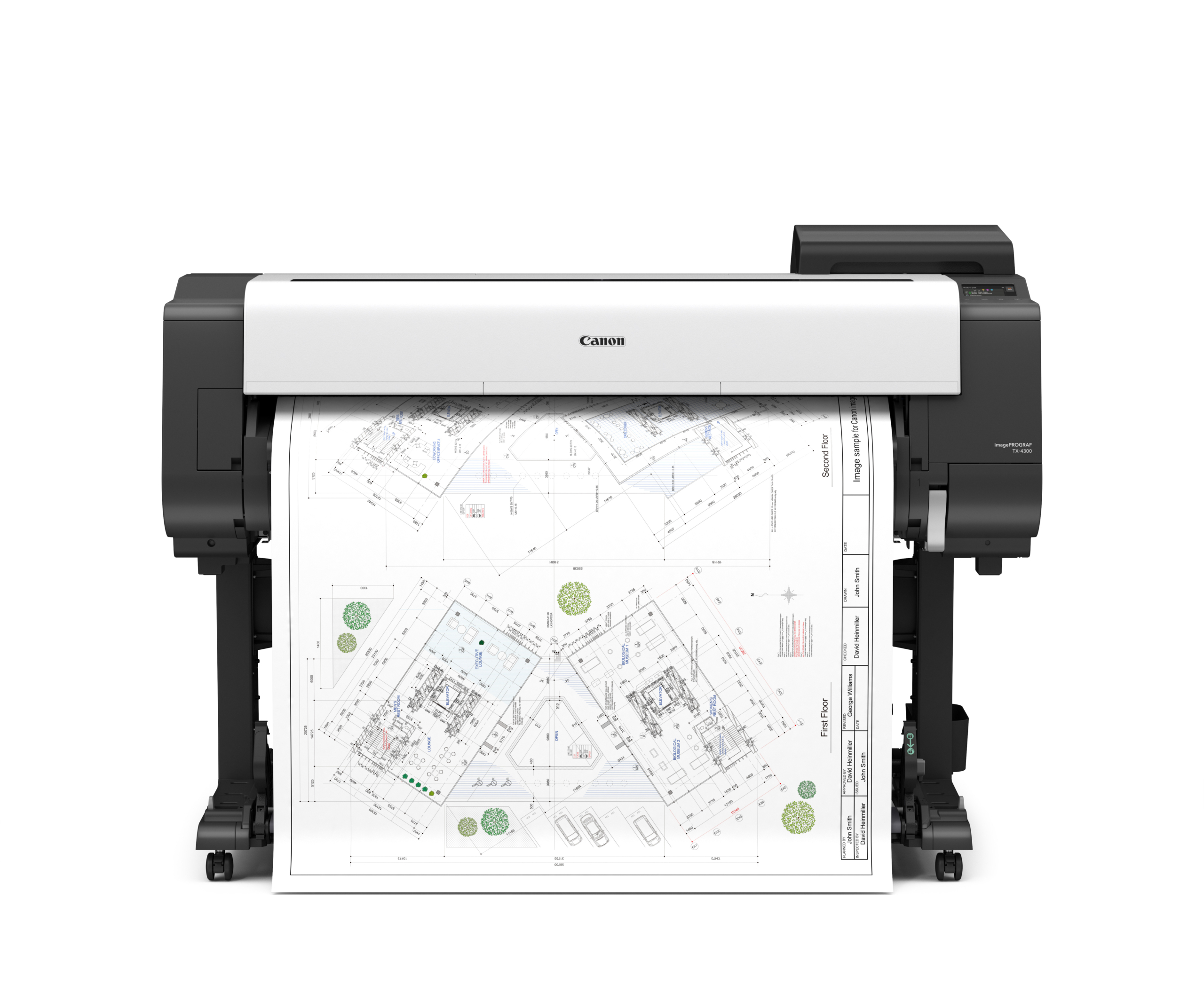

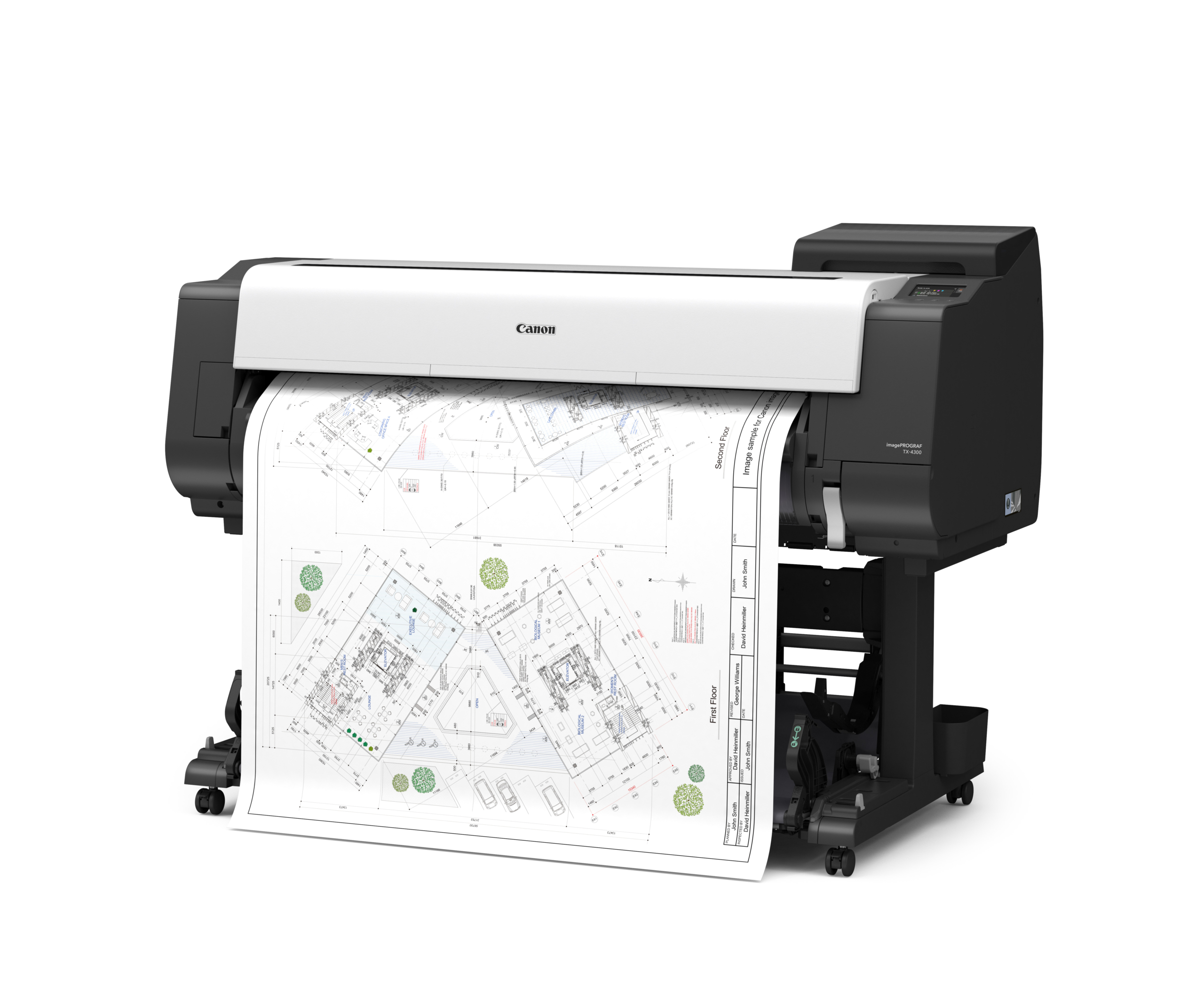

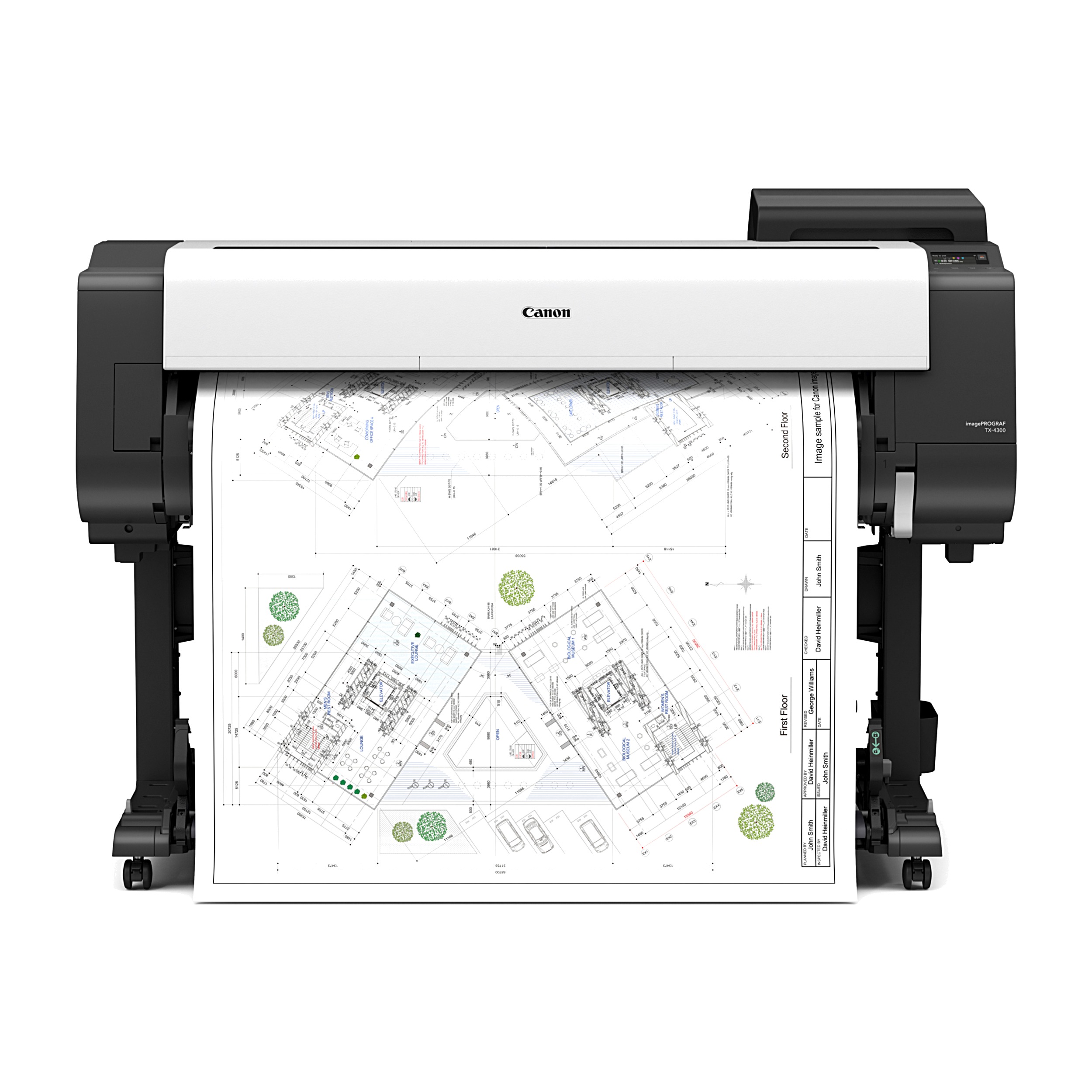

The TX-4300 is Canon’s 44-inch (B0) high-volume technical large format printer, built for busy drawing offices, construction and engineering firms, and print rooms.

Fast: an A1 CAD drawing in 17 seconds (3.3 prints a minute) and A0 in 33 seconds, with two rolls loaded and automatic switching when one runs out.

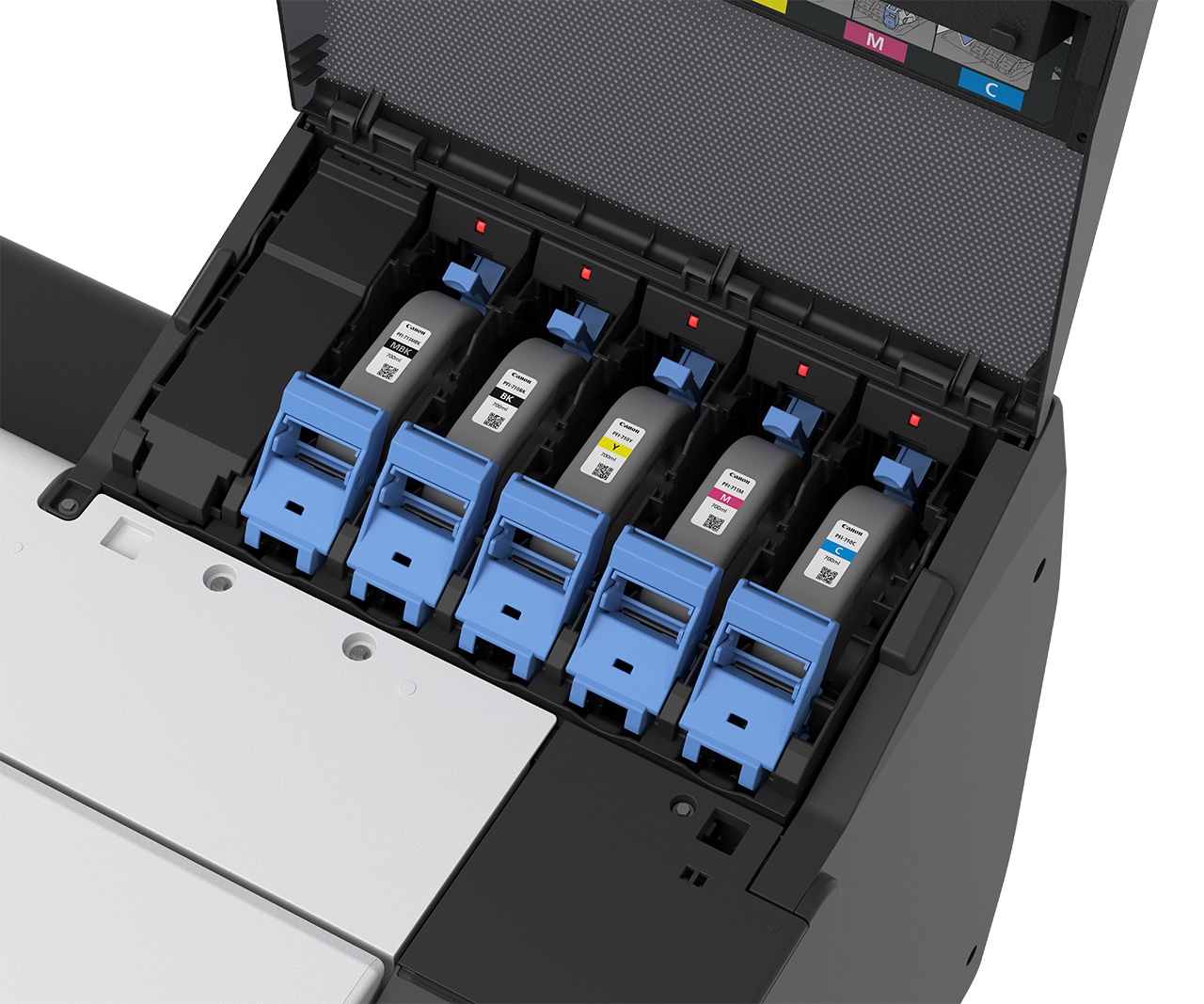

Low running costs: hot-swap 160ml, 330ml or 700ml ink tanks, so you can change ink mid-job and buy the size that suits your volume. 1,650ml (330ml of each colour) of ink comes in the box.

Sharp lines: 5-colour LUCIA TD pigment ink with a new high-density matte black for crisp fine lines and small text, from the PF-06 print head at 2400 x 1200 dpi.

Secure: a 256GB encrypted SSD, PIN-code printing, encrypted communications and secure drive erasure.

Easy to use: a 4.3-inch touchscreen, automatic paper loading and detection, and driverless printing with Apple AirPrint and IPP Everywhere.

Sustainable: EPEAT Gold registered, built with recycled plastic and metal, and packed without polystyrene.

Supplied with: stand and multi-position basket, a free 2-year on-site warranty and free delivery.

Specifications

Print width 44-inch (B0), up to 1118mm
Inks 5-colour LUCIA TD pigment: matte black, black, cyan, magenta, yellow
Ink tanks 160ml, 330ml or 700ml, hot-swappable
Ink in the box 1,650ml (330ml of each colour)
Print head PF-06 (5,120 matte black nozzles, 2,560 per colour)
Resolution 2400 x 1200 dpi
Speed (plain paper) A1 CAD in 17 seconds (3.3 per minute); A0 in 33 seconds (Fast Economy), 35 seconds (Fast)

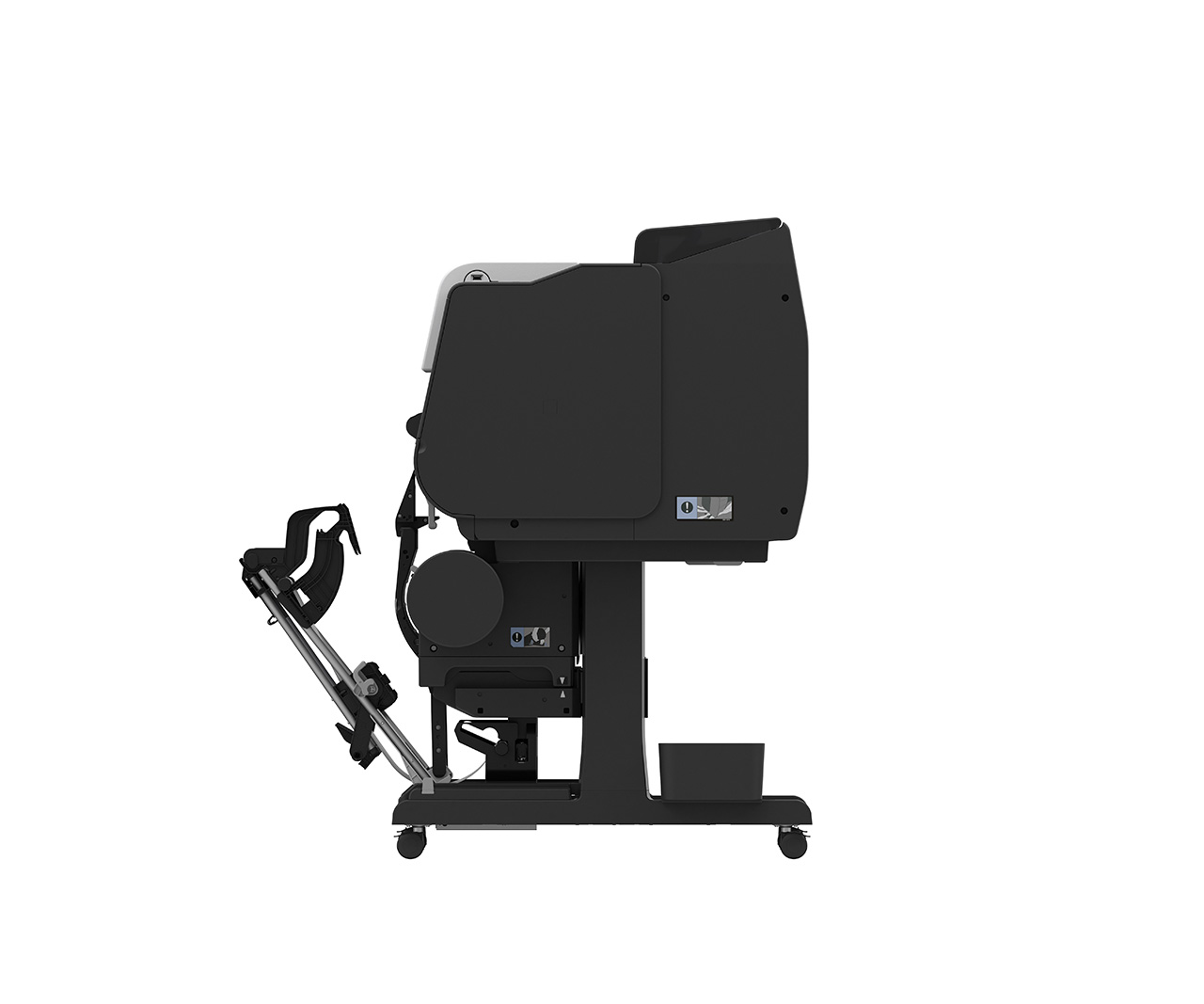

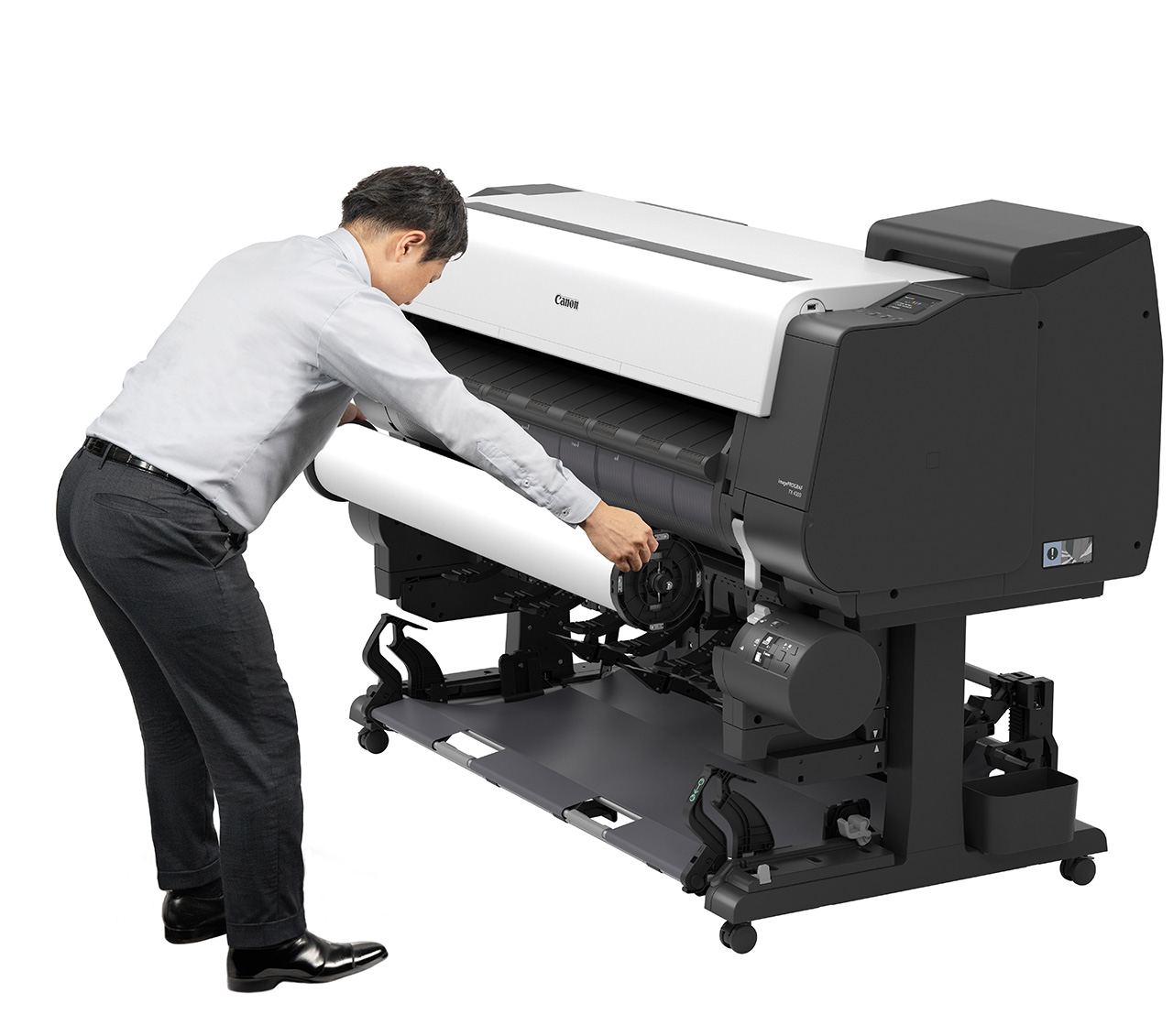

Rolls Two rolls with automatic switching, up to 170mm diameter, 2" or 3" cores
Media thickness 0.07–0.8mm
Storage 256GB encrypted SSD (2GB memory)
Printer languages HP-GL/2, HP RTL, PDF 1.7, JPEG, CALS G4

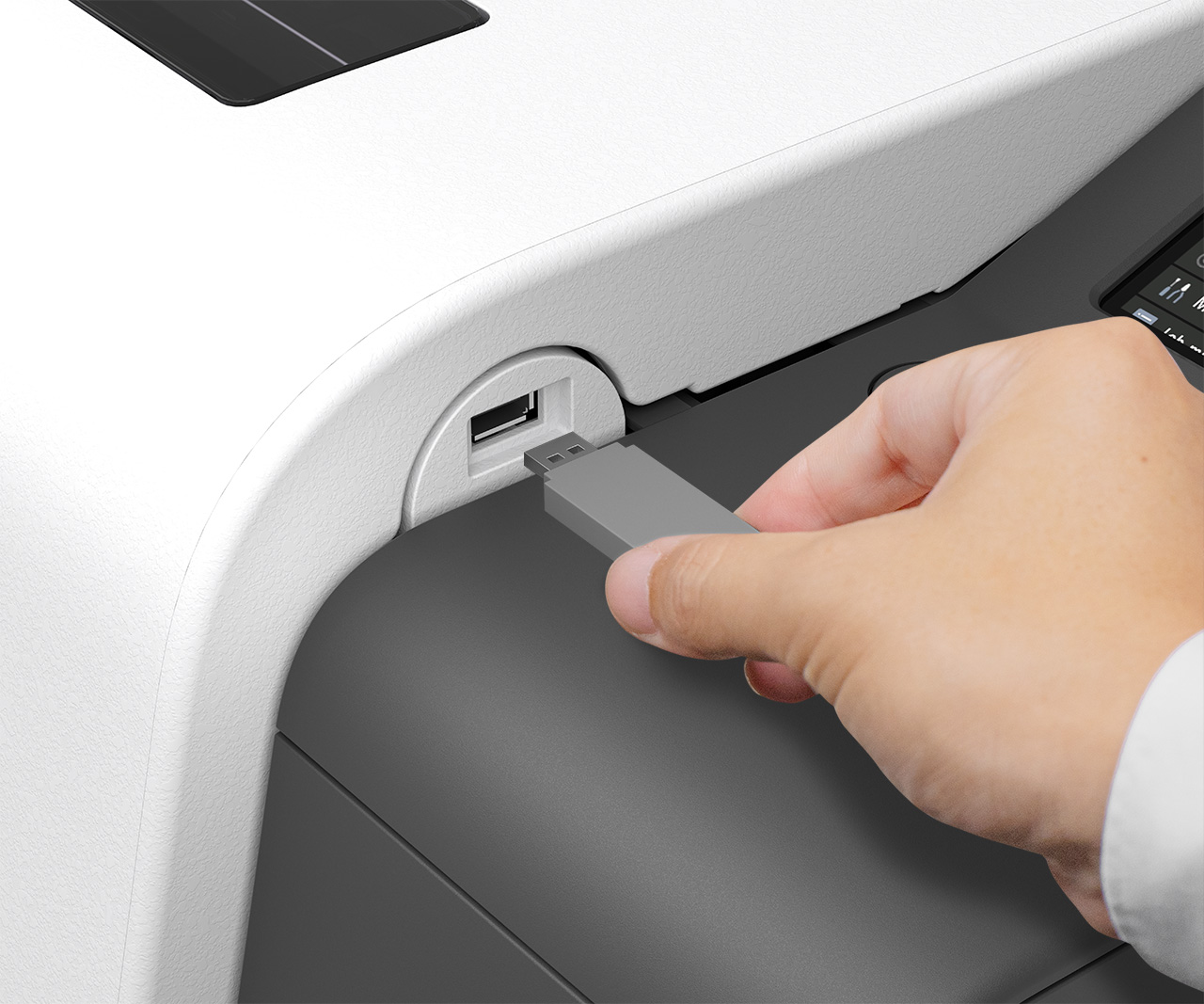

Connections Gigabit Ethernet, Wi-Fi, USB, USB memory direct print
Mobile and driverless printing Apple AirPrint, IPP Everywhere

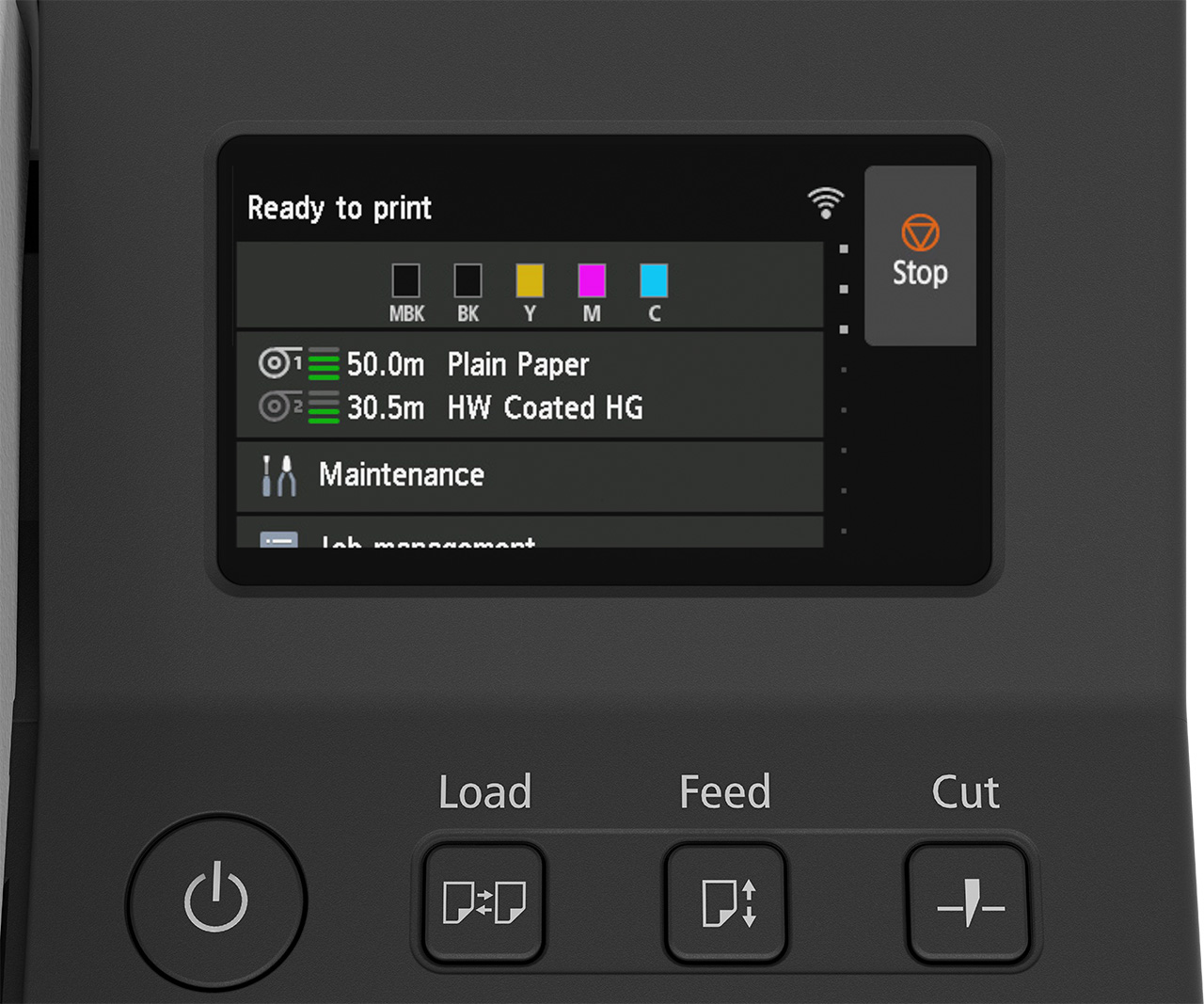

Control panel 4.3-inch colour touchscreen
Size (W x D x H) 1593 x 1045 x 1168mm (basket open)
Noise About 51dB printing, 35dB or less on standby
Power About 84W printing, 2.2W sleep
Sustainability EPEAT 1.0 Gold, EPEAT 2.0 Bronze (US registered), polystyrene-free packaging

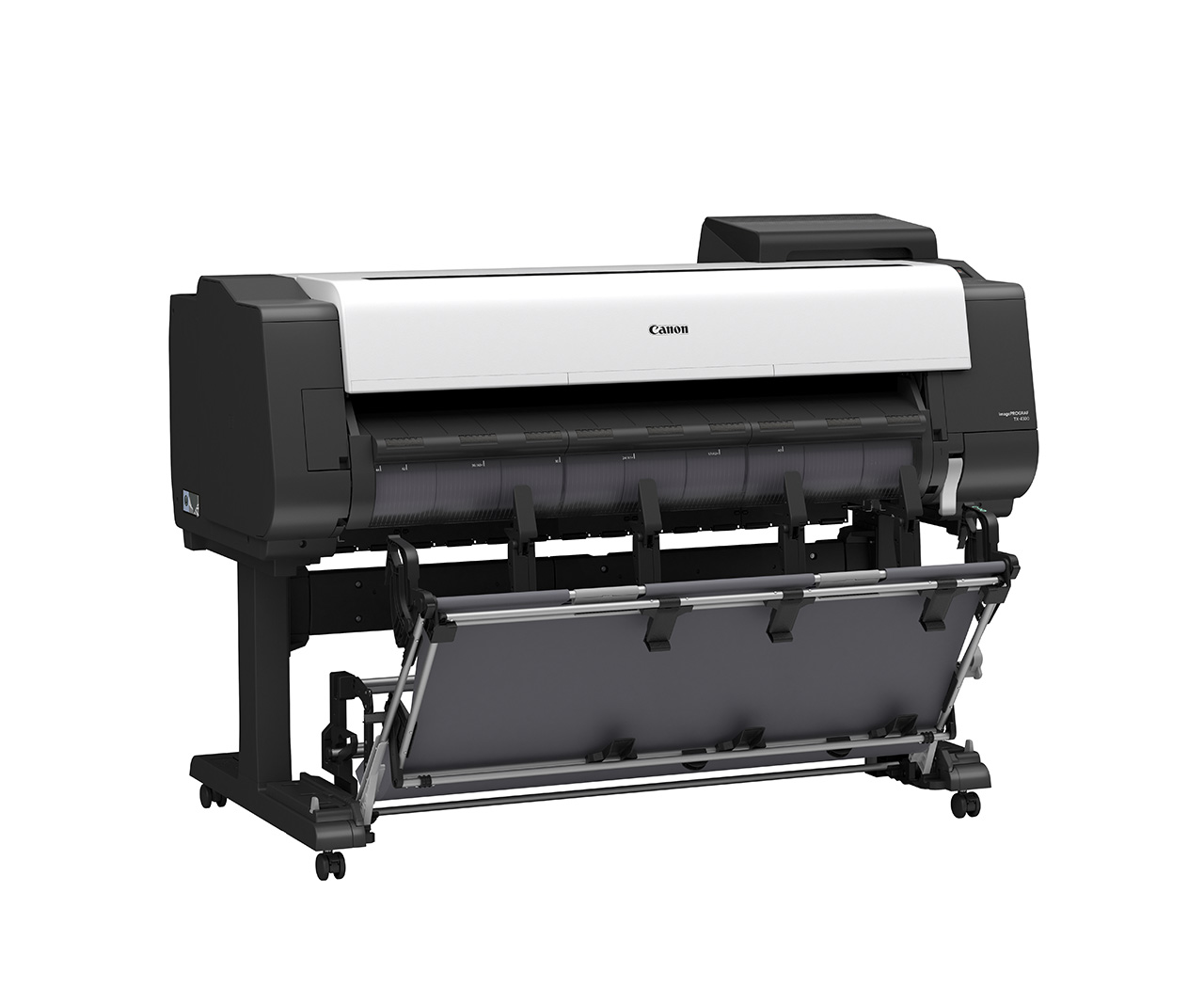

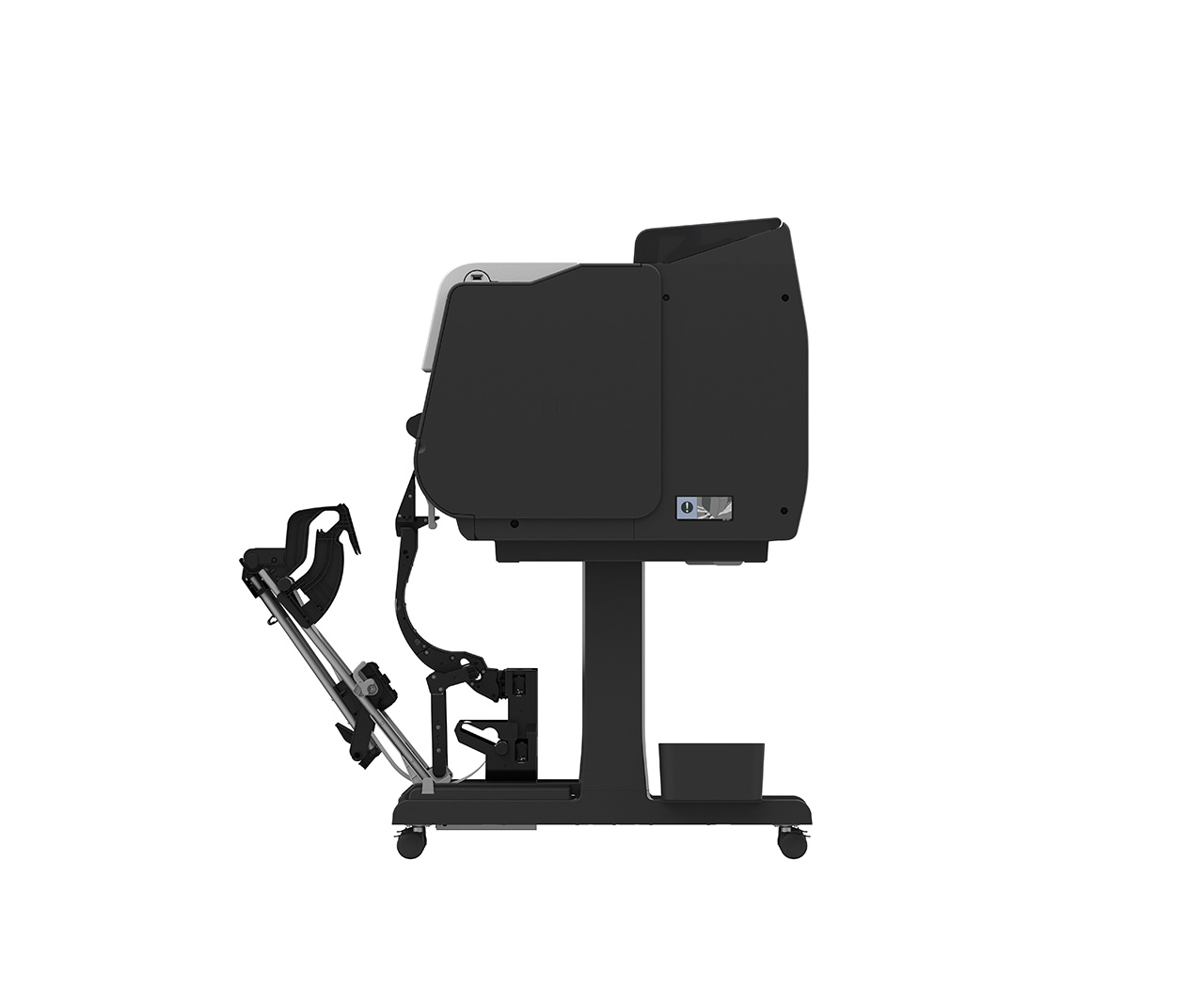

Stand Stand and multi-position basket included

What's in the box

In the box

  • Canon imagePROGRAF TX-4300 printer
  • Stand and multi-position basket
  • PF-06 print head
  • 1,650ml (330ml of each colour) of starter ink
  • Roll holder and 3" core attachment
  • Setup guides and UK power cable

Free with your order

  • 2 year on-site warranty (3 and 5 year extensions available)
  • Free UK mainland delivery
  • Advice on installation and training from our team

Consumables and options

Item Part code
PFI-113 / 313 / 713 Matte Black ink, 160 / 330 / 700ml 7521C001AA / 7520C001AA / 7519C001AA
PFI-110 / 310 / 710 Black ink 2364C001AA / 2359C001AA / 2354C001AA
PFI-110 / 310 / 710 Cyan ink 2365C001AA / 2360C001AA / 2355C001AA
PFI-111 / 311 / 711 Magenta ink 6846C001AA / 6847C001AA / 6848C001AA
PFI-110 / 310 / 710 Yellow ink 2367C001AA / 2362C001AA / 2357C001AA
PF-06 print head 2352C001AA
MC-30 maintenance cartridge 1156C002AA
CT-07 cutter blade Ask us
RH2-46 2″/3″ roll holder (optional) Ask us
SS-41 stacker (optional) Ask us
RA-01 IC card reader holder (optional) Ask us

Free Canon software: Direct Print Plus, PosterArtist, Free Layout Plus, Accounting Manager and Media Configuration Tool.

Data sheets

Canon imagePROGRAF TX-3300 / TX-4300 Datasheet

Manufacturer information

The TX-4300 is part of Canon’s imagePROGRAF TX range for high-volume technical printing, built on Canon’s PF-06 print head and LUCIA TD pigment inks.

Bought from Design Supply, it comes with a 2-year on-site warranty. As an accredited Canon Gold Partner we can install it, train your team and service it.
