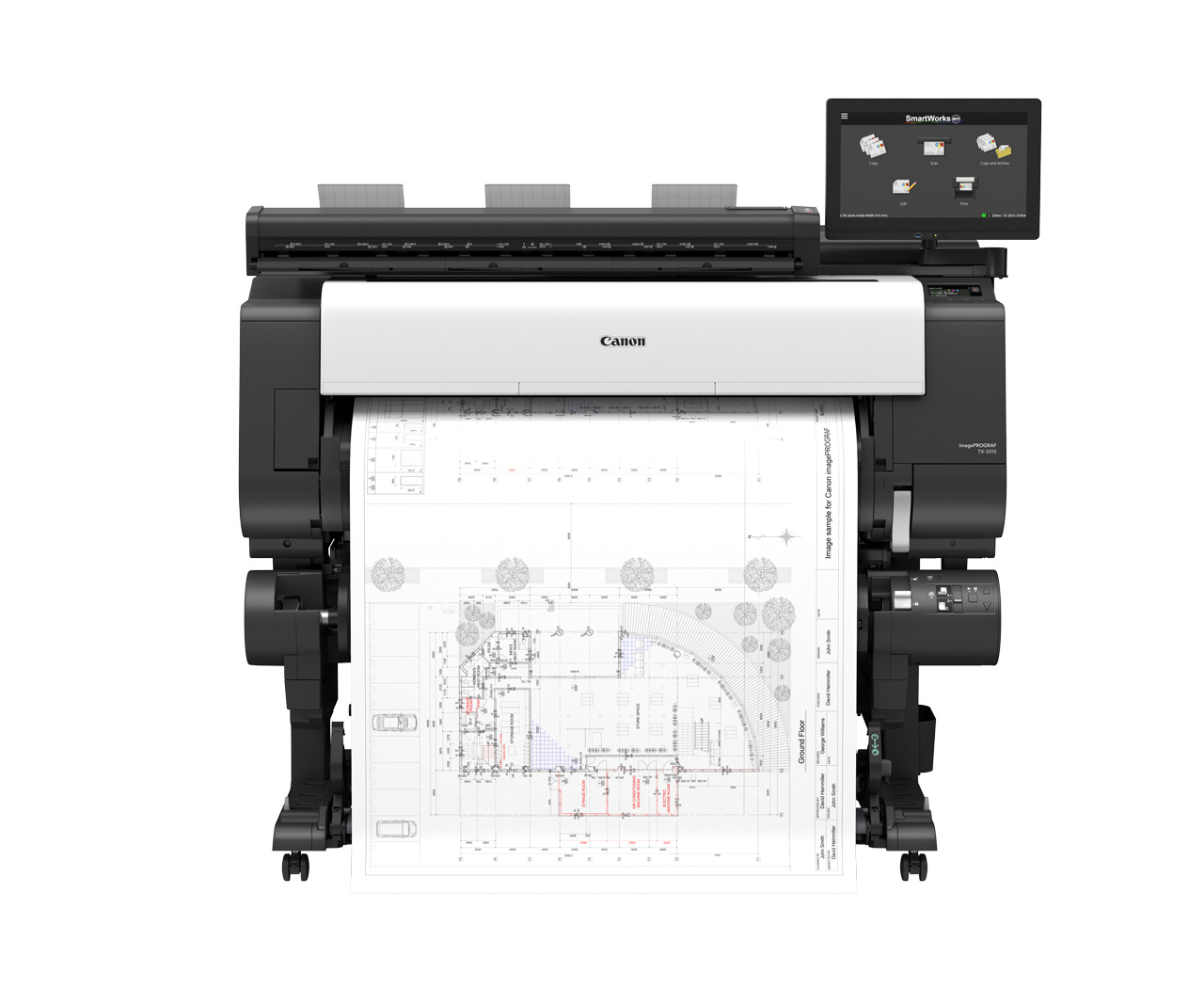

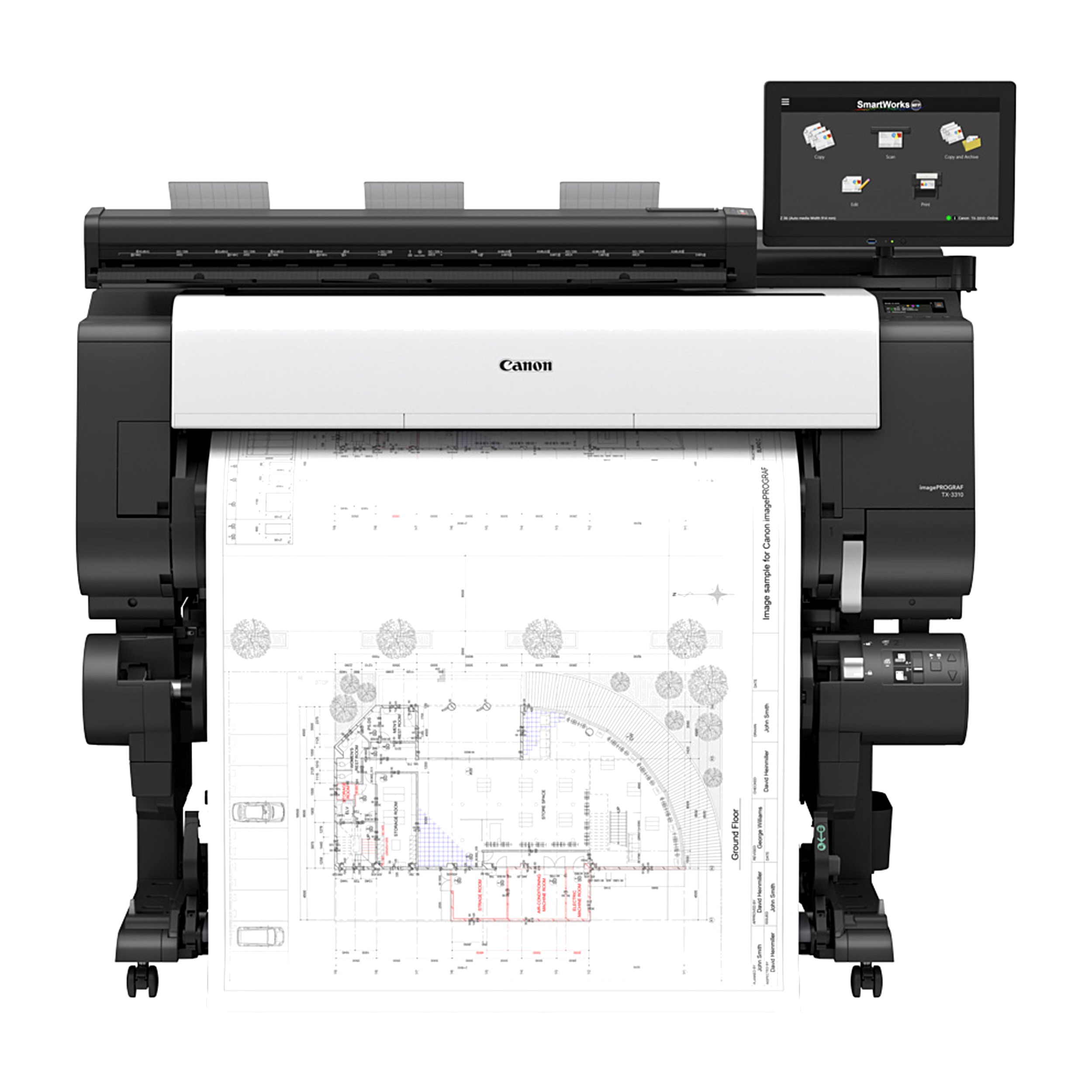

Canon TX-3310 MFP Z36 36 Inch Multi-Function Printer

Canon TX-3310 MFP Z36 36 Inch Multi-Function Printer - Image 3

Canon TX-3310 MFP Z36 36 Inch Multi-Function Printer - Image 4

Canon TX-3310 MFP Z36 36 Inch Multi-Function Printer - Image 5

Canon TX-3310 MFP Z36 36 Inch Multi-Function Printer - Image 6

Canon TX-3310 MFP Z36 36 Inch Multi-Function Printer - Image 7

Canon TX-3310 MFP Z36 36 Inch Multi-Function Printer - Image 8

Canon TX-3310 MFP Z36 – 36-inch printer with integrated large format scanner for high-productivity print, scan and copy.

Description

Canon TX-3310 MFP Z36 – 36-inch printer with integrated Z36 large format scanner.

5-colours LUCIA TD pigment ink, with newly formulated matte black ink

Integrated Z36 large format scanner with 15.6-inch touch monitor

2GB physical / 128GB virtual memory, 256GB encrypted hard drive

Hot-swappable ink tanks and borderless printing via Micro Margin Technology

Targeted at larger AEC (architecture, engineering, construction) and manufacturing organisations, corporate and government departments and print service providers.

Design Supply is an Accredited Canon Gold Partner with more than 35 years of experience in the large format printer market.

Design Supply offers expertise and knowledge in tailoring the exact solution for your specific application.

KEY FEATURES

The Canon imagePROGRAF TX-3310 MFP Z36 pairs the 36-inch TX-3300 print engine with an integrated Z36 large format scanner (built by Global Scanning of Denmark) and a 15.6-inch touch monitor for scan and copy workflows – all in one machine, rather than a separate bolt-on scan unit.

The print engine shares the same 5-colour LUCIA TD pigment ink system, newly formulated Matte Black ink and PF-06 FINE print head as the TX-3300, for output up to 2400 x 1200 dpi.

Independent scan and print operation means the scanner can be used while a print job is running, and Canon’s SmartWorks MFP software supports scan-to-copy, scan-to-file and scan-to-email with real-time edits such as colour correction and skew correction.

Hot-swap ink tanks, Smart Roll Paper Set auto-detection and borderless printing via Micro Margin Technology (6″ – 36″) carry over from the TX-3300.

Note: the integrated Z36 scanner’s own maximum scan width is 36″/38″ – matched to this model’s print width.

SPECIFICATIONS

Ink system: 5-colour LUCIA TD all-pigment ink (Matte Black, Black, Cyan, Magenta, Yellow), newly formulated matte black.

Print head: PF-06 (FINE technology), 5,120 nozzles (MBK) / 2,560 nozzles per colour, 5pl droplet size.

Max print resolution: 2400 x 1200 dpi. Minimum line width 0.02mm.

Print speed: up to 3.3 D-size prints per minute (Canon’s own figure, Fast Q5 mode, plain paper).

Memory: 128GB virtual / 2GB physical memory, plus a 256GB encrypted hard drive.

Roll/cut sheet width: 6″ – 36″ (152mm – 917mm).

Scanner: integrated Z36 large format scanner (Global Scanning), max scan width 36″/38″, 15.6-inch touch monitor.

MFP software: SmartWorks MFP – scan-to-copy/file/email with real-time colour and skew correction.

Borderless printing: Micro Margin Technology, 6″ – 36″ custom widths.

Security: PIN code printing, encrypted communications, secure HDD erasure.

Sustainability: ENERGY STAR and EPEAT 1.0 Gold certified, EPS-foam-free packaging, recycled steel/resin content.

WHAT'S IN THE BOX

Canon imagePROGRAF TX-3310 MFP Z36 printer with integrated scanner: 8509C009AA
Printer stand
1 Print head PF-06
1 set of Starter ink tanks
1 Roll holder (spool)
3″ paper core attachment
Installation guide
UK power cable
safety/standard environment leaflet
LFP Eur address sheet
Important information sheet
Printer stand setup guide
Notice for PosterArtist WEB
12 month warranty

Software available as free download from Canon:

Direct Print Plus
SmartWorks MFP
PosterArtist
Free Layout Plus
Accounting Manager
Device Management Console

Options:

2″/3″ Roll Unit: RH2-34
Stacker: SS-31
IC Card Reader Holder: RA-01

Consumables:

Ink Tank: MBK: PFI-113(160ml): 7521C001AA/PFI-313(330ml):7520C001AA/PFI-713 (700ml):7519C001AA
M: PFI-111(160ml):6846C001AA/PFI-311(330ml):6847C001AA/PFI-711(700ml):684C001AA
BK: PFI-110(160ml):2346C001AA/PFI-310(330ml):2359C001AA/PFI-710(700ml):2354C001AA
C: PFI-110(160ml):2365C001AA/PFI-310(330ml):2360C001AA/PFI-710(700ml):2355C001AA
Y: PFI-110(160ml):2367C001AA/PFI-310(330ml):2362C001AA/PFI-710(700ml):2357C001AA
Print head: PF-06
Cutter Blade: CT-07
Maintenance Cartridge: MC-30

DATA SHEETS

Canon imagePROGRAF TX-3310 MFP Z36_imagePROGRAF TX-4310 MFP Z36_Datasheet

MANUFACTURER INFORMATION

The Canon imagePROGRAF TX-3310 MFP Z36.

The TX Series carries over the PF-06 FINE print head, 2400 x 1200 dpi resolution and LUCIA TD pigment ink chemistry from the outgoing generation, with a newly formulated high-density matte black ink. Canon positions the TX range for larger AEC&M organisations, corporate and government departments, and print service providers with high-productivity requirements.

As with all imagePROGRAF printers, Canon covers the TX-3310 MFP Z36 and its print head with a 12-month warranty.
