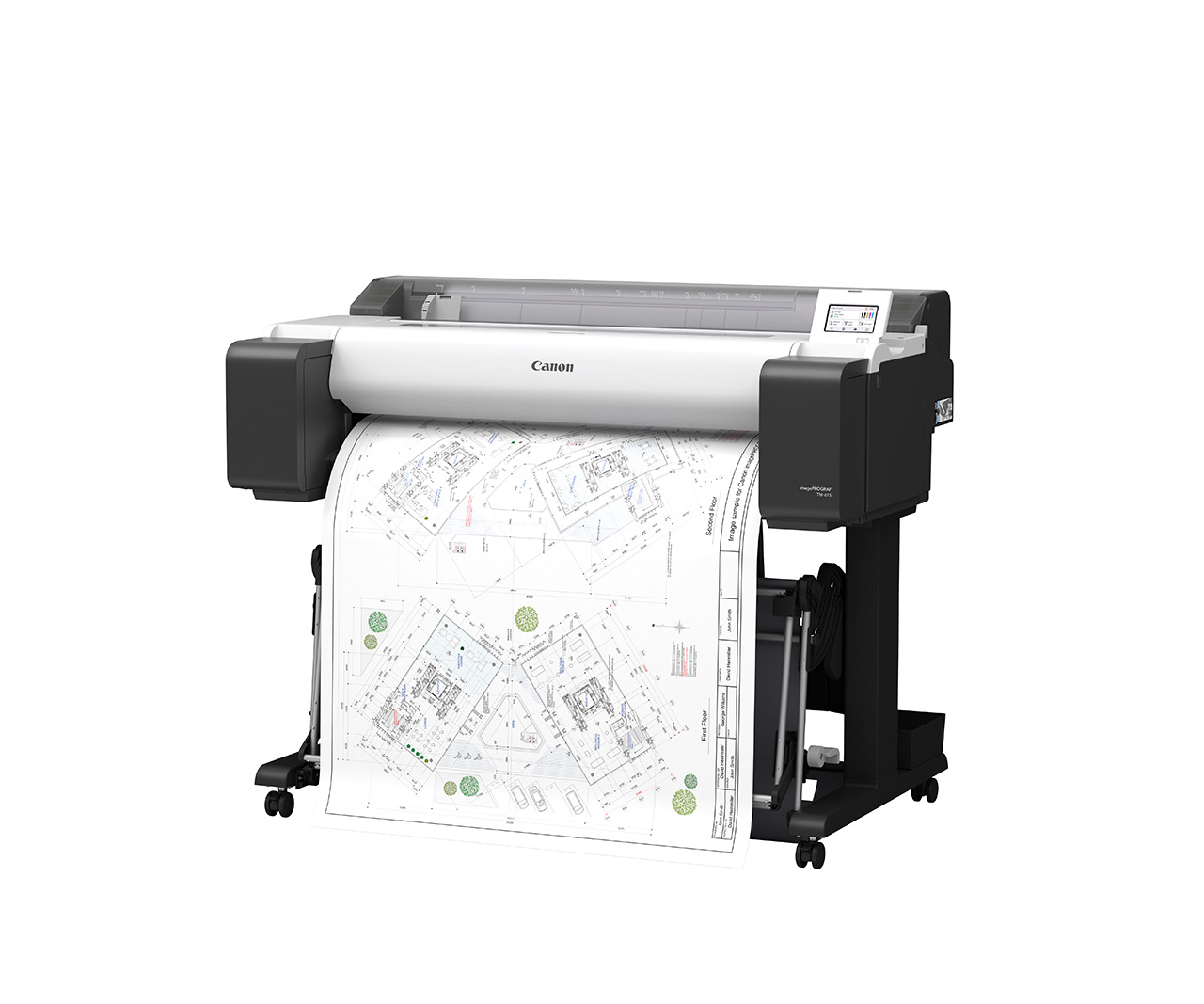

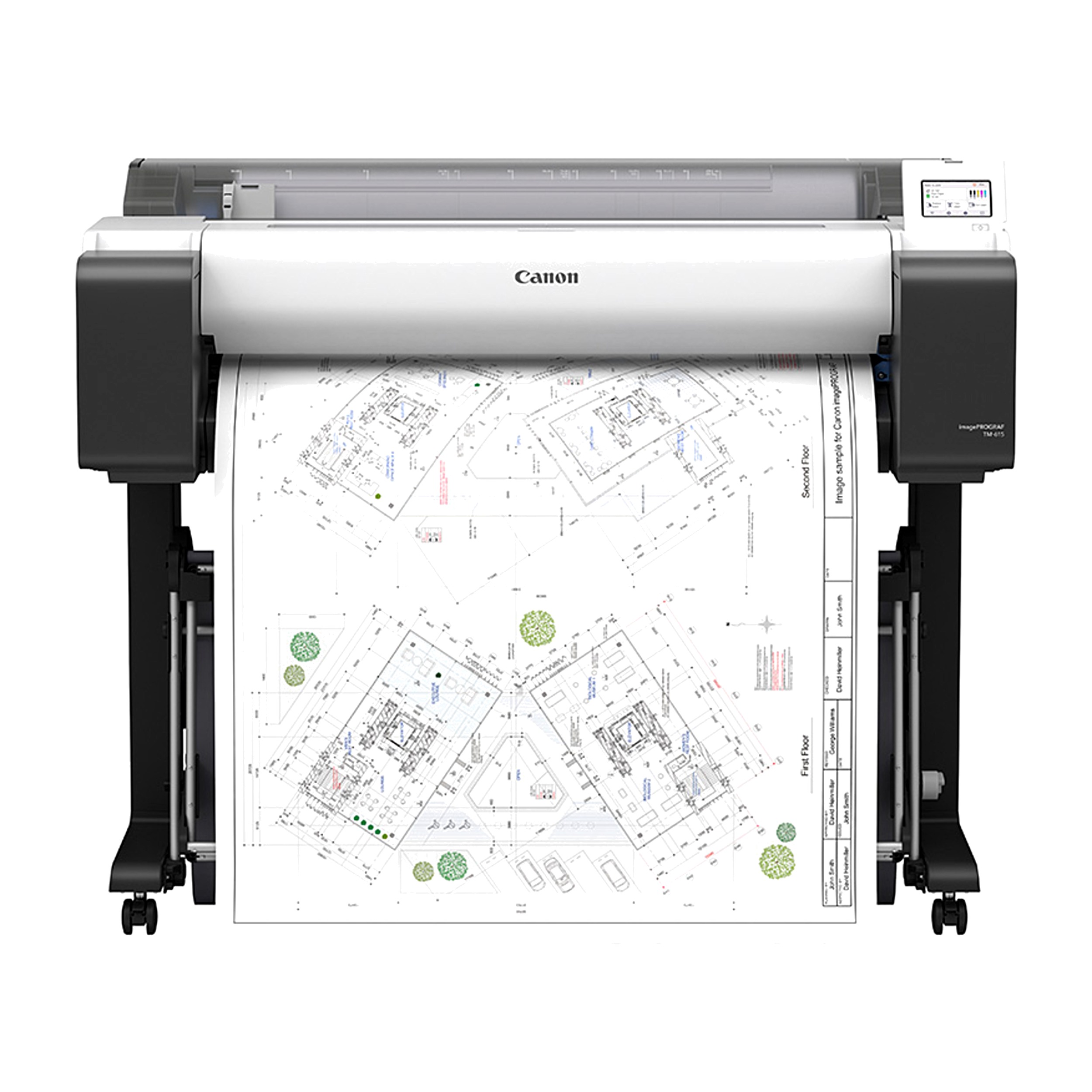

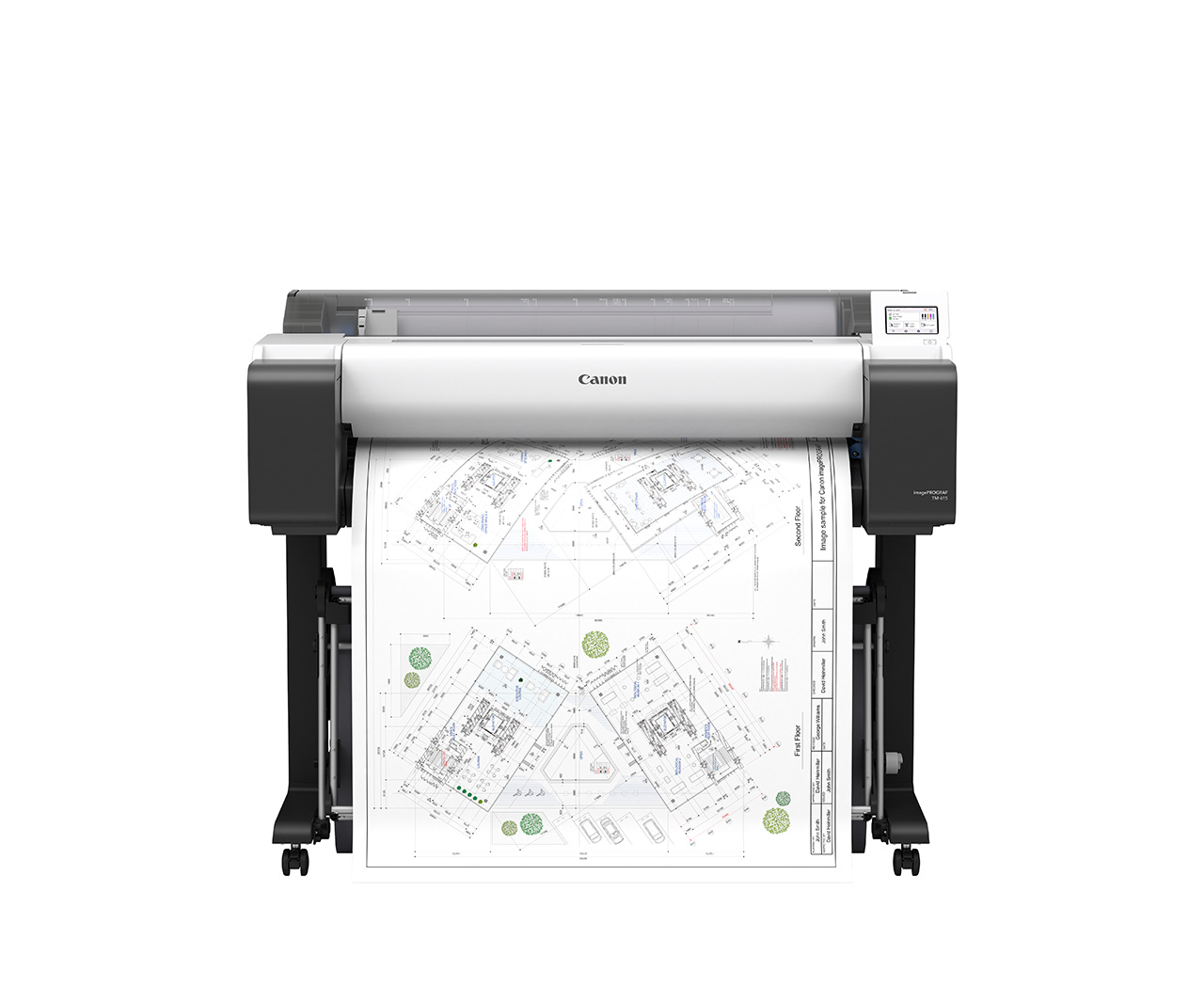

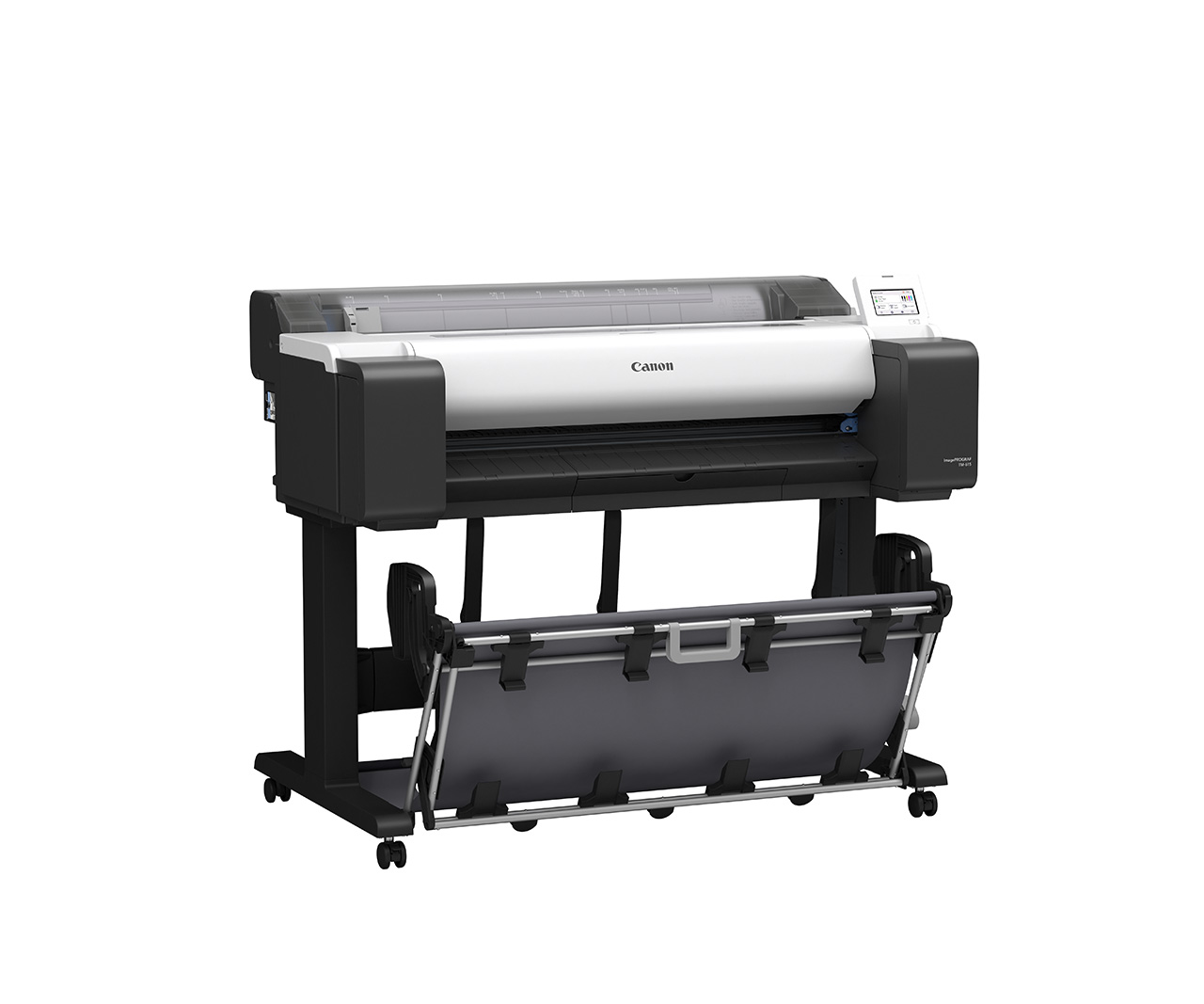

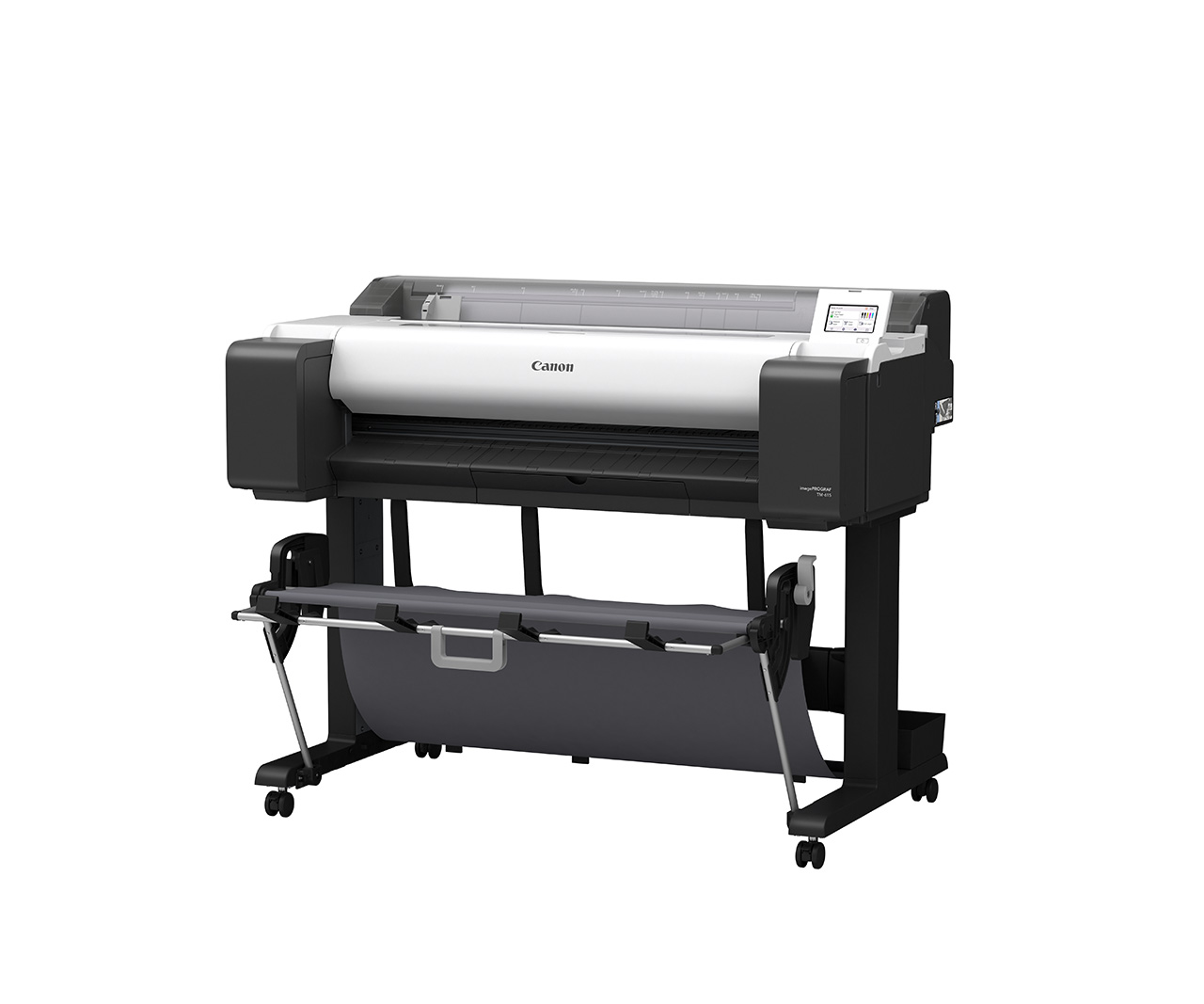

Canon TM-615 A0 Large Format Printer

Canon TM-615 A0 Large Format Printer - Image 3

Canon TM-615 A0 Large Format Printer - Image 4

Canon TM-615 A0 Large Format Printer - Image 5

Canon TM-615 A0 printer – top-tier 36-inch CAD production printer with added onboard storage.

Ink for this printer →
Genuine Canon ink for the TM-510, TM-515, TM-610 and TM-615

Description

Canon TM-615 A0 printer – top-tier 36-inch CAD production, with added onboard storage and 5-colours LUCIA TD pigment ink

128GB virtual / 2GB physical memory plus a 256GB hard drive

130ml (Matte Black) / 90ml (Black, Cyan, Magenta, Yellow) starter ink tanks

Newly formulated high-density matte black ink for crisper lines and text

Lower cost of ownership: the TM-615 takes 130ml or 300ml ink tanks, roughly half the cost per ml of 55ml-tank models. See the figures in our Canon TM-240 / TM-340 Upgrade Guide (PDF).

Design Supply is an Accredited Canon Gold Partner with more than 35 years of experience in the large format printer market.

Design Supply offers expertise and knowledge in tailoring the exact solution for your specific application.

Videos

Canon TM Large Format Printer Range

Key features

The Canon imagePROGRAF TM-615 is the range-topping 36-inch model in Canon’s new TM Series, adding a 256GB hard drive on top of the standard 128GB virtual / 2GB physical memory – useful for larger CAD files and busier print queues.

Like the rest of the new TM Series, the TM-615 uses the 5-colour LUCIA TD pigment ink system with a newly formulated Matte Black ink for denser blacks and sharper fine lines and text.

Built around Canon’s PF-06 FINE print head (5,120 nozzles Matte Black, 2,560 nozzles per colour, 5-picolitre droplets), the TM-615 delivers technical drawings and posters at up to 2400 x 1200 dpi.

Automatic media detection, built-in colour calibration and a compact, front-accessible design keep day-to-day running straightforward, even at higher production volumes.

Specifications

Ink system: 5-colour LUCIA TD all-pigment ink (Matte Black, Black, Cyan, Magenta, Yellow), newly formulated matte black. Starter tanks: 130ml (MBK) / 90ml (BK, C, M, Y).

Print head: PF-06 (FINE technology), 5,120 nozzles (MBK) / 2,560 nozzles per colour, 5pl droplet size.

Max resolution: 2400 x 1200 dpi.

Print speed: up to 3.2 D-size prints per minute (Canon’s own figure, Fast mode, plain paper).

Memory: 128GB virtual / 2GB physical, plus a 256GB hard drive.

Media width: 8″ – 36″ (203.2mm – 917mm).

Connectivity/software: Direct Print Plus, PosterArtist, Free Layout Plus, Accounting Manager, Device Management Console and Media Configuration Tool included free. Apple AirPrint and Mopria Print Service supported.

Sustainability: ENERGY STAR certified, EPEAT 1.0 Gold registered, recycled steel and resin content in the chassis, EPS-foam-free packaging.

What's in the box

Canon imagePROGRAF TM-615 printer: 7458C003AA
Print head PF-06
Starter ink tank set (490ml=MBK 130ml, BK/C/M/Y 90ml)
Printer Stand
1 Roll holder (spool)
Installation guide
UK power cable
safety/standard environment leaflet
LFP Eur Address Sheet
Important Information Sheet
Notice for PosterArtist WEB
3″ Paper Core Attachment
Printer Stand Setup Guide
12 month warranty

Software available as free download from Canon:

Direct Print Plus
PosterArtist
Free Layout Plus
Accounting Manager
Device Management Console
Media Configuration Tool

Options:

2″/3″ Roll Holder RH2-35:
IC Card Reader Holder: RA-02: 4976COO2AA

Consumables:

Ink Tank: MBK: PFI-323 (300ml)/PFI-123(130ml):7480C001AA/7478C001AA
Ink Tank: M: PFI-321 (300ml)/PFI-121(130ml):6269C001AA/6267C001AA
Ink Tank: BK: PFI-320 (300ml)/PFI-120(130ml):2890C001AA/2885C001AA
Ink Tank: C: PFI-320 (300ml)/PFI-120(130ml):2891C001AA/2886C001AA
Ink Tank: Y: PFI-320 (300ml)/PFI-120(130ml):2893C001AA/2888C001AA
Print Head: PF-06
Cutter Blade: CT-08
Maintenance Cartridge: MC-31

Data sheets

Canon imagePROGRAF TM-610 / TM-615 Datasheet

Canon TM_Product_Flyer

Manufacturer information

The new TM Series carries over Canon’s proven PF-06 FINE print head and LUCIA TD pigment ink chemistry, with a newly developed high-density matte black ink for sharper lines and text. Canon’s own positioning covers architecture, engineering, construction, retail and education users.

As with all imagePROGRAF printers, Canon covers the TM-615 and its print head with a 12-month warranty.
