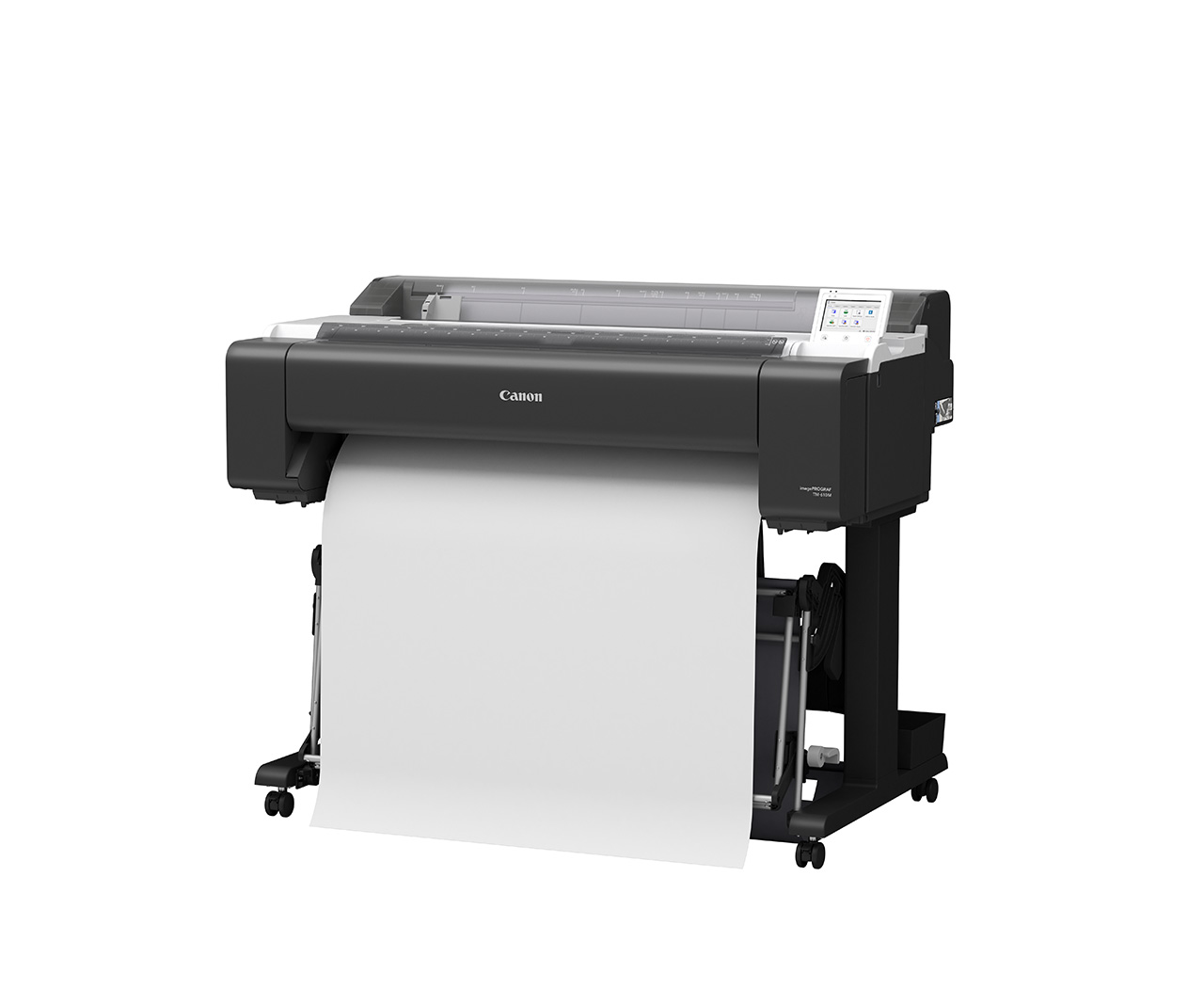

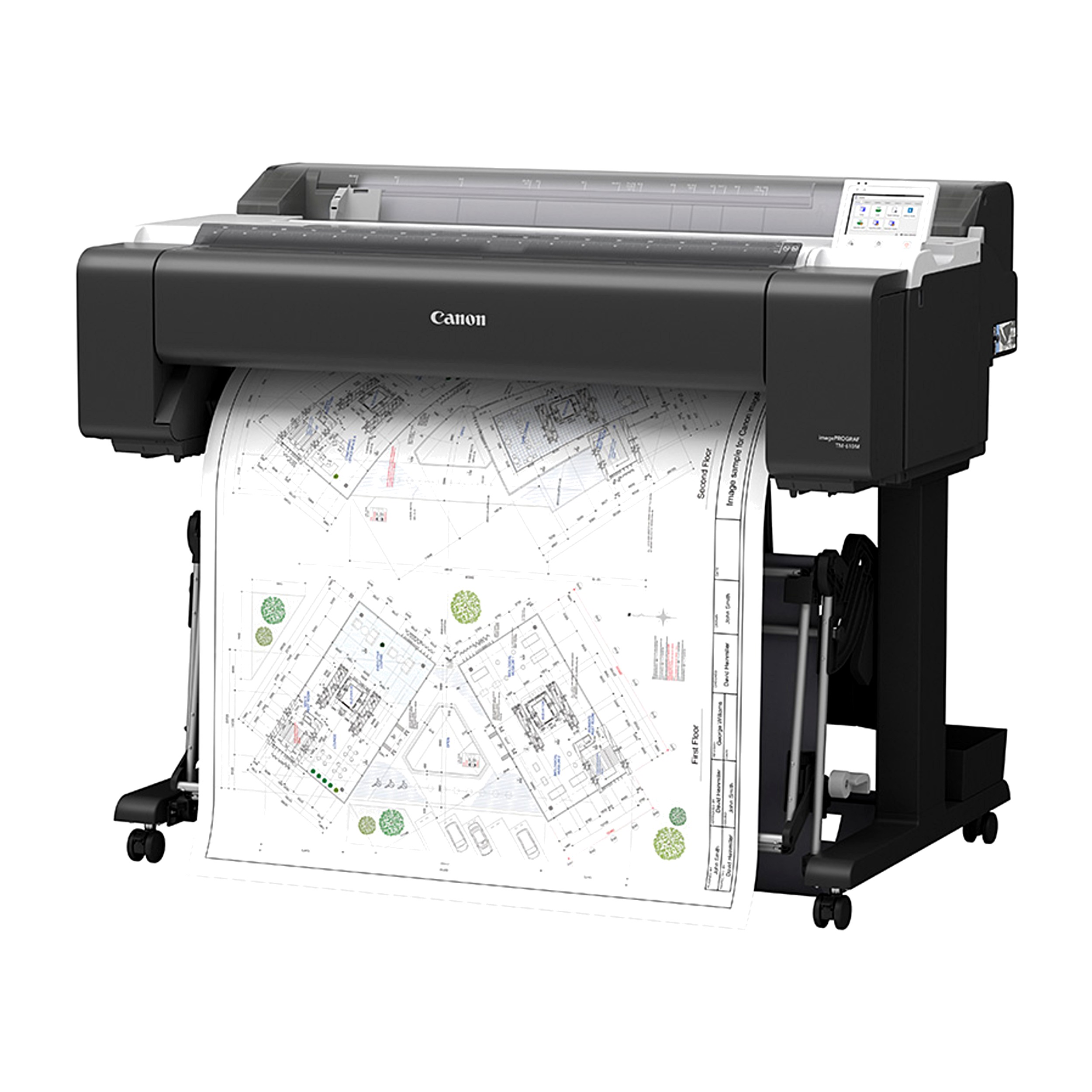

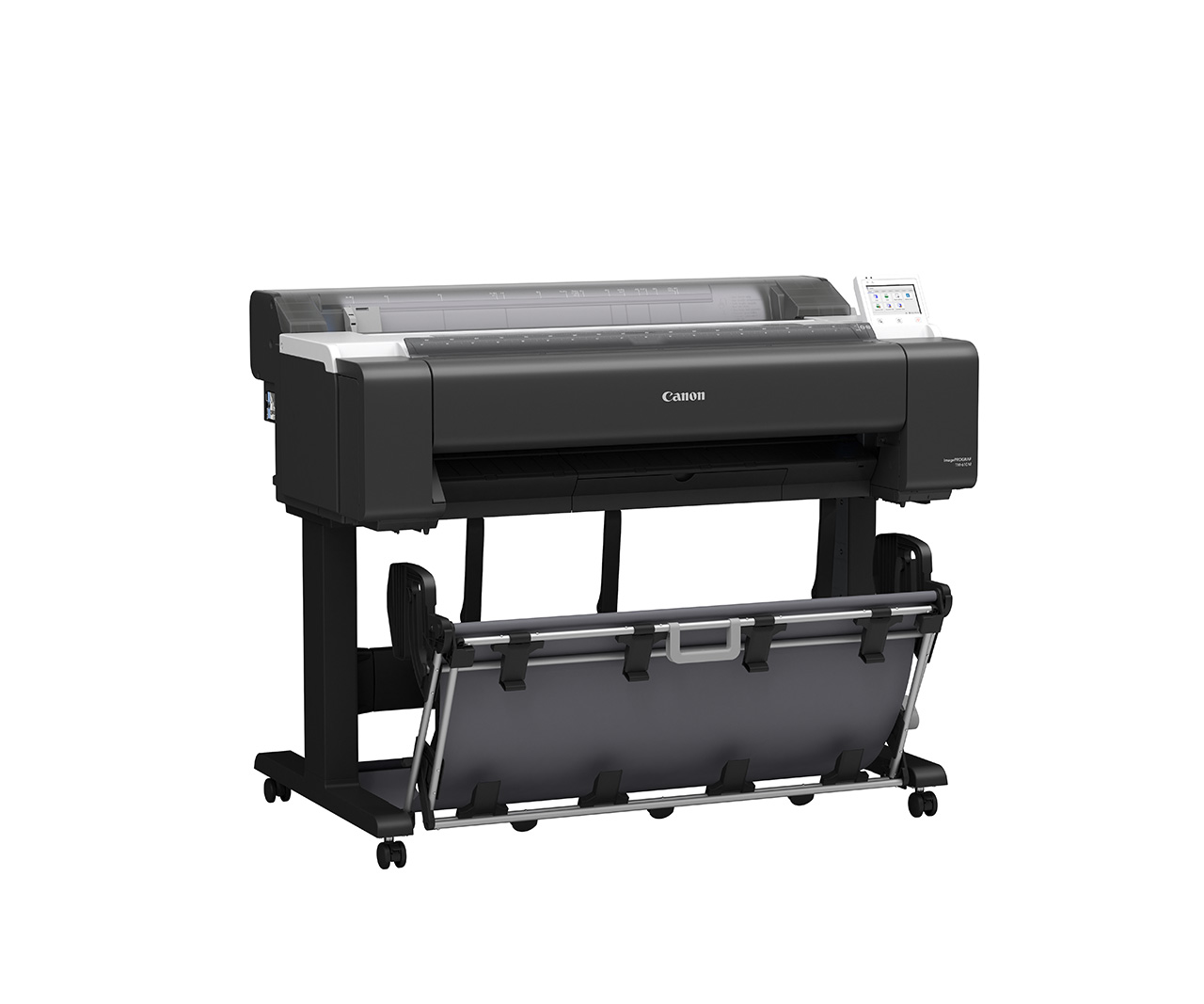

Canon TM-610M A0 Multi-Function Large Format Printer

Canon TM-610M A0 Multi-Function Large Format Printer - Image 3

Canon TM-610M A0 printer with built-in large format scanner for print, scan and copy.

Description

Canon TM-610M A0 printer – with built-in large format scanner.

5-colours LUCIA TD pigment ink

Integrated large format scanner – print, scan and copy from one machine

130ml (Matte Black) / 90ml (Black, Cyan, Magenta, Yellow) starter ink tanks

Newly formulated high-density matte black ink for crisper lines and text

Design Supply is an Accredited Canon Gold Partner with more than 35 years of experience in the large format printer market.

Design Supply offers expertise and knowledge in tailoring the exact solution for your specific application.

KEY FEATURES

The Canon imagePROGRAF TM-610M is Canon’s first A0 TM Series model with a genuinely built-in large format scanner – previous TM MFP configurations paired a printer with a separate external scan unit bolted alongside it.

The integrated Contact Image Sensor (CIS) scanner uses dual-side LED illumination, reducing the shadowing you’d normally get from creased or folded originals such as old drawings pulled from a plan chest.

Preset scan modes are built in for CAD line drawings, blueprints (including inverted blueprint), tracing paper, posters/photos and drawings/maps – so operators don’t need to fine-tune settings by hand for common document types.

Scanned output can be sent straight to USB memory, email or an SMB network share, and the print engine shares the same 5-colour LUCIA TD pigment ink system and PF-06 print head as the rest of the new TM Series, for output up to 2400 x 1200 dpi.

A flat-top loading design and a larger 5-inch touchscreen (vs. 4.3-inch on non-MFP models) make day-to-day scan and copy jobs straightforward.

SPECIFICATIONS

Ink system: 5-colour LUCIA TD all-pigment ink (Matte Black, Black, Cyan, Magenta, Yellow), newly formulated matte black. Starter tanks: 130ml (MBK) / 90ml (BK, C, M, Y).

Print head: PF-06 (FINE technology), 2400 x 1200 dpi max resolution.

Print speed: up to 3.2 D-size prints per minute (Canon’s own figure, Fast mode, plain paper).

Memory: 2GB standard.

Roll width: 8″ – 36″ (203.2mm – 917mm).

Scanner type: Contact Image Sensor (CIS), dual-side LED illumination.

Scan speed: colour 5.0 ips @ 200dpi; monochrome 10.0 ips @ 200dpi.

Copy speed: colour approx. 66 seconds @ 200dpi.

Max scan resolution: 600 dpi optical.

Max scan width: 36″/36.5″.

Max scan length: 326.9″ (JPEG) / 200″ (PDF).

Scan output: USB memory (FAT16/FAT32/exFAT), email, SMB network share.

Preset scan modes: CAD (line drawing), Blueprint, Inverted Blueprint, Tracing Paper, Poster/Photo, Drawing/Map.

Display: 5-inch touchscreen.

WHAT'S IN THE BOX

Canon imagePROGRAF TM-610M printer with integrated scanner: 7447C003AA
Print head PF-06
Starter ink tank set (490ml=MBK 130ml, BK/C/M/Y 90ml)
Printer Stand
1 Roll holder (spool)
Installation guide
UK power cable
safety/standard environment leaflet
LFP Eur Address Sheet
Important Information Sheet
Notice for PosterArtist WEB
3″ Paper Core Attachment
Printer Stand Setup Guide
12 month warranty

Software available as free download from Canon:

Direct Print Plus
PosterArtist
Free Layout Plus
Accounting Manager
Device Management Console
Media Configuration Tool

Options:

2″/3″ Roll Holder RH2-35:
IC Card Reader Holder: RA-02: 4976COO2AA

Consumables:

Ink Tank: MBK: PFI-323 (300ml)/PFI-123(130ml):7480C001AA/7478C001AA
Ink Tank: M: PFI-321 (300ml)/PFI-121(130ml):6269C001AA/6267C001AA
Ink Tank: BK: PFI-320 (300ml)/PFI-120(130ml):2890C001AA/2885C001AA
Ink Tank: C: PFI-320 (300ml)/PFI-120(130ml):2891C001AA/2886C001AA
Ink Tank: Y: PFI-320 (300ml)/PFI-120(130ml):2893C001AA/2888C001AA
Print Head: PF-06
Cutter Blade: CT-08
Maintenance Cartridge: MC-31

DATA SHEETS

Canon imagePROGRAF TM-510M_imagePROGRAF TM-610M_Datasheet

Canon TM_Product_Flyer

MANUFACTURER INFORMATION

The Canon imagePROGRAF TM-610M is part of Canon’s newly refreshed TM Series, announced globally on 15 September 2026 and launching across EMEA (including the UK) from October 2026. It is the first A0 TM Series printer with a genuinely built-in large format scanner, rather than a bolt-on external unit.

Canon’s own positioning covers architecture, engineering, construction, retail and education users who need to print, scan, copy and archive drawings without a separate PC-based workflow.

As with all imagePROGRAF printers, Canon covers the TM-610M and its print head with a 12-month warranty.
