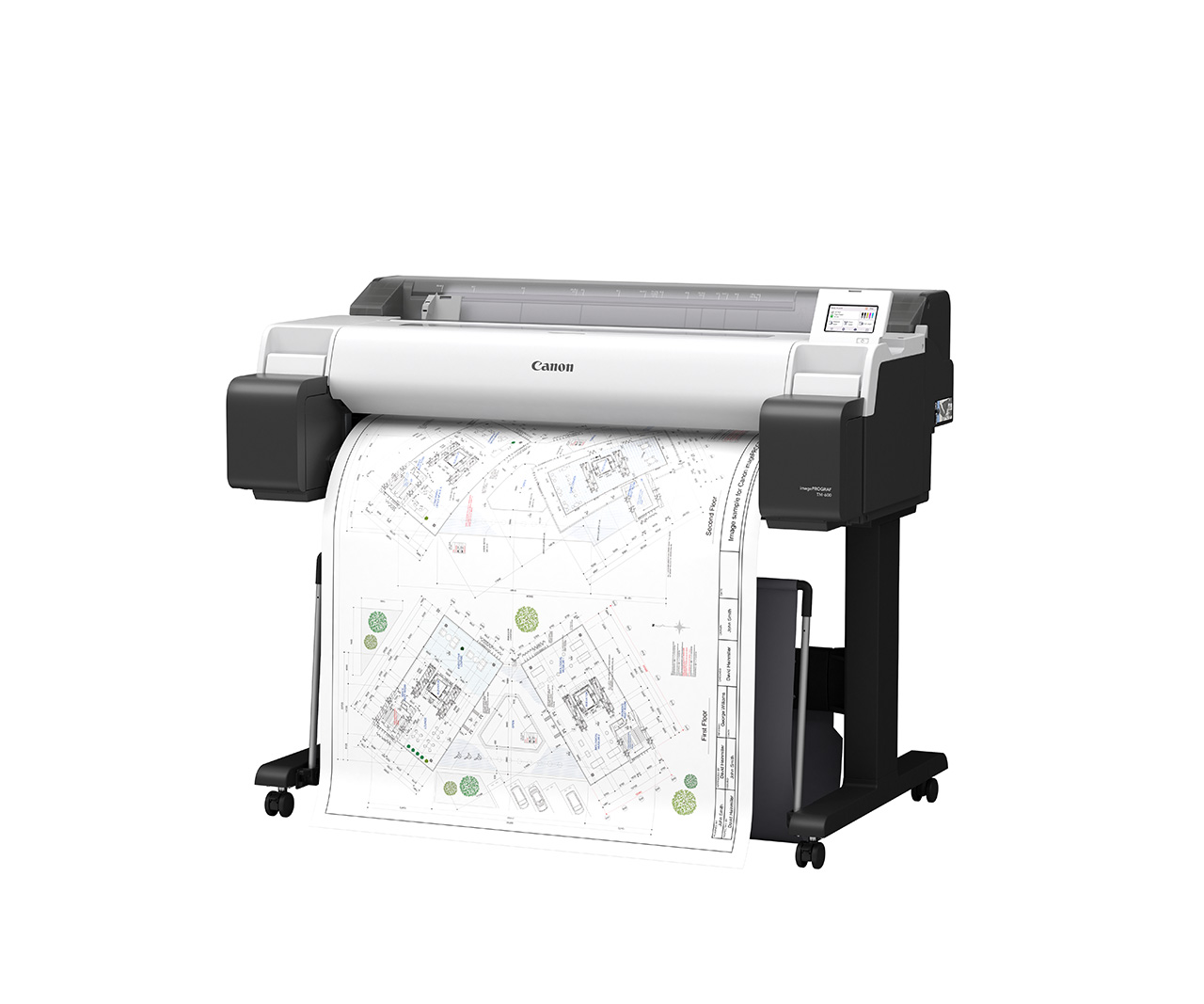

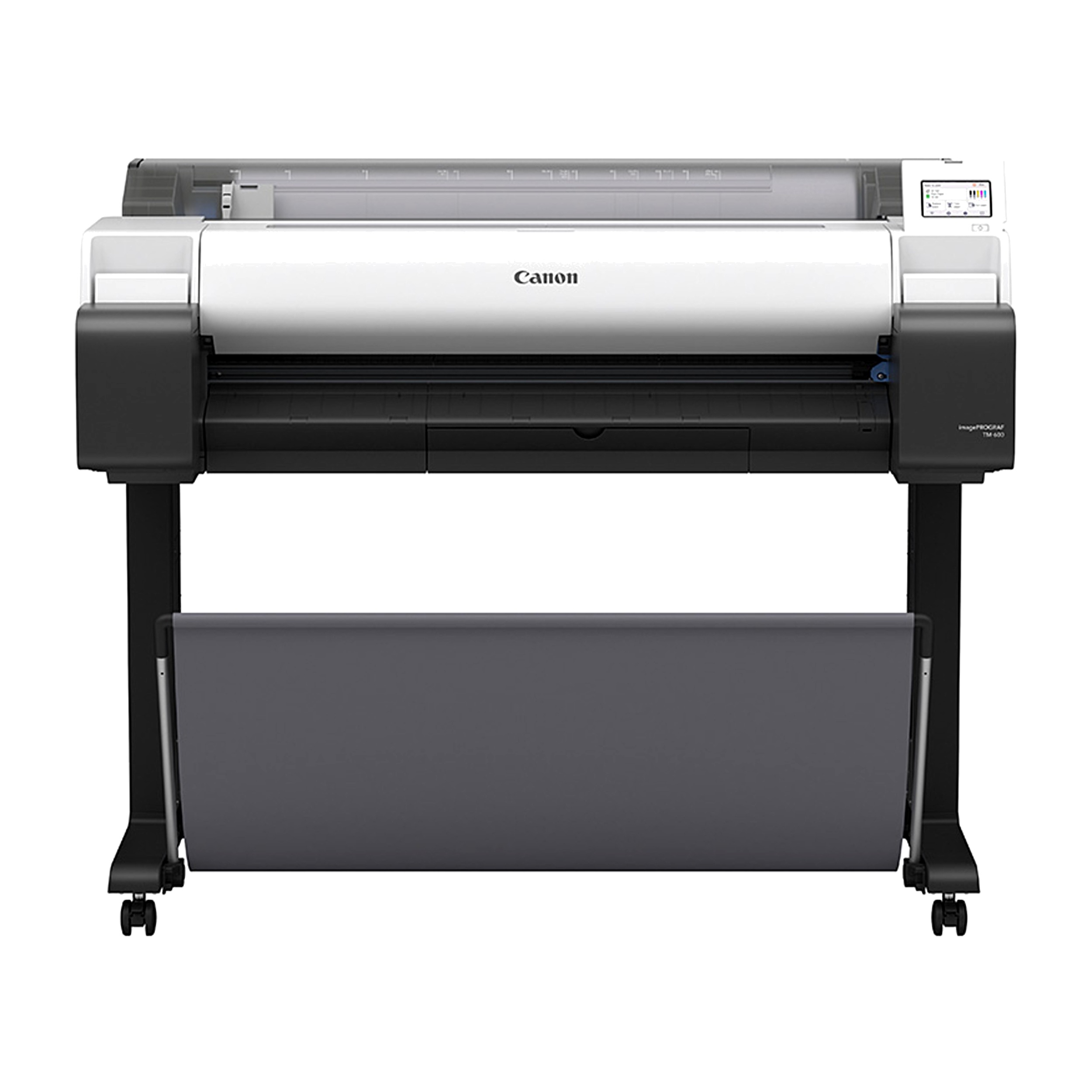

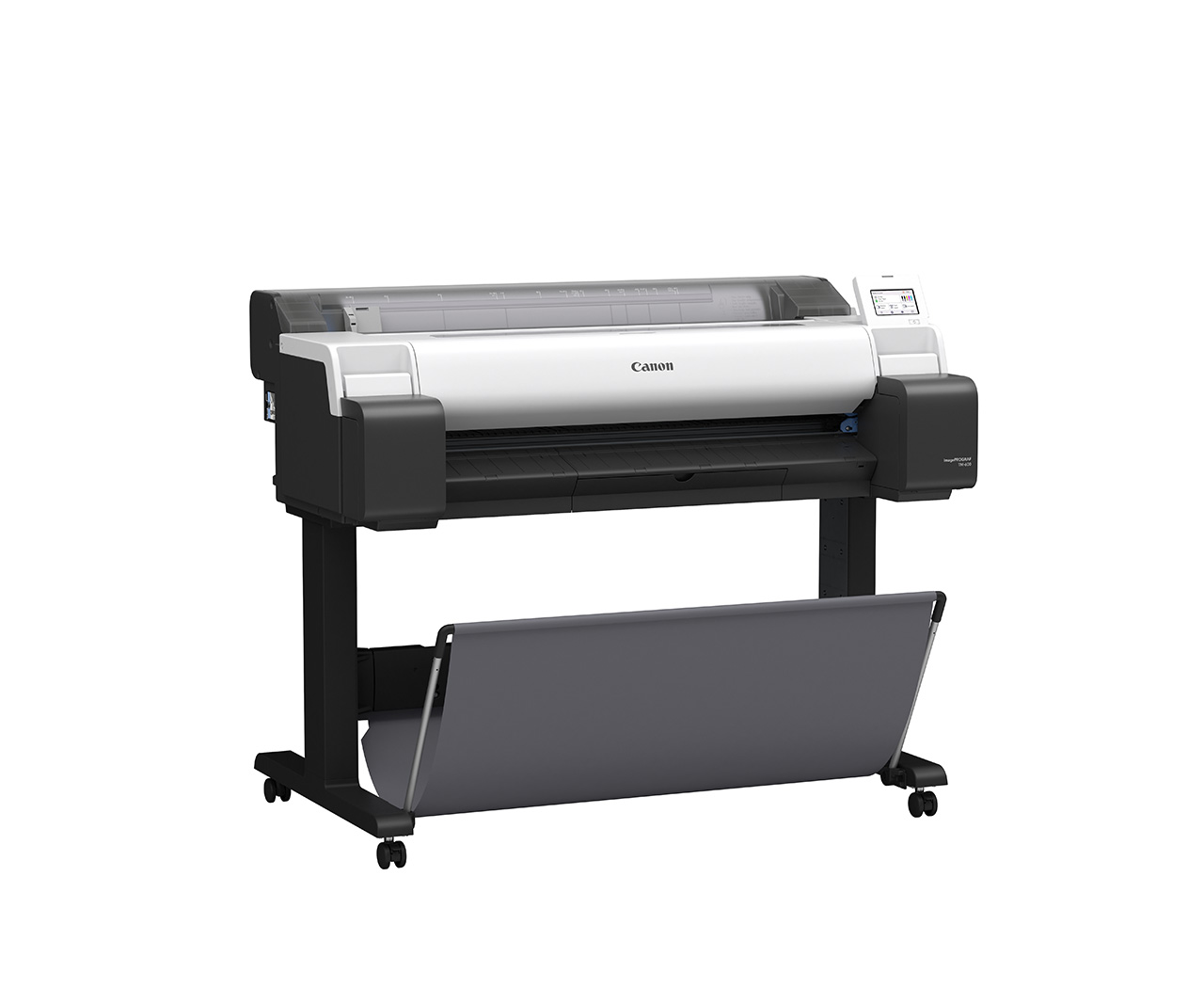

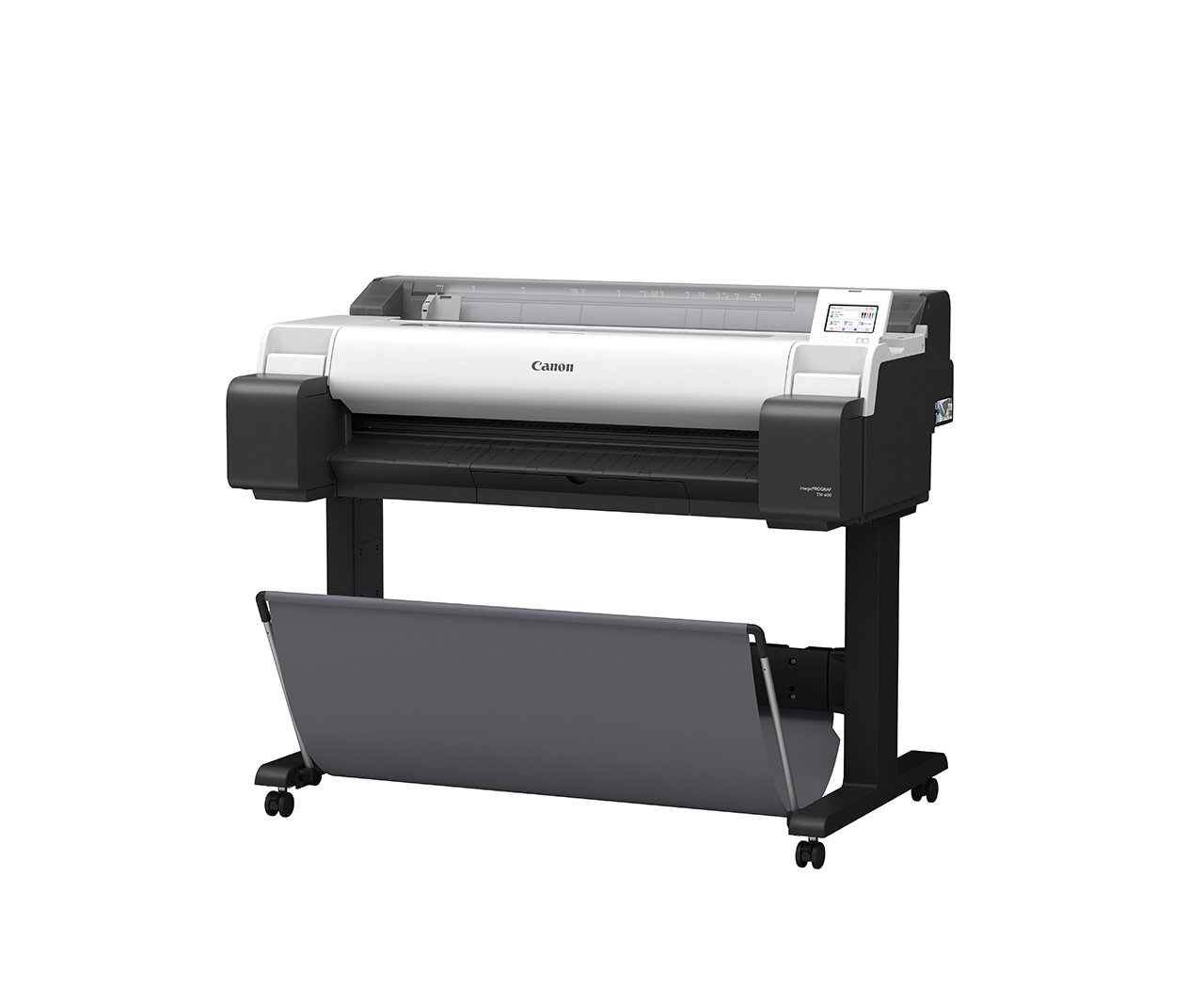

Canon TM-600 A0 Large Format Printer
Canon TM-600 A0 printer – Canon’s new entry-level 36-inch CAD production printer.
Description
Canon TM-600 A0 printer – entry-level 36-inch CAD and technical drawing production 5-colours LUCIA TD pigment ink
2 GB standard memory
80ml (Matte Black) / 55ml (Black, Cyan, Magenta, Yellow) starter ink tanks
Newly formulated high-density matte black ink for crisper lines and text
A great entry-level device for technical documents and low-coverage posters at 36-inch/A0 width.
Design Supply is an Accredited Canon Gold Partner with more than 35 years of experience in the large format printer market.
Design Supply offers expertise and knowledge in tailoring the exact solution for your specific application.
VIDEOS
Canon TM Large Format Printer Range
KEY FEATURES
The Canon imagePROGRAF TM-600 is Canon’s new entry-level A0 (36-inch) CAD production printer, positioned for technical documents, drawings and low-coverage posters where reliable day-to-day output matters more than high ink capacity.
The TM-600 uses the 5-colour LUCIA TD pigment ink system with a newly formulated Matte Black ink, developed to give denser blacks and crisper fine lines and small text than the outgoing TM-300 generation.
Built around Canon’s proven PF-06 FINE print head (5,120 nozzles for Matte Black, 2,560 nozzles per colour, 5-picolitre droplets), the TM-600 produces sharp CAD lines and technical detail at up to 2400 x 1200 dpi.
Automatic media detection, built-in colour calibration and a compact, front-accessible design make the TM-600 straightforward to run in a small office or busy print room.
Canon positions the TM-600 as a great entry point into in-house A0 CAD production for architecture, engineering and construction teams.
SPECIFICATIONS
Ink system: 5-colour LUCIA TD all-pigment ink (Matte Black, Black, Cyan, Magenta, Yellow), newly formulated matte black. Starter tanks: 80ml (MBK) / 55ml (BK, C, M, Y).
Print head: PF-06 (FINE technology), 5,120 nozzles (MBK) / 2,560 nozzles per colour, 5pl droplet size.
Max resolution: 2400 x 1200 dpi.
Print speed: up to 2.7 D-size prints per minute (Canon’s own figure, Fast mode, plain paper).
Memory: 2GB standard.
Media width: 8″ – 36″ (203.2mm – 917mm).
Connectivity/software: Direct Print Plus, PosterArtist, Free Layout Plus, Accounting Manager, Device Management Console and Media Configuration Tool included free. Apple AirPrint and Mopria Print Service supported.
Sustainability: ENERGY STAR certified, EPEAT 1.0 Gold registered, recycled steel and resin content in the chassis, EPS-foam-free packaging.
WHAT'S IN THE BOX
- Canon imagePROGRAF TM-600 printer: 7450C003AA
- Print head PF-06
- Starter ink tank set (300ml = MBK 80ml, BK/C/M/Y 55ml)
- Printer Stand
- 1 Roll holder (spool)
- Installation guide
- UK power cable
- safety/standard environment leaflet
- LFP Eur Address Sheet
- Important Information Sheet
- Notice for PosterArtist WEB
- 3″ Paper Core Attachment
- Printer Stand Setup Guide
- 12 month warranty
Software available as free download from Canon:
- Direct Print Plus
- PosterArtist
- Free Layout Plus
- Accounting Manager
- Device Management Console
- Media Configuration Tool
Options:
- 2″/3″ Roll Holder RH2-35:
- IC Card Reader Holder: RA-02: 4976COO2AA
Consumables:
- Ink Tank: MBK: PFI-033 (55ml): 7476C001AA
- Ink Tank: M: PFI-031 (55ml): 6265C001AA
- Ink Tank: BK/C/Y: PFI-030 (55ml): 3489C001AA/3490C001AA/3492C001AA
- Print Head: PF-06
- Cutter Blade: CT-08
- Maintenance Cartridge: MC-31
MANUFACTURER INFORMATION
The new TM Series carries over Canon’s proven PF-06 FINE print head and LUCIA TD pigment ink chemistry, with a newly developed high-density matte black ink for sharper lines and text. Canon’s own positioning covers architecture, engineering, construction, retail and education users producing technical documents, drawings and posters.
As with all imagePROGRAF printers, Canon covers the TM-600 and its print head with a 12-month warranty.
