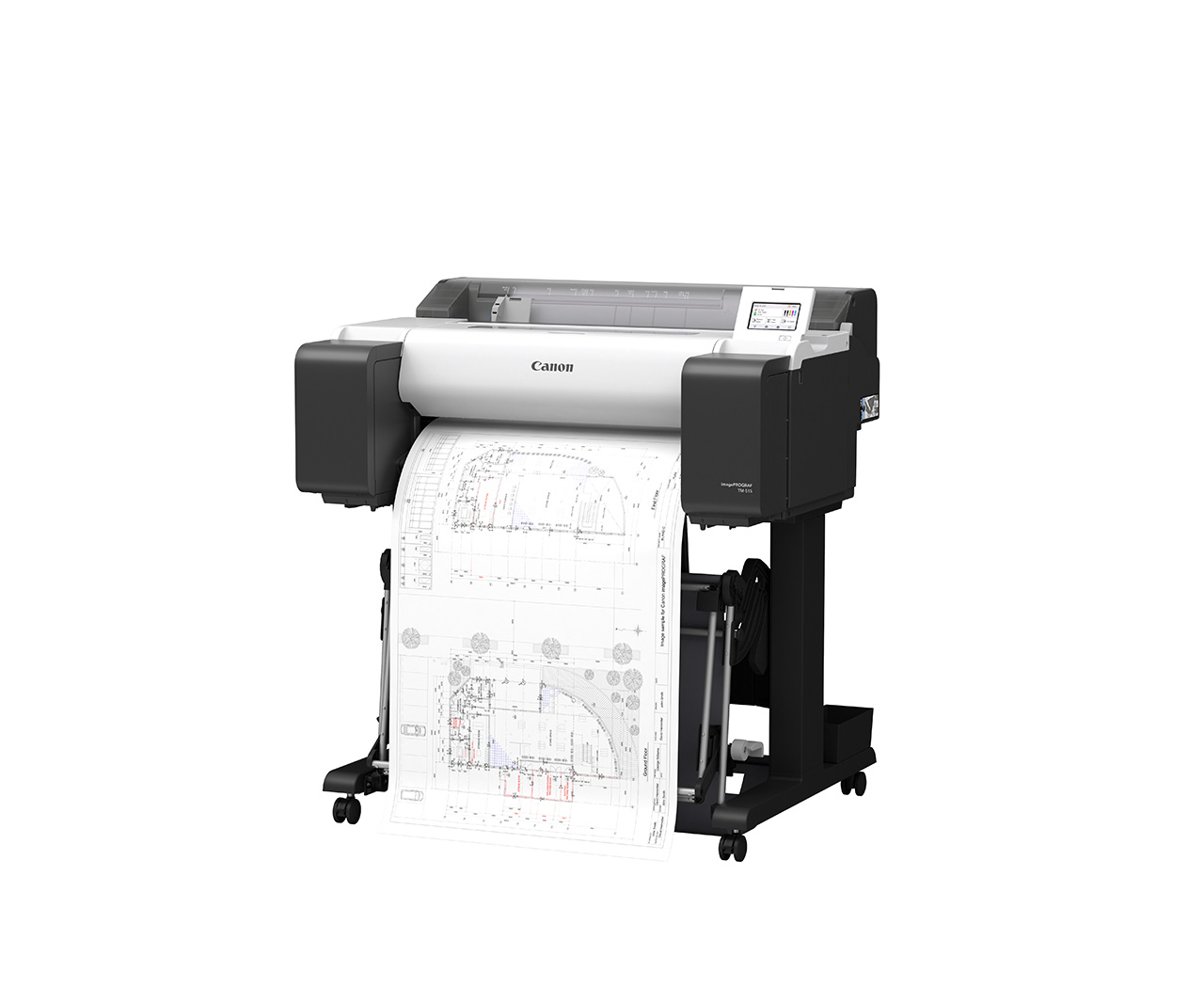

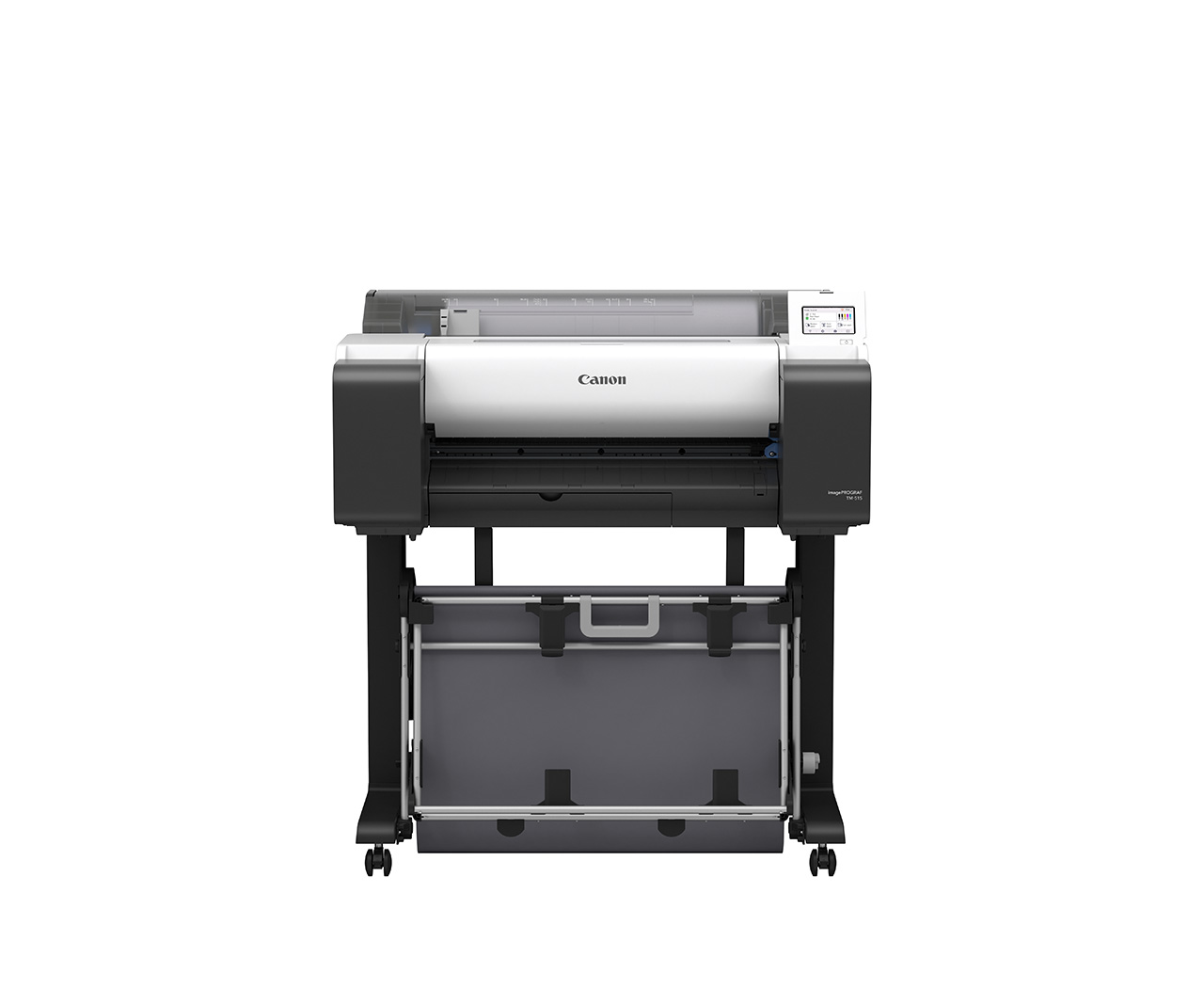

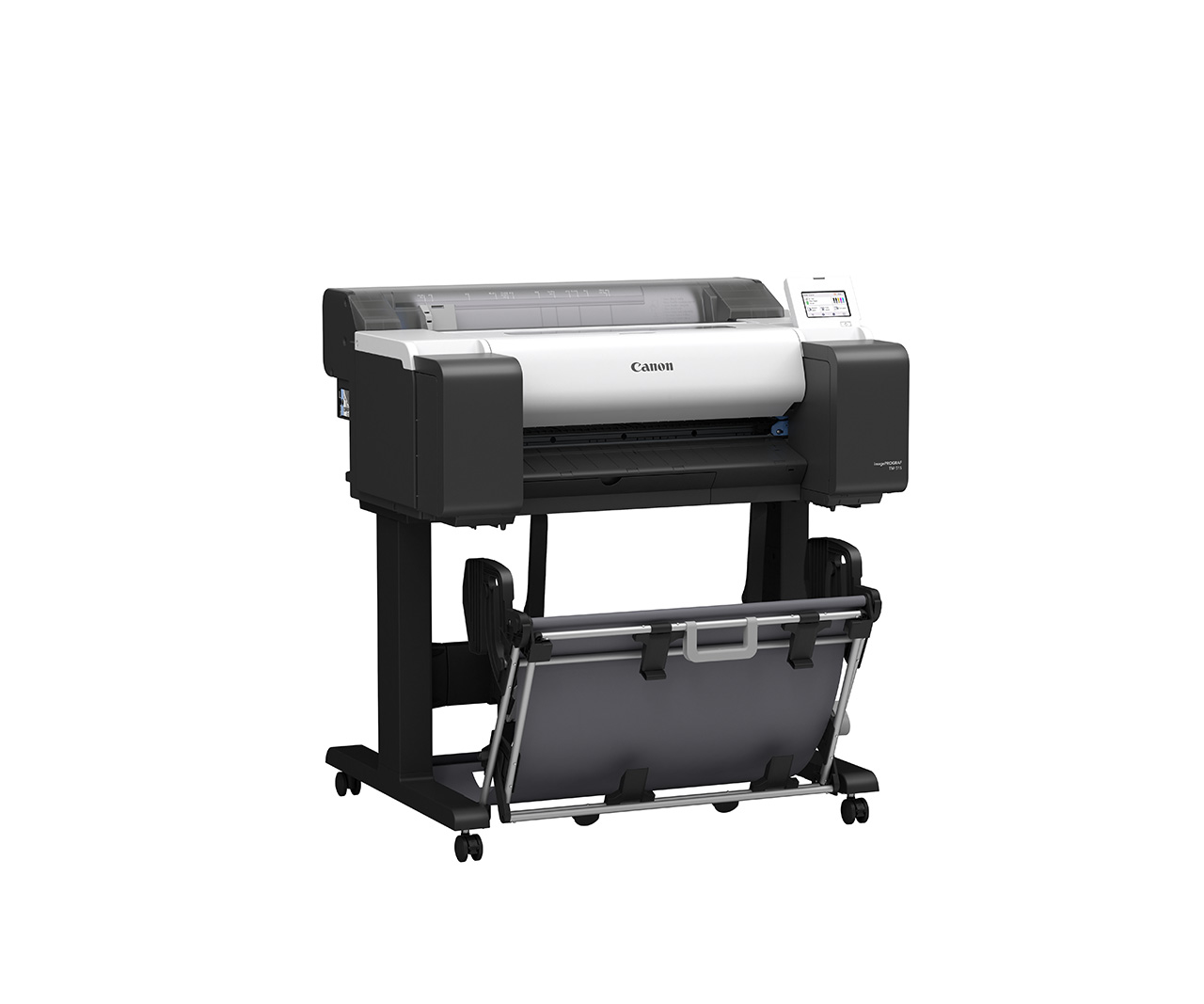

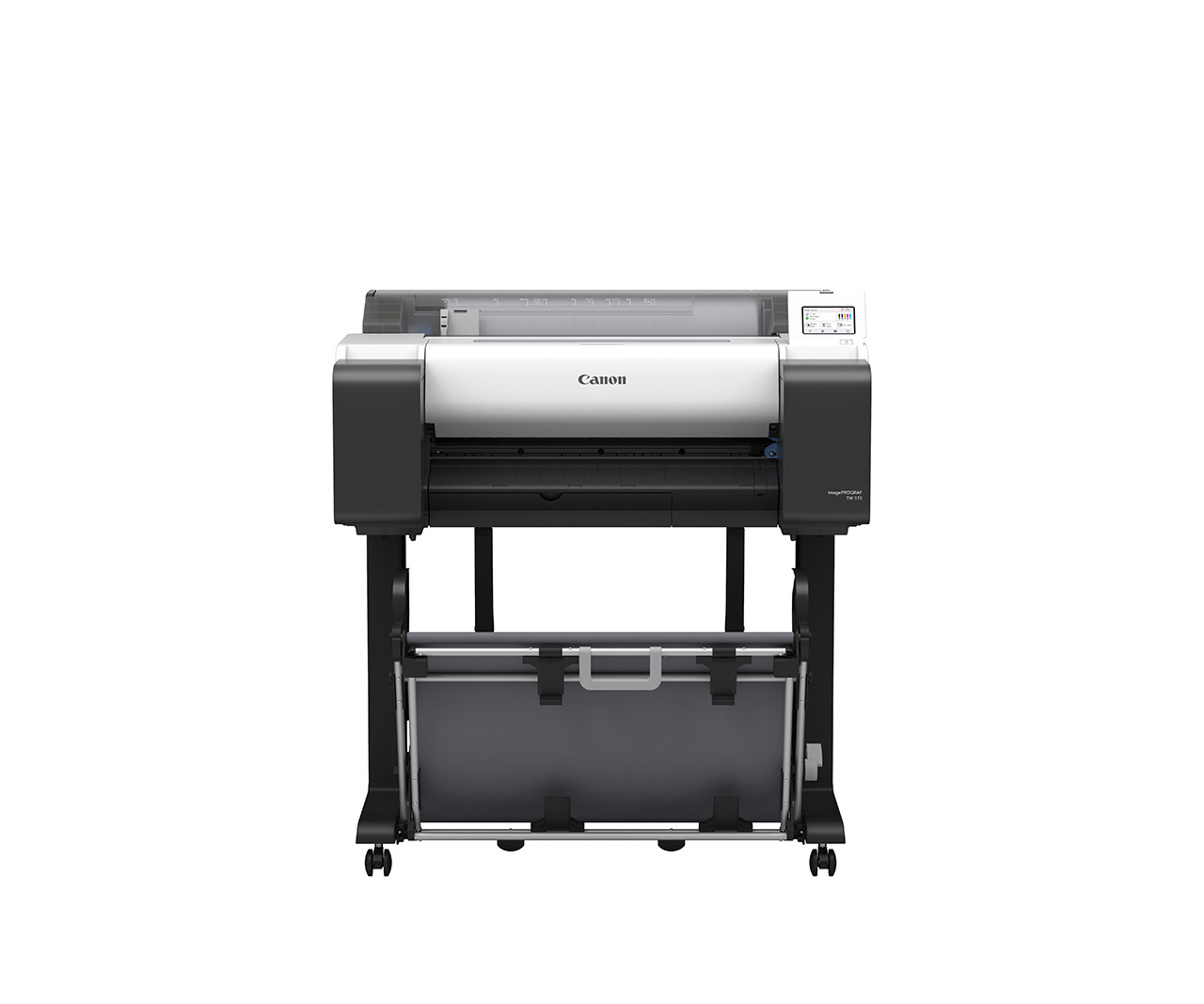

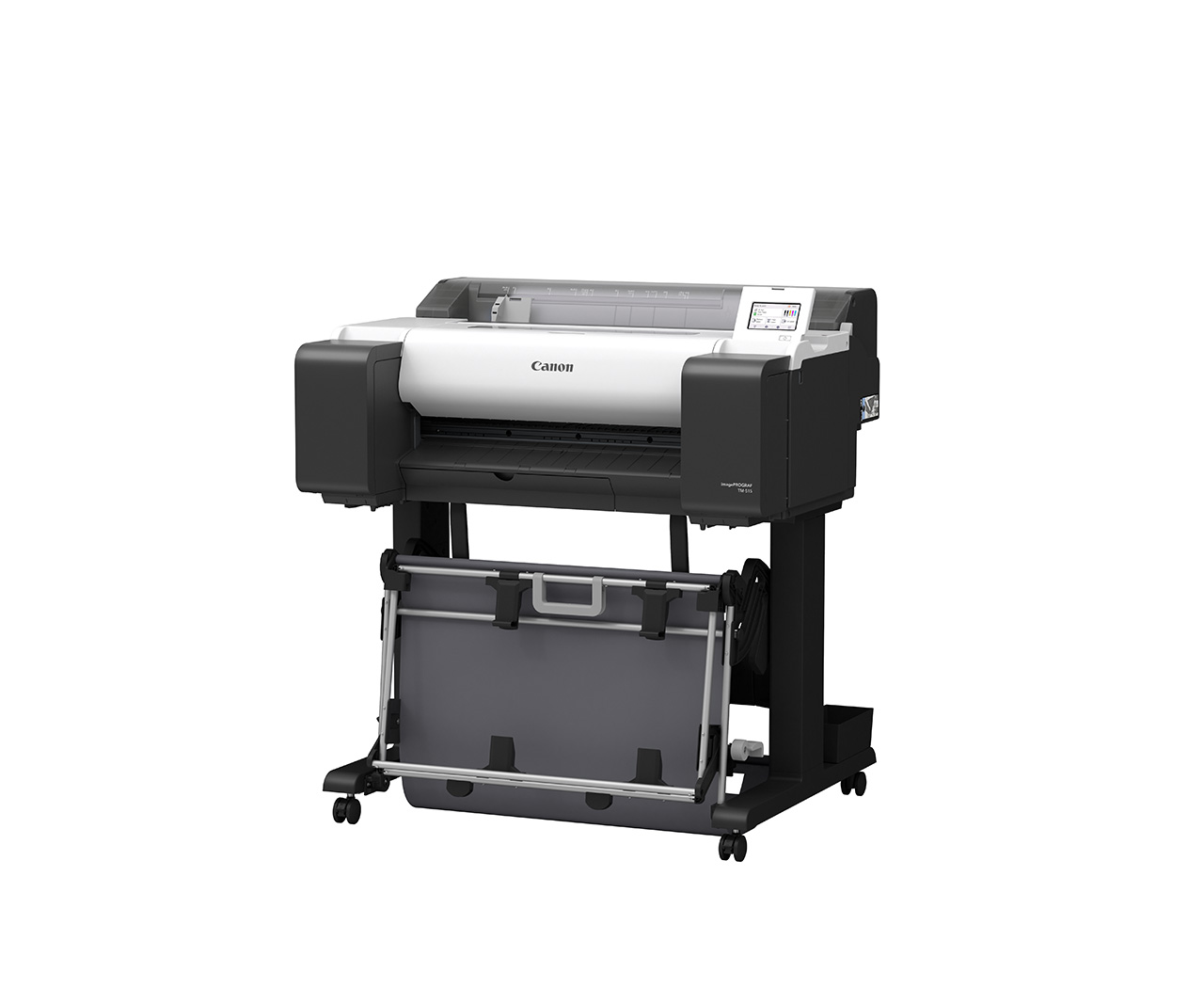

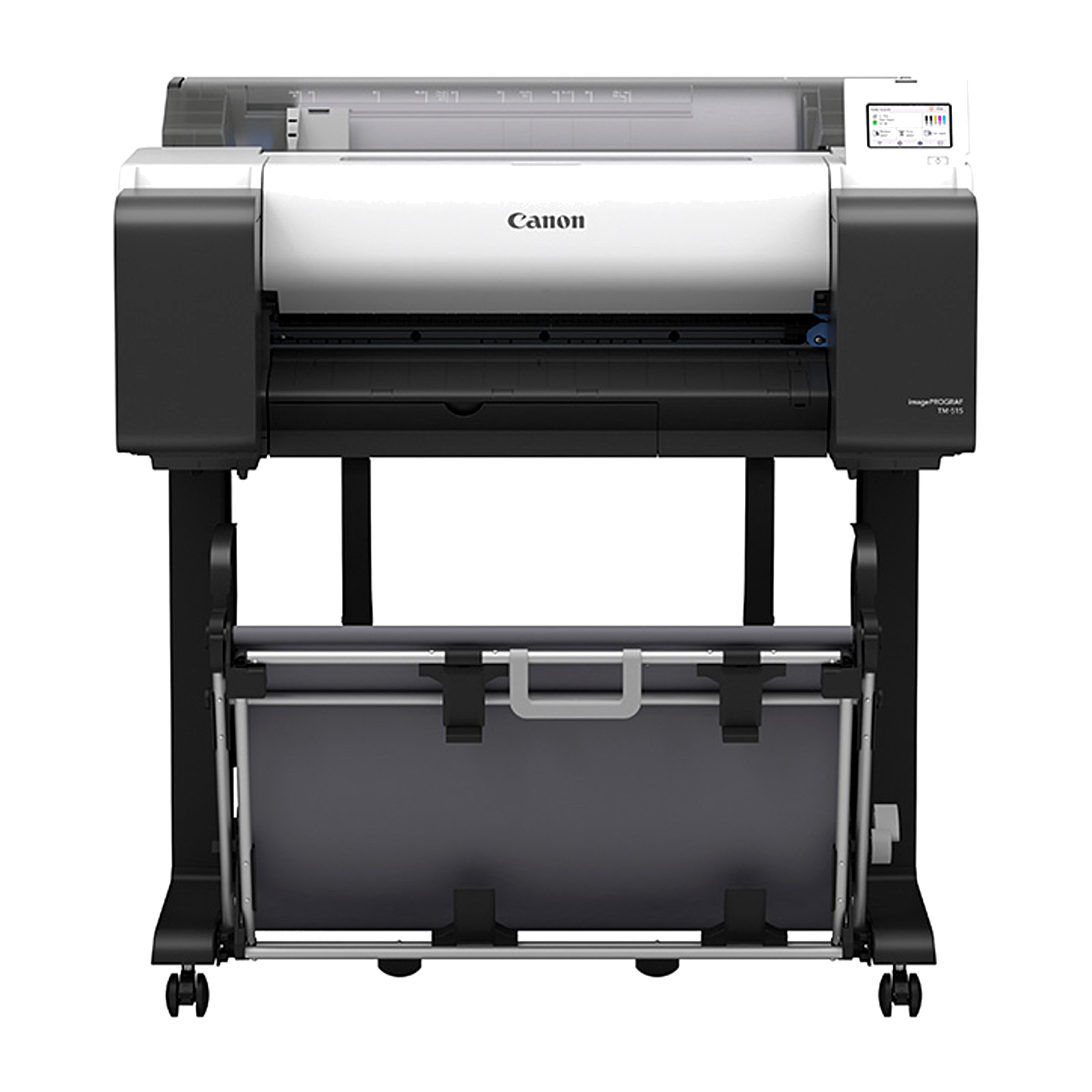

Canon TM-515 A1 Large Format Printer

Canon TM-515 A1 Large Format Printer - Image 3

Canon TM-515 A1 Large Format Printer - Image 4

Canon TM-515 A1 Large Format Printer - Image 5

Canon TM-515 A1 Large Format Printer - Image 6

Canon TM-515 A1 printer – top-tier 24-inch CAD production printer.

Description

Canon TM-515 A1 printer – top-tier 24-inch CAD production, UK/EMEA model.

5-colours LUCIA TD pigment ink

130ml (Matte Black) / 90ml (Black, Cyan, Magenta, Yellow) starter ink tanks

Newly formulated high-density matte black ink for crisper lines and text

Design Supply is an Accredited Canon Gold Partner with more than 35 years of experience in the large format printer market.

Design Supply offers expertise and knowledge in tailoring the exact solution for your specific application.

VIDEOS

Canon TM Large Format Printer Range

KEY FEATURES

The Canon imagePROGRAF TM-515 is the top-of-range 24-inch model in Canon’s new TM Series – a UK/EMEA and Asia-market model (Canon’s own internal name is TM-5515) that is not sold in the US.

Like the rest of the new TM Series, the TM-515 uses the 5-colour LUCIA TD pigment ink system with a newly formulated Matte Black ink for denser blacks and sharper fine lines and text, built around Canon’s PF-06 FINE print head for output up to 2400 x 1200 dpi.

As the range-topping 24-inch model, the TM-515 is expected to carry the same larger onboard storage as its 36-inch sibling the TM-615 (128GB virtual / 2GB physical memory plus a 256GB hard drive) – useful for larger CAD files and busier queues, though this should be confirmed against Canon’s official TM-515 datasheet once published.

Automatic media detection, built-in colour calibration and a compact, front-accessible design keep day-to-day running straightforward.

SPECIFICATIONS

Ink system: 5-colour LUCIA TD all-pigment ink (Matte Black, Black, Cyan, Magenta, Yellow), newly formulated matte black. Starter tanks: 130ml (MBK) / 90ml (BK, C, M, Y).

Print head: PF-06 (FINE technology), 5,120 nozzles (MBK) / 2,560 nozzles per colour, 5pl droplet size.

Max resolution: 2400 x 1200 dpi.

Memory: expected 128GB virtual / 2GB physical, plus a 256GB hard drive, by parity with the TM-615 – unconfirmed for this specific model, please verify before quoting.

Roll width: 8″ – 24″ (203.2mm – 610mm).

Connectivity/software: Direct Print Plus, PosterArtist, Free Layout Plus, Accounting Manager, Device Management Console and Media Configuration Tool included free. Apple AirPrint and Mopria Print Service supported.

Sustainability: ENERGY STAR certified, EPEAT 1.0 Gold registered, recycled steel and resin content in the chassis, EPS-foam-free packaging.

WHAT'S IN THE BOX

Canon imagePROGRAF TM-515 printer: 7456C003AA
Print head PF-06
Starter ink tank set (490ml=MBK 130ml, BK/C/M/Y 90ml)
Printer Stand
1 Roll holder (spool)
Installation guide
UK power cable
safety/standard environment leaflet
LFP Eur Address Sheet
Important Information Sheet
Notice for PosterArtist WEB
3″ Paper Core Attachment
Printer Stand Setup Guide
Starter ink tank set (MBK 130ml, BK/C/M/Y 90ml)
12 month warranty

Software available as free download from Canon:

Direct Print Plus
PosterArtist
Free Layout Plus
Accounting Manager
Device Management Console
Media Configuration Tool
Options:
- 2″/3″ Roll Holder RH2-28:
- IC Card Reader Holder: RA-02: 4976COO2AA
- Desktop Basket: BU-07
Consumables:
- Ink Tank: MBK: PFI-323 (300ml)/PFI-123(130ml):7480C001AA/7478C001AA
- Ink Tank: M: PFI-321 (300ml)/PFI-121(130ml):6269C001AA/6267C001AA
- Ink Tank: BK: PFI-320 (300ml)/PFI-120(130ml):2890C001AA/2885C001AA
- Ink Tank: C: PFI-320 (300ml)/PFI-120(130ml):2891C001AA/2886C001AA
- Ink Tank: Y: PFI-320 (300ml)/PFI-120(130ml):2893C001AA/2888C001AA
- Print Head: PF-06
- Cutter Blade: CT-08
- Maintenance Cartridge: MC-31

DATA SHEETS

Canon imagePROGRAF TM-510 / TM-515 Datasheet

Canon TM_Product_Flyer

MANUFACTURER INFORMATION

The new TM Series carries over Canon’s proven PF-06 FINE print head and LUCIA TD pigment ink chemistry, with a newly developed high-density matte black ink for sharper lines and text. Canon positions the TM Series for architecture, engineering, construction, retail and education users producing technical documents, drawings and posters.

As with all imagePROGRAF printers, Canon covers the TM-515 and its print head with a 12-month warranty.
