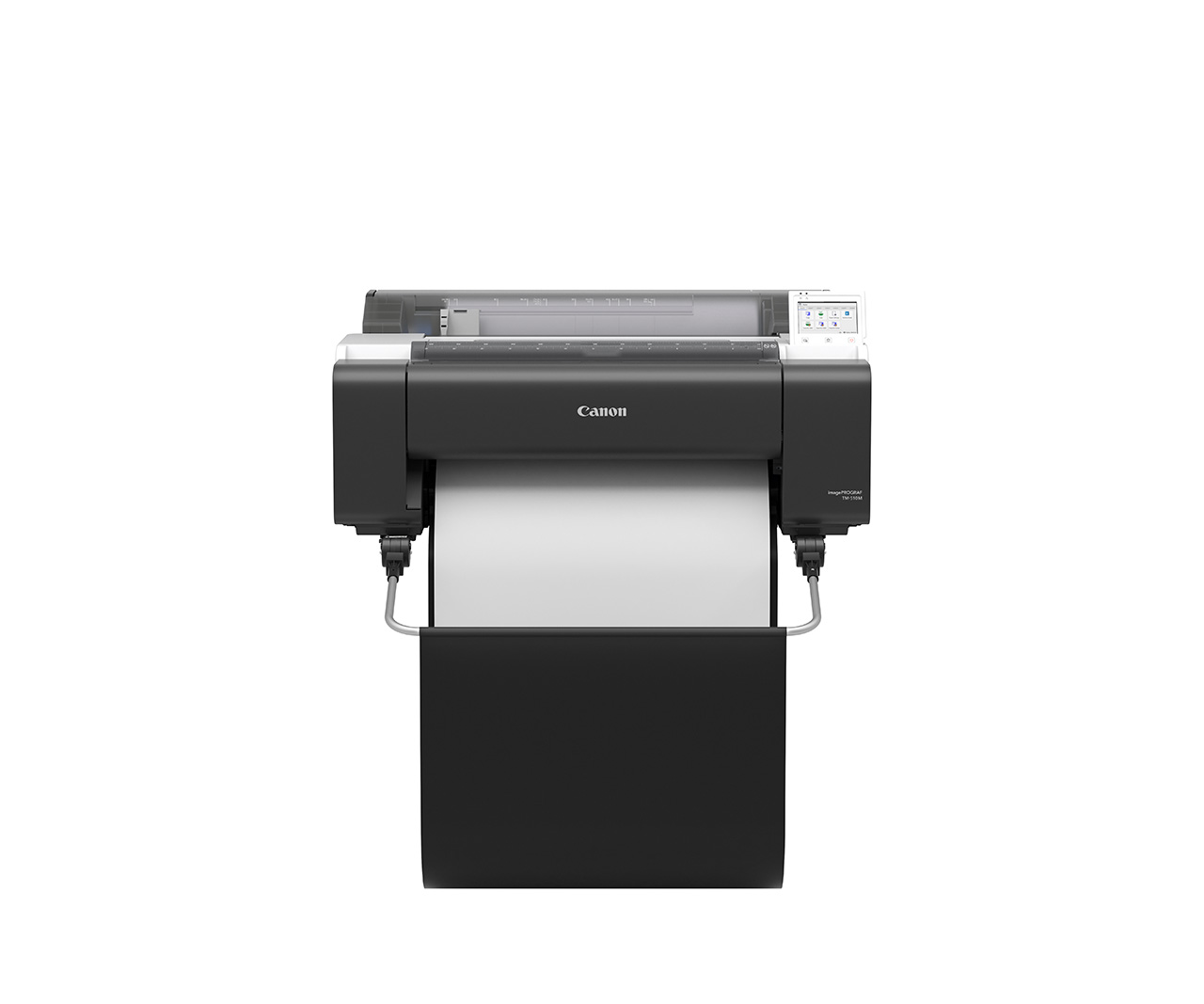

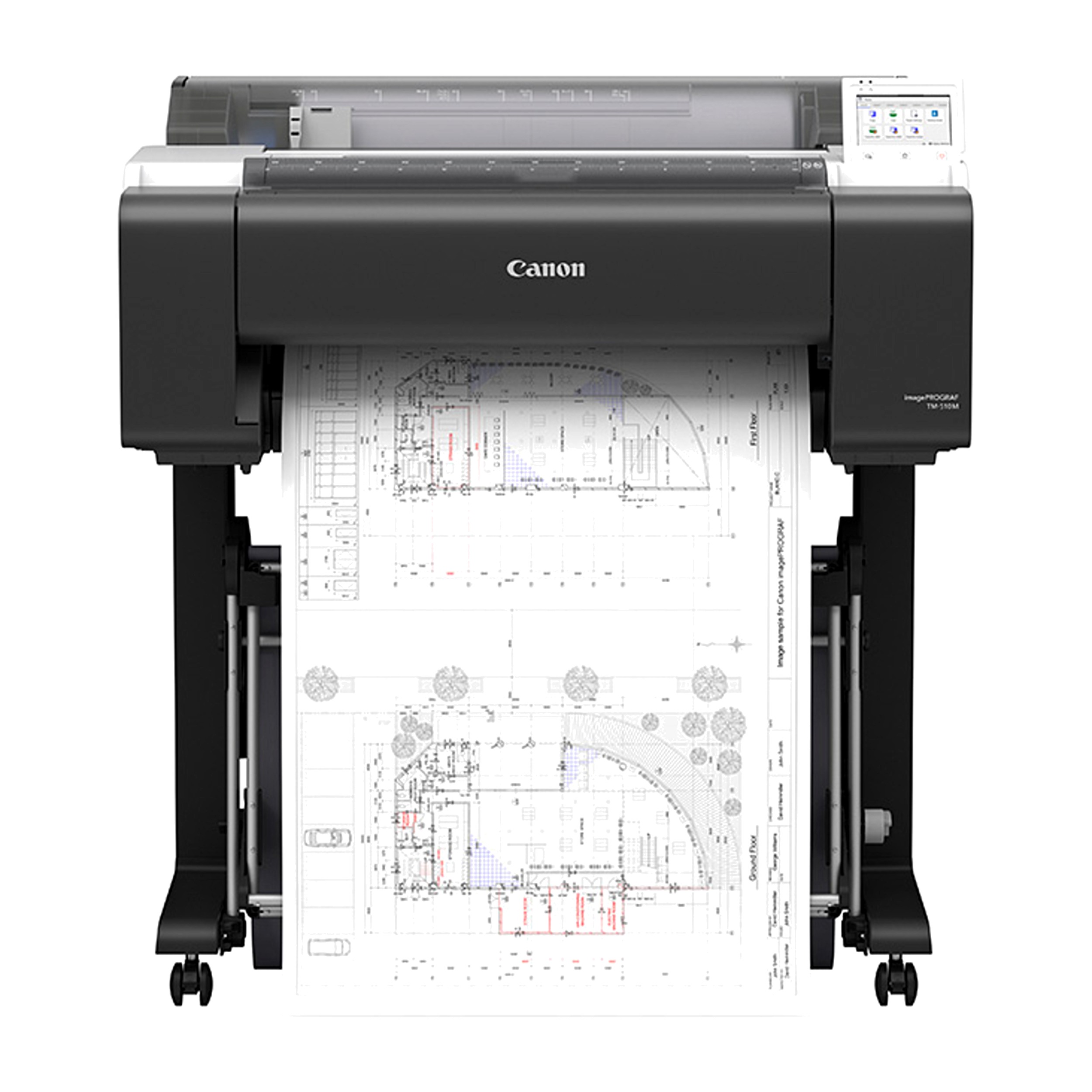

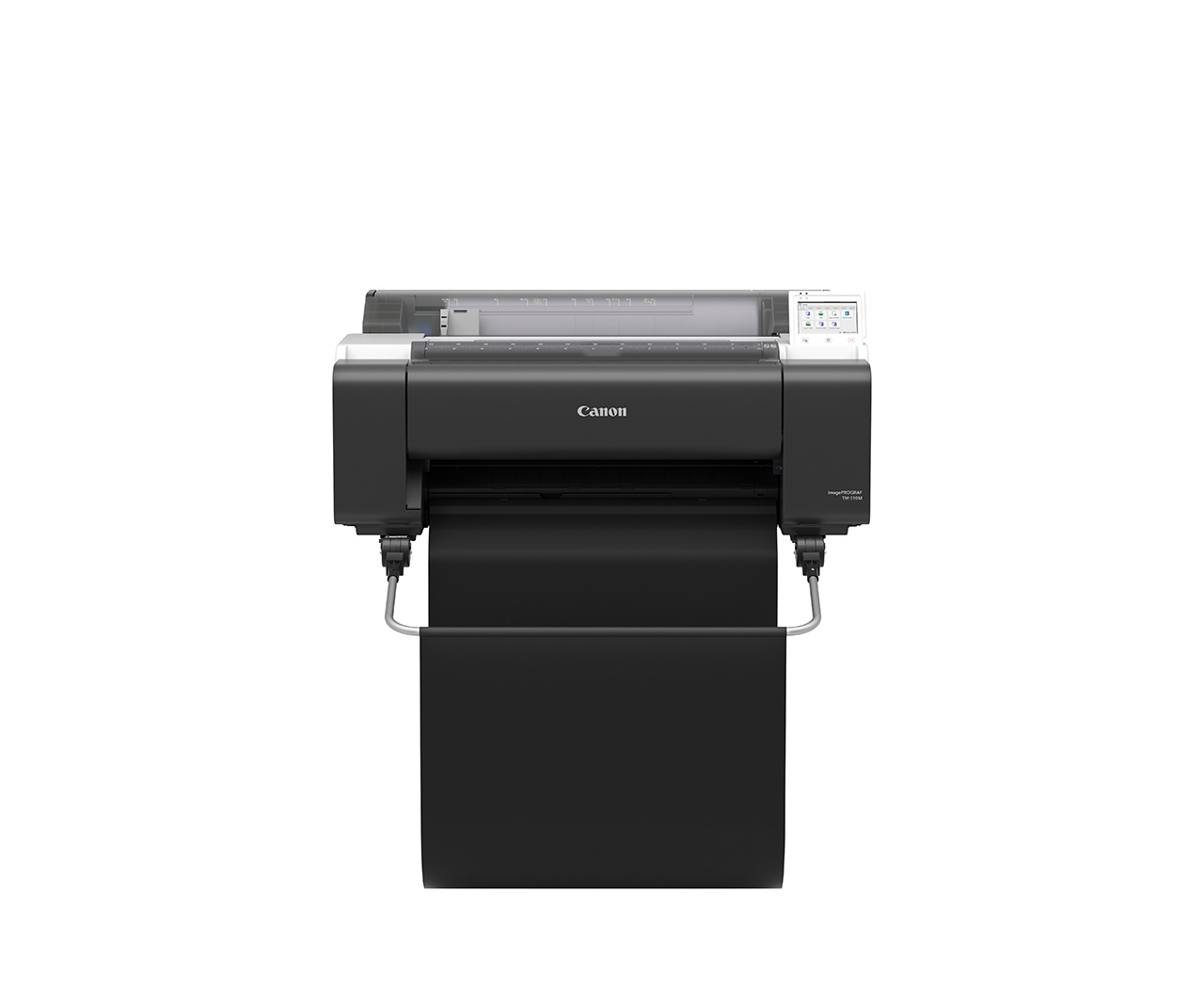

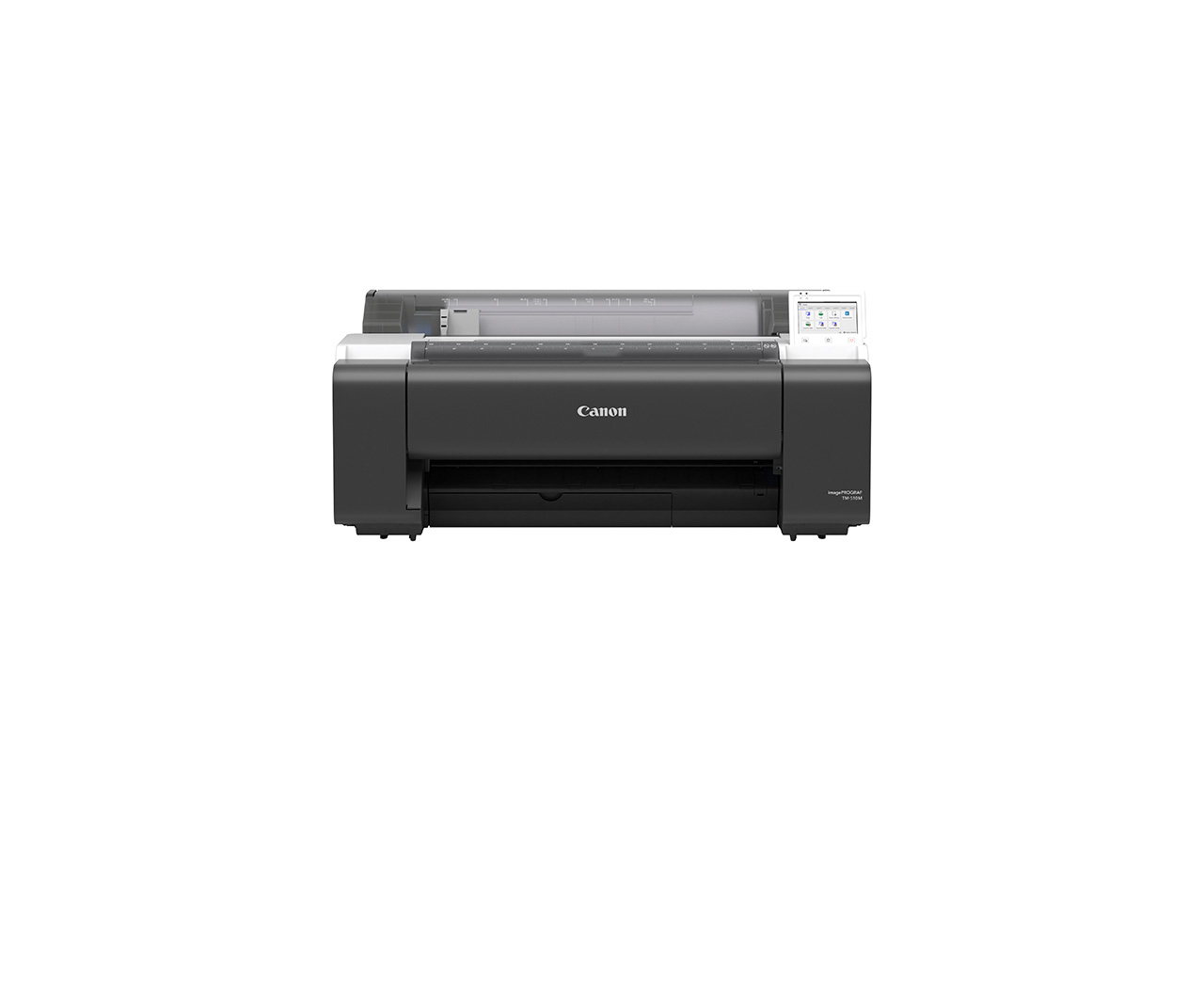

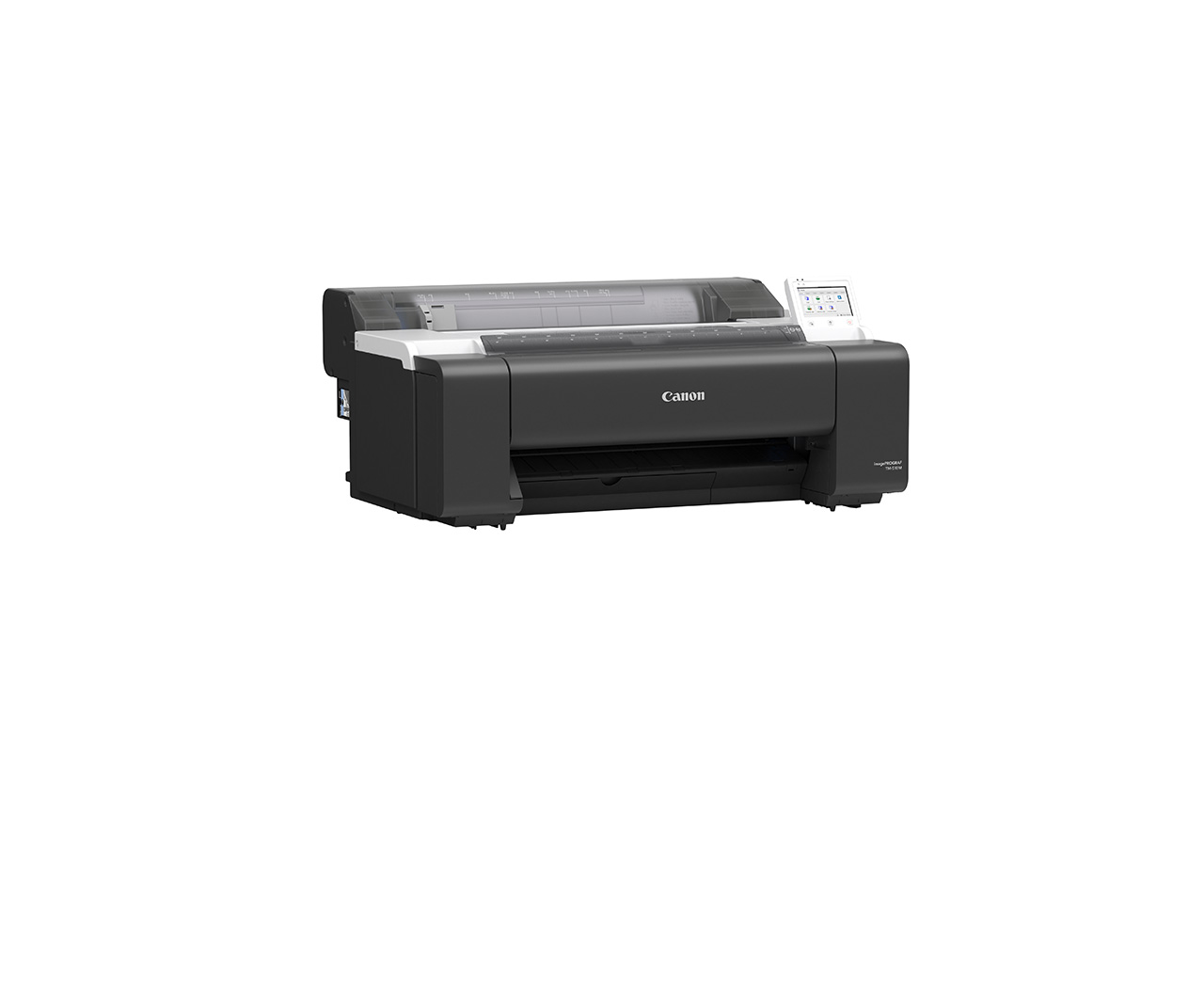

Canon TM-510M A1 Multi-Function Large Format Printer
Canon TM-510M A1 printer with built-in large format scanner for print, scan and copy.
Ink for this printer →
Genuine Canon ink for the TM-510, TM-515, TM-610 and TM-615
3 Years Lease
5 Years Lease
Description
Canon TM-510M A1 printer – with Canon’s first built-in large format scanner.
5-colours LUCIA TD pigment ink
Integrated large format scanner – print, scan and copy from one machine
130ml (Matte Black) / 90ml (Black, Cyan, Magenta, Yellow) starter ink tanks
Newly formulated high-density matte black ink for crisper lines and text
Lower cost of ownership: the TM-510M takes 130ml or 300ml ink tanks, roughly half the cost per ml of 55ml-tank models. See the figures in our Canon TM-240 / TM-340 Upgrade Guide (PDF).
Design Supply is an Accredited Canon Gold Partner with more than 35 years of experience in the large format printer market.
Design Supply offers expertise and knowledge in tailoring the exact solution for your specific application.
Videos
Canon TM Large Format Printer Range
Key features
The Canon imagePROGRAF TM-510M is Canon’s first TM Series model with a genuinely built-in large format scanner – previous TM MFP configurations paired a printer with a separate external scan unit bolted alongside it.
The integrated Contact Image Sensor (CIS) scanner uses dual-side LED illumination, which reduces the shadowing you’d normally get from creased or folded originals such as old drawings pulled from a plan chest.
Preset scan modes are built in for CAD line drawings, blueprints (including inverted blueprint), tracing paper, posters/photos and drawings/maps – so operators don’t need to fine-tune settings by hand for common document types.
Scanned output can be sent straight to USB memory, email or an SMB network share, and the print engine shares the same 5-colour LUCIA TD pigment ink system and PF-06 print head as the rest of the new TM Series, for output up to 2400 x 1200 dpi.
A flat-top loading design and a larger 5-inch touchscreen (vs. 4.3-inch on non-MFP models) make day-to-day scan and copy jobs straightforward.
Specifications
Ink system: 5-colour LUCIA TD all-pigment ink (Matte Black, Black, Cyan, Magenta, Yellow), newly formulated matte black. Starter tanks: 130ml (MBK) / 90ml (BK, C, M, Y).
Print head: PF-06 (FINE technology), 2400 x 1200 dpi max resolution.
Memory: 2GB standard.
Roll width: 8″ – 24″ (203.2mm – 610mm).
Scanner type: Contact Image Sensor (CIS), dual-side LED illumination.
Scan speed: colour 5.0 ips @ 200dpi; monochrome 10.0 ips @ 200dpi.
Copy speed: colour approx. 66 seconds @ 200dpi.
Max scan resolution: 600 dpi optical.
Max scan width: 24″/24.5″.
Max scan length: 326.9″ (JPEG) / 200″ (PDF).
Scan output: USB memory (FAT16/FAT32/exFAT), email, SMB network share.
Preset scan modes: CAD (line drawing), Blueprint, Inverted Blueprint, Tracing Paper, Poster/Photo, Drawing/Map.
Display: 5-inch touchscreen.
What's in the box
- Canon imagePROGRAF TM-510M printer with integrated scanner: 7446C003AA
- Print head PF-06
- Starter ink tank set (490ml=MBK 130ml, BK/C/M/Y 90ml)

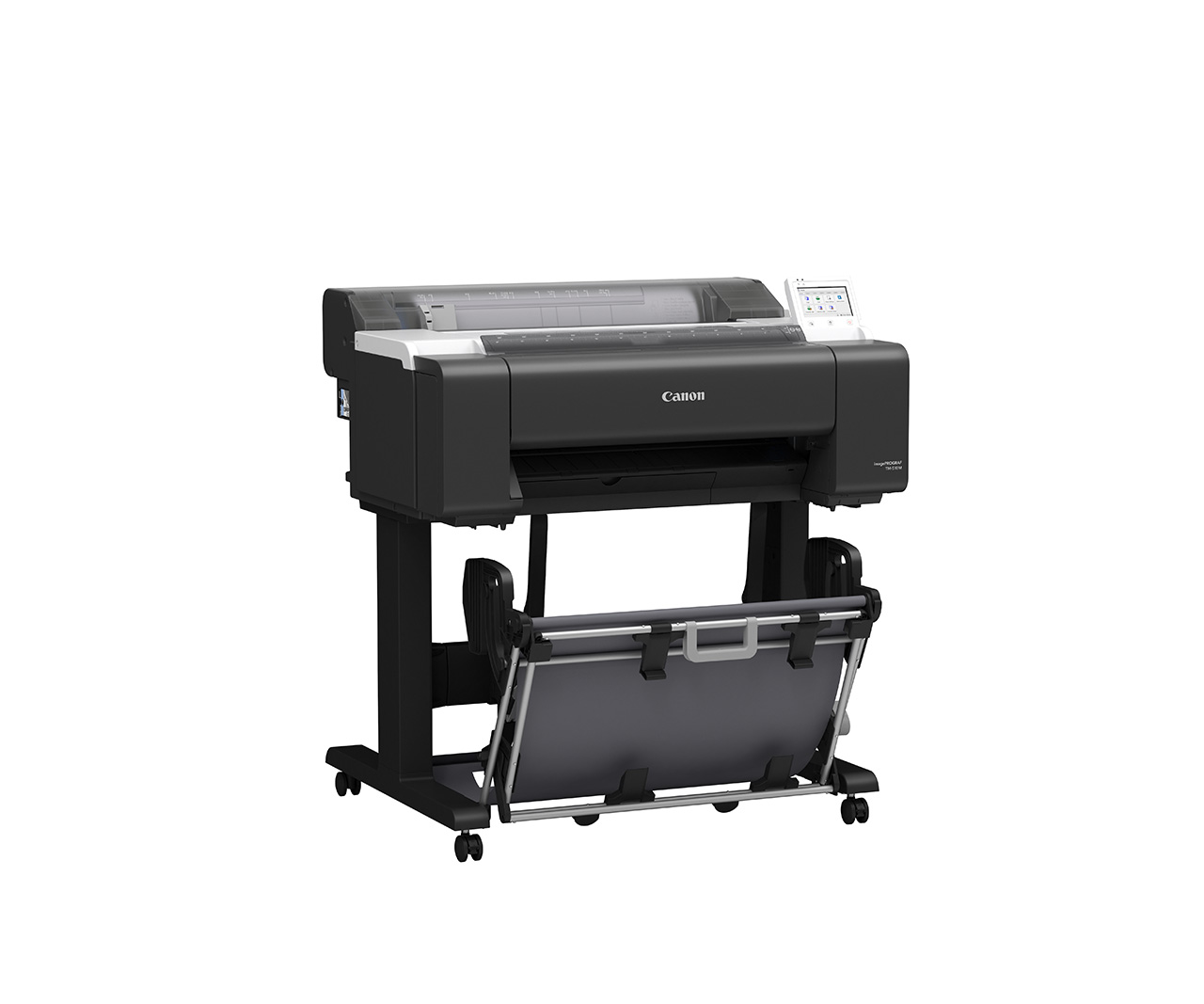

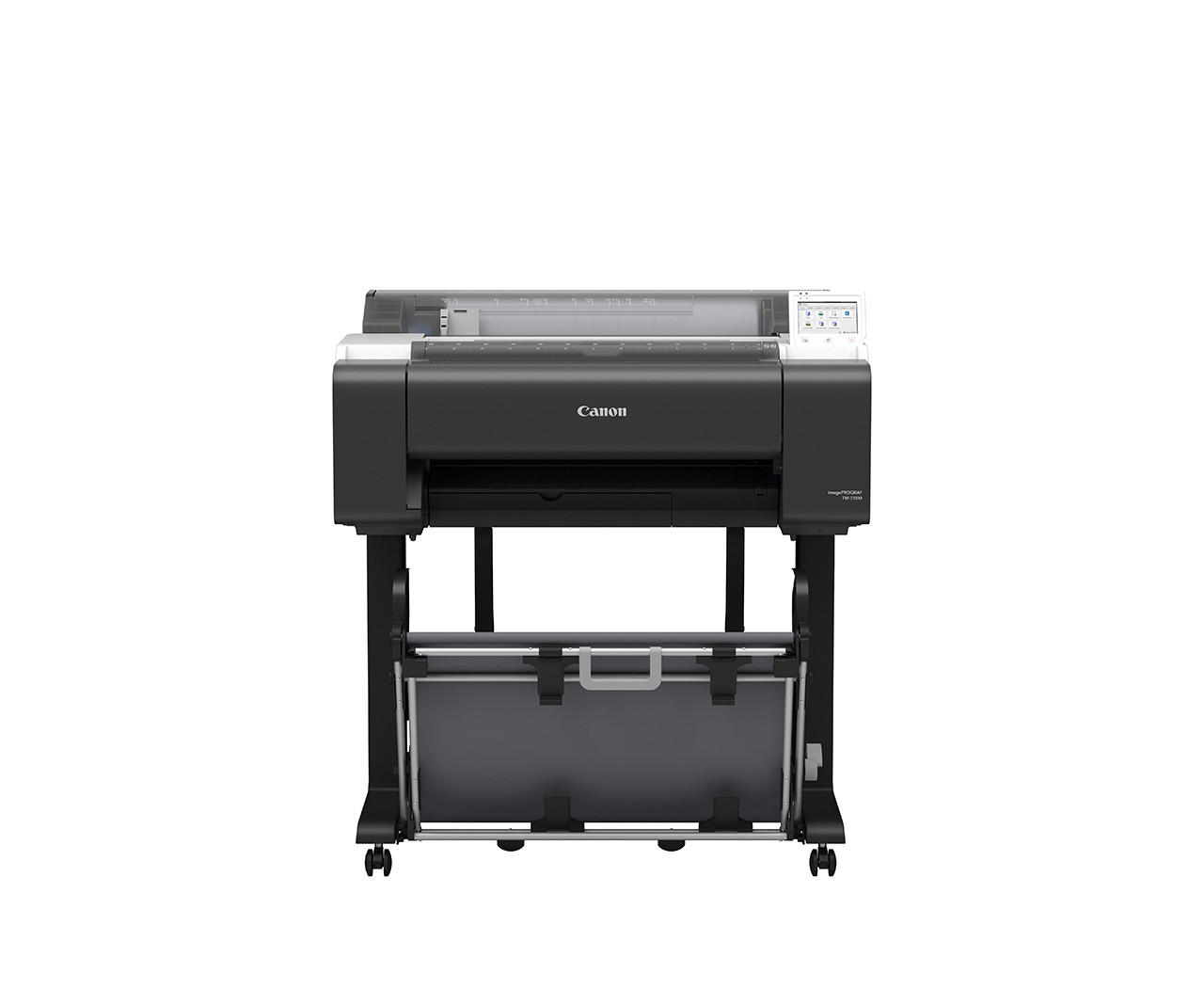

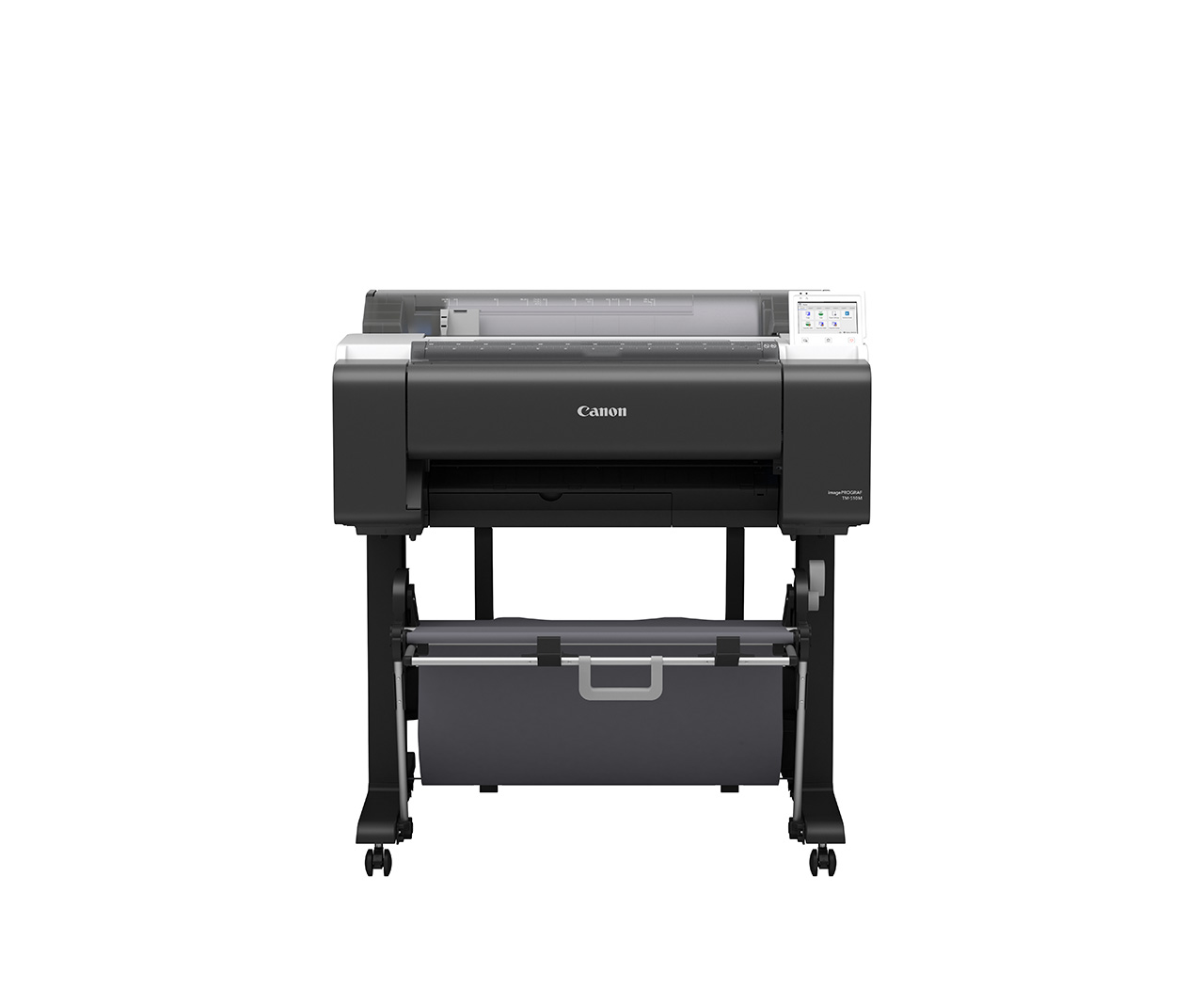

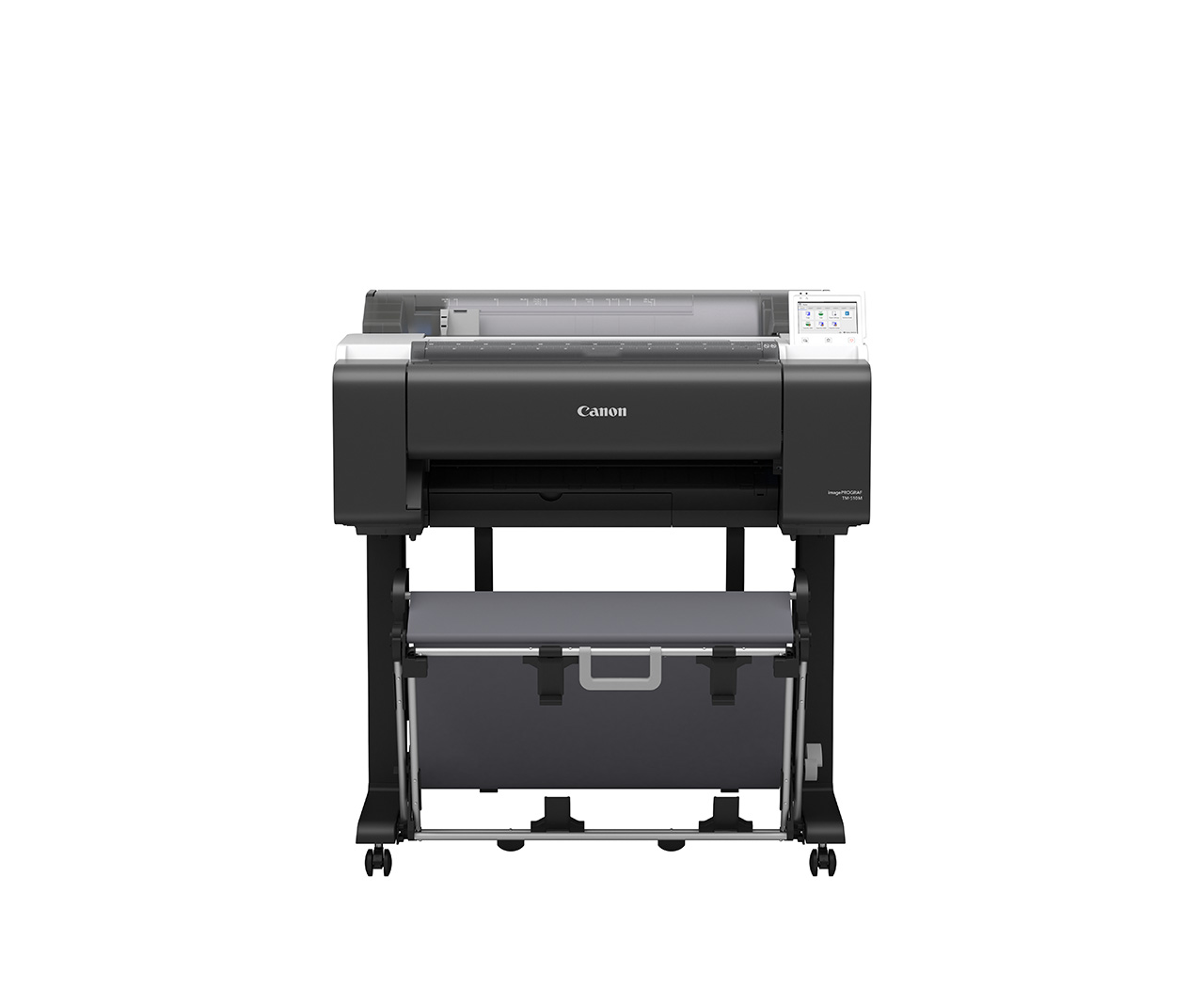

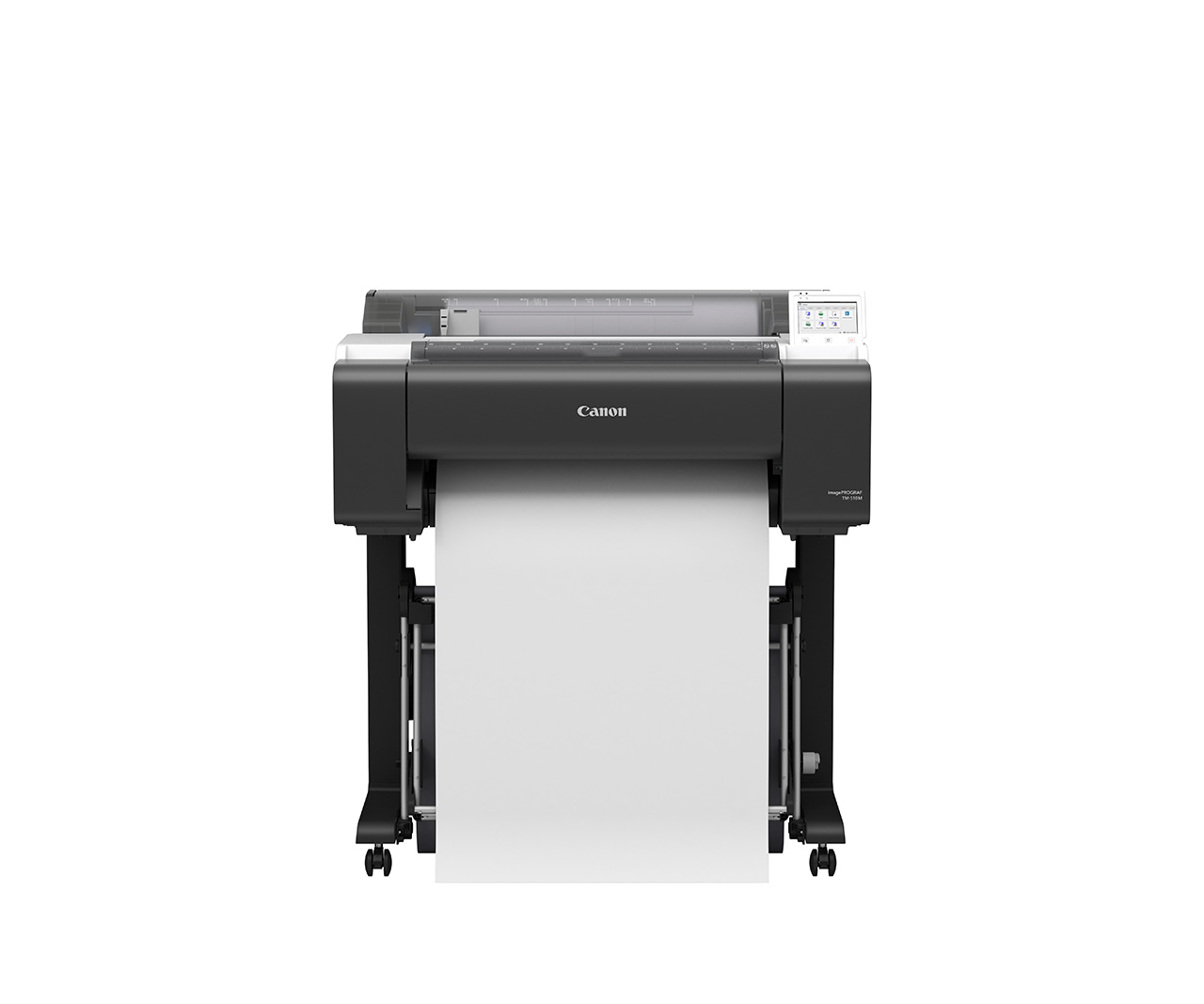

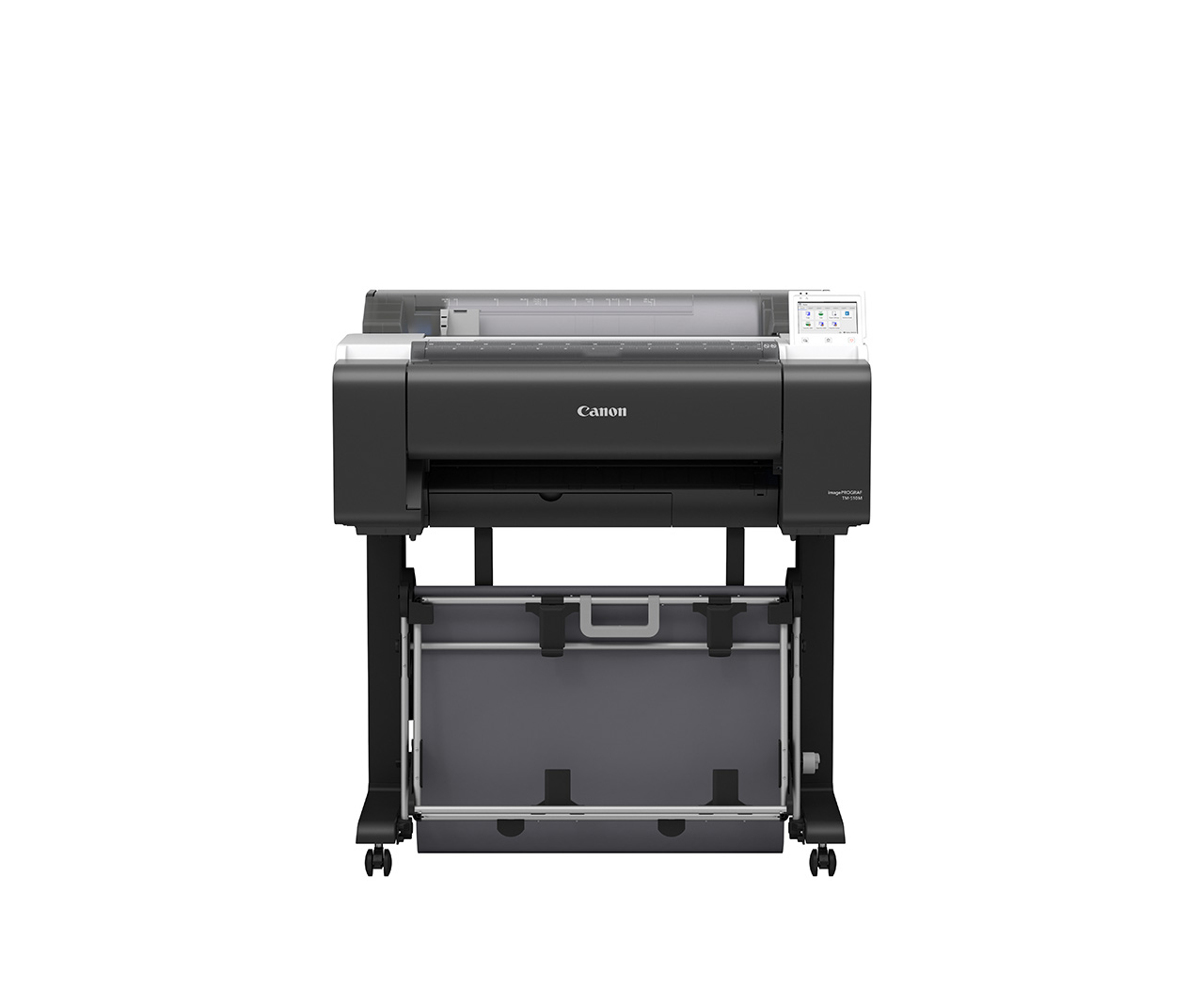

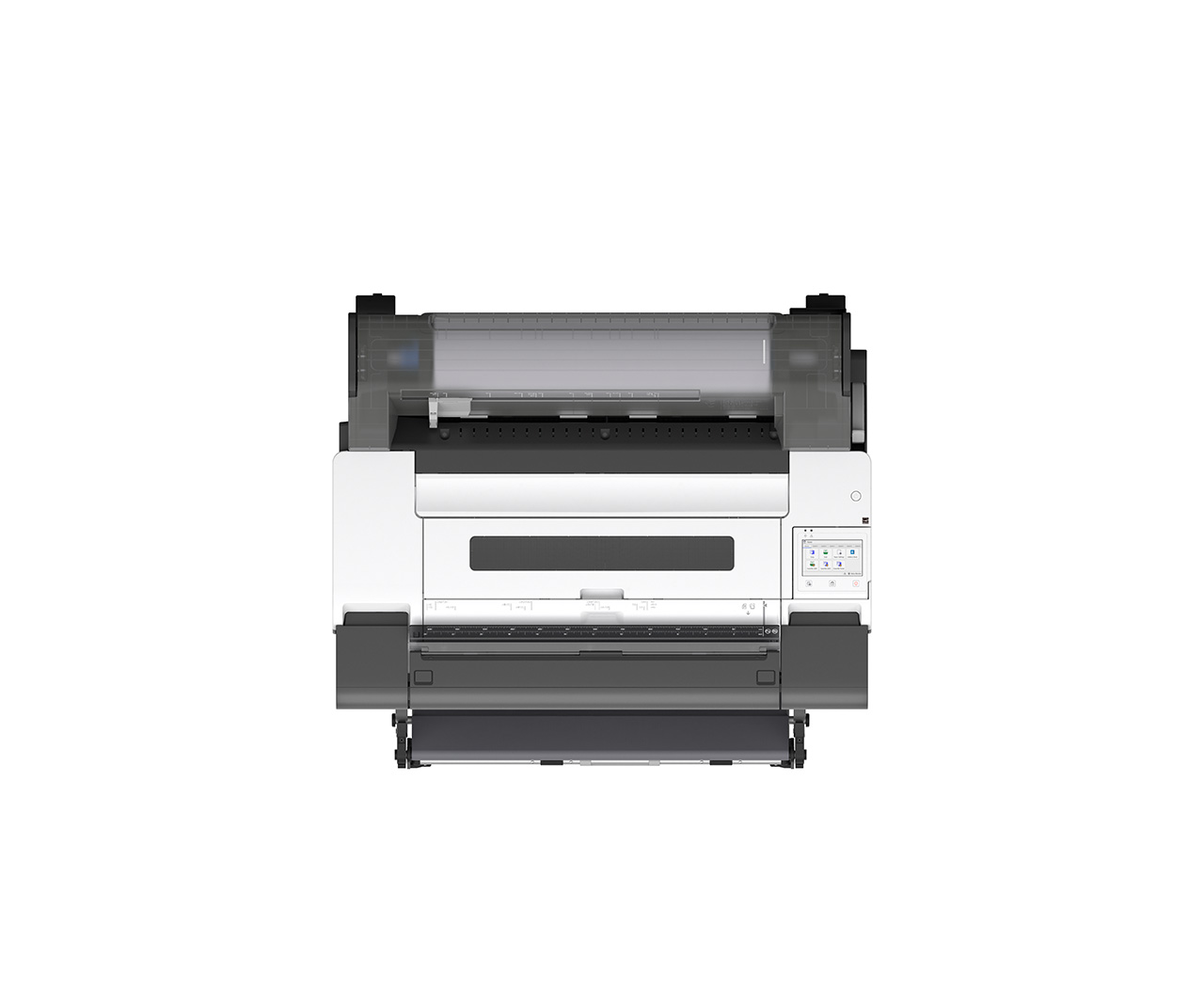

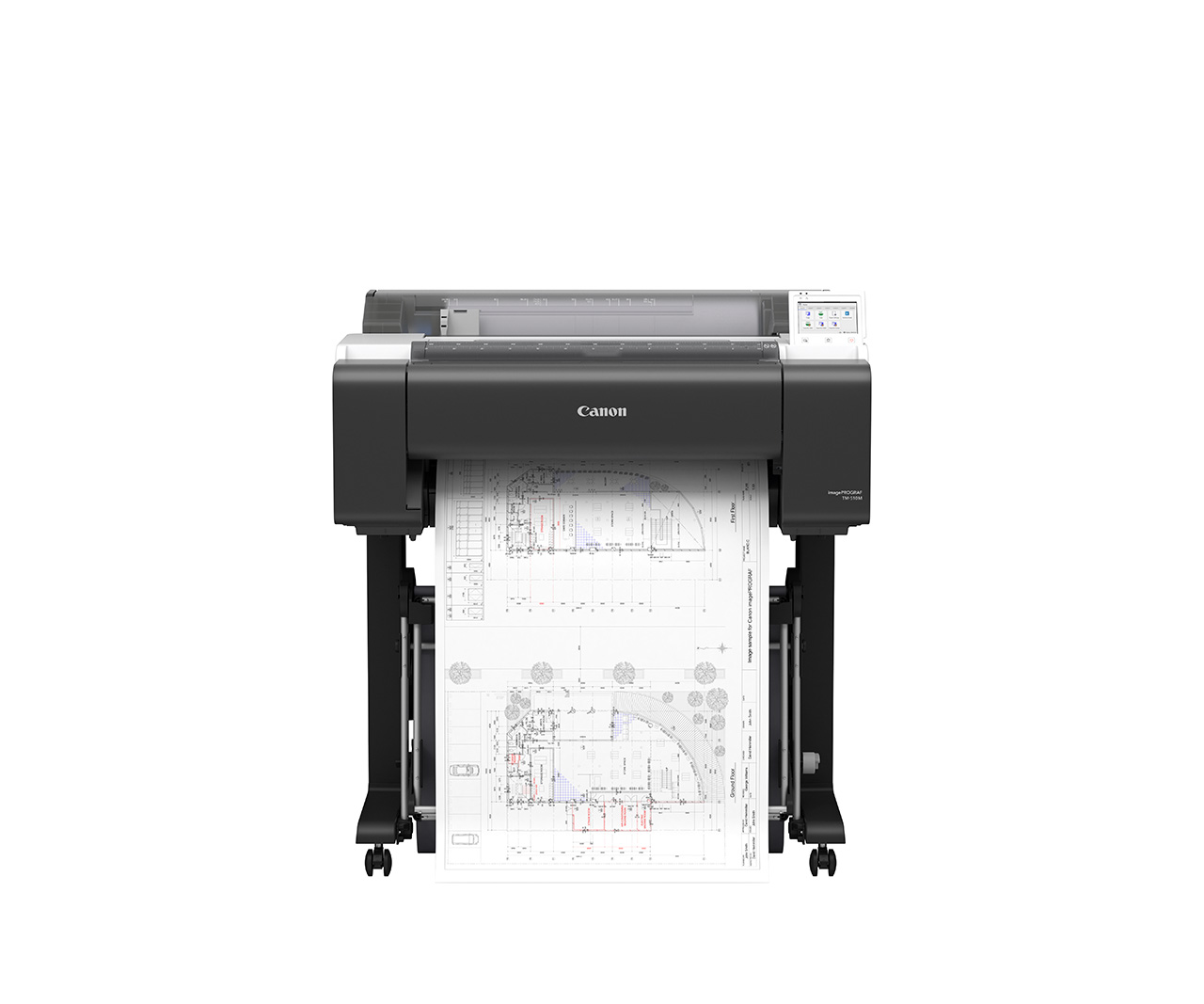

- Printer Stand
- 1 Roll holder (spool)
- Installation guide
- UK power cable
- safety/standard environment leaflet
- LFP Eur Address Sheet
- Important Information Sheet
- Notice for PosterArtist WEB
- 3″ Paper Core Attachment
- Printer Stand Setup Guide
- 12 month warranty
Software available as free download from Canon:
- Direct Print Plus
- PosterArtist
- Free Layout Plus
- Accounting Manager
- Device Management Console
- Media Configuration Tool
Options:
- 2″/3″ Roll Holder RH2-28:
- IC Card Reader Holder: RA-02: 4976COO2AA

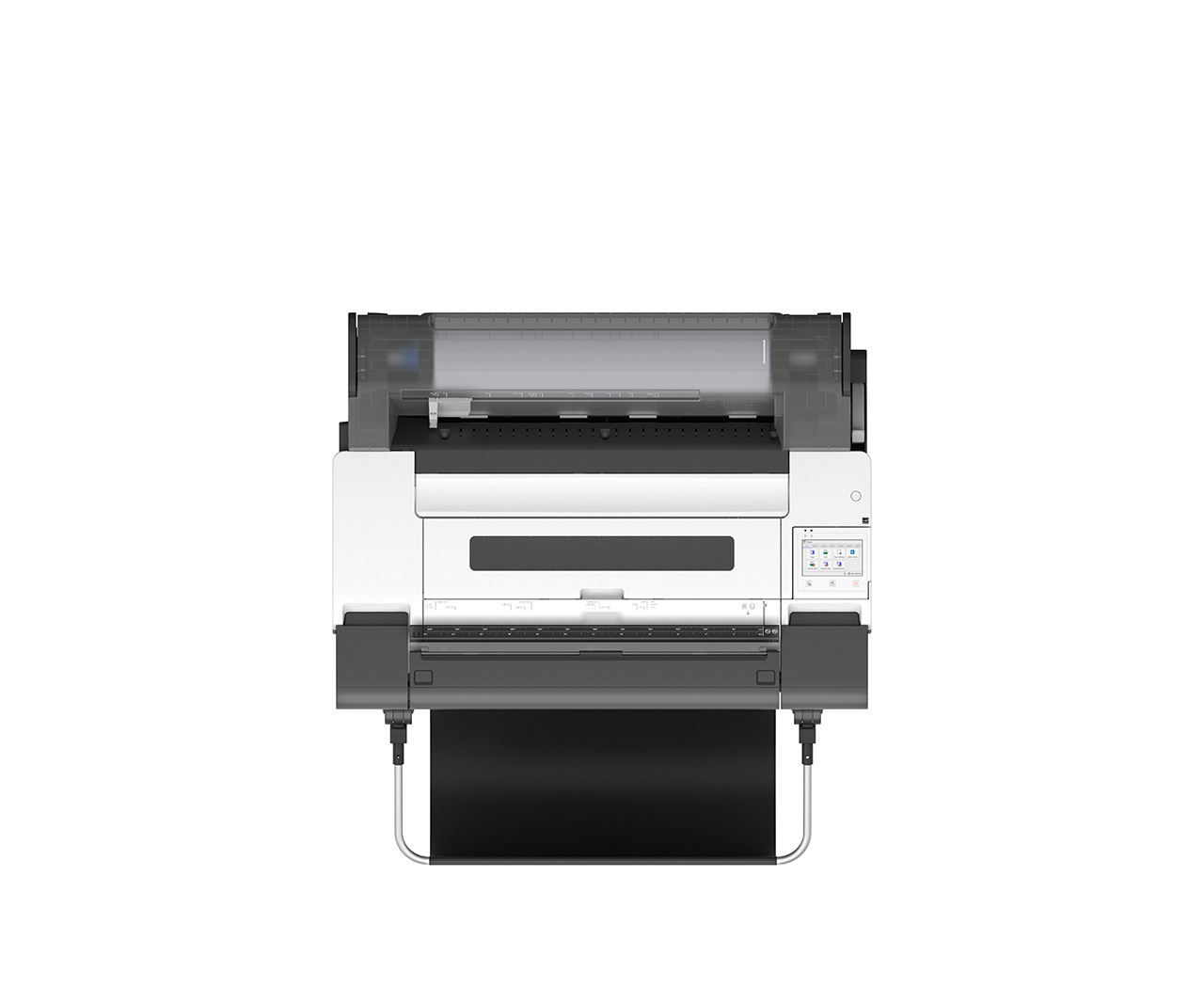

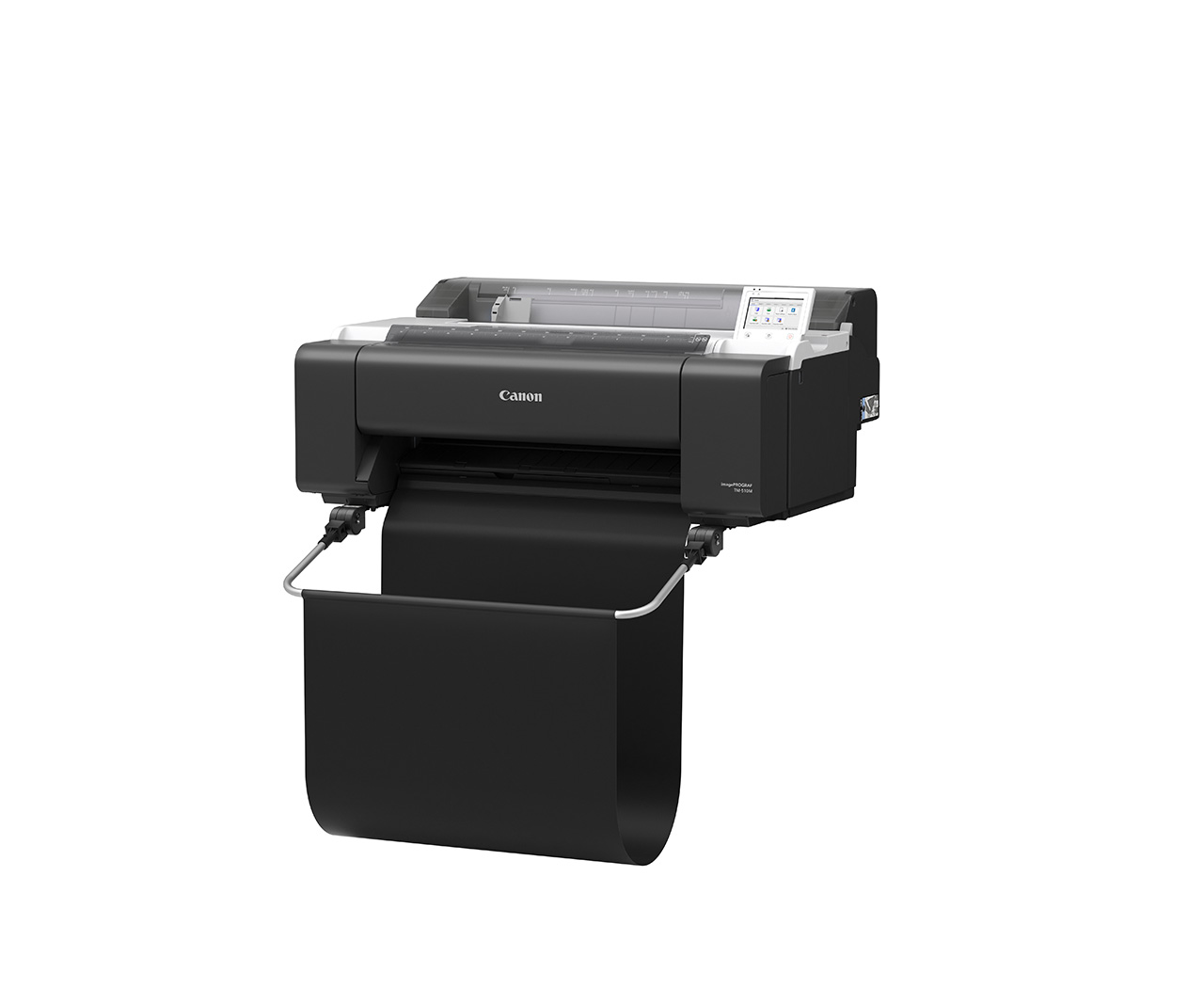

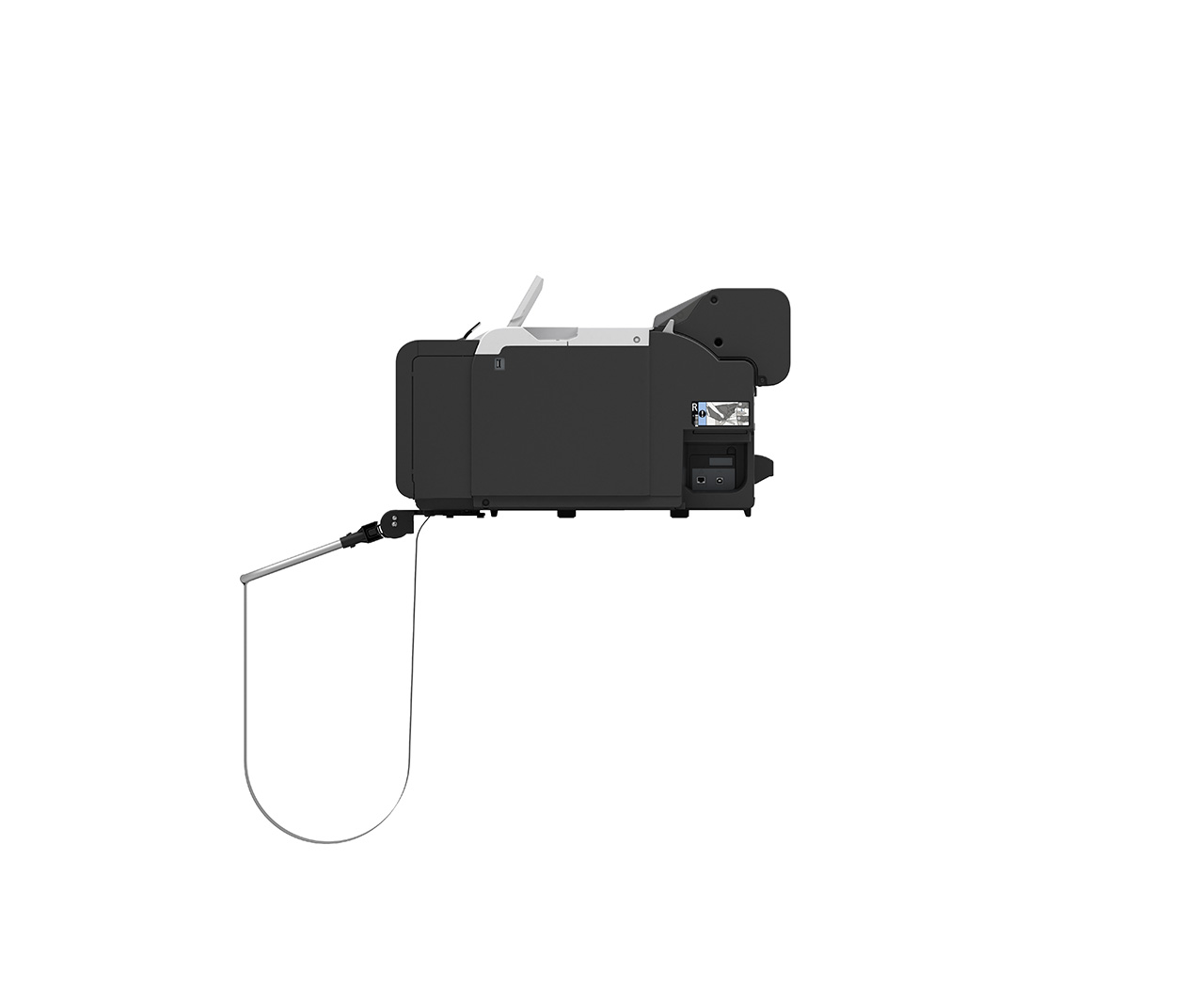

- Desktop Basket: BU-07
Consumables:
- Ink Tank: MBK: PFI-323 (300ml)/PFI-123(130ml):7480C001AA/7478C001AA
- Ink Tank: M: PFI-321 (300ml)/PFI-121(130ml):6269C001AA/6267C001AA
- Ink Tank: BK: PFI-320 (300ml)/PFI-120(130ml):2890C001AA/2885C001AA
- Ink Tank: C: PFI-320 (300ml)/PFI-120(130ml):2891C001AA/2886C001AA
- Ink Tank: Y: PFI-320 (300ml)/PFI-120(130ml):2893C001AA/2888C001AA
- Print Head: PF-06
- Cutter Blade: CT-08
- Maintenance Cartridge: MC-31
Manufacturer information
The Canon imagePROGRAF TM-510M is part of Canon’s newly refreshed TM Series, announced globally on 15 September 2026 and launching across EMEA (including the UK) from October 2026. It is the first TM Series printer with a genuinely built-in large format scanner, rather than a bolt-on external unit.
Canon’s own positioning covers architecture, engineering, construction, retail and education users who need to print, scan, copy and archive drawings without a separate PC-based workflow.
As with all imagePROGRAF printers, Canon covers the TM-510M and its print head with a 12-month warranty.
