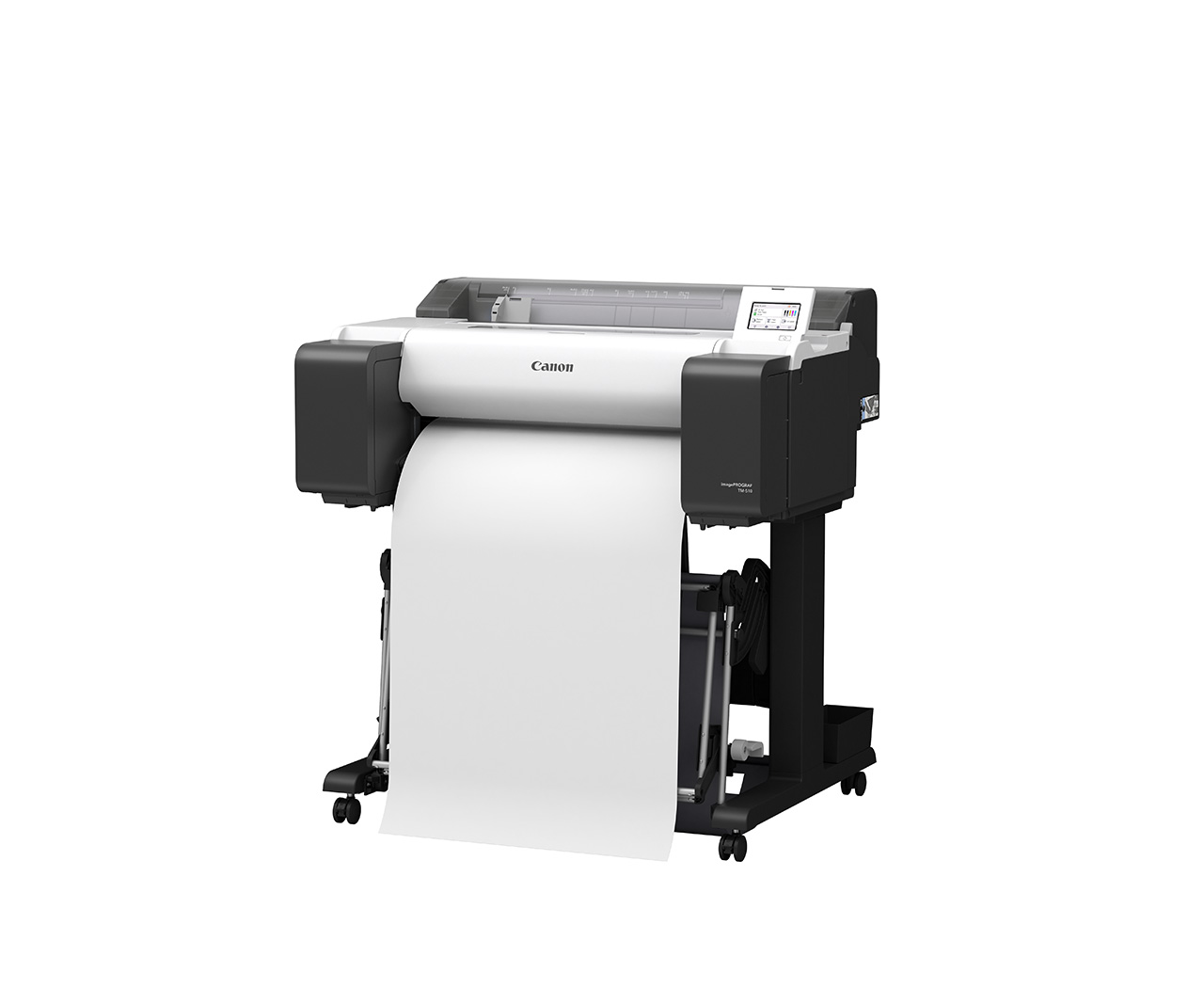

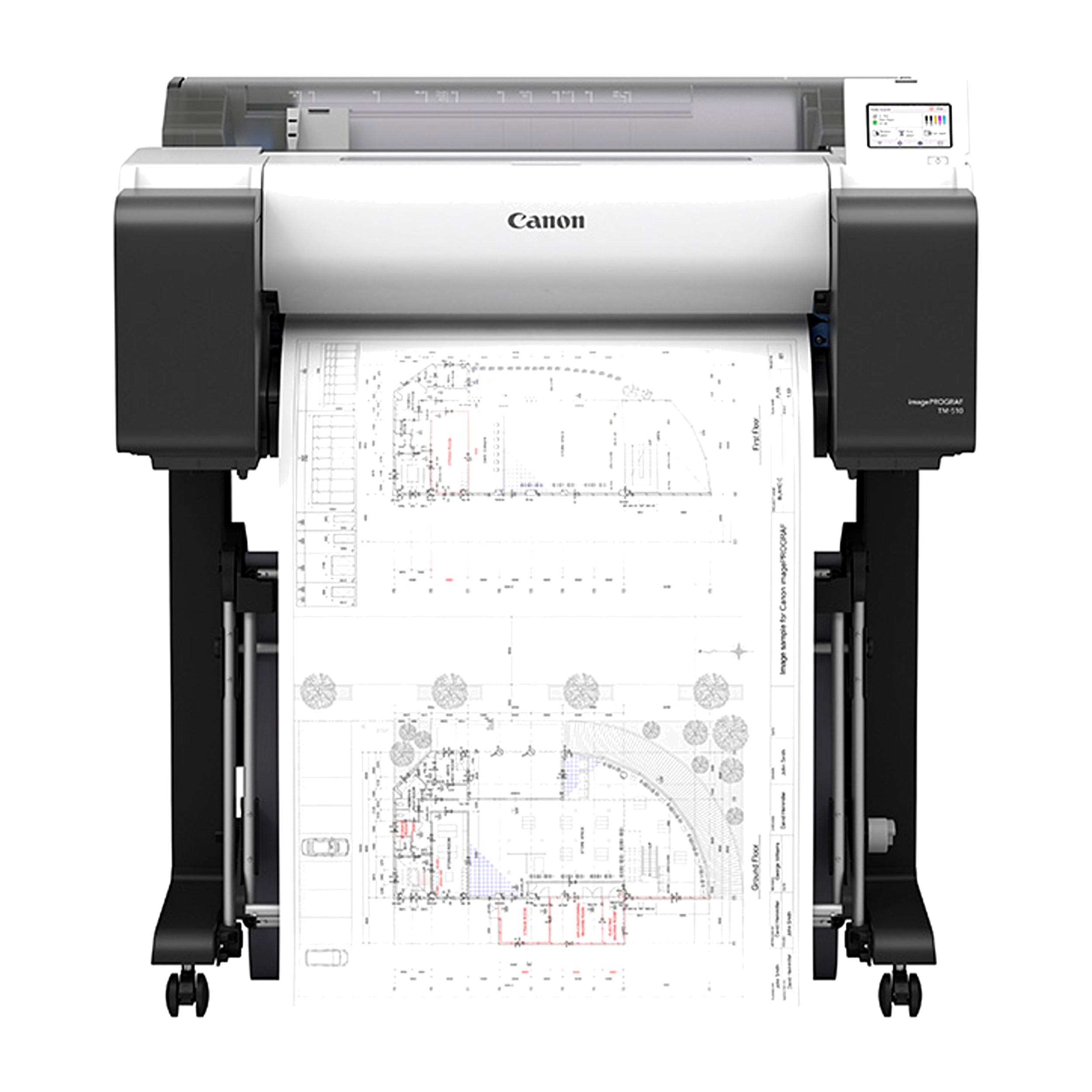

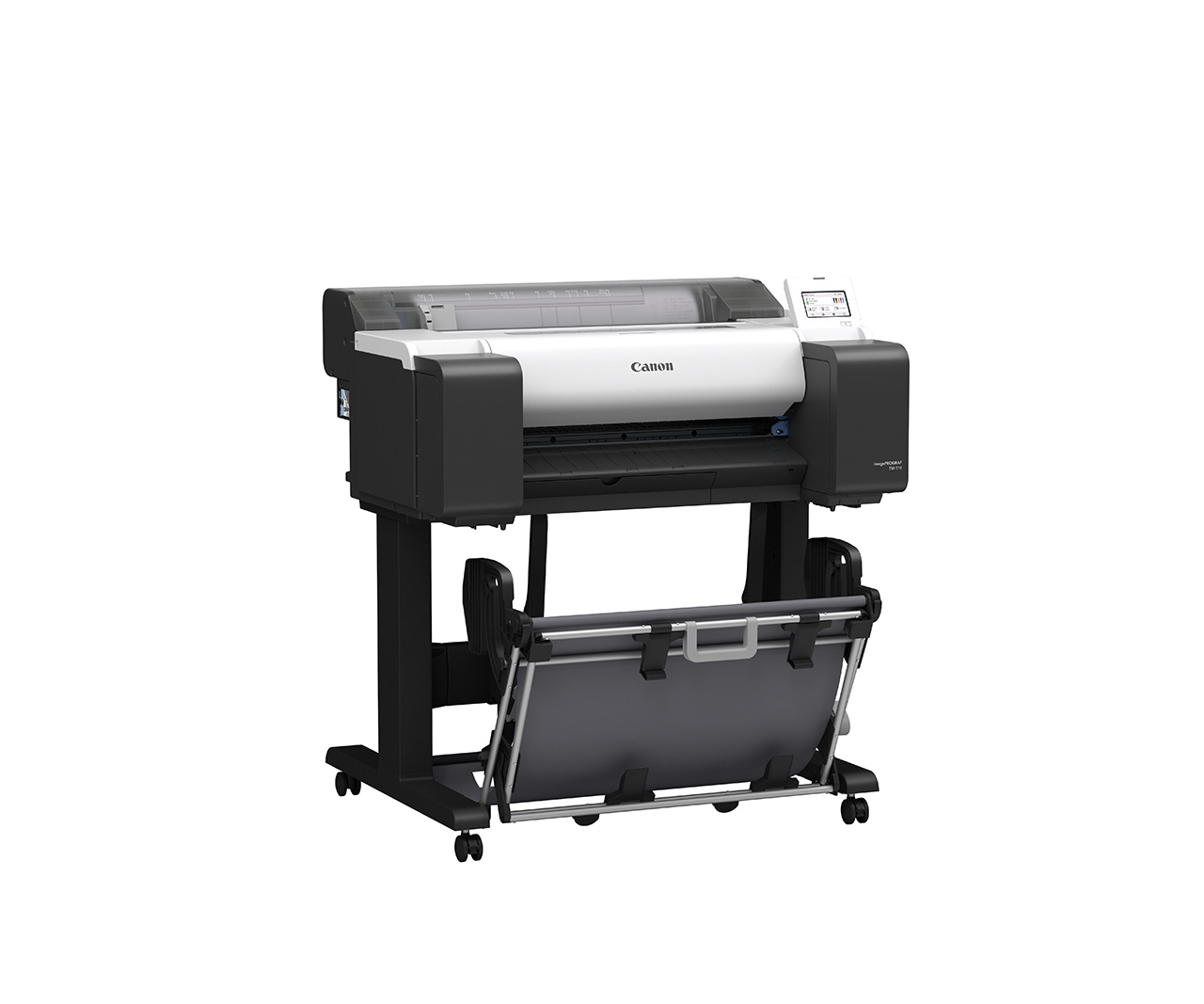

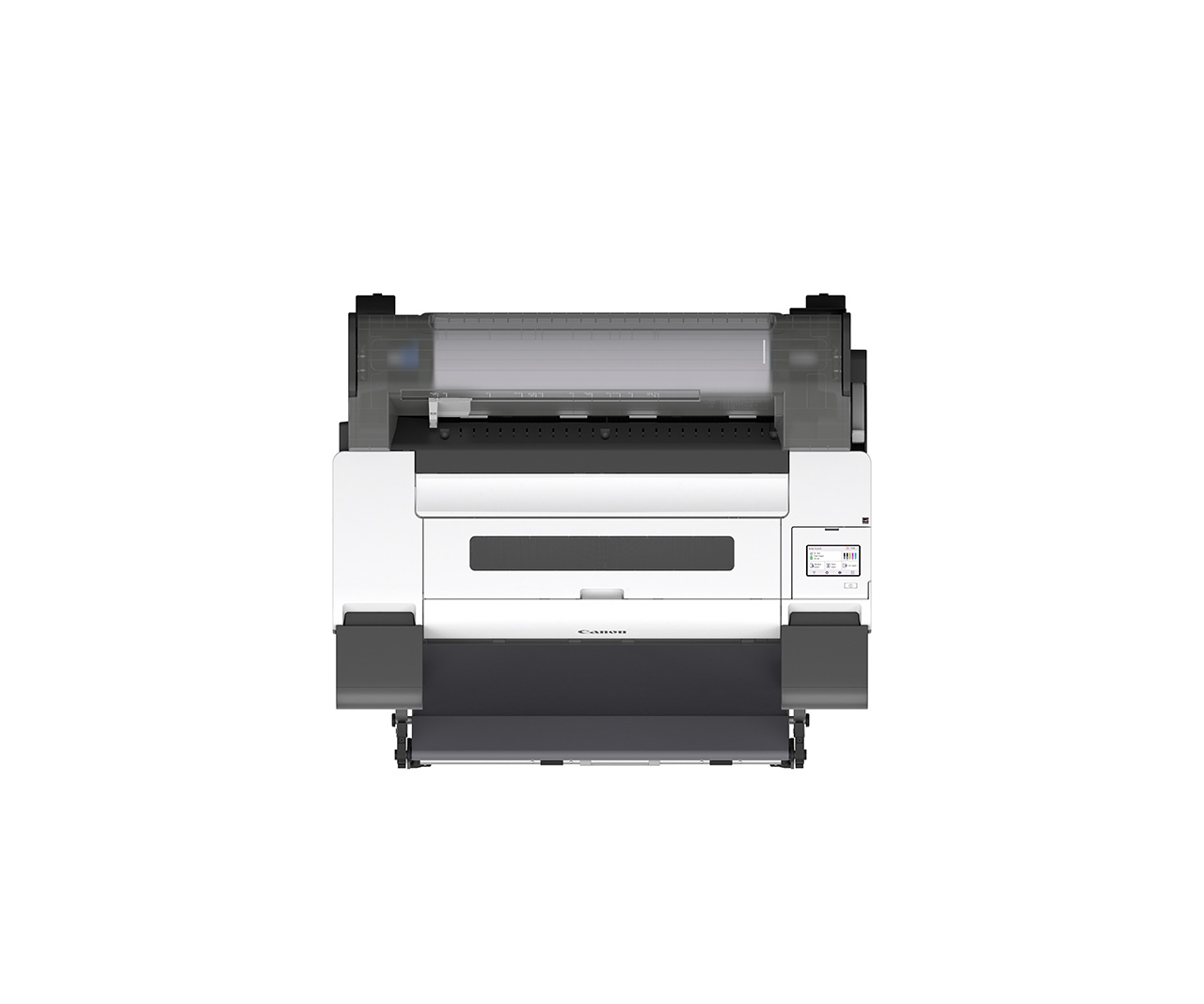

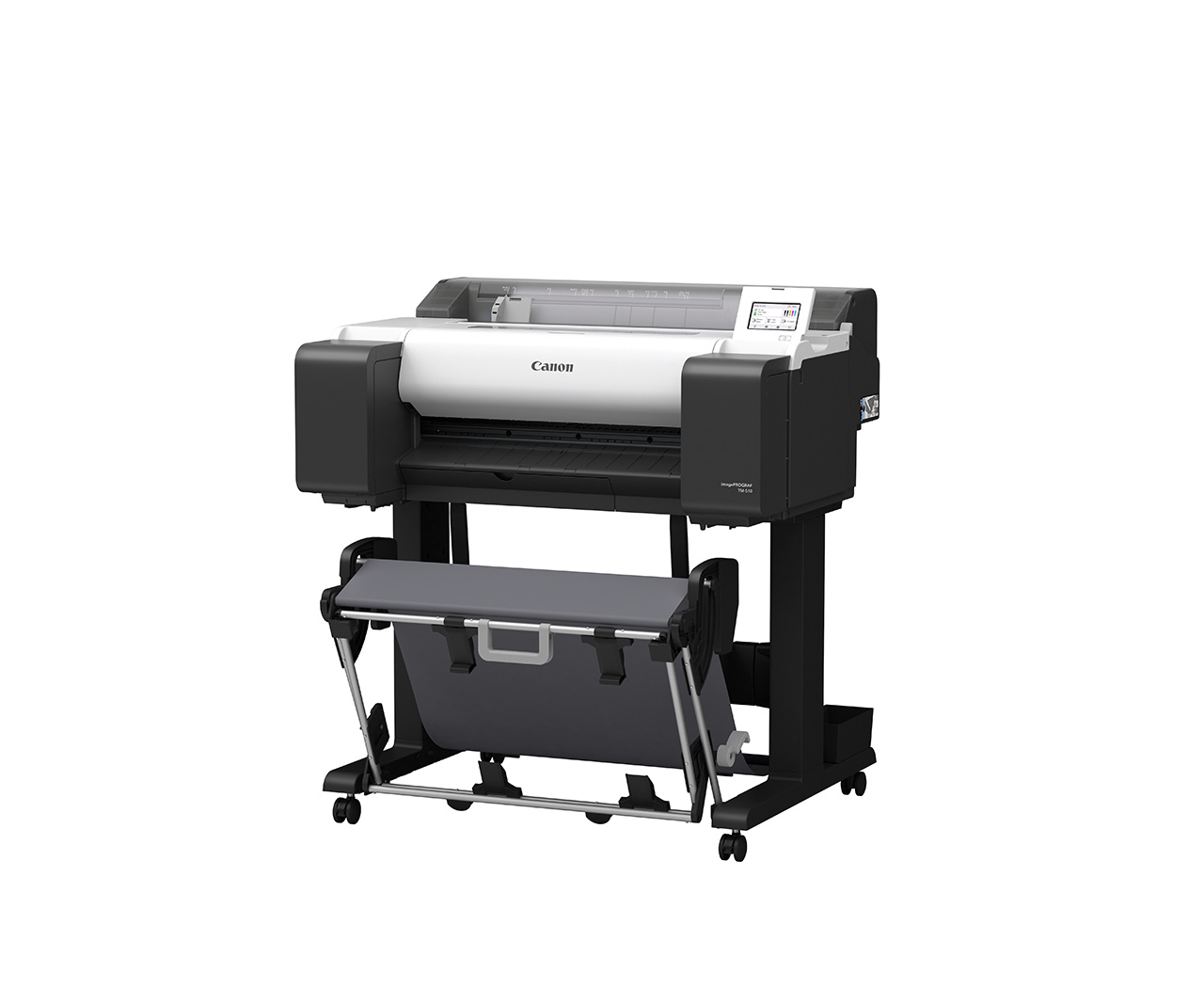

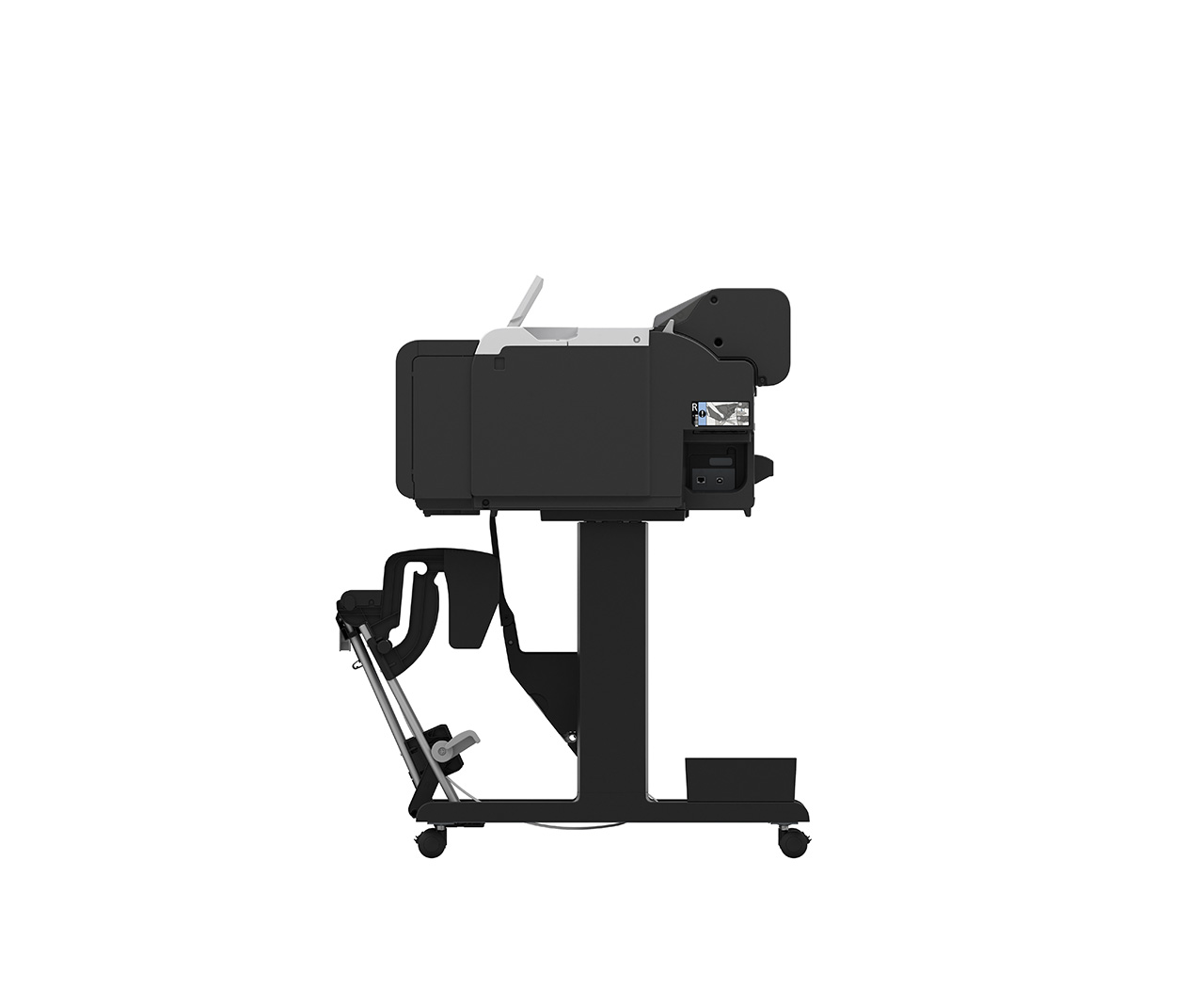

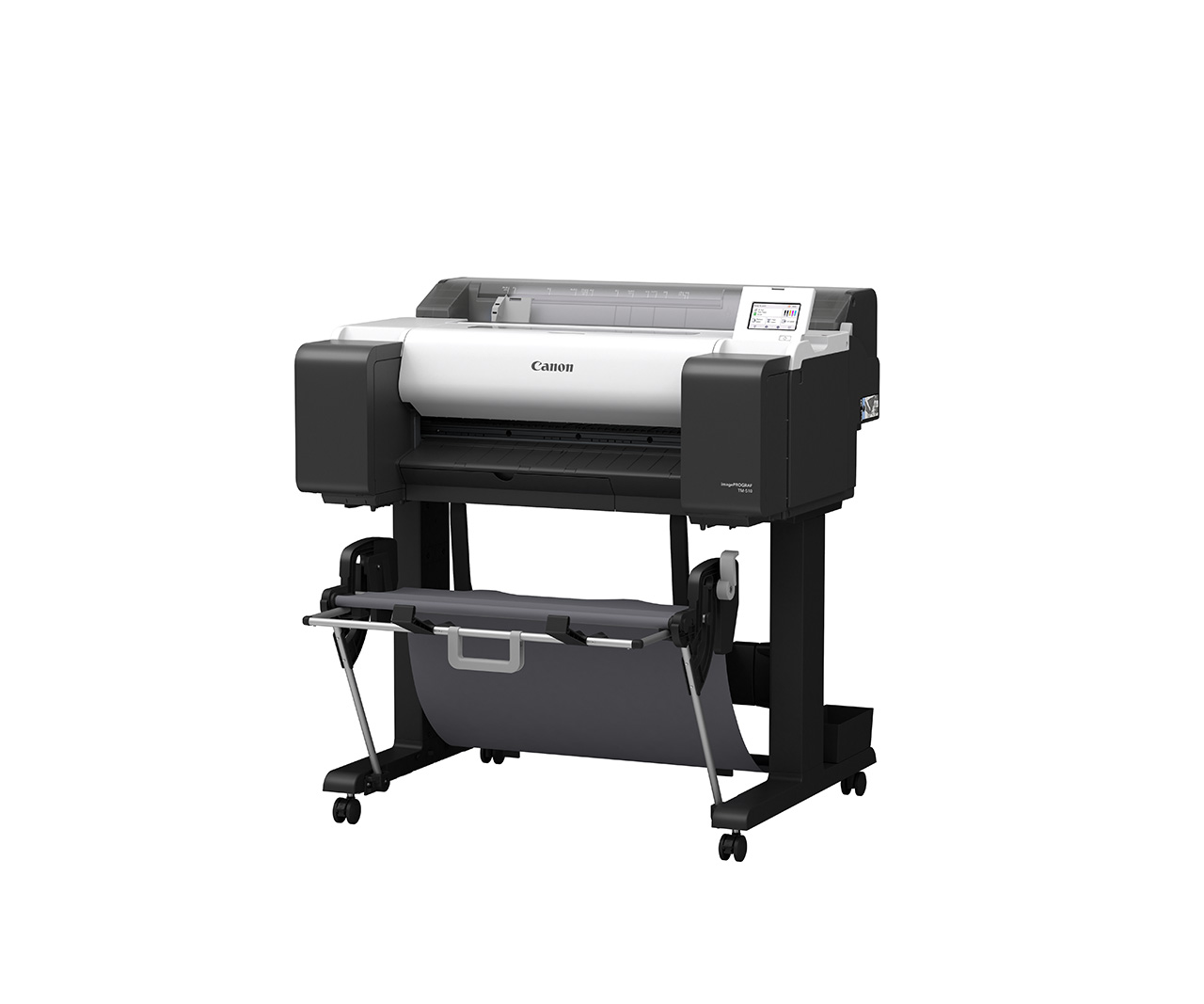

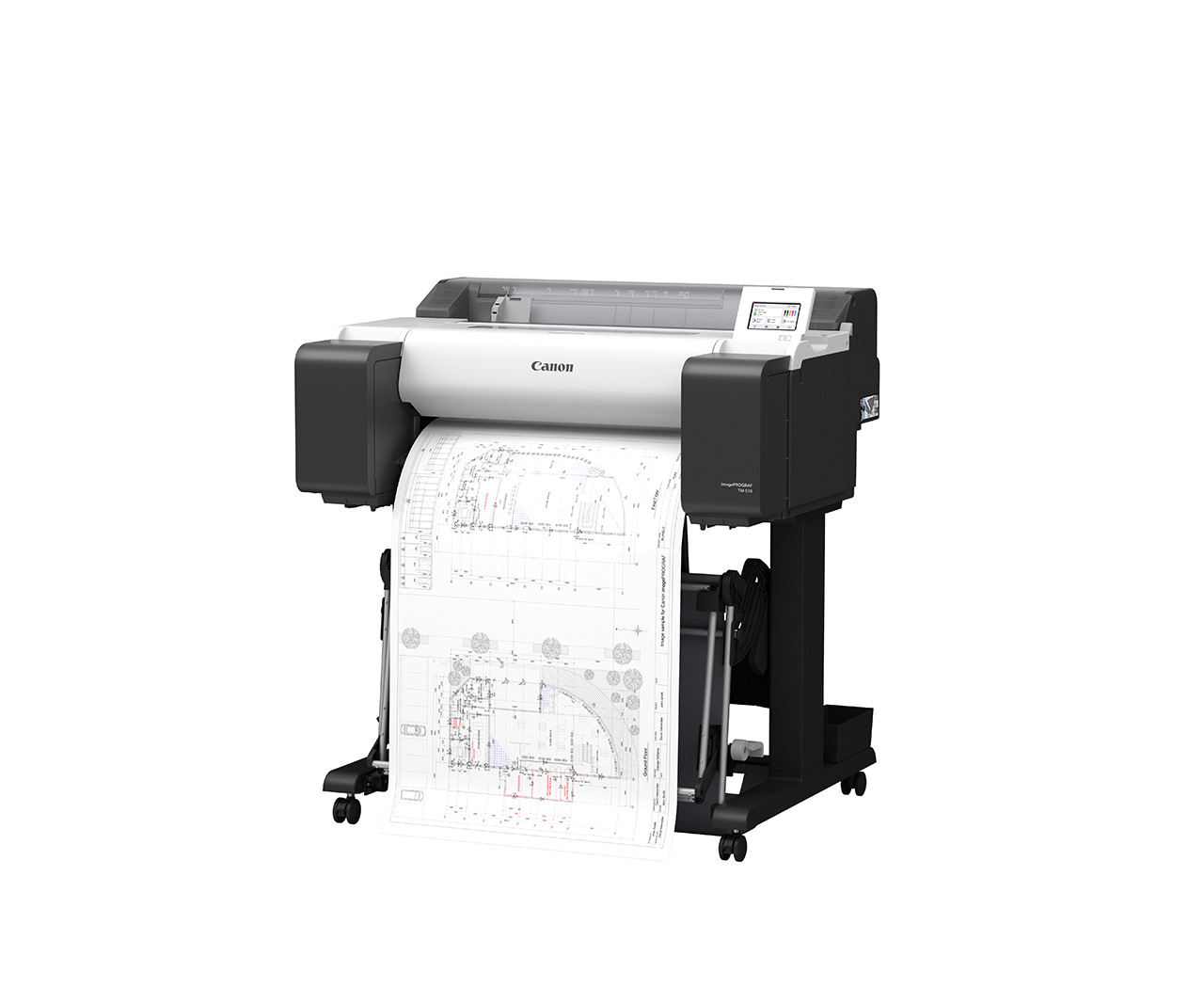

Canon TM-510 A1 Large Format Printer

Canon TM-510 A1 Large Format Printer - Image 3

Canon TM-510 A1 Large Format Printer - Image 4

Canon TM-510 A1 Large Format Printer - Image 5

Canon TM-510 A1 Large Format Printer - Image 6

Canon TM-510 A1 Large Format Printer - Image 7

Canon TM-510 A1 Large Format Printer - Image 8

Canon TM-510 A1 printer – mid-tier CAD production printer with larger 130/90ml ink tanks.

Description

Canon TM-510 A1 printer – mid-level CAD production with larger ink tanks.

5-colours LUCIA TD pigment ink

2 GB standard memory

130ml (Matte Black) / 90ml (Black, Cyan, Magenta, Yellow) starter ink tanks

Newly formulated high-density matte black ink for crisper lines and text

A great entry-to-mid level CAD production device.

Design Supply is an Accredited Canon Gold Partner with more than 35 years of experience in the large format printer market.

Design Supply offers expertise and knowledge in tailoring the exact solution for your specific application.

VIDEOS

Canon TM Large Format Printer Range

KEY FEATURES

The Canon imagePROGRAF TM-510 is Canon’s new mid-level A1 (24-inch) CAD production printer, stepping up from the TM-500 with larger 130ml/90ml ink tanks for lower running costs on busier print volumes.

Like the rest of the new TM Series, the TM-510 uses the 5-colour LUCIA TD pigment ink system with a newly formulated Matte Black ink for denser blacks and sharper fine lines and text.

Built around Canon’s PF-06 FINE print head (5,120 nozzles Matte Black, 2,560 nozzles per colour, 5-picolitre droplets), the TM-510 delivers technical drawings and posters at up to 2400 x 1200 dpi.

Automatic media detection, built-in colour calibration and a compact, front-accessible design keep day-to-day running straightforward for busy design, engineering and construction teams.

Canon positions the TM-510 as ‘a great entry-to-mid level CAD production device’ – a natural step up for teams outgrowing an entry-level printer.

SPECIFICATIONS

Ink system: 5-colour LUCIA TD all-pigment ink (Matte Black, Black, Cyan, Magenta, Yellow), newly formulated matte black. Starter tanks: 130ml (MBK) / 90ml (BK, C, M, Y).

Print head: PF-06 (FINE technology), 5,120 nozzles (MBK) / 2,560 nozzles per colour, 5pl droplet size.

Max resolution: 2400 x 1200 dpi.

Print speed: not yet published by Canon for this model – to be confirmed on UK launch.

Memory: 2GB standard.

Roll width: 8″ – 24″ (203.2mm – 610mm).

Connectivity/software: Direct Print Plus, PosterArtist, Free Layout Plus, Accounting Manager, Device Management Console and Media Configuration Tool included free. Apple AirPrint and Mopria Print Service supported.

Sustainability: ENERGY STAR certified, EPEAT 1.0 Gold registered, recycled steel and resin content in the chassis, EPS-foam-free packaging.

WHAT'S IN THE BOX

Canon imagePROGRAF TM-510 printer: 7452C003AA
Print head PF-06
Printer Stand
1 Roll holder (spool)
Installation guide
UK power cable
safety/standard environment leaflet
LFP Eur Address Sheet
Important Information Sheet
Notice for PosterArtist WEB
3″ Paper Core Attachment
Printer Stand Setup Guide
Starter ink tank set (490ml, MBK 130ml, BK/C/M/Y 90ml)
12 month warranty

Software available as free download from Canon:

Direct Print Plus
PosterArtist
Free Layout Plus
Accounting Manager
Device Management Console
Media Configuration Tool

Options:

2″/3″ Roll Holder RH2-28:
IC Card Reader Holder: RA-02: 4976COO2AA
Desktop Basket: BU-07

Consumables:

Ink Tank: MBK: PFI-323 (300ml)/PFI-123(130ml):7480C001AA/7478C001AA
Ink Tank: M: PFI-321 (300ml)/PFI-121(130ml):6269C001AA/6267C001AA
Ink Tank: BK: PFI-320 (300ml)/PFI-120(130ml):2890C001AA/2885C001AA
Ink Tank: C: PFI-320 (300ml)/PFI-120(130ml):2891C001AA/2886C001AA
Ink Tank: Y: PFI-320 (300ml)/PFI-120(130ml):2893C001AA/2888C001AA
Print Head: PF-06
Cutter Blade: CT-08
Maintenance Cartridge: MC-31

DATA SHEETS

Canon imagePROGRAF TM-510 / TM-515 Datasheet

Canon TM_Product_Flyer

MANUFACTURER INFORMATION

The TM Series carries over Canon’s proven PF-06 FINE print head and LUCIA TD pigment ink chemistry, with a newly developed high-density matte black ink for sharper lines and text. Canon’s own positioning: ‘a great entry-to-mid level CAD production device’ for architecture, engineering, construction, retail and education users.

As with all imagePROGRAF printers, Canon covers the TM-510 and its print head with a 12-month warranty.
