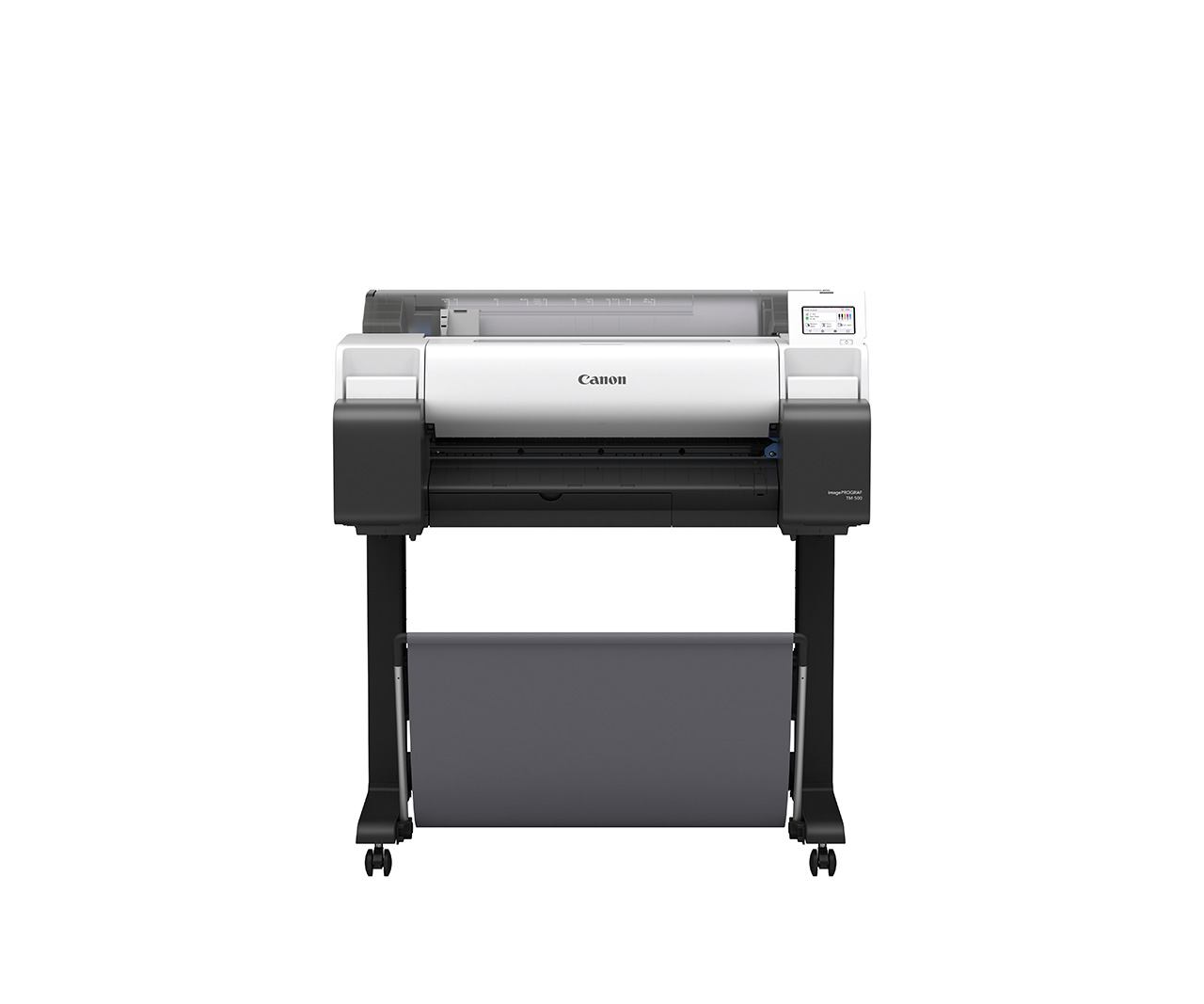

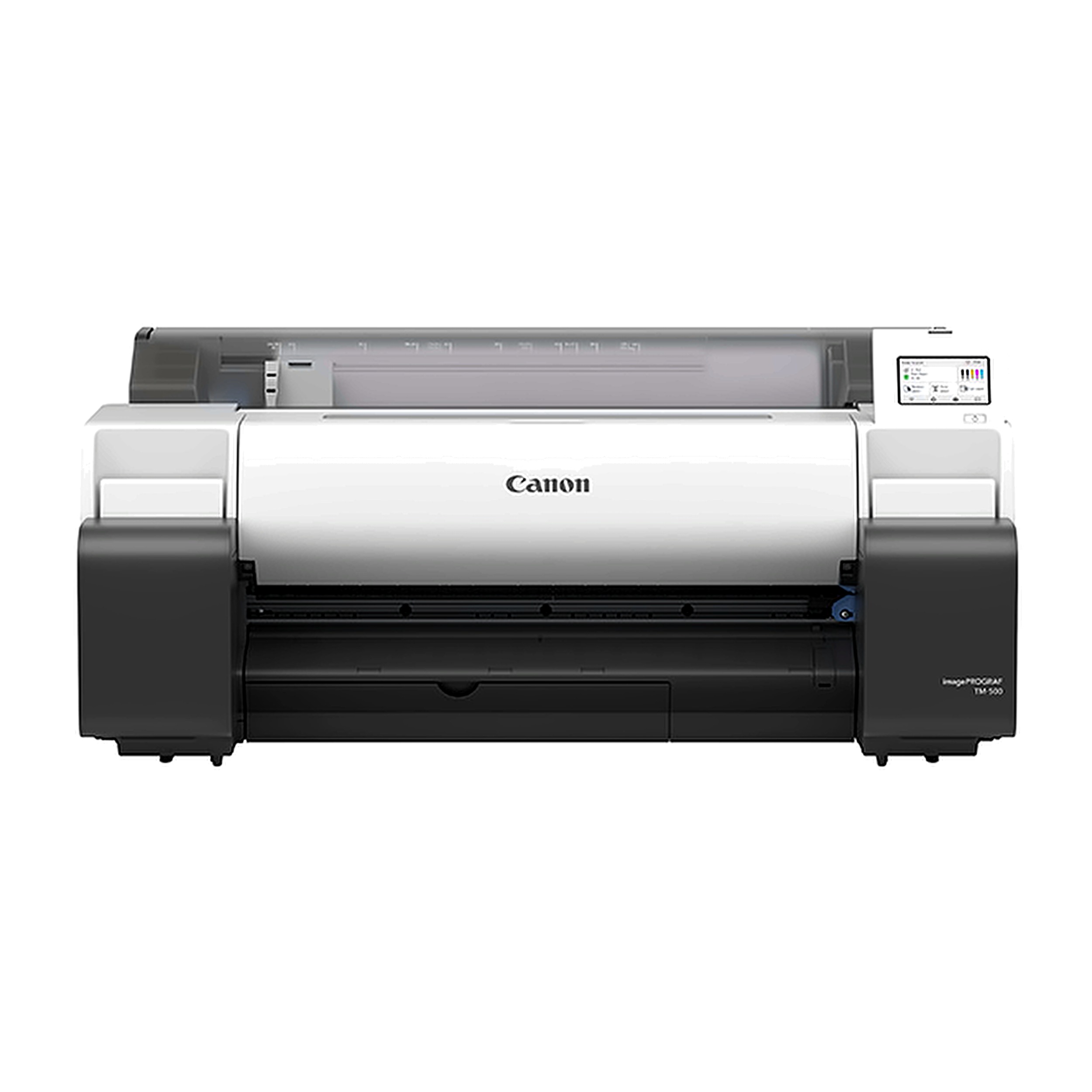

Canon TM-500 A1 Large Format Printer

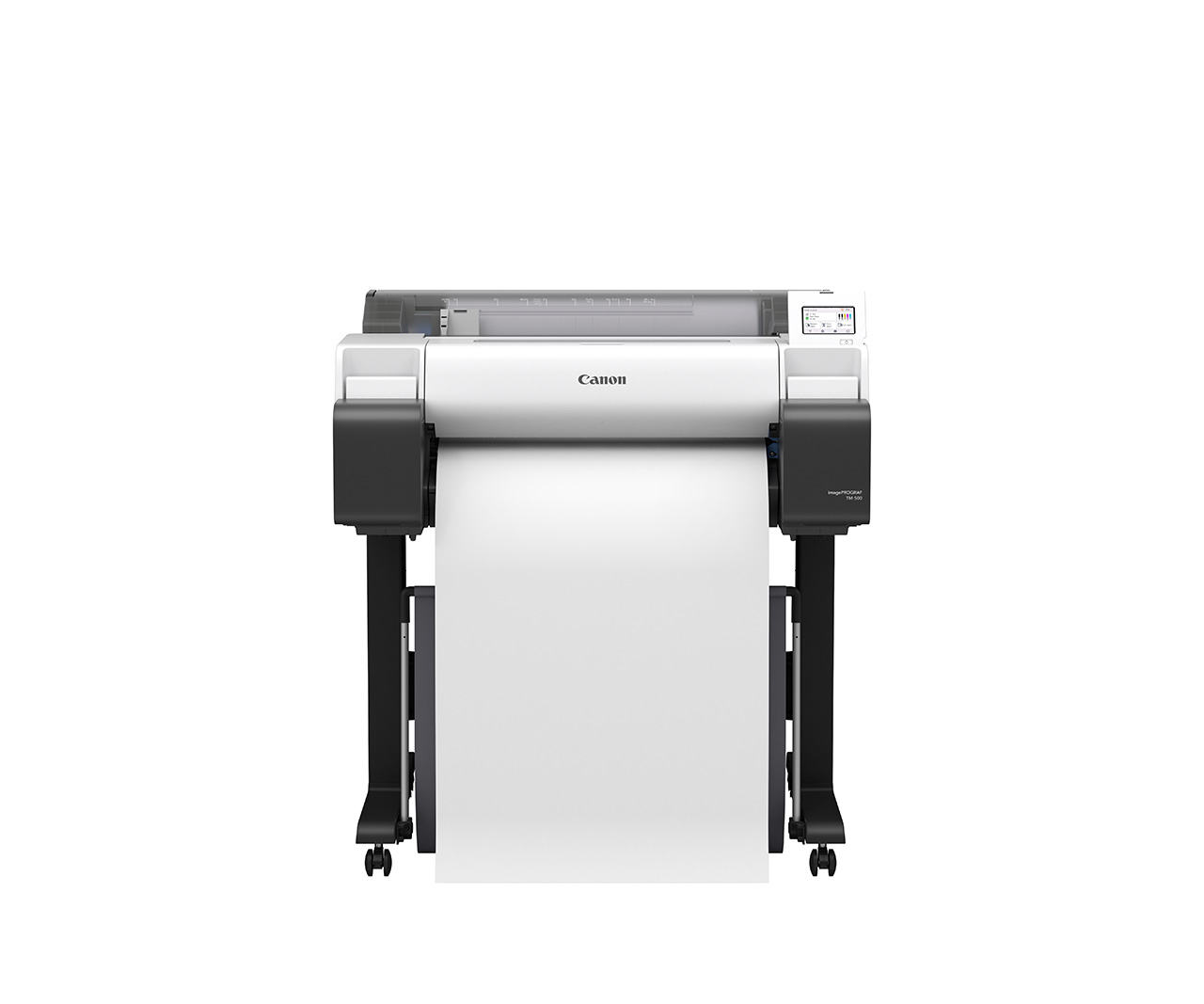

Canon TM-500 A1 Large Format Printer - Image 3

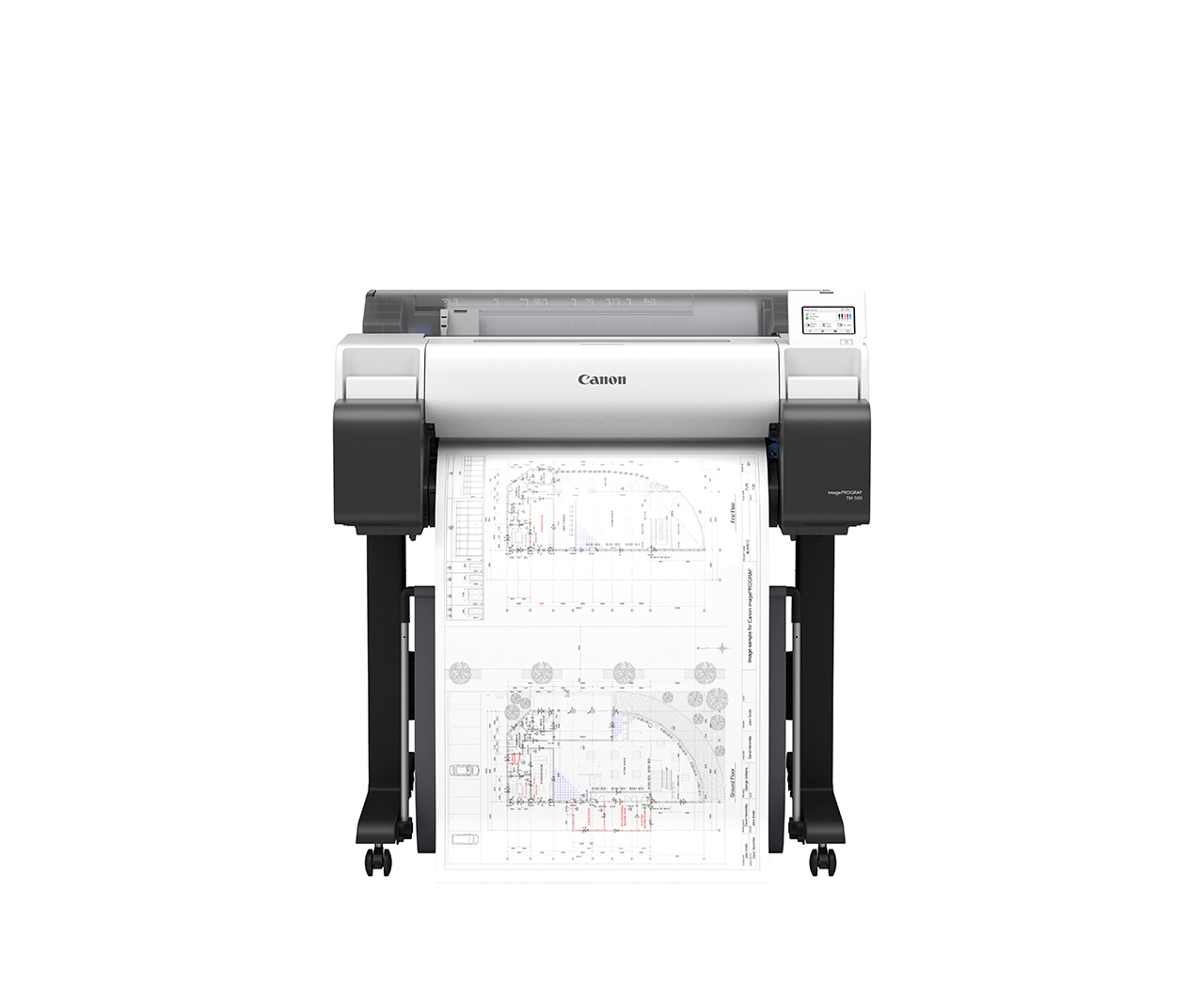

Canon TM-500 A1 Large Format Printer - Image 4

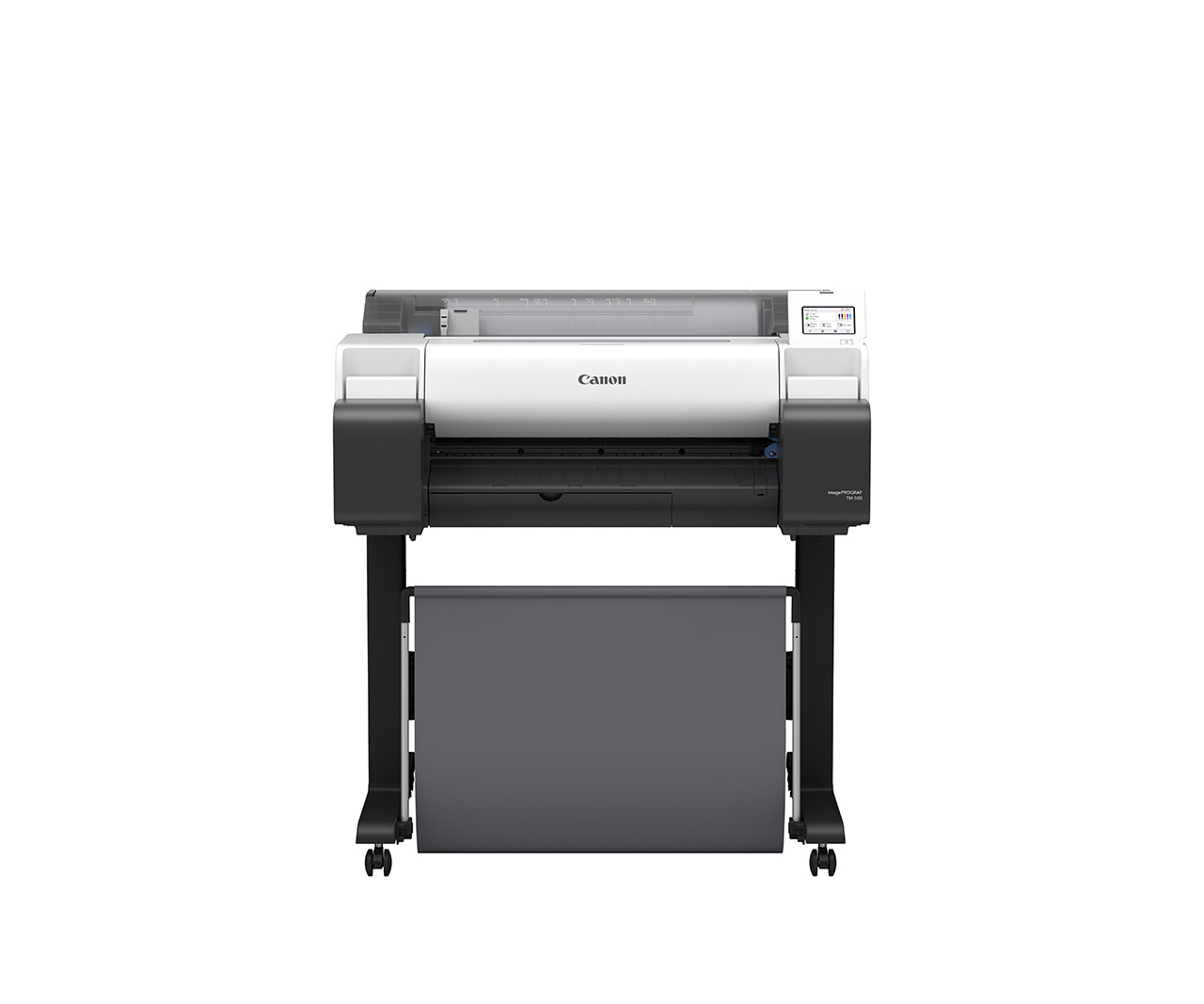

Canon TM-500 A1 Large Format Printer - Image 5

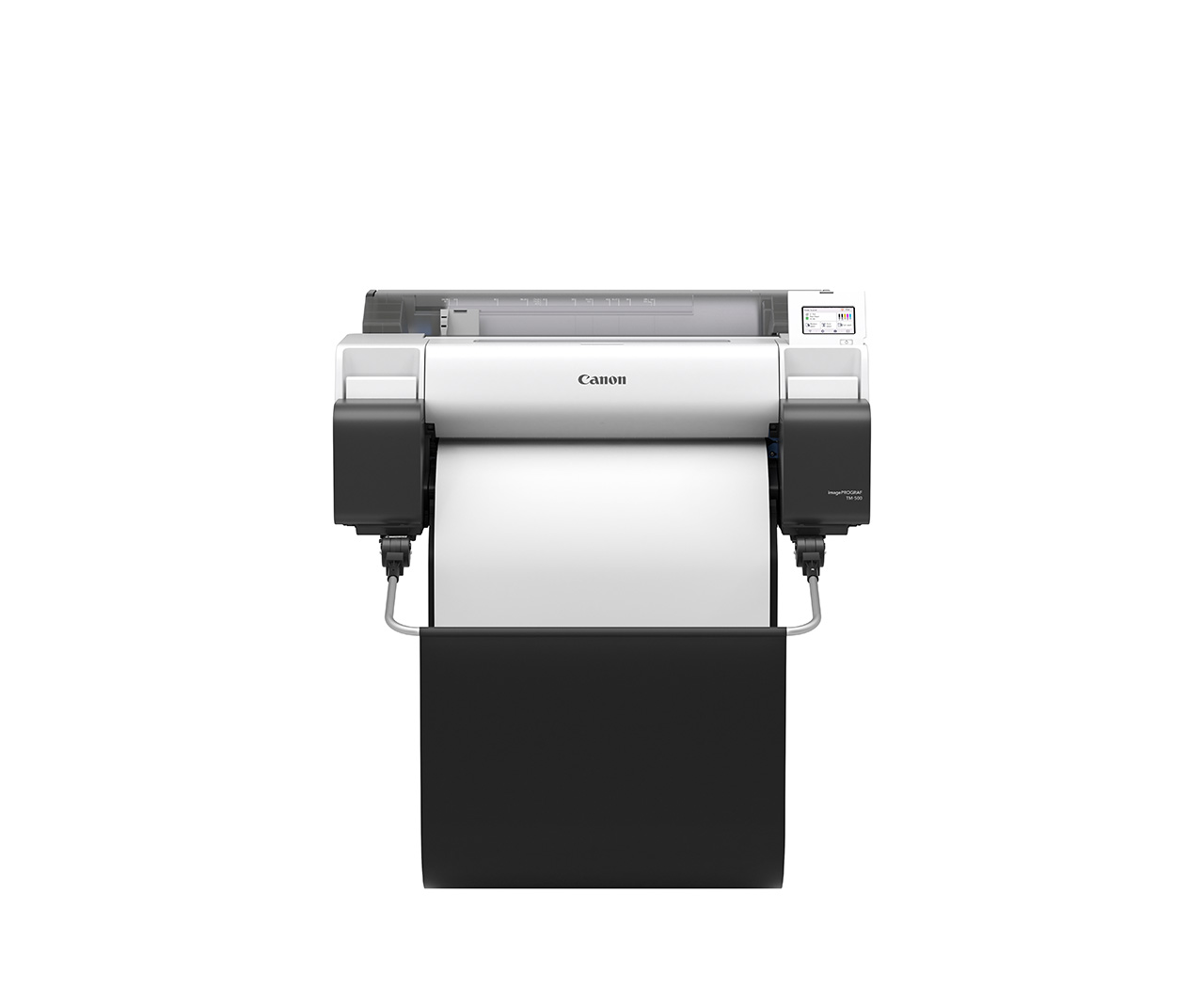

Canon TM-500 A1 Large Format Printer - Image 6

Canon TM-500 A1 printer – Canon’s new entry-level CAD production printer for technical documents and low-coverage posters.

Description

Canon TM-500 A1 printer – entry-level CAD and technical drawing production.

5-colours LUCIA TD pigment ink

2 GB standard memory

80ml (Matte Black) / 55ml (Black, Cyan, Magenta, Yellow) starter ink tanks

Newly formulated high-density matte black ink for crisper lines and text

A great entry-level device for technical documents and low-coverage posters.

Design Supply is an Accredited Canon Gold Partner with more than 35 years of experience in the large format printer market.

Design Supply offers expertise and knowledge in tailoring the exact solution for your specific application.

VIDEOS

Canon TM Large Format Printer Range

KEY FEATURES

The Canon imagePROGRAF TM-500 is Canon’s new entry-level A1 (24-inch) CAD production printer, positioned for technical documents, drawings and low-coverage posters where reliable day-to-day output matters more than high ink capacity.

The TM-500 uses the 5-colour LUCIA TD pigment ink system with a newly formulated Matte Black ink, developed to give denser blacks and crisper fine lines and small text than the outgoing TM-200 generation.

Built around Canon’s proven PF-06 FINE print head (5,120 nozzles for Matte Black, 2,560 nozzles per colour, 5-picolitre droplets), the TM-500 produces sharp CAD lines and technical detail at up to 2400 x 1200 dpi.

Automatic media detection, built-in colour calibration and a compact, front-accessible design make the TM-500 straightforward to run in a small office or busy print room, without the need for daily manual adjustment.

Canon positions the TM-500 as a great entry point into in-house CAD production – ideal for architecture, engineering and construction teams who need reliable technical drawings on demand.

SPECIFICATIONS

Ink system: 5-colour LUCIA TD all-pigment ink (Matte Black, Black, Cyan, Magenta, Yellow), newly formulated matte black. Starter tanks: 80ml (MBK) / 55ml (BK, C, M, Y).

Print head: PF-06 (FINE technology), 5,120 nozzles (MBK) / 2,560 nozzles per colour, 5pl droplet size.

Max resolution: 2400 x 1200 dpi.

Print speed: up to 2.4 D-size prints per minute (Canon’s own figure, Fast mode, plain paper – D-size/ANSI D is close to but not identical to ISO A1).

Memory: 2GB standard.

Media width: 8″ – 24″ (203.2mm – 610mm).

Connectivity/software: Direct Print Plus, PosterArtist, Free Layout Plus, Accounting Manager, Device Management Console and Media Configuration Tool all included free. Apple AirPrint and Mopria Print Service supported.

Sustainability: ENERGY STAR certified, EPEAT 1.0 Gold registered, recycled steel and resin content in the chassis, EPS-foam-free packaging.

Note: Canon’s TM-500 materials do not reference PostScript support or borderless printing for this model – if either is a requirement, please check with Design Supply before ordering.

WHAT'S IN THE BOX

Canon imagePROGRAF TM-500 printer: 7448C003AA
Print head PF-06
Starter ink tank set (300ml = MBK 80ml, BK/C/M/Y 55ml)
1 Roll holder (spool)
Installation guide
UK power cable
safety/standard environment leaflet
LFP Eur Address Sheet
Important Information Sheet
Notice for PosterArtist WEB
12 month warranty

Software available as free download from Canon:

Direct Print Plus
PosterArtist
Free Layout Plus
Accounting Manager
Device Management Console
Media Configuration Tool

Options:

2″/3″ Roll Holder RH2-28: 1153COO5AA
IC Card Reader Holder: RA-02: 4976COO2AA
Desktop Basket BU-07:
Stand Basket (Simple Basket) SD-24:

Consumables:

Ink Tank: MBK: PFI-033 (55ml): 7476C001AA
Ink Tank: M: PFI-031 (55ml): 6265C001AA
Ink Tank: BK/C/Y: PFI-030 (55ml): 3489C001AA/3490C001AA/3492C001AA
Print Head: PF-06
Cutter Blade: CT-08
Maintenance Cartridge: MC-31

DATA SHEETS

Canon imagePROGRAF TM-500 / TM-600 Datasheet

Canon TM_Product_Flyer

MANUFACTURER INFORMATION

The Canon imagePROGRAF TM-500 is part of Canon’s newly refreshed TM Series of A1 and A0 large format printers, announced globally on 15 September 2026 and launching across EMEA (including the UK) from October 2026.

The new TM Series carries over Canon’s proven PF-06 FINE print head and LUCIA TD pigment ink chemistry, with a newly developed high-density matte black ink for sharper lines and text. Canon’s own positioning: ‘a great entry-level CAD production device’ for architecture, engineering, construction, retail and education users producing technical documents, drawings and posters.

As with all imagePROGRAF printers, Canon covers the TM-500 and its print head with a 12-month warranty.
