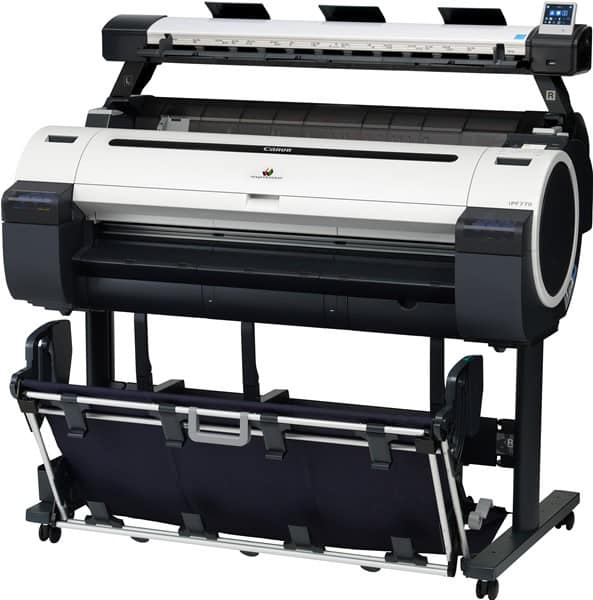

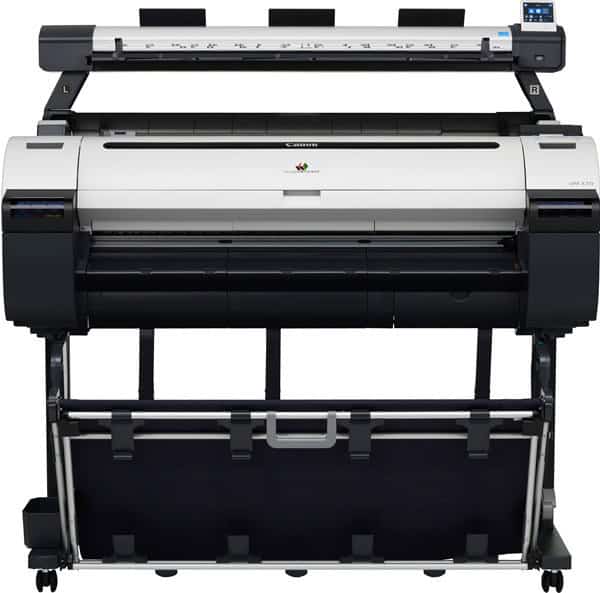

Canon imagePROGRAF iPF770 MFP L36e

Description

Market and Applications and who uses this type of large format printer

The Canon imagePROGRAF iPF770 MFP L36e is an intuitive, network compatible and lightweight large-format workflow system, which makes it simple to scan and copy featuring a space saving footprint convenient for small office environments. The Canon MFP L36e (multi-function printer) is ideal for offices in the retail, school, design, and construction sectors.

Canon MFP L24e and L36e



Design Supply, an Accredited Canon Gold Partner, works closely with Canon to provide the best solutions available to get the job done for your business and maximize your opportunities. With 27 years of experience in the large format printer market, Design Supply offers expertise and knowledge in tailoring the exact solution for your specific application.

The Canon imagePROGRAF iPF770 MFP L36e features a scan accuracy of 0.2% +/-1 pixel. In scan mode, optical resolution can be set to Draft (200 dpi), Standard (400 dpi) or Best (600 dpi). In copy mode, optical resolution can be set to Draft (300/300 dpi), Standard (300/600 dpi), and Best (600/600 dpi). The maximum media thickness for scanning is 0.5mm, and the minimum media thickness for scanning is .07mm. Scan speeds are as follows:

Colour Monochrome
COPY (inch/sec)
Draft (300/300 dpi) 1 3
Standard (300/600 dpi) 1 3
Best (600/600 dpi) .5 1.5
SCAN (inch/sec)
Draft (200 dpi) 1 3
Standard (400 dpi) .5 1.5
Best (600 dpi) .33 1

The scan modes include Scan to USB (RGB/Greyscale/BW, TIFF), Scan to PC (RGB/Greyscale/BW, TIFF, Jpeg, PDF, TiffG4), Copy (RGB/Greyscale/BW), and Copy+Archive ((RGB/Greyscale/BW, TIFF, Jpeg, PDF, TiffG4). Cloud connectivity is achieved by a link to Canon’s Direct Print & Share. The Scanner paper path is face up, rear exit and supports forward document transport only. Document return guides are included. The maximum scan width is 36 inches (914.4mm) and the maximum document width the scanner can accept is 38 inches (965.2mm). The minimum scan width is 6.2 inches (157.5mm) and the maximum scan length is 109 inches (2768mm).

Scan App Le, included with the Canon imagePROGRAF iPF770 MFP L36e, sets scan directory and files types and can be run on up to 15 PC’s. Suggested specifications for a PC to run the iPF770 MFP L36e are: Windows 7/8/10 – 32bit, GB Ethernet, Intel i3, i5 or i7 processors, 4 GB RAM, SATA 6.0Gbit/sec USB3 on the motherboard and SATA 6.0Gbit 7,200 rpm HDD controller. For minimum PC requirements, please check with our specialists at Design Supply. Scanning with the iPF770 MFP L24e is secure, as the unique scanner model is supported by Scan App Le only and scanning cannot be started remotely. Scan App Le is available in English, French, German, Italian, Polish, Portuguese, Russian, Spanish and Czech languages. The maximum number of supported iPF printers is 15.

Network Modes for the scanner include Plus (default) and Standard. The Plus Network Mode uses full network capability and Scan App Le to improve functionality and productivity. Copy sends data via Ethernet to Scan App Le which acts as a print spooler to free up the scanner sooner. The Standard Network Mode prevents the scanner exceeding the network’s data rate capability. Copy uses on-board memory as a buffer, and then saves TIFF files only. Scan to PC uses on-board memory as a buffer before sending data via Ethernet to the Scan App Le. Scan to USB uses the Scan App Le to convert file types to PDF/JPG, and setting the correct date before saving to the USB stick. Scan to PC sends data via Ethernet directly to the Scan App Le to free up the scanner sooner.

The Canon imagePROGRAF iPF770 MFP L36e printer includes 256MB standard memory and accepts roll paper from 10″ to 36″ (254 – 914.4mm) and cut sheet from 8″ to 36″ (203.2 – 914.4mm). The top loading manual feed and roll unit can accept media from .07mm – .8mm thick and the maximum printable length of printing for roll media is 18m, cut sheet: 1.6m. Printer OS compatibility includes Windows32 bit (XP, Vista, 7,8,8.1,10,Server 2003/2003R2,Server 2008), Windows 64 bit (Vista, 7,8,8.1,10, Server 2003/2003R2, Server 2008/2008R2,Server 2012/2012R2), and Mac (OSX-10.6.8 – 10.10x). Print speeds for the MFP L36e are as follows:

Mode AO Plain Paper AO Coated Paper
Fast/Economy 0:28 min 0:43 min
Fast 0:28 min 1:17 min
Standard 0:42 min 2:05 min

There is a complete range of Canon and third party media compatible with the Canon imagePROGRAF iPF770 MFP L36e, available from Design Supply’s media specialists whose expertise can help you determine the best solutions for your particular printing needs. As you would expect from Canon, reliable performance is a given. For and added peace of mind, Canon imagePROGRAF MFP solutions and print heads feature a 12-month warranty.

KEY FEATURES

Key features of the Canon imagePROGRAF iPF770 MFP L36e

The Canon imagePROGRAF iPF770 MFP L36e is a simple PC-less scan-to-copy operation at an affordable cost with no PC required. Flexible workflow options include scanning direct to a network, the cloud or a USB memory stick, convenient to carry and share scanned data. The Canon MFP L36e features easy operation via the touch screen control panel with a user-friendly interface for quick and easy navigation. Large-size copies are made with simple operation. Scanning, copying and printing documents have never been easier.

The Canon imagePROGRAF iPF770 MFP L36e features a slender 36″ footprint which requires minimal office space and enables easy set up. The Canon iPF770 MFP L36e scanner uses Canon SingleSensor (CIS) scanning technology, with multiple LED illumination for excellent line definition and accuracy. Scanning at up to 3.0 inches per second, the Canon MFP L36e scanner has an optical resolution of up to 600 dpi, scans documents up to 36″ wide and can scan up to 50″ or 1.27m in length. Scanned documents can be saved to PDF, JPEG, and/or TIFF file formats, either to a USB memory stick (TIFF, RBG, and Greyscale) or to a network via a PC using an Ethernet connection.

The Canon imagePROGRAF iPF770 MFP L36e solution features the Canon iPF770 printer, which delivers exceptional quality and accuracy with Canon’s 5-colour dye and pigment reactive ink system which produces the sharpest, thinnest lines. The Canon iPF770 features 2400 x 1200 dpi and produces A1 draft prints in just 28 seconds. Hot Swap 130ml ink tanks reduce the frequency of ink replacement and the cost per millilitre of ink, and support high volume continuous printing, reducing total cost of ownership. Hot Swap ink tanks allow ink cartridges to be replaced during printing for maximum productivity. Improved magenta ink expands the colour gamut and produces clearer red text and lines in CAD drawings, architectural renderings, posters and POS displays.

MORE INFORMATION

Canon imagePROGRAF MFP wide format scan, copy, and print solutions use a number of advanced Canon proprietary technologies to achieve fine lines, small text and highly detailed graphics produced with incredible accuracy and sharpness.

The Canon SingleSensor (CIS) with multiple LED illumination produces exceptional scan quality with accurate, consistent colour and more control over details in the shadows and highlights. Scan accuracy is 0.2% +/-1 pixel. In scan mode, optical resolution can be set to Draft (200 dpi), Standard (400 dpi) or Best (600 dpi). In copy mode, optical resolution can be set to Draft (300/300 dpi), Standard (300/600 dpi), and Best (600/600 dpi).

The imagePROGRAF MFP Solutions incorporates Canon’s proprietary FINE (Full-photolithography Inkjet Nozzle Engineering) print-head technology for 5-colour imagePROGRAF printers featuring a total of 15,360 nozzles into a 1″ high density print head. Bi-directional printing design of the imagePROGAF printers means print times are significantly faster than conventional print systems which require multiple passes for each line to compensate for uneven droplet size and placement on the paper. An innovative ink-nozzle manufacturing method results in precisely uniform 4 picoliter droplets resulting in 2400 x 1200 dots per inch (dpi) and outstanding print performance.

Canon’s range of imagePROGRAF printers feature a 5-colour dye/pigment reactive ink system designed specifically for CAD and GIS, and produces the sharpest, thinnest lines. A minimum line width of 0.02mm can be achieved with a range accuracy of +/- 0.01%. Featuring new magenta ink, Canon’s latest imagePROGRAF printers make reds even more vibrant. When black ink intersects with coloured ink (for example, words printed on a colour background) the black and cyan inks induce a chemical reaction that prevents black from bleeding into the colours. This unique formulation improves ink adhesion to the media and minimises colour bleeding. This means clearer text, smoother curves, and sharp fine lines even on uncoated technical papers. Using reactive inks also improves scratch and marker resistance so prints are far more durable than those printed with conventional dye inks

The range of imagePROGRAF printers utilise two types of black ink for the best possible results on all types of media. For photo-type a black ink (BK) is used and for high contrast prints on matte paper, a matte black (MBK) is used. This process ensures smooth graduations across every media type and is highly efficient as the relevant ink is automatically selected for each media type.

Canon’s advanced L-COA (Large Format printer Common Architecture) image processor delivers faster high-quality output and print optimization. L-COA helps your printer carry out the most complex print jobs – where files can often exceed 200MB – with ease.



WHAT'S INSIDE?

Contents:

  • L36e scanner
  • Printer mounting brackets, fixings, & 3mm tool
  • 1 Document return guide
  • Calibration target
  • CD for Le Scan App Software (included PDF documentation: L24e Scanner User Manual and Icon Guide per language and Quick Start Guide)
  • L36e Scanner Quick Start Guide
  • Ethernet cable (2 meter)
  • Power Supply Regional – Mains power cord(s) (2 meter)
  • 2 Feet for desktop use
  • 2 Paper edge guides and paper refeed preventers
  • Canon imagePROGRAF iFP770 printer
  • 1 x hex wrench screwdriver
  • 1 x print head PF-04
  • 1 x set starter ink tanks (C,M,Y,BK, 2 x MBk – 90 ml)
  • 3 inch core adapter
  • Setup guide
  • Basic guide manual CD ROM
  • User software CD-ROM (Mac & Win)
  • Carrying caution leaflet
  • A2 calibration sheet
  • Media sample-sheets
  • PosterArtist Lite leaflet
  • PosterArtist Lite software CD-ROM
  • EU/UK power cord
  • Safety/standard environment leaflet
  • 12 months on-site warranty

Software included:

  • Canon Printer Driver
  • Status Monitor/Print Monitor
  • Print Driver ExtraKit – Free Layout and iR enlargement Copy
  • Printer Driver Optimization Module for AutoCAD
  • Media Configuration Tool
  • PosterArtist Lite (PC only)
  • Print Plug-in for Microsoft Office (PC only)
  • Direct Print & Share
  • Custom Installer Creation Tool

Options:

  • Roll Holder Set for iPF670 (2-inch core spindle with 3-inch media tube attachment and borderless printing spacer): RH2-26
  • Stand/basket: ST-27

Consumables:

  • Ink Tank 130ml: PFI-107 (MBK,BK,C,M,Y)
  • Print Head: PF-04
  • Maintenance Cartridge: MC-10
