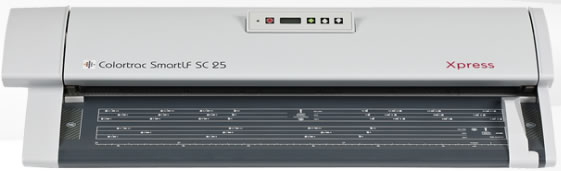

Colortrac SmartLF SC 25 Xpress Large Format Scanner (25 inch)

Description

The Colortrac SmartLF SC Xpress Series wide format scanners are the newest general purpose solution for technical imaging and colour graphics in the Technical & CAD Drawing Office, Construction, Building Services, Facilities Management, Military, Electronic Document Capture and Small Office/Home Office environments. Available in 25″ (SmartLF SC 25 Xpress), 36″ (SmartLF SC 36 Xpress) and 42″ (SmartLF SC 42 Xpress), the Colortrac Smart LF SC Xpress Series is available in three configurations, m (monochrome), c (colour), and e (enhanced colour).

Whether an Architect, Engineer, GIS professional, Archivist, Administrator, you can scan engineering drawings, blueprints, architectural renderings, maps, site plans and much more, with the Colortrac SmartLF SC Series and achieve excellent image quality and productivity. No need to send out for scans, as they can be done in house, quickly, and at your own convenience.

Design Supply, an Authorised Colortrac Reseller, works closely with Colortrac to provide the best solutions available to get the job done for your business and maximize your opportunities. With more than 27 years of experience in the large format market, Design Supply offers expertise and knowledge in tailoring the exact solution for your specific application.



VIDEOS

Colortrac SmartLF Scanners: SingleSensor

Colortrac SmartLF SC Series Scanners: Image Quality

Colortrac SmartLF SC Series Scanners: Productivity

Colortrac ‘ScanOnce’  Feature

Colortrac SmartWorks Pro/TOUCH Software: Three Product options (Scan, Copier, Scan and Copy) and demo mode

Colortrac SmartWorks Software: User Pre-Sets

Colortrac SmartWorks Software: Printing to a Hot Folder

KEY FEATURES

The Colortrac SmartLF SC Xpress Series wide format scanners are designed to scan images fast at the optimum resolution required to capture the original image detail without compromising quality. Colortrac’s SingleSensor technology and ClearView instant-on bi-directional LED illumination system produce up to 1200 dpi of uncompromising resolution. Whatever condition of the original, SingleSensor produces unrivalled accurate image scans, even if the original is folded, creased or crumpled. ClearView’s even lighting prevents shadows and creases and combined with the Colortrac’s SureDrive roller feed system, provides even pressure across the full width of the document, pushing it against the scan glass at the critical moment of capture. The Smart LF SC Series supports colour management workflows and can capture a colour gamut that far exceeds the sRGB colour spaces, used as an industry recognised standard.



The Colortrac SmartLF SC Xpress Series is ideal for boosting productivity. In addition to fast scan speeds, even at high resolution, the SC Xpress Series features the new SuperSpeed USB 3.0 and optimised USB 2.0 digital interfaces. SuperSpeed data transfer means there are fewer communication bottlenecks and you can always scan the largest documents in the greatest detail fast. Colortrac’s ClearView LED lighting system uses instant-on low energy illumination technology and is Energy Star qualified.



Colortrac’s ScanOnce technology means no need to preview scans to adjust settings for a rescan because all editing is applied after the scan. ScanOnce saves the full dpi and allows the user to zoom, pan and edit on screen. The large staging platform makes loading documents into the scanner fast and easy. The SmartLF SC Xpress Series is designed specifically to auto-size documents face up in the centre of the scanner, which helps the operator see what they



The Colortrac SmartLF SC Xpress Series includes SmartWorks Touch software and TWAIN driver. SmartWorks Touch is simple-to-use software for scanning, copying and printing. SmartWorks Touch features an intuitive interface designed for touch-screens or mouse and keyboard operation. SmartWorks Touch saves scans to PDF, PDF/A, MPDF, JPEG, JPEG2000, PNG, AutoCAD DWF, TIFF, TIFF LZW, TIF-G4, MTIFF, PCX, and BMP. Batch scanning, full preview and all Windows driven printers are supported with SmartWorks Touch. Colortrac’s WinSync optimises windows driver technology that allows you to easily connect Colortrac scanners to your PC. The TWAIN driver provides basic control over scanner colour mode, resolution and paper sizing settings. A compatible TWAIN application is required.

SPECIFICATIONS

The Colortrac SmartLF SC Xpress Series features an optical resolution of 1200 dpi. Scan speeds are as follows:

Resolution Colortrac SmartLF SC Xpress models
200 dpi 25m 25c 25e 36m 36c 36e 42m 42c 42e
8-bit grayscale and mono, inches/1 second 13 13 13 13 13 13 13 13 13
8-bit grayscale and mono, A1/hour 1418 1418 1418 1418 1418 1418 1418 1418 1418
24-bit colour, inches/1 second na 6 12 na 6 12 na 6 12
24-bit colour, A1/hour na 654 1308 na 654 1308 na 654 1308

The three configurations; monochrome, colour, and enhanced colour, are on-site software upgradable, so the Colortrac SmartLF SC Xpress Series can be upgraded quickly and easily as your requirements change.

The Colortrac SmartLF SC 25 Xpress scans up to 25 inches/63.5cm and can take a maximum media width up to 27 inches/68.6cm. The Colortrac SmartLF SC Xpress Series accepts media up to 0.08 inches (2.0mm) thick. The minimum media size the Colortrac SmartLF SC Xpress Series can scan is 6 x 6 inches/15.2 x 15.2 cm. Maximum image length for scanning is 96 inches (2438mm) using SmartWorks Touch software (included). The Colortrac SmartLF SC 25 Xpress has a maximum of 30,000 pixels.

Colortrac SmartLF SC Xpress Series incorporates propriety technologies unique to Colortrac scanners. These technologies include SingleSensor, ClearView, SureDrive, Firefly and WinSync. Colortrac’s SingleSensor scanning is a patented technology which combines contact image sensors (CIS) in a robust, single-piece unit, enabling a significantly higher optical quality and dramatically increasing pixel alignment stability. The SmartLF SC Xpress Series has 30,000 short image-path sensors and a custom designed advanced bi-directional LED lighting system. The bi-directional lighting system, called ClearView, combines 96 to 144 extra long-life switchable red/green/blue LEDs across the full width of the scanner for optimum illumination and instant-on scanning capability. SingleSensor and ClearView work together to reduce optical errors to a minimum ensuring all scan and copy data is of the highest possible colour and dimensional accuracy. Because each sensor is on the same imaging line combined with bright, even light from the LEDs across the full width of the scanner, scans have a wide and consistent colour gamut across the full width of the document. Colortrac’s SingleSensor is colour calibrated and has a scan accuracy of +/-0.1% +/-1 pixel.

Colortrac’s SureDrive system is an innovative active pressure roller that gently presses the document against the SingleSensor. The single, full-width, motor-driven hold -up roller eliminates variations in document speed or feed inconsistencies, eliminating the possibility of misaligned data. The soft pressure roller running the full length of the SingleSensor allows the scanner to dynamically respond and actively work against the optical disturbances caused by document lift and paper creasing. Shadow effects in folds of creased documents are also reduced. This technology ensures that delicate or fragile media such as newspapers and old blueprints can be safely and accurately scanned without problem. WinSync means the Colortrac Smart LF SC Xpress Series is compatible with Windows 10, 8, 7, and Vista.

Colortrac’s Firefly technology refers to the new SuperSpeed USB 3.0 and optimised USB2.0 interface. The SmartLF SC Xpress Series scanners are the first to incorporate the new SuperSpeed USB 3.0 digital interface. With a dramatic x10 increase in internal data transfer rates, the new USB 3.0 interface works at up to 5GB/sec. In terms of speed of scan data saved to the computer, this represents more than double the previous rate of 28MB/sec (USB2) to 65-85MB/sec for USB 3.0. SuperSpeed USB 3.0 is unique to Colortrac and allows the SmartLF SC Xpress Series to work at full speed using higher resolutions on wider documents. The SmartLF SC Xpress Series has enhanced USB2 circuitry which achieves a 25% improvement in data speed (35MB/sec) above the previously recognised industry average transfer rate of 28 MB/sec for a normal USB2 equipped PC. Higher data transfer give the SmartLF SC Xpress Series user the freedom to scan wider and at higher resolutions without compromising productivity, making it ideal for large amounts of archiving.

Optional accessories for the Colortrac SmartLF SC Xpress Series include: a Document Return Guide, for retrieving scanned documents to the front; Floor Stand with Catch Basket; PC, Monitor, Keyboard and Mouse Mounting Kit for Floor Stand; Repo Stand; and Document Carrier Sheets.

As you would expect from Colortrac, reliable performance is a given. For added peace of mind, Colortrac SmartLF SC Xpress Series wide format scanners feature a 2 year next day on-site warranty. Count on dependable support to create the best image possible from Colortrac and Design Supply. Ask us at Design Supply, and we can tailor the best solution possible for your needs.



WHAT'S IN THE BOX

Colortrac SmartLF SC Xpress 25 scanner: [choose m (monochrome), c (colour), e (enhanced colour )version]

Calibration Sheet

2 meter USB Cable

Power cord

2 years Next Day On-Site Warranty

Software included:

SmartWorks TOUCH software

TWAIN driver

Options:

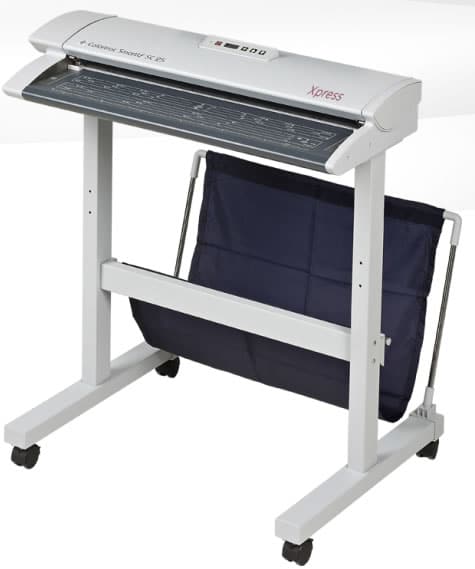

Floor Stand- includes Paper Catch Basket

PC, Monitor, Keyboard and Mouse Mounting Kit for Floor Stand

Repro Stand – adjustable height to fit most popular Large Format Printers. Includes Keyboard tray, PC and Flat Screen Monitor Mounting Kit

Document Return Guide for front-feed, front-return capability

Scanner upgrade tool if requirements change and colour and highest colour scan speed required for c (colour) or e (enhanced) models

SmartWorks Pro Software – two options: Scan Only or Scan & Copy

Extended Warrany options:

1 Year Extended Warranty, at time of purchase

1 Year Extended Warranty, within 2 years of purchase

3 Year Extended Warranty, at time of purchase

3 Year Extended Warranty, within 2 years of purchase

DATA SHEETS

Colortrac SmartLF SC 25 Xpress Large Format Scanner Data Sheet

Colortrac Smart Works TOUCH software Data Sheet

Colortrac Smart Works Pro software Data Sheet

MANUFACTURER INFORMATION

Colortrac is a UK-based pioneer of large format scanning and a leading innovator in affordable colour and monochrome wide format scanning technology. Colortrac was founded in 1989 to develop digital large format scanning solutions for the oil exploration industry. Ten years later, in 1999, Colortrac acquired US-based ANAtech and Tangent Imaging Systems. Colortrac has a legacy of innovation and continues to develop first class, patented wide format scanning technologies developed since the early 1980s.

Colortrac launched thick media handling in 1998, LED lighting to improve illumination and output in 2007 and USB 3.0 connections between computer and scanner to speed connections in 2012. In 2014, Colortrac was the first to introduce what it calls a full-width scanner, featuring a SingleSensor that makes the scanners easier to use, with less need for calibration. Users are able to walk up to a scanner, do a scan and walk away with no formal training. In 2016, Colortrac introduced the first truly portable, lightest, easiest to use, lowest cost large format scanner on the market.

Colortrac offers a full range of large format scanning solutions incorporating first class technological breakthroughs. Colortrac’s SingleSensor/CIS is a major step forward in large format image capture and a huge improvement on staggered CIS technology. SingleSensor features single straight-line scanning accuracy from CCD scanners with low cost of CIS technology and is at the heart of Colortrac’s CIS scanners. SingleSensor requires virtually no routine maintenance by users and provides high definition, exceptional colour and dimensional accuracy, combined with ultra-fast scan speeds.

Colortrac has also concentrated on LED illumination for scanning, providing long life, low energy consumption with even, balanced lighting for high fidelity image reproduction. Colortrac scanners feature soft, motor-driven rollers superb for thin paper handling or thick mounted board handling.

Additionally, Colortrac have combined a number of key technologies, called ScanOnce, FireFly, SureDrive, ClearView and WinSync to create an award winning line of large format scanners. ScanOnce is efficient scanning and copying workflow, FireFly is SuperSpeed USB3 compatibility, SureDrive is a single driven media pressure roller, ClearView is the innovative dual LED lighting and WinSync is an optimised Windows driver technology.

Today, Colortrac offers 25″, 36″, 42″, and 56″, MFP ready, enhanced, colour and monochrome, SingleSensor CIS and CCD scanners, and SmartWorks Pro and SmartWorks Touch software. Headquartered near Cambridge, UK, Colortrac has offices in China, USA, Japan, Singapore and Mexico. In 1999, Colortrac received the Queen’s Award for Export Achievement and in 2012, received the Queen’s Award for International Trade.
